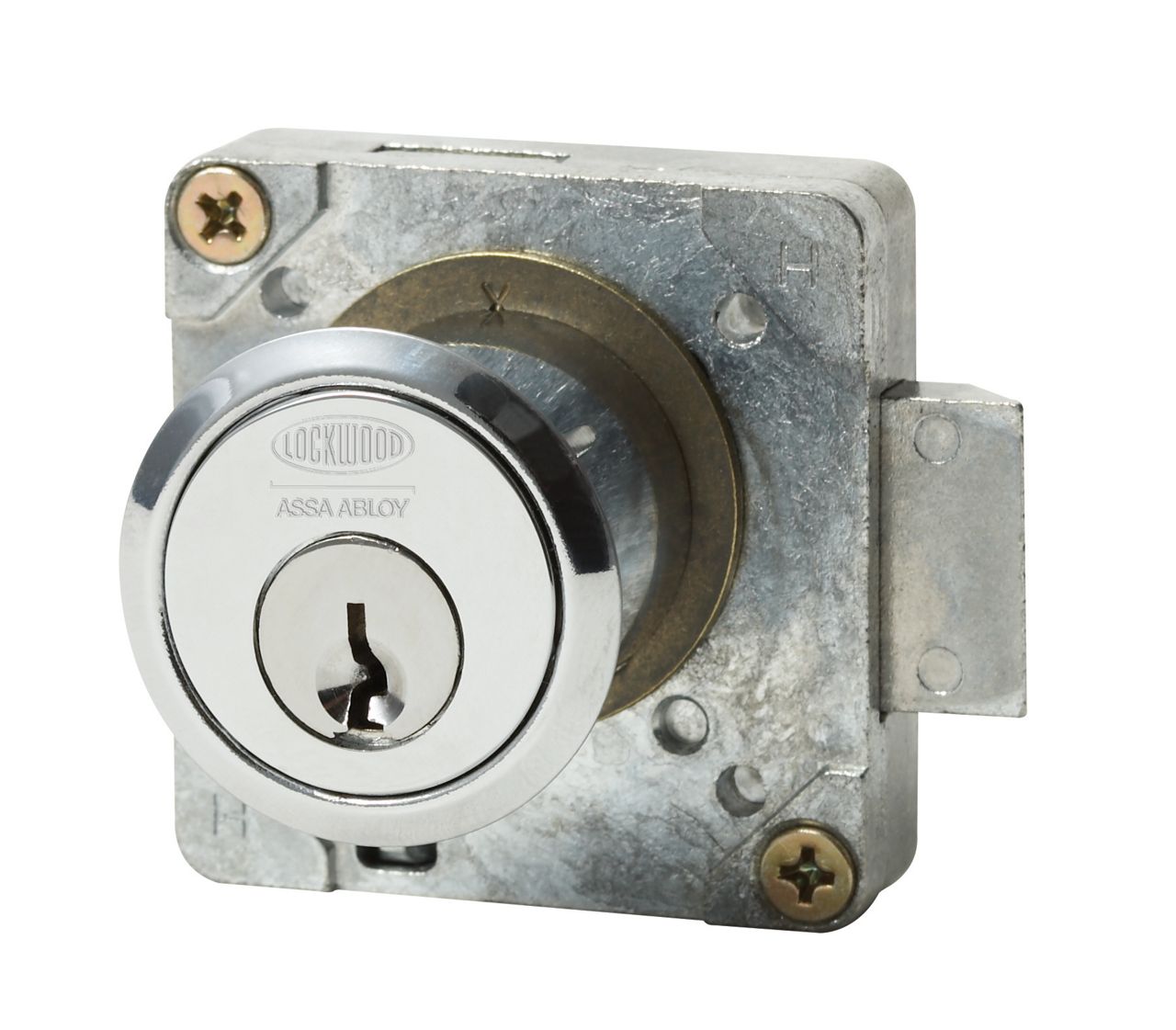

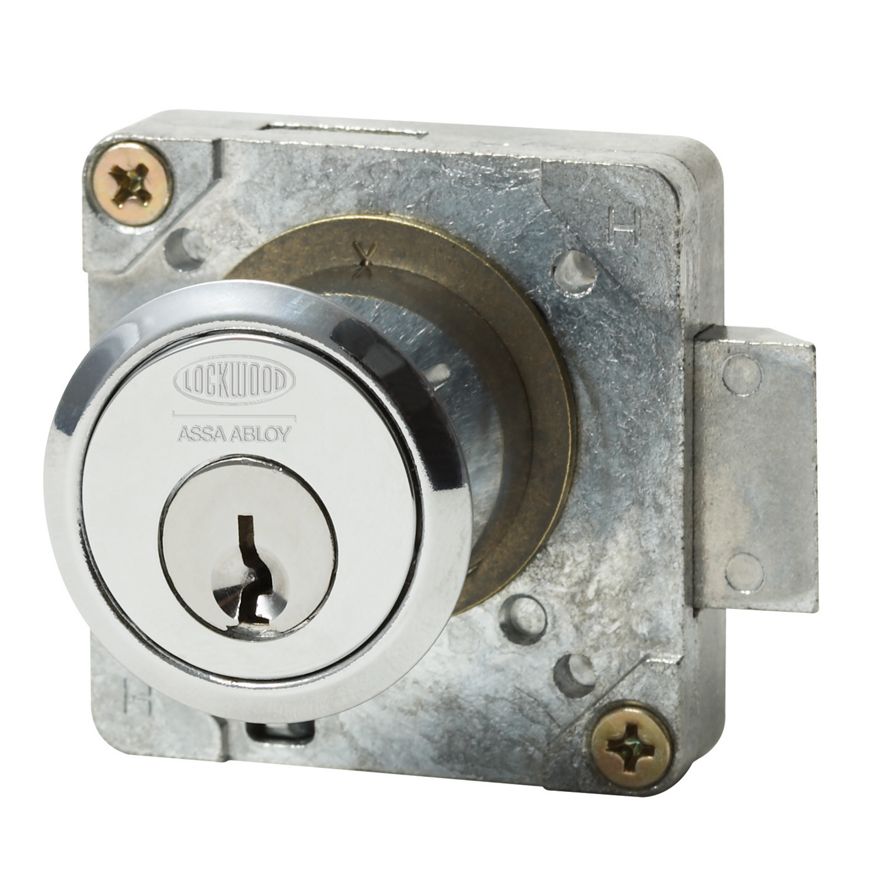

Lockwood 693 Pin Tumbler Cupboard Lock
A quality key-operated 5 pin tumbler cupboard lock.
Features of the 693 Pin Tumbler Cupboard Lock
- Manufactured primarily from diecast zinc and brass components
- Cylinder can be readily positioned to suit either drawer or cupboard installation
Lockwood 693 Pin Tumbler Cupboard Lock
Dimensions
Materials
Bolt
Zinc, 10 mm projectionCylinder
5 pin tumbler mechanism
Brass cylinder and brass barrel – 27mm diameter, 26.5 mm projectionKeying
Standard Keying
- Supplied individually keyed with two keys per lock
- 78,000 key combinations
- Key blank KB2015P
Special Keying
Lockwood Restricted Special Keying locks can be keyed to a number of controlled and/or specially keyed systems. These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.
Description (Trade Pack) Standard Functions Non Standard Function 5 Pin Straight - Chrome Plate 693ACP 693BCP 5 Pin Straight - Satin Chrome 693ASC 693BSC 5 Pin Straight - Polished Brass 693APB 693BPB
