Lockwood 8015 Concealed Door Closer
EN power adjustable 1-5.

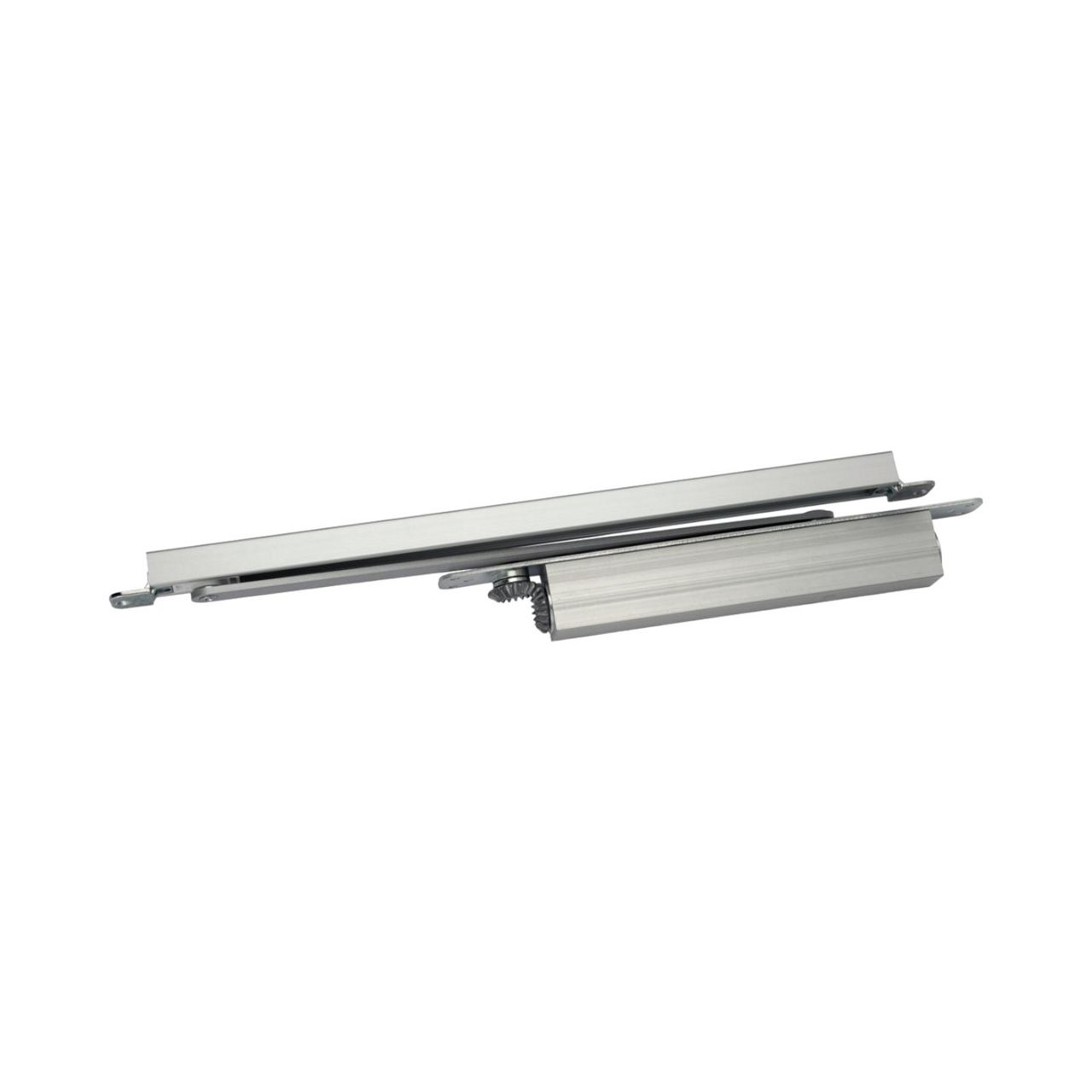

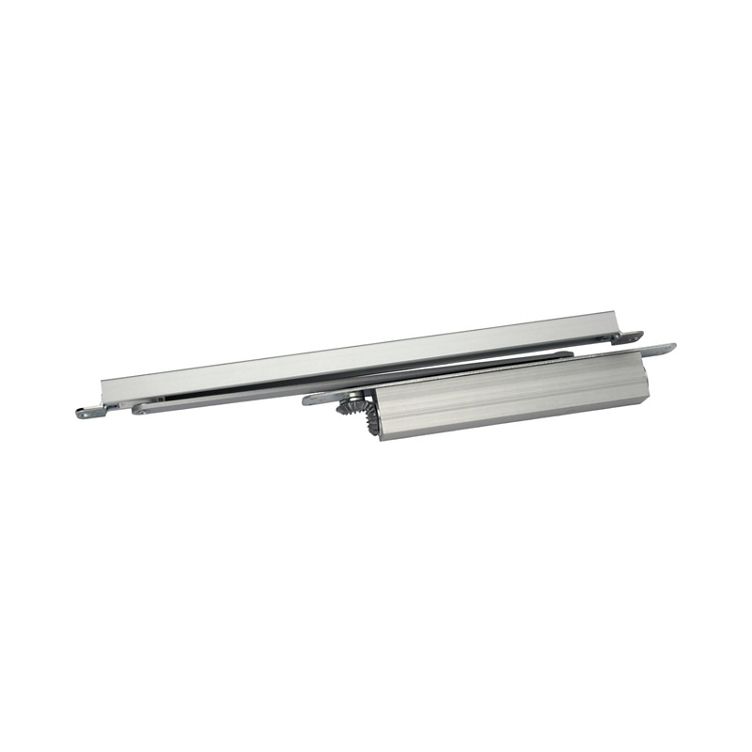

Lockwood 8014 Concealed Door Closer
The Lockwood 8014 is a non handed cam action concealed door closer for heavy duty use. Thanks to the cam construction it is extremely light to open but strong enough to close the door in every situation.
The Lockwood 8014 can be adjusted to meet the requirements of the light opening resistance.
Features of the 8014 Concealed Door Closer
- Certified to EN1154
- Adjustable closing force size EN 1-4
- Separate adjusting valves for closing and latching speed, mechanical BC
- Pressure relief valve to protect against abuse
- Wide operating temperature range:- 15 to 45°C
- For fire door applications add 2616-153 opening damper
Lockwood 8014 Concealed Door Closer
Power EN adjustable 1 to 4 Materials Anodized aluminium door closer body Door Thickness Minimum 40mm Door Weight Maximum 80kg Door Width Maximum 1100mm Finishes Silver (SIL) Opening Angle Maximum 120° Standards and Compliance
Lockwood Concealed Door Closers have been successfully fire tested up to 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1:2005 - Part 1: Fire Resistant Doorsets.
Dimensions
