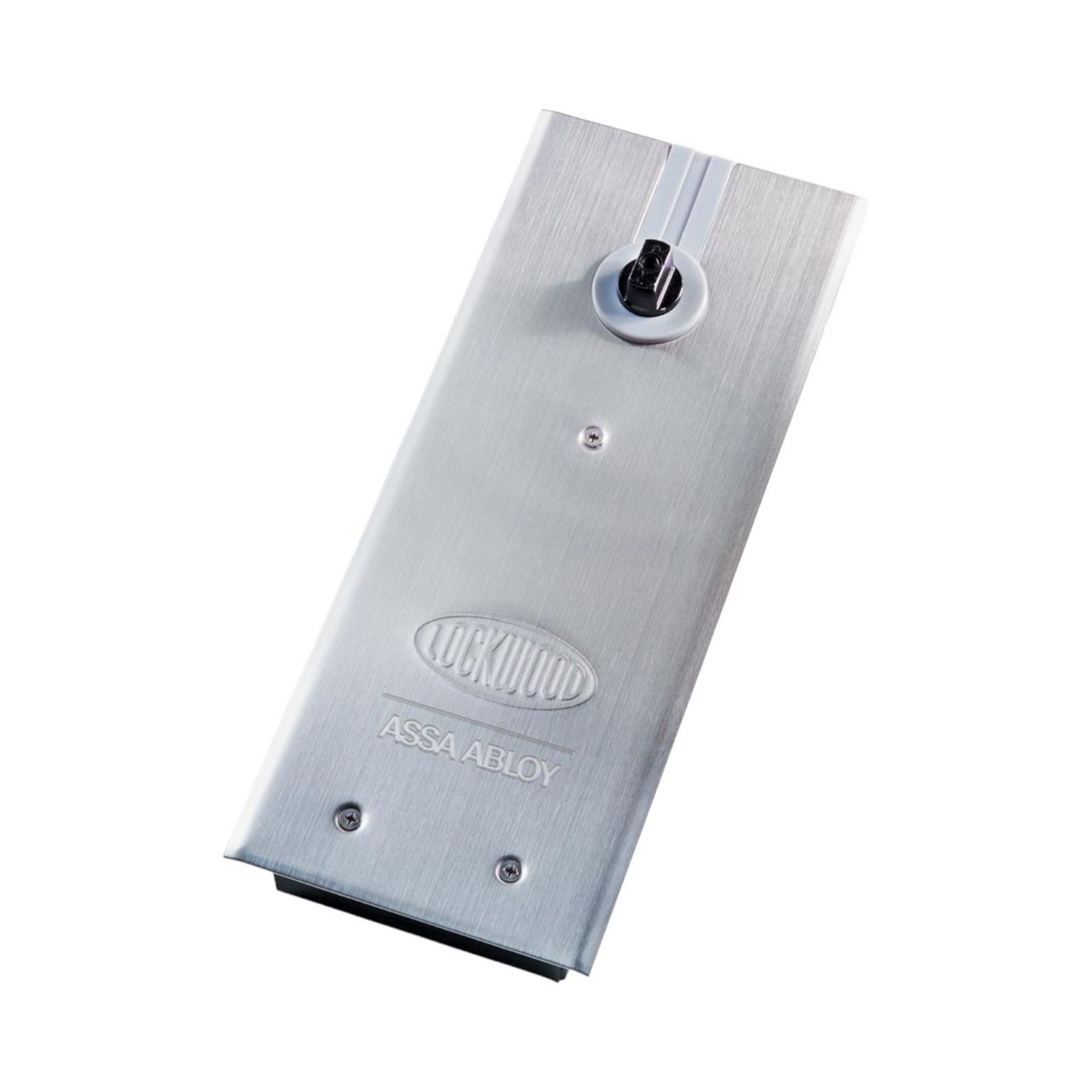

Lockwood ST8011SSS Floor Closer
Suitable for door weights up to 300kg.
Lockwood 8800 Series Floor Closer
The Lockwood 8800 Series Floor Closers are designed to provide door control on manually operated double action doors in a wide range of commercial applications.
The mounting kit provided with the Lockwood 8800 Series will suit glass, timber and aluminium frame door construction as standard.
Features of the 8800 Series Floor Closer
- 2, 3 and 4 power
- Non hold-open
- 90˚ and 105˚ hold-open
- Adjustable pivot inserts
- Pivot door sets
- Lockwood guaranteed
Lockwood 8800 Series Floor Closer
Door Width
Up to 1150mm (refer to selection procedure)Door Weight
Up to 120kg as standardDoor Thickness
Minimum for timber 32 mmDoor Control
Two independent adjustment valves provide full hydraulic control from 130˚ to 15˚ of closing and 15˚ to 0˚ of latching.Door Frame Type
Timber/aluminium/steelNon Hold-Open and Hold-Open Versions
Available in both non hold-open and hold-open versions. Mechanical hold-open 90˚ and 105˚ in separate units.Door Adjustment
The Lockwood 8800 is positionally adjustable for a height of 4mm, a width of 10mm and a length of 9mm.Additional Features
Interchangeable extended pivot inserts ranging from +5 to +35mm. This range will accommodate applications such as threshold, carpeted floors or situations where additional clearance between the door and floor are required. Universal off set pivot sets for flush closing single action door applications (SP844-30).Pivot Door Sets
Suitable for door applications where a free swing pivot door is required. Consists of retractable top pivot set with heavy duty bottom pivot and strap. Suitable for aluminium,
glass and timber doors.Finishes
- Stainless Steel SSS
- Gold GLD
- Polished Stainless Steel PSS
Other finishes on application.
Dimensions
Trade Pack
Standard Floor Spring with Adjustable Pivot Insert
Note: Standard Product Packaged Complete with Hydraulic Units & Mounting Kits. Suit Single, Double Action Aluminium frames/Timber and Glass doors to 120kg door weight.
Description Part Number Size 2 – Standard Floor Spring Non Hold Open Satin Stainless Steel 8842NSSS Size 3 – Standard Floor Spring Non Hold Open Satin Stainless Steel 8843NSSS Size 4 – Standard Floor Spring Non Hold Open Satin Stainless Steel 8844NSSS Size 2 – Standard Floor Spring 90° Hold Open Satin Stainless Steel 8842H90SSS Size 3 – Standard Floor Spring 90° Hold Open Satin Stainless Steel 8843H90SSS Size 4 – Standard Floor Spring 90° Hold Open Satin Stainless Steel 8844H90SSS Size 2 – Standard Floor Spring 105° Hold Open Satin Stainless Steel 8842H105SSS Size 3 – Standard Floor Spring 105° Hold Open Satin Stainless Steel 8843H105SSS Size 4 – Standard Floor Spring 105° Hold Open Satin Stainless Steel 8844H105SSS Also Available in Polished Stainless Steel and Gold Finishes. Order appropriate cover plate (SP884.171) and add cost.
8800 Series Spare parts
Description Part Number Cover Plate Satin Stainless Steel SP884-171SSS Cover Plate Polished Stainless Steel SP884-171PSS Bottom Arm Door Strap Kit SP884-10 Top Pivot Kit SP884-20 Offset Arm Kit SP884-30 Screw Pack SP884-40 Cover Plate Plastic Insert SP884-50 Top Pivot Cover Plate SP884-55SSS Cement Box SP884-70 8800 Series Extended Pivot Insert
Description Part Number Standard Pivot Insert SP884-60 Extended Pivot Insert X 5 Mm SP884-60-5 Extended Pivot Insert X 10 Mm SP884-60-10 Extended Pivot Insert X 15 Mm SP884-60-15 Extended Pivot Insert X 20 Mm SP884-60-20 Extended Pivot Insert X 25 Mm SP884-60-25 Extended Pivot Insert X 30 Mm SP884-60-30 Left hand 3deg offset extended spindle insert
Description Part Number Left Hand 3deg Offset Spindle Insert (3mm) SP884-60LH LH 3deg Offset Extended Pivot Insert X 5mm SP884-60-5LH LH 3deg Offset Extended Pivot Insert X 10mm SP884-60-10LH LH 3deg Offset Extended Pivot Insert X 15mm SP884-60-15LH LH 3deg Offset Extended Pivot Insert X 20mm SP884-60-20LH LH 3deg Offset Extended Pivot Insert X 25mm SP884-60-25LH LH 3deg Offset Extended Pivot Insert X 30mm SP884-60-30LH Right hand 3deg offset extended spindle insert
Description Part Number Right Hand 3deg Offset Spindle Insert (3mm) SP884-60RH RH 3deg Offset Extended Pivot Insert X 5mm SP884-60-5RH RH 3deg Offset Extended Pivot Insert X 10mm SP884-60-10RH RH 3deg Offset Extended Pivot Insert X 15mm SP884-60-15RH RH 3deg Offset Extended Pivot Insert X 20mm SP884-60-20RH RH 3deg Offset Extended Pivot Insert X 25mm SP884-60-25RH RH 3deg Offset Extended Pivot Insert X 30mm SP884-60-30RH
