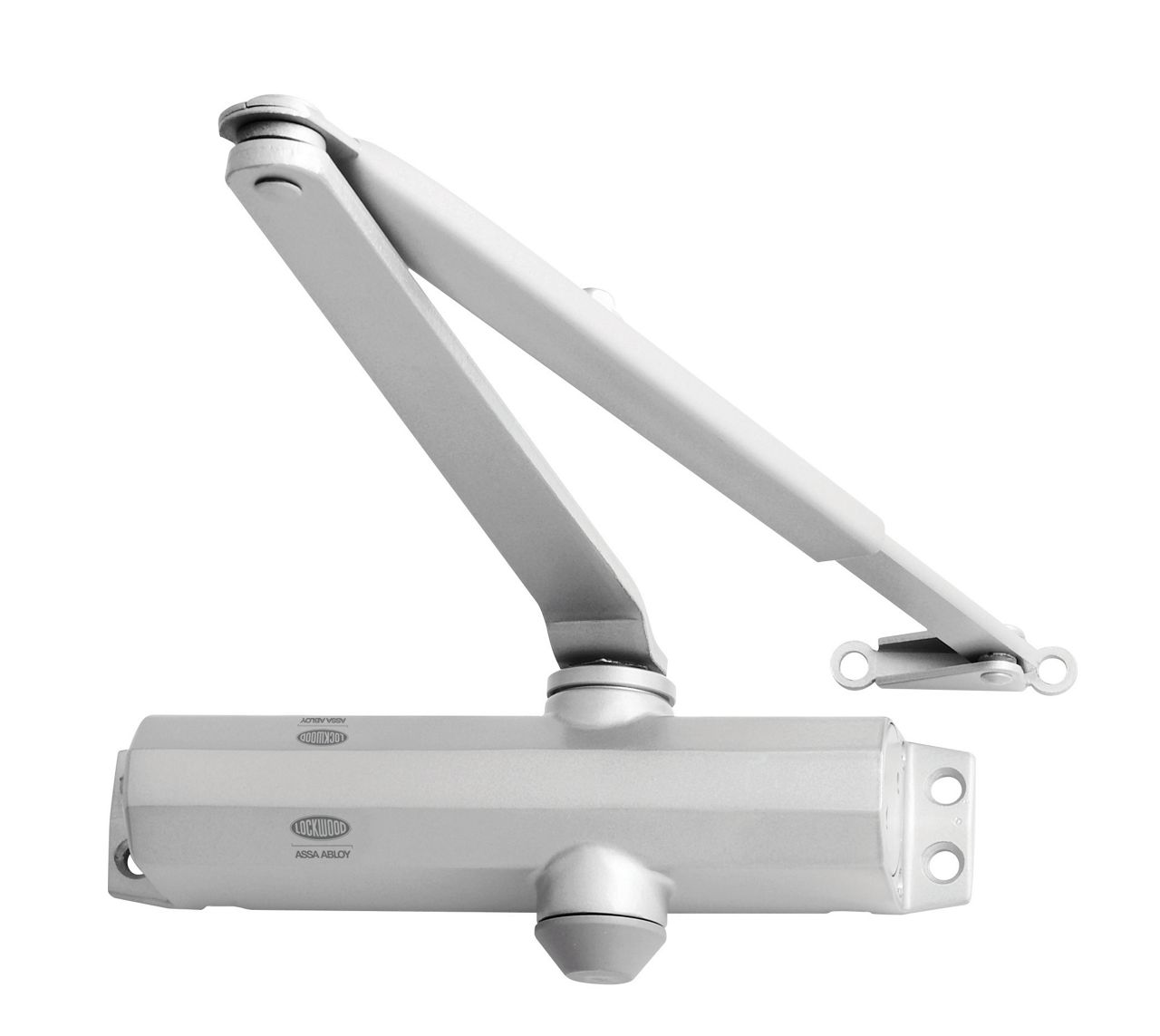

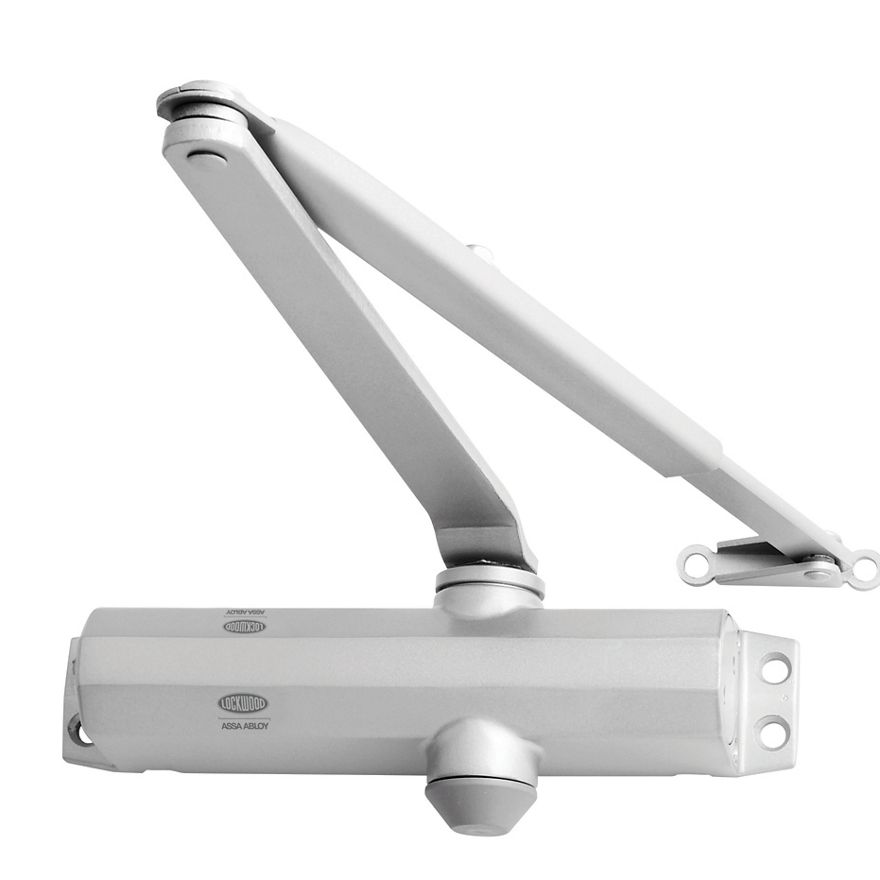

The Lockwood range of economy door closers is particularly quick and easy to install on most applications, ideally suitable where cost is a high priority.
Multi position mounting template enables adjustment on site to meet most conditions also low stock holding as one model will cover 3 power sizes. Suitable for doors up to 1100 mm in width.
All products include parallel arm bracket; multi strength mounting (one model covers size 2, 3 and 4) ; parallel arm size 2 and 3.
Power Selection
The power of the door closer is altered by adjusting the position of the door closer body on the mounting template.
Adjustment | Independent valves control closing and latching speeds which can be readily adjusted on site when required. |
Power | EN power selectable 2 to 4. |
Back check (BC) | Available in this series, specify BC if required. Back check cushions or slows the door prior to reaching final opening position. |
Hold Open | Adjustable. Hold-open can be set at any angle up to 130° of opening. |
Handing | Non-handed. Suitable for left or right hand doors. |
Hold-Open | Available in this series, specify HO. Hold-open option is not approved on any fire door. |
Materials | High purity die cast aluminium housing with hardened steel rack pinion mechanism. |
Mechanism | Rack and pinion design. |
Mounting | Regular, parallel and over-door. |
Standards and Compliance
The Lockwood 2024 series closer has been successfully tested up to four hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS1905.1:2005, Part: Fire Resistant Door sets.
Note: Hold open option is not approved on any fire door.
Description | Part number | Barcode |
---|---|---|
TRADE PACK | ||
Standard Hydraulic Door Closer, Power Selectable, Non Backcheck, Size 2-4 | 2024SIL | 93-11847-78061-3 |
Standard Backcheck Door Closer | 2024BCSIL | 93-11847-78059-0 |
Offset Parallel Arm Door Closer W/ Backcheck | 2024BCOPSIL | 93-11847-78058-3 |
Standard Hold Open Door Closer Non Backcheck | 2024HSIL | 93-11847-78060-6 |
2024 Accessories - Parallel Arm Bracket | SP2024-10SIL | 93-11847-84537-4 |
2024 Accessories - Standard Arm Assembly | SP2024-60SIL | 93-11847-82322-8 |
2024 Accessories - Offset Parallel Arm | SP2024-80SIL | 93-11847-82324-2 |
DISPLAY PACK | ||
Silver, Hydraulic Door Closer with Cover, Backcheck - Fire Rated | 2024CBCSILDP | 93-11847-79132-9 |
