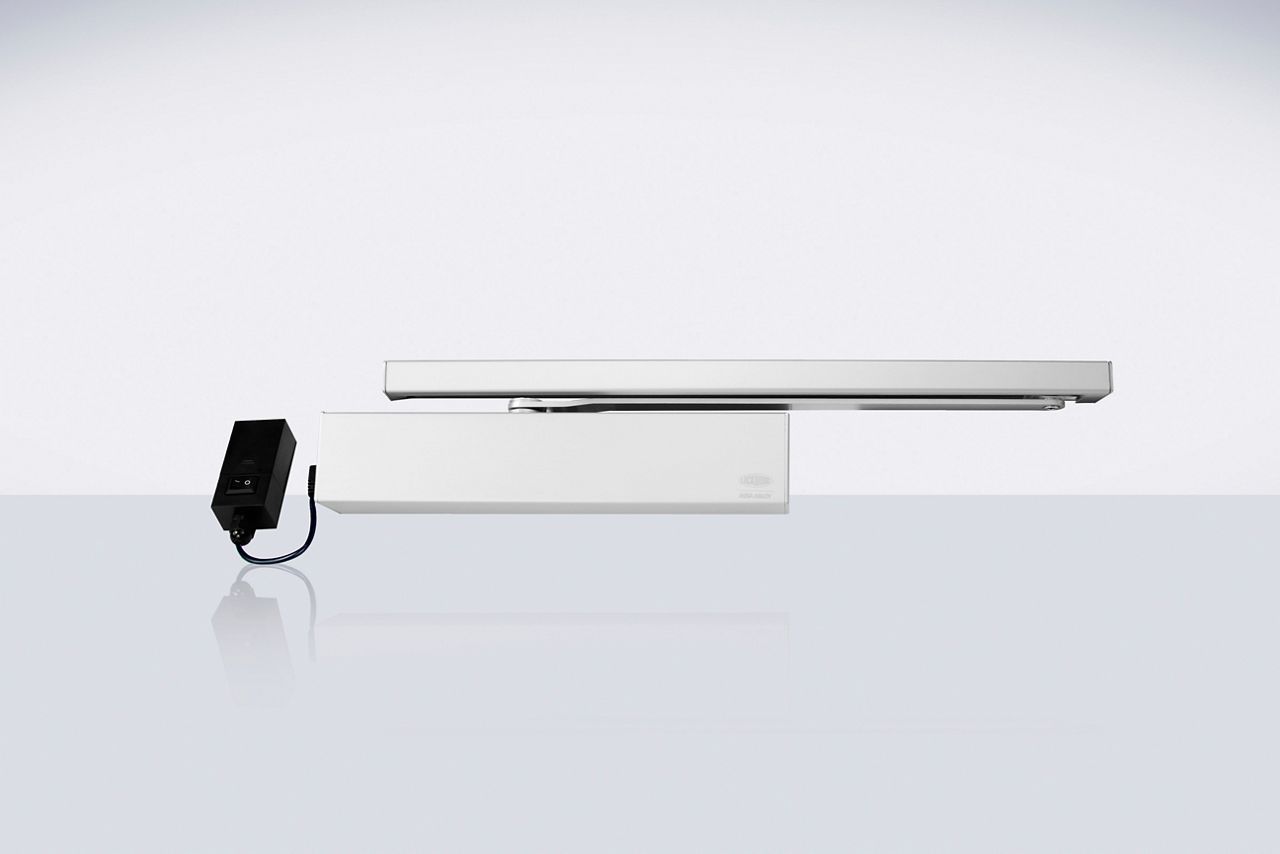

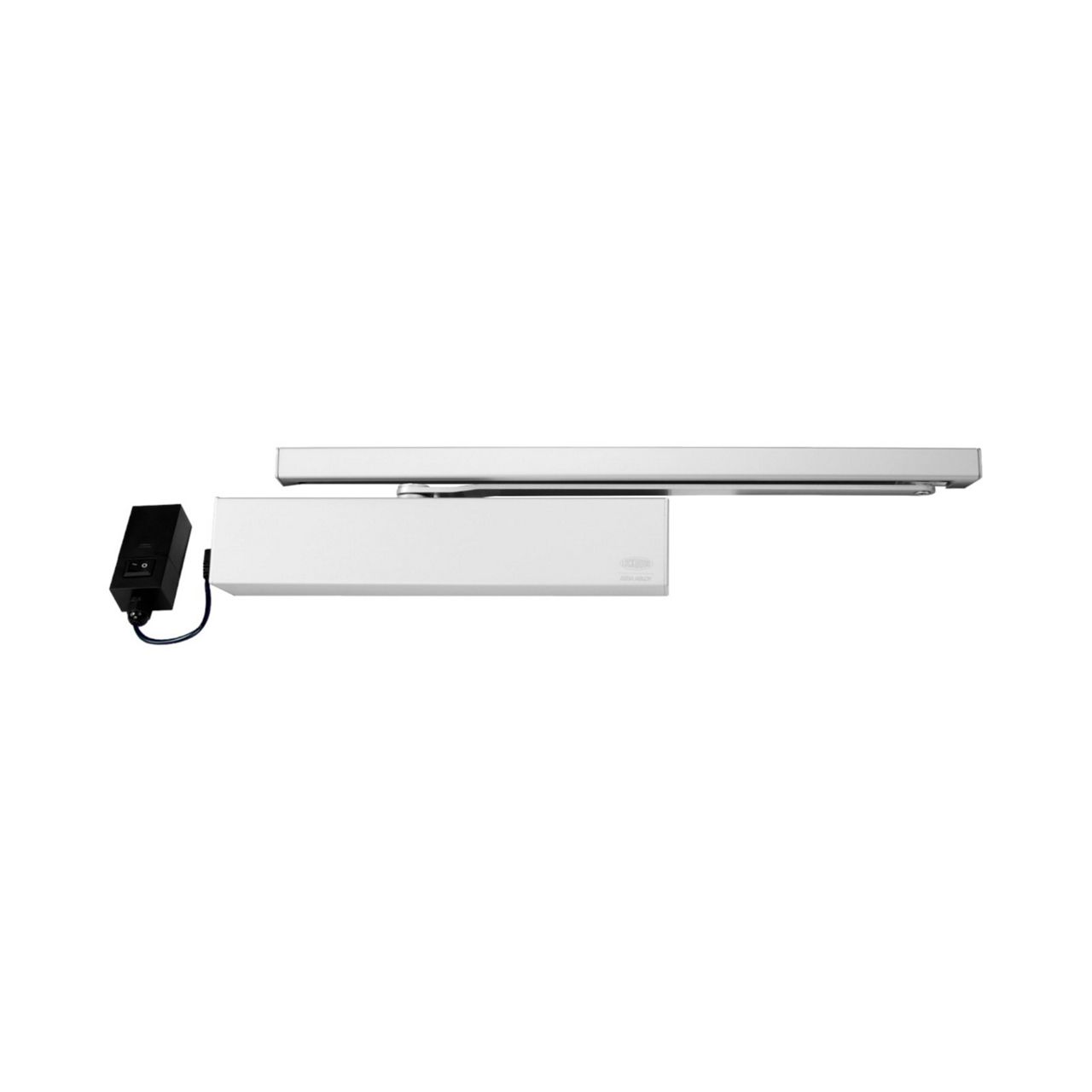

Lockwood 2636FS Free-Motion® Door Closer with Cam-Motion® Technology
The Lockwood 2636FS Door Closer is designed to feature the use of Free-Motion functionality and the unique benefits of CAM Action Technology. A completely unique solution.
The Free-Motion feature allows for a door to swing freely and with minimal resistance, rendering the door control body ineffective when supplied with power. The benefit being in allowing for hydraulic free operation in applications where end users may be hindered by forces produced by conventional door control. Ideal applications where this may provide an ultimate solution are Aged Care, Health Care and Educational Institutions.
Lockwood 2636FS Free-Motion® Door Closer with Cam-Motion® Technology
Lockwood 2636FS Free-Motion® Door Closer with Cam-Motion® Technology
Lockwood 2636FS Free-Motion® Door Closer with Cam-Motion® Technology
Adjustment Independent valves control closing and latching speeds which can be readily adjusted on site when required. Power EN power selectable EN3 to EN6. Finishes Silver Handing Non-handed.
Suitable for left or right hand doors.Materials High purity die cast aluminium Mechanism Cam Action Mounting Universal model with three installation possibilities; Door Leaf/Pull Side, Frame/Pull Side, Frame/Push Side Accessories Mounting plate and opening dampener supplied as standard. 2636FS-189 Junction Box sold separately Door Size Maximum door width of 1400mm Opening Angle Maximum opening angle up to 160° Electrical Specifications 24VDC ± 15%. Low consumption: max current 90mA Standards and Compliance
The Lockwood 2636FS series closer has been successfully tested up to four hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS1905.1:2005, Part: Fire Resistant Door sets.
Note: Hold open option is not approved on any fire door.
Tested and certified in accordance with EN1154
Dimensions
Description Part number Barcode Free Swing Door Closer 2636FS-SIL 9340116027609 2636FS Junction Box 2636FS-A189 9340116027616
