Lockwood 2615 CAM Action Door Closer with Slide Arm
EN power adjustable 1 to 5.
The Lockwood 2657 Heavy Duty Series is suitable for use on internal and external doors and is an ideal solution for extremely heavy doors.
Maximum door weight 160kg and door leaf width 1600mm with standard arm installation.

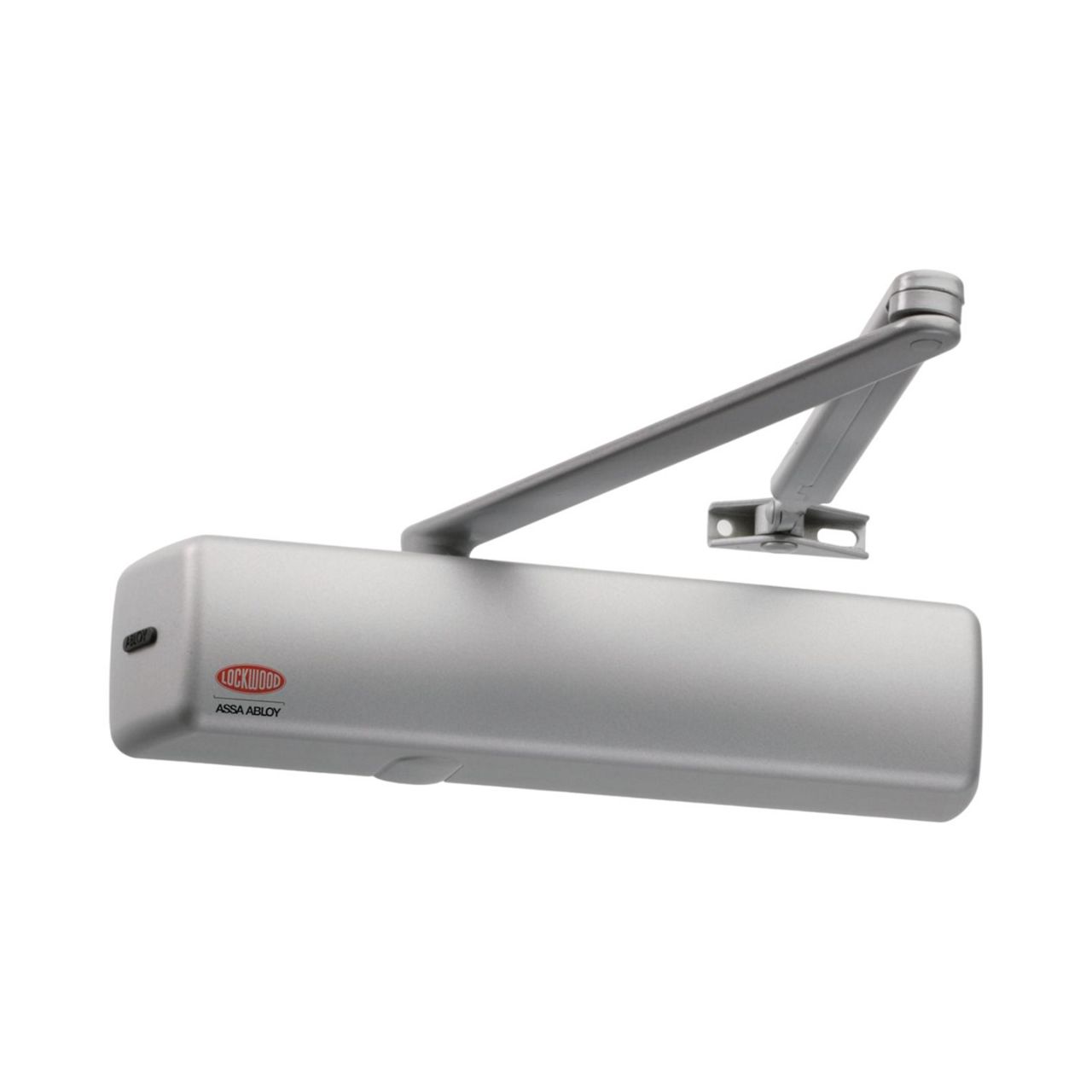

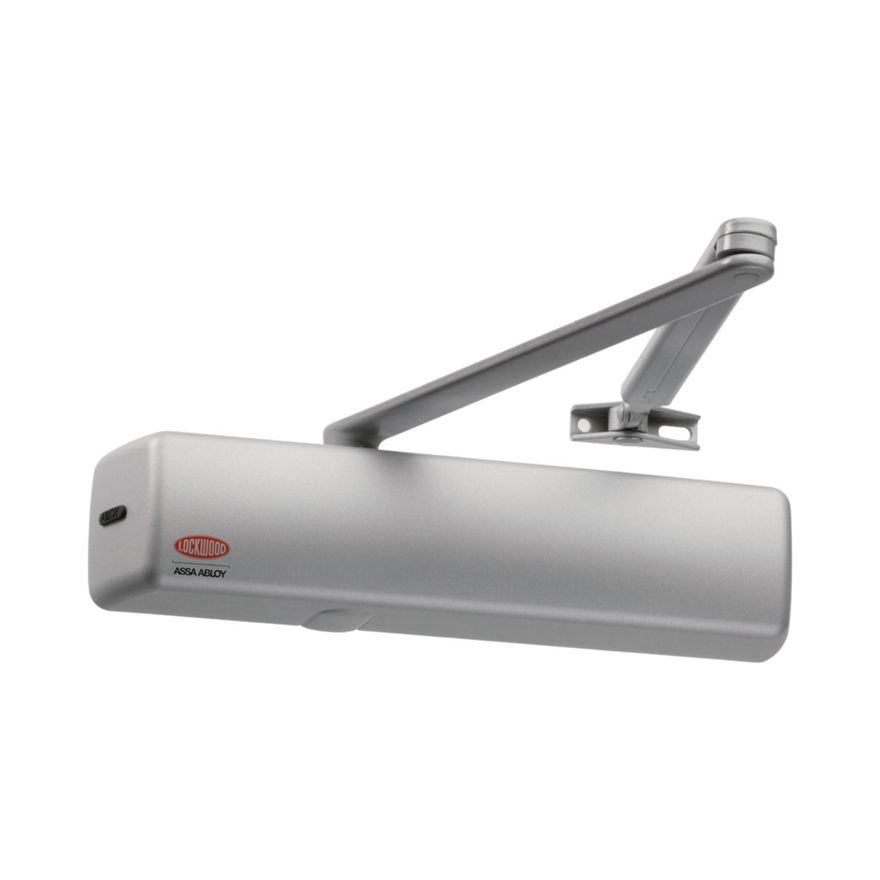

Lockwood 2657 Heavy Duty Series Door Closer
Power | EN adjustable 5 to 7 |
Back check (BC) | Adjustable |
Handing | Non-handed. Suitable for left or right hand doors. |
Cover | Fully formed metal |
Materials | Die-cast aluminium body manufactured from high performance silicon alloy |
Mechanism | Rack and pinion design |
Mounting | Regular and over-door mounting |
Valves | Two pressure relief valves are a standard feature to protect against abuse |
Operating Temp | -35°C to +45°C |
Note: Parallel arm (push side) is not available on this model.
