Lockwood Symphony 1220 Series Turn and Cylinder Accessories

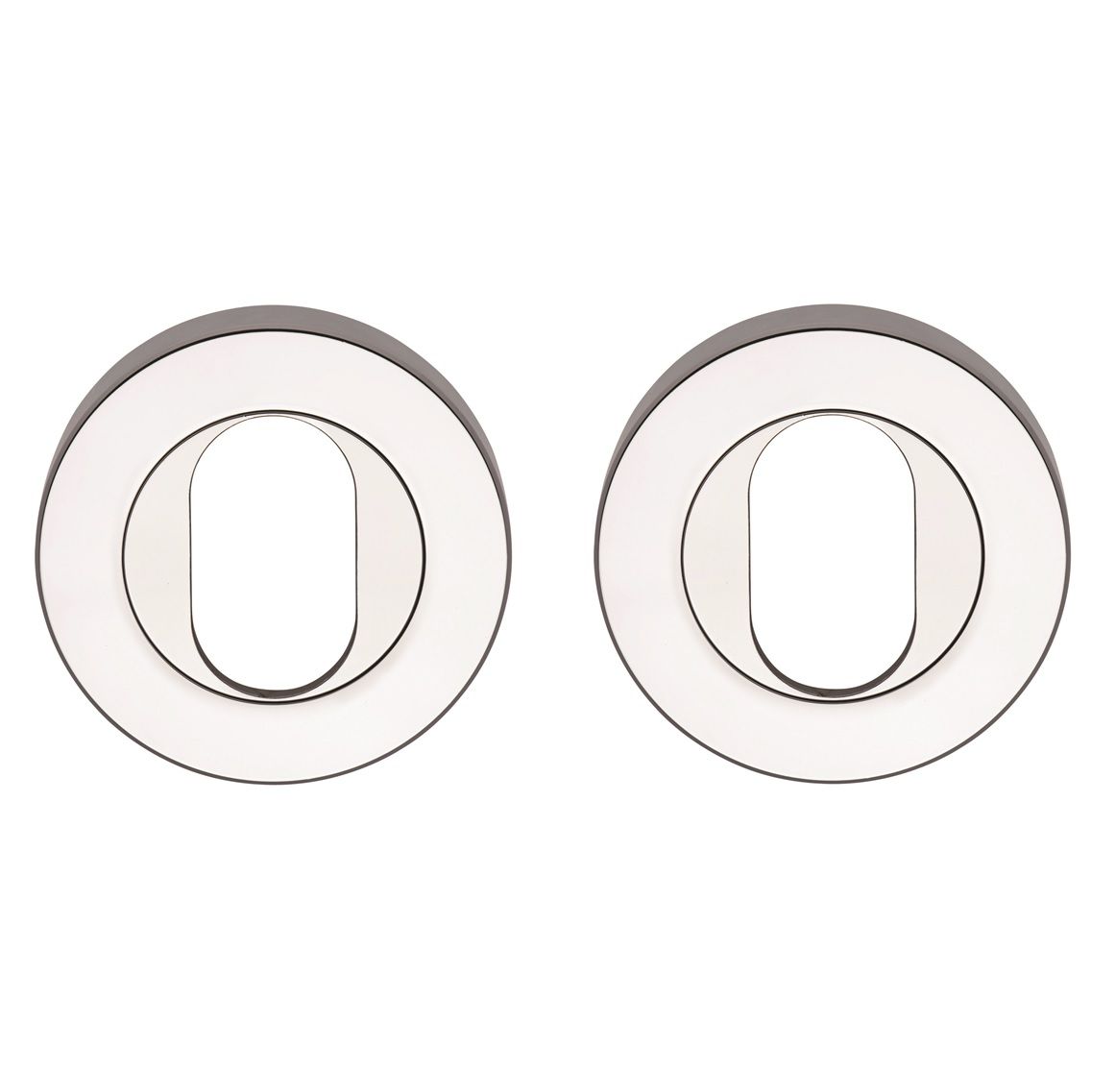

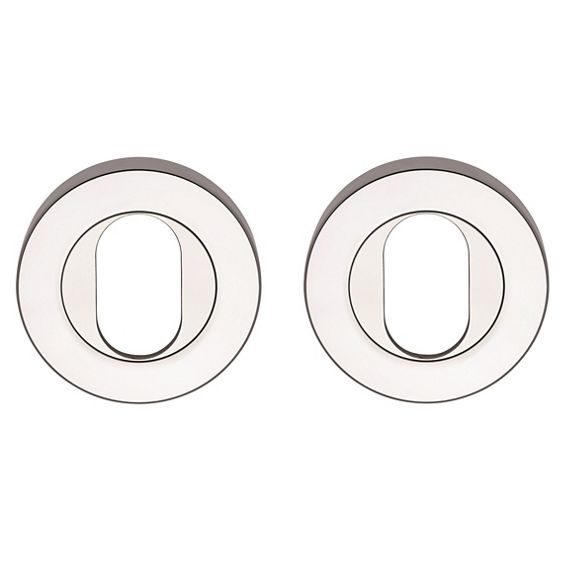

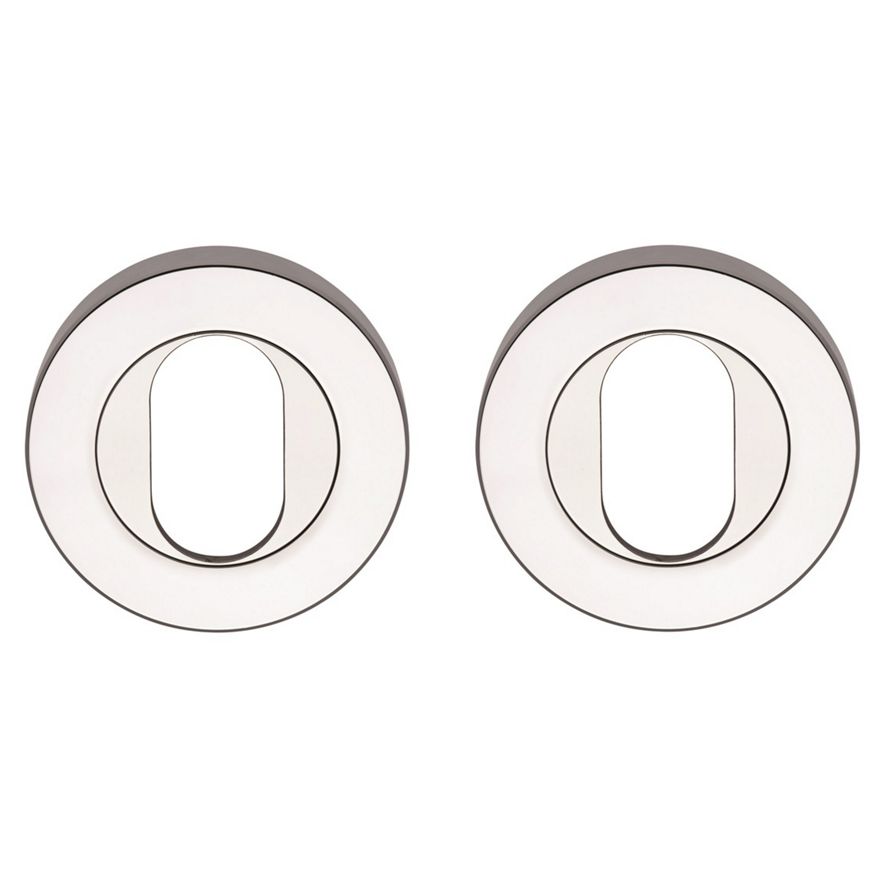

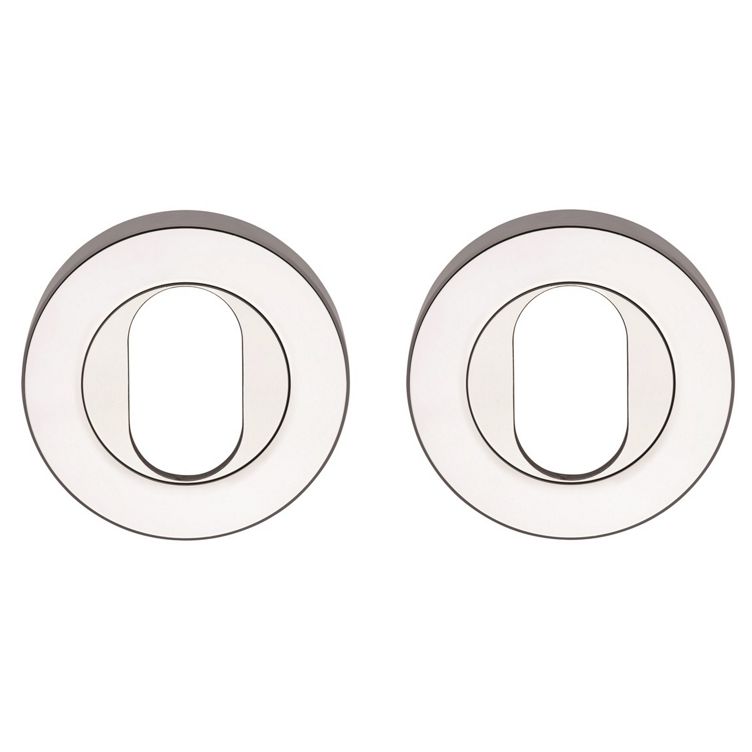

Double Oval Cylinder Escutcheons Kit (1226/6)

Escutcheons supplied
Outside: Oval Cylinder Escutcheon
Inside: Oval Cylinder Escutcheon

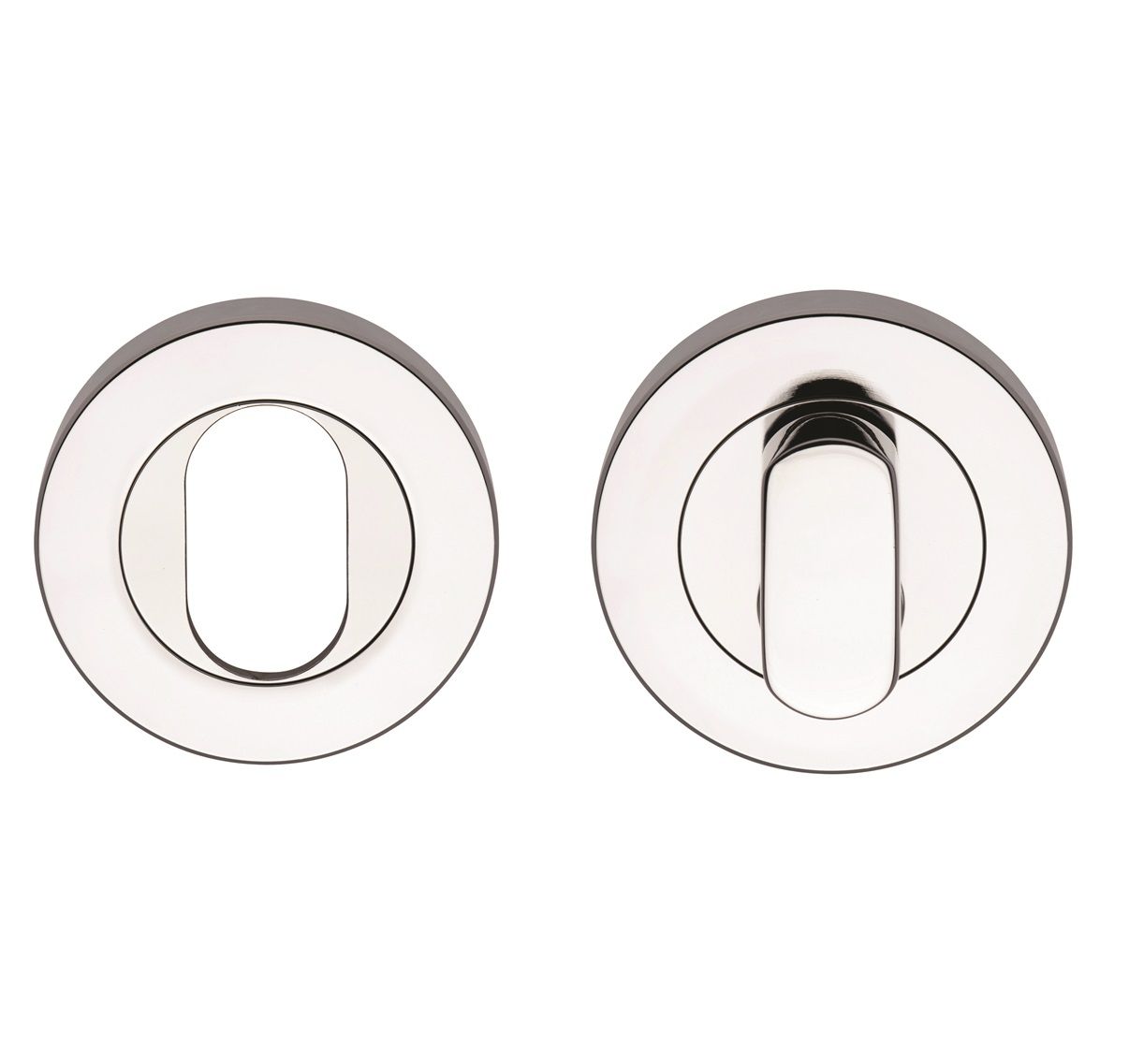

Oval Cylinder and Turnknob Escutcheons Kit (1226/7N)

Escutcheons supplied
Outside: Oval Cylinder Escutcheon
Inside: Turnknob Escutcheon

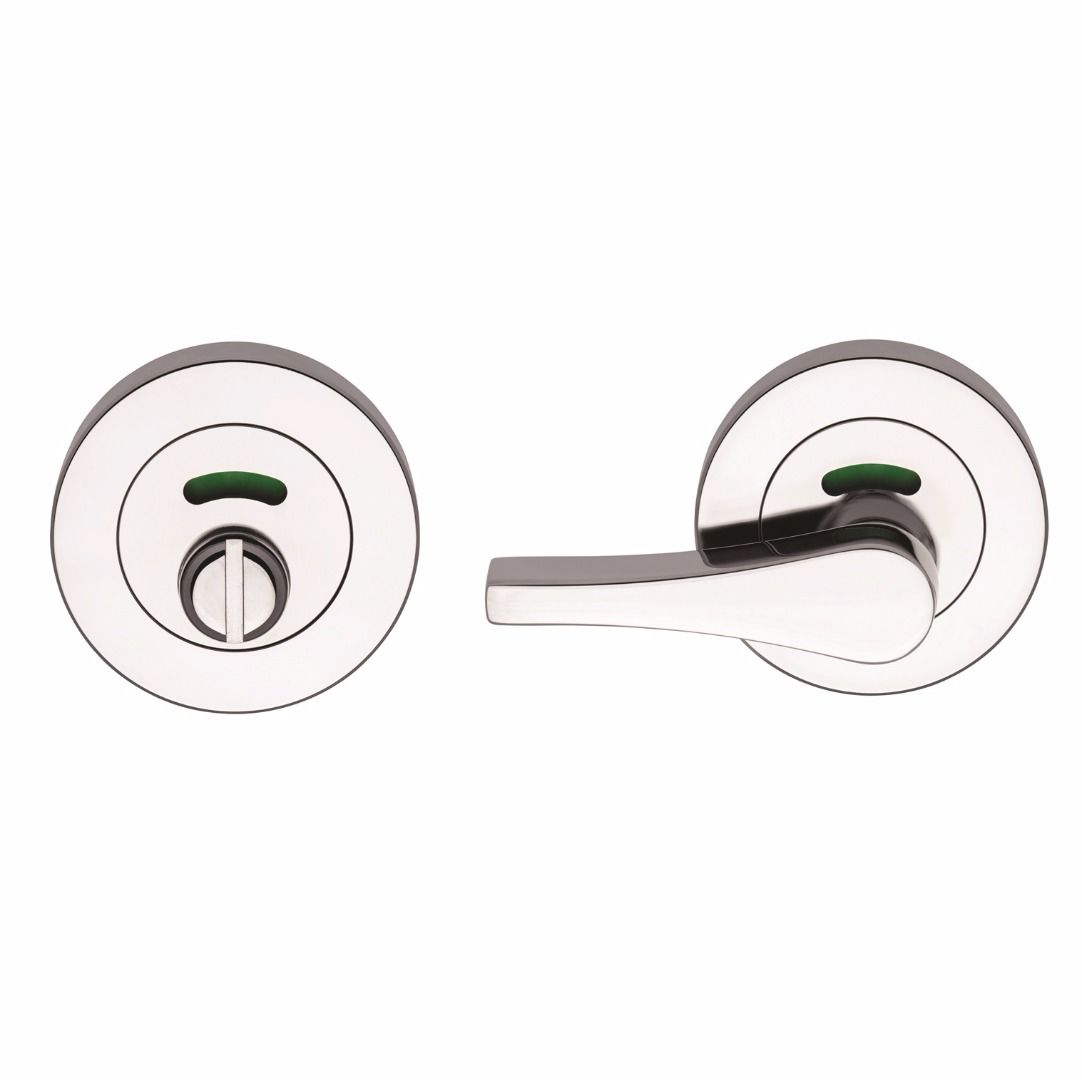

Privacy Indicating Emergency Turn and Disabled Accessible Turnknob Escutcheons Kit (1228/9P)

Escutcheons supplied
Outside: Privacy Indicating EmergencyTurn Escutcheon
Inside: Privacy Indicating Disabled AccessibleTurnknob Escutcheon

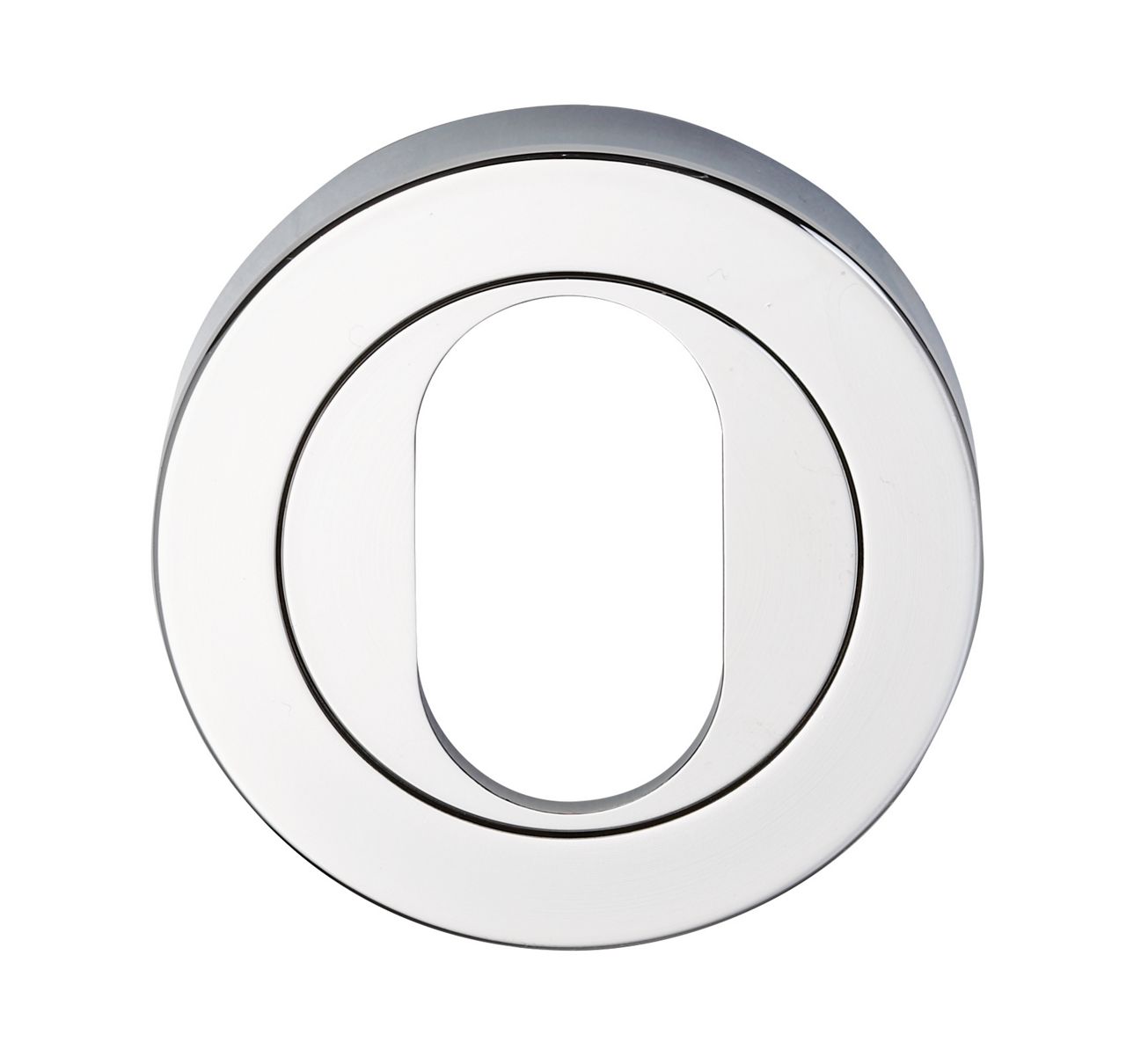

Oval Cylinder Escutcheon (1226/IN)
Designed for use with Synergy Series Mortice Locks, with two horizontal fixing holes, concealed by a threaded rose trim.

Supplied with 2x Short & 2x Medium Wood Screws (SP1226-219)
(Replaces 1226)

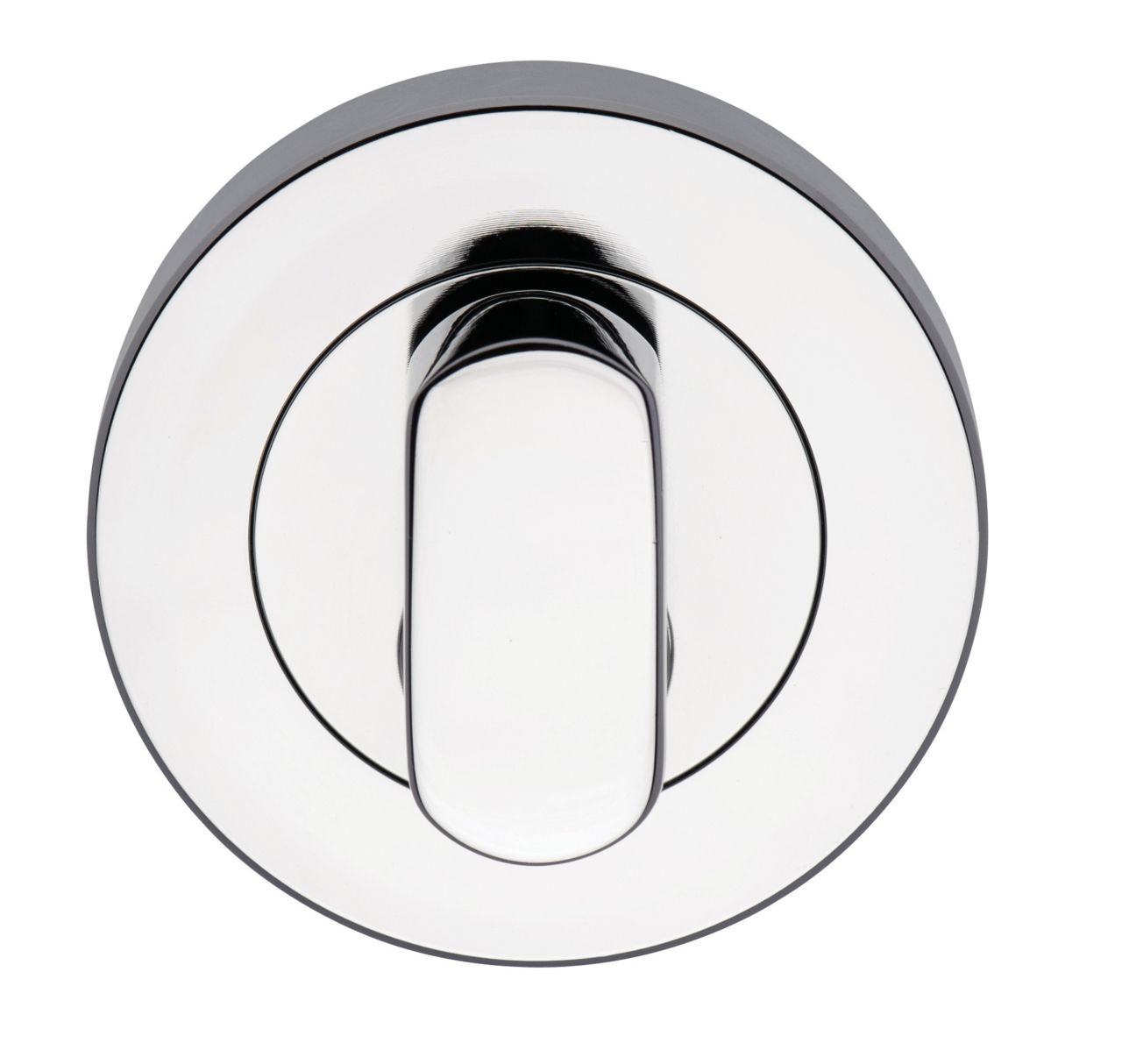

Turnknob Escutcheon (1227/IN)

Supplied with
2 x Short & 2 x Medium Wood Screws (SP1226-219)
1 x Short, Medium & Long Tail Bars and Spring (SP1227-219)
1 x Flat Tail Bar & Split Pin (SP12227-319)
1 x Instructions (1220-321)
(Replaces 1227P)

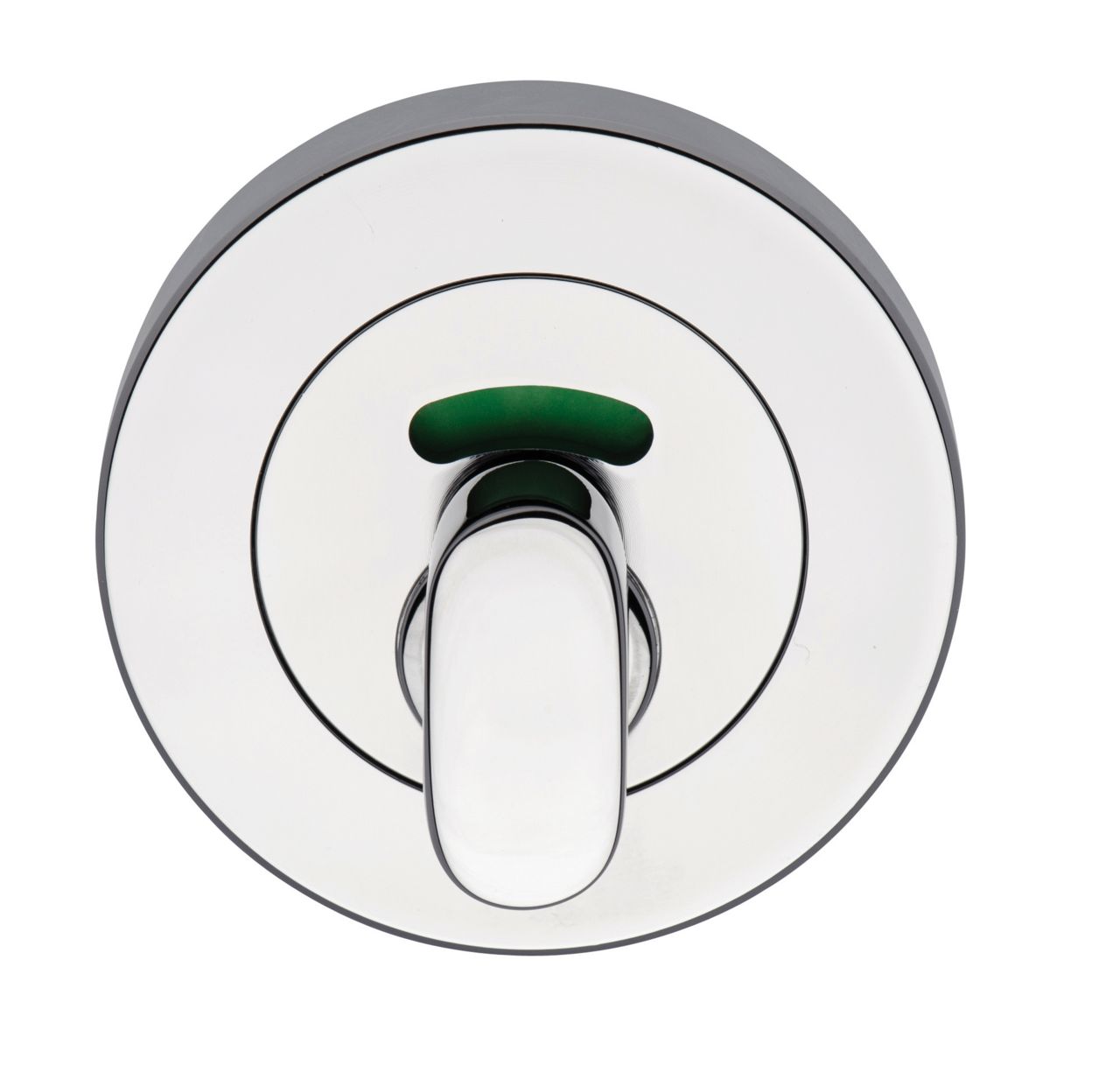

Privacy Indicating Turnknob Escutcheon (1227/IP)

Supplied with
2 x Short & 2 x Medium Wood Screws (SP1226-219)
1 x Short, Medium & Long Tail Bars and Spring (SP1227-219)
1 x Flat Tail Bar & Split Pin (SP12227-319)
1 x Instructions (1220-321)
(Replaces 1227P)

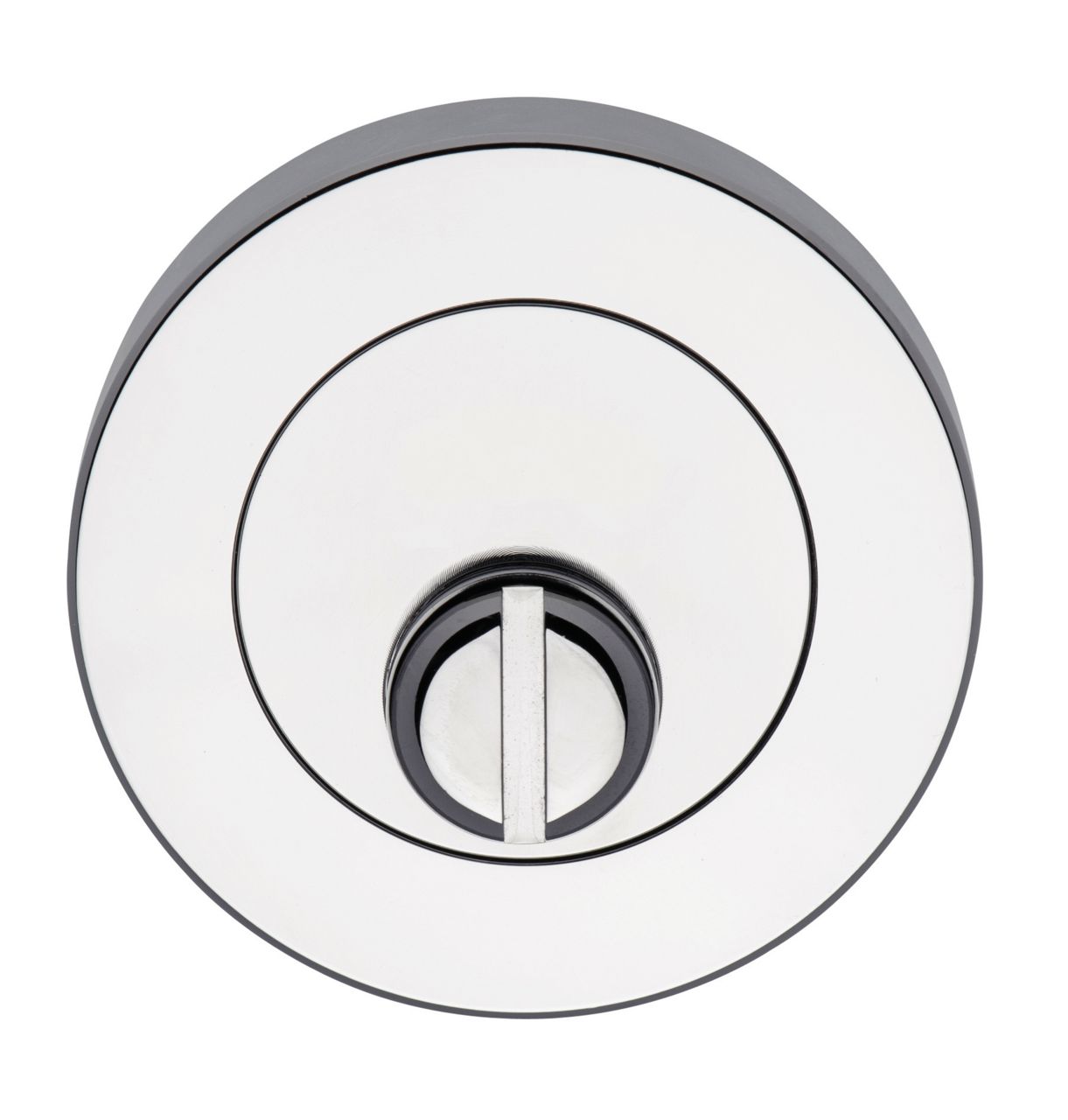

Emergency Turn Escutcheon (1228/IN)

Supplied with
2 x Short & 2 x Medium Wood Screws (SP1226-219)
1 x Emergency Tail Bar (SP1227-119)

(Replaces 1228)

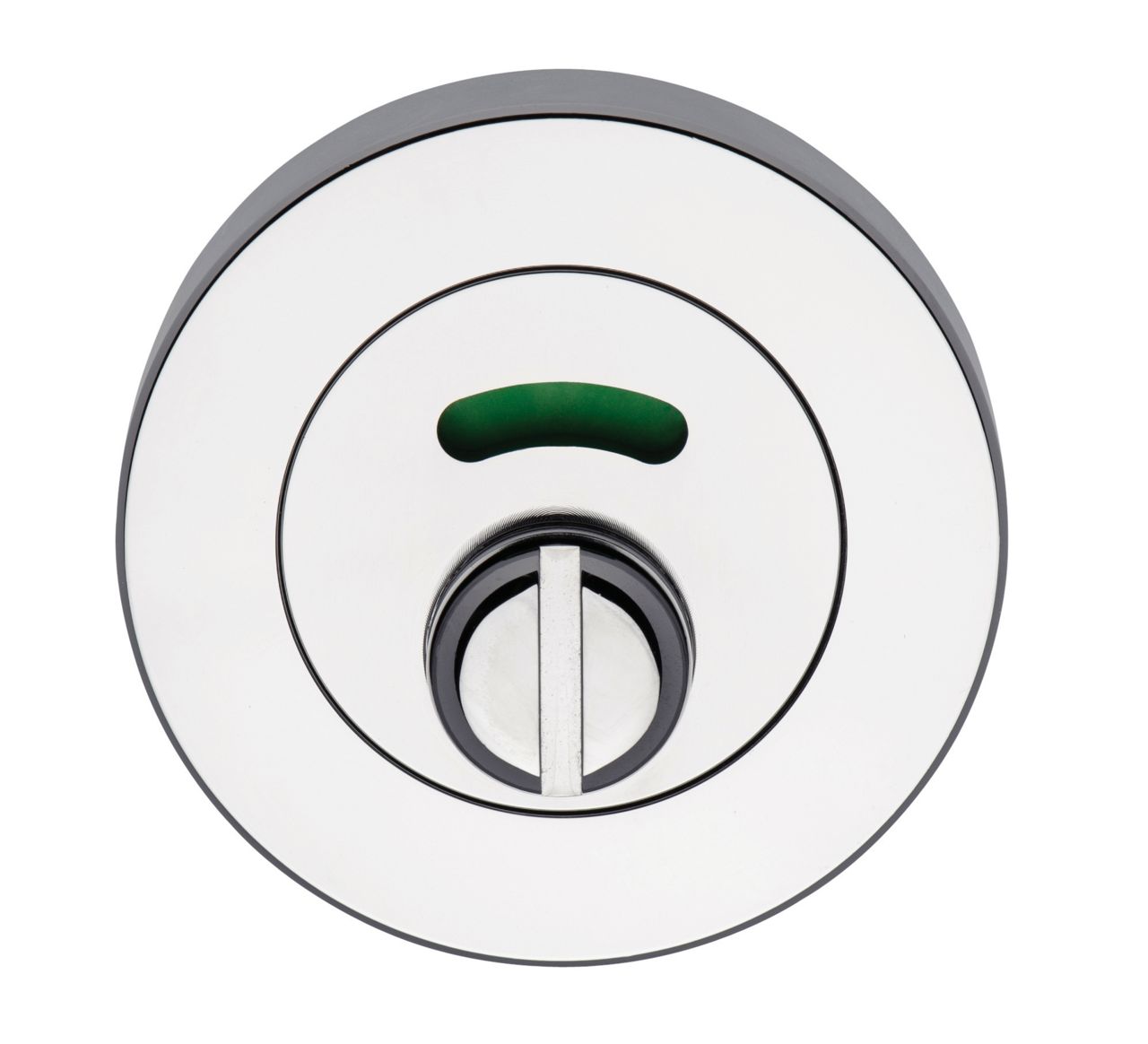

Privacy Indicating EmergencyTurn Escutcheon (1228/IP)

Supplied with
2 x Short & 2 x Medium Wood Screws (SP1226-219)
1 x Emergency Tail Bar (SP1227-119)

(Replaces 1228P)

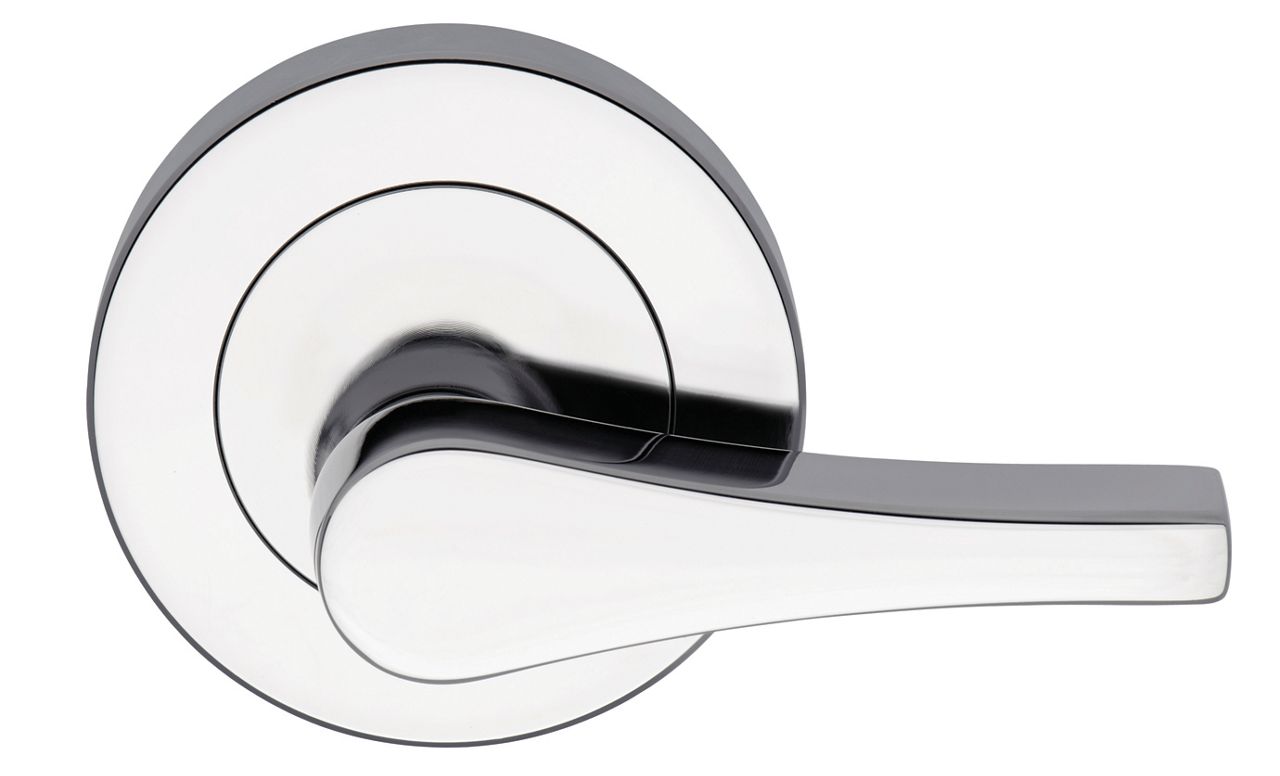

Disabled Accessible Turnknob (1229/IN)

Supplied with
2 x Short & 2 x Medium Wood Screws (SP1226-219)
1 x Short, Medium & Long Tail Bars and Spring (SP1227-219)
1 x Instructions (1220-321)

(Replaces 1227DT)

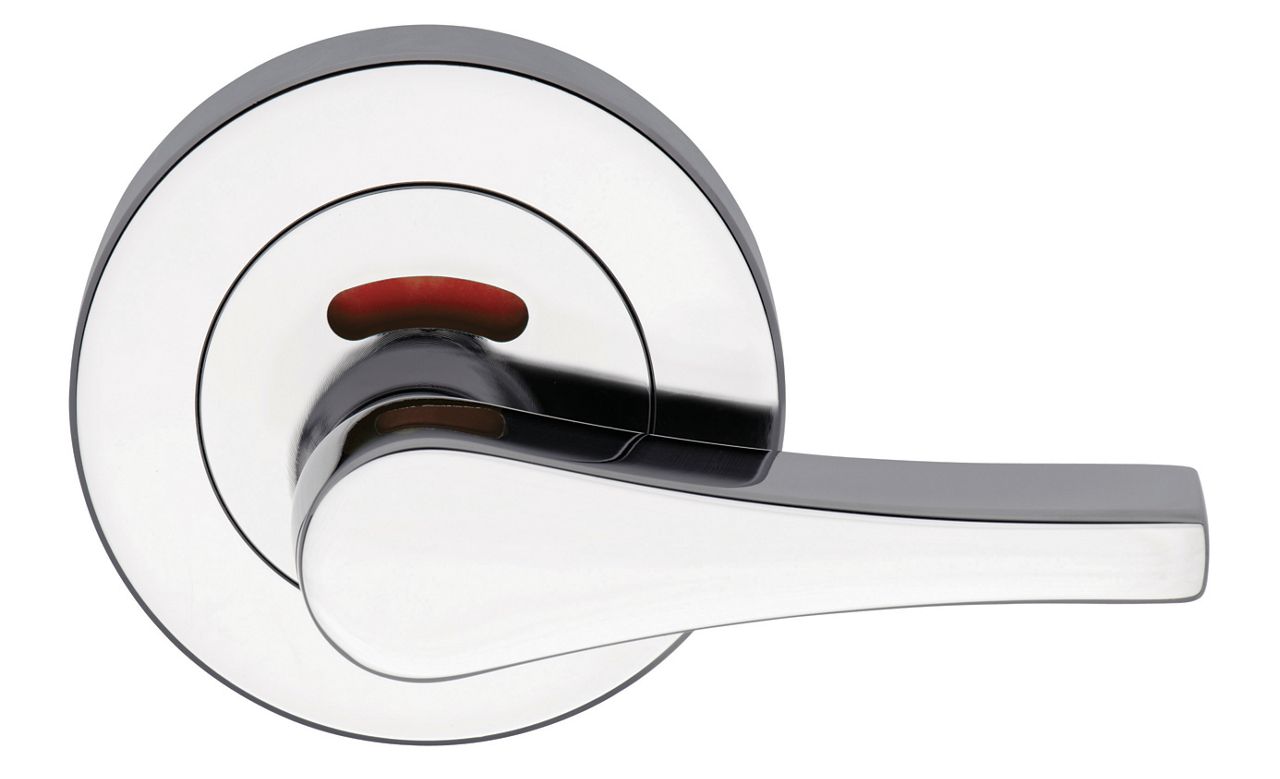

Disabled Accessible Privacy Indicating Turnknob (1229/IP)

Supplied with
2 x Short & 2 x Medium Wood Screws (SP1226-219)
1 x Short, Medium & Long Tail Bars and Spring (SP1227-219)
1 x Instructions (1220-321)

Privacy Adaptor (3890)

The 3890 Privacy Adaptor has a patented built in clutching mechanism which allows the engaged mode to be overridden by use of specified force applied in a single downward action on the lever. This will allow entry in an emergency situation without the use of any type of tool.The privacy adaptor can be installed onto any existing Lockwood lever set and standard 5260 Tubular Latch.

Dimensions: 52mm x 11.6mm

Supplied with
2 x M4 x 77mm Stainless Steel Screws (SP0655MBK)
1 x Spindle 7.6mm x 90mm
1 x Instructions (3890-121)

Finishes

• Satin Chrome (SC)
• Chrome Plate (CP)
• Powder Coat (PC)

Not available in brass finishes
