Lockwood Symphony 1420 Series Turn and Cylinder Accessories

Designed for use with Selector Series Mortice Locks only, supplied with two M4 64mm stainless screws for through fix installation.

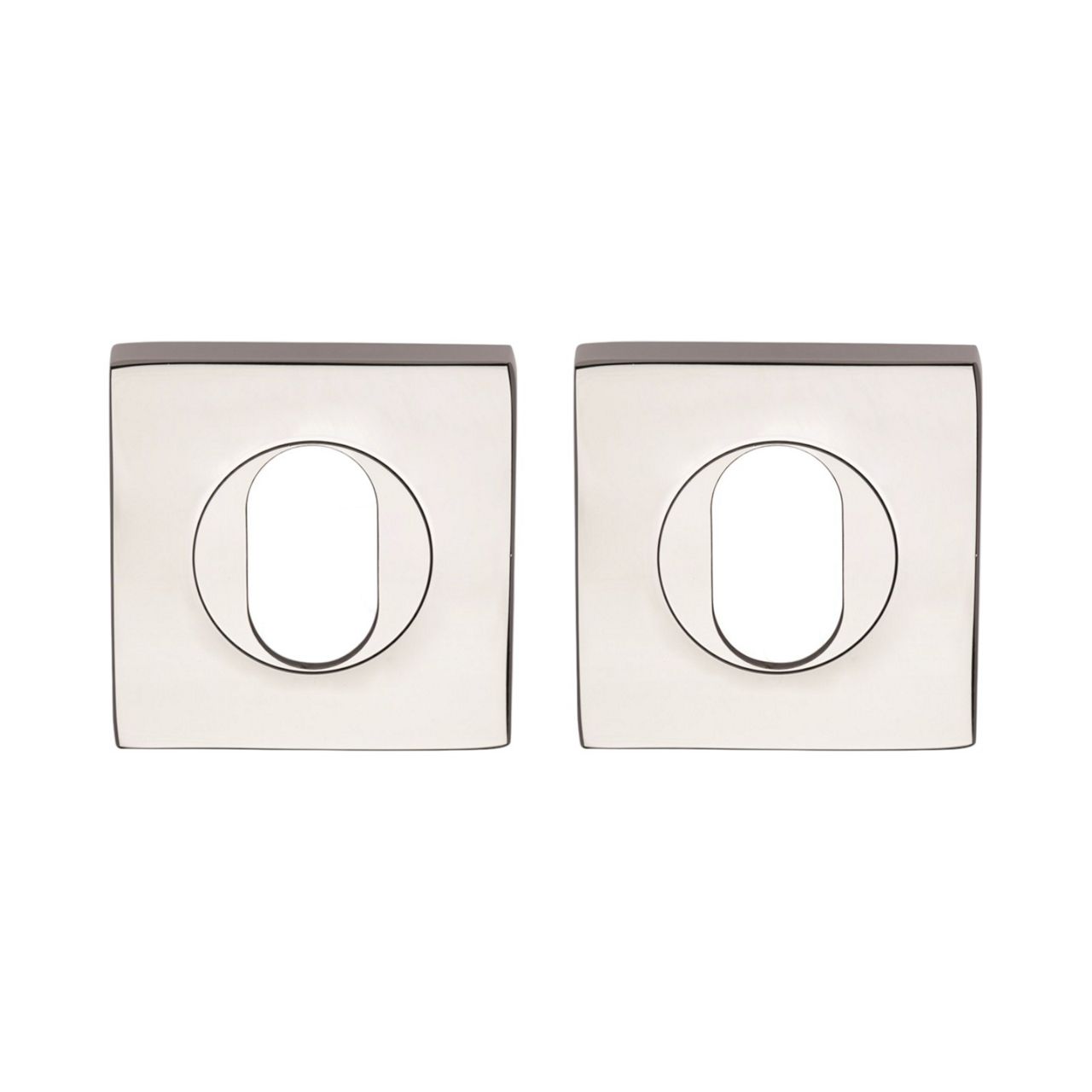

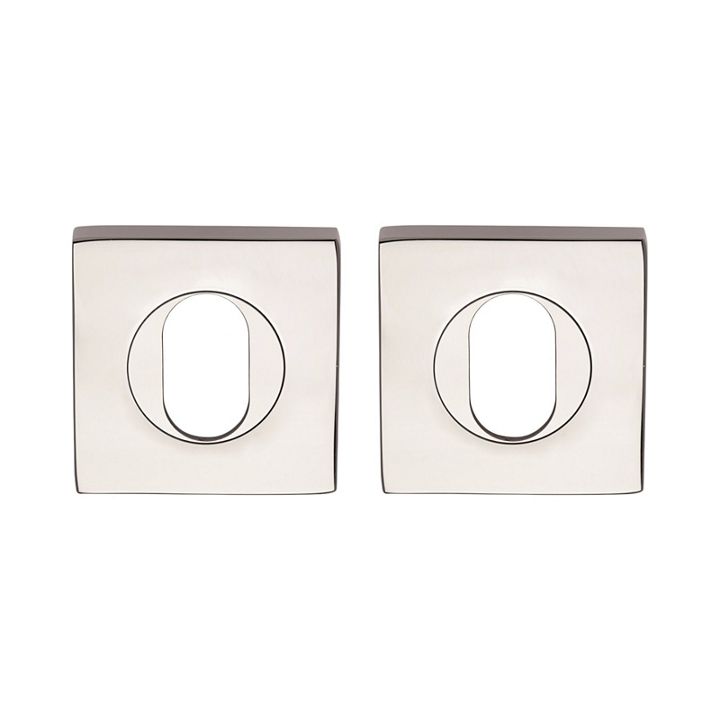

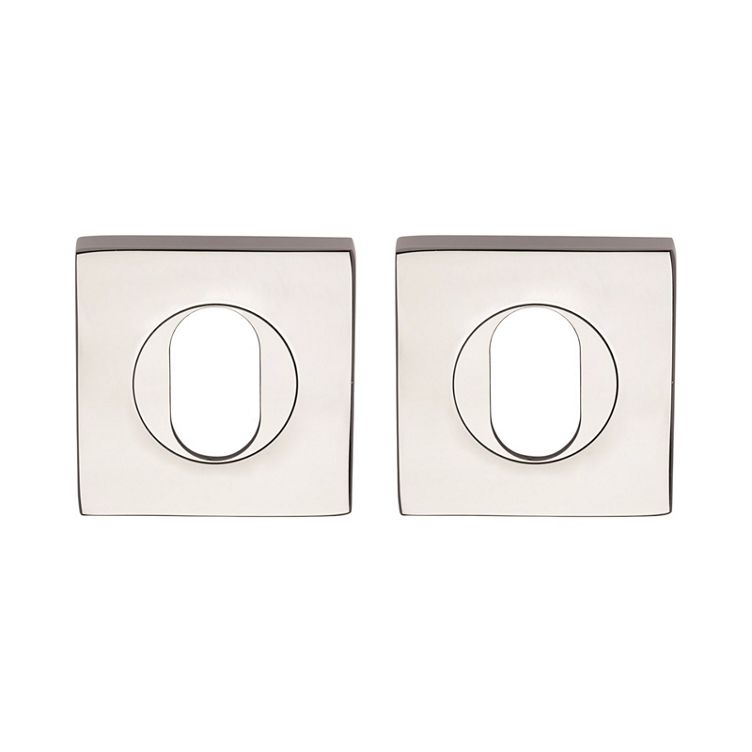

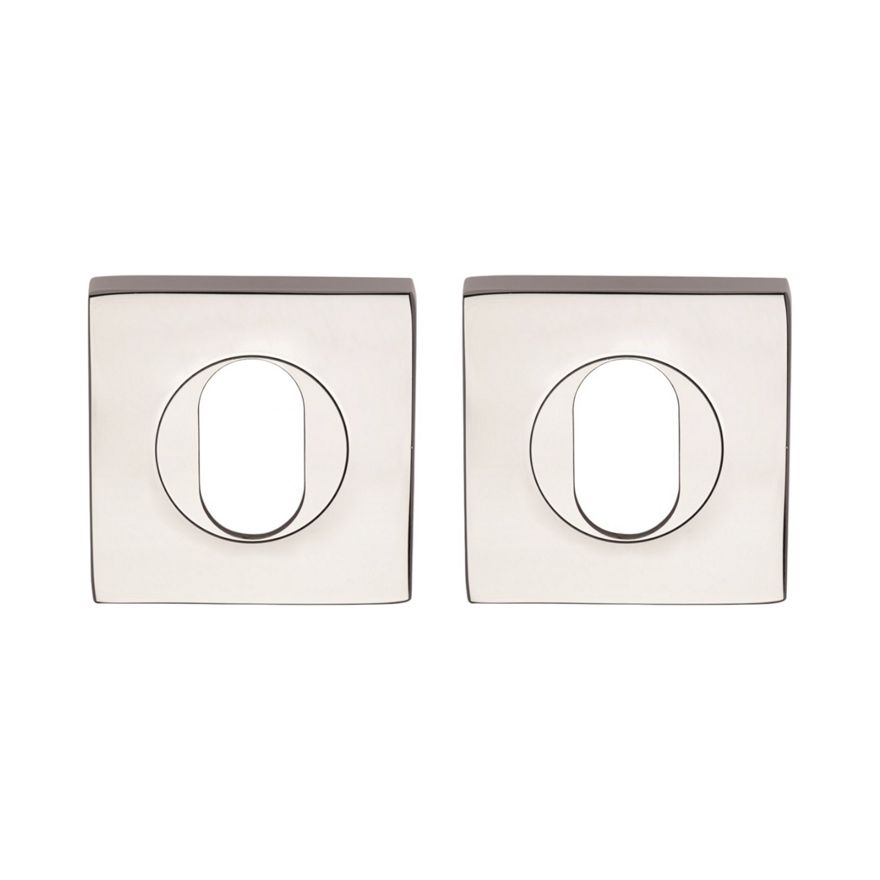

Double Oval Cylinder Escutcheons Kit (1426/6)

Escutcheons supplied
Outside: Oval Cylinder Escutcheon
Inside: Oval Cylinder Escutcheon

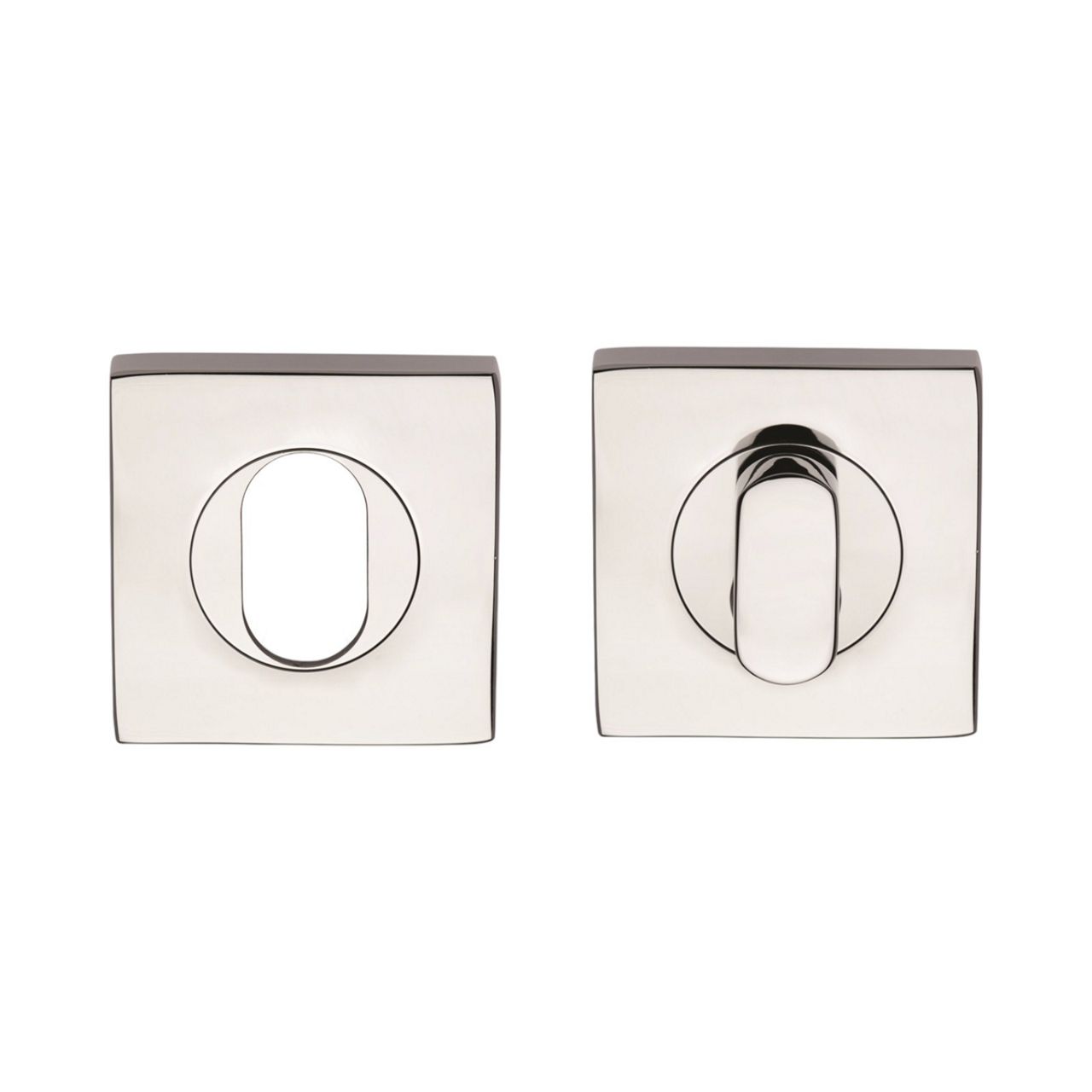

Oval Cylinder and Turnknob Escutcheons Kit (1426/7N)

Escutcheons supplied
Outside: Oval Cylinder Escutcheon
Inside: Turnknob Escutcheon

Privacy Indicating Emergency Turn and Disabled Accessible Turnknob Escutcheons Kit (1428/9P)

Escutcheons supplied
Outside: Privacy Indicating EmergencyTurn Escutcheon
Inside: Privacy Indicating Disabled
Accessible Turnknob Escutcheon

*Designed for use with Selector and Synergy Series Mortice Lock

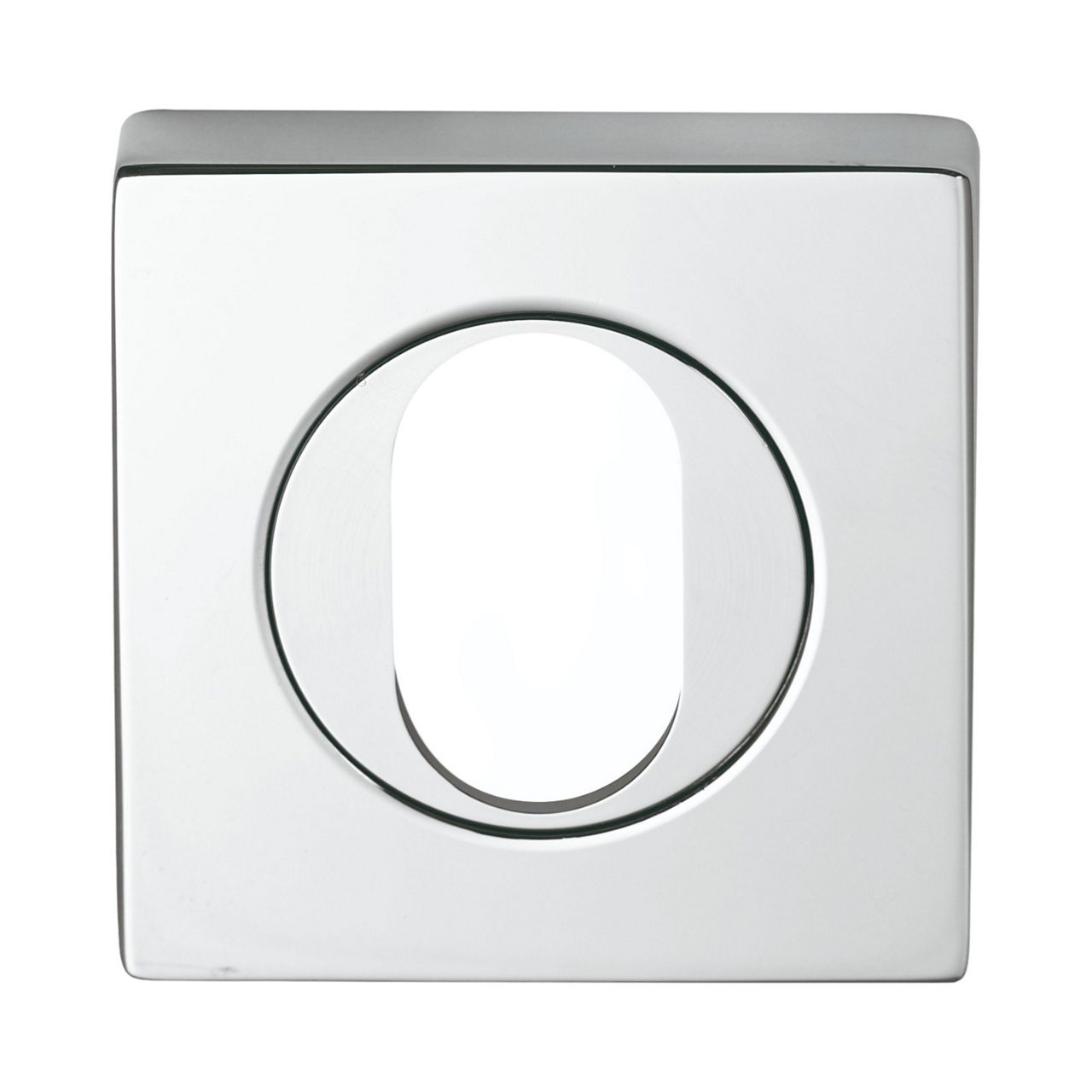

Oval Cylinder Escutcheon (1426/I)

Supplied with
2 x Short & 2 x Medium Wood Screws (SP1226-219)
(Replaces 1426)

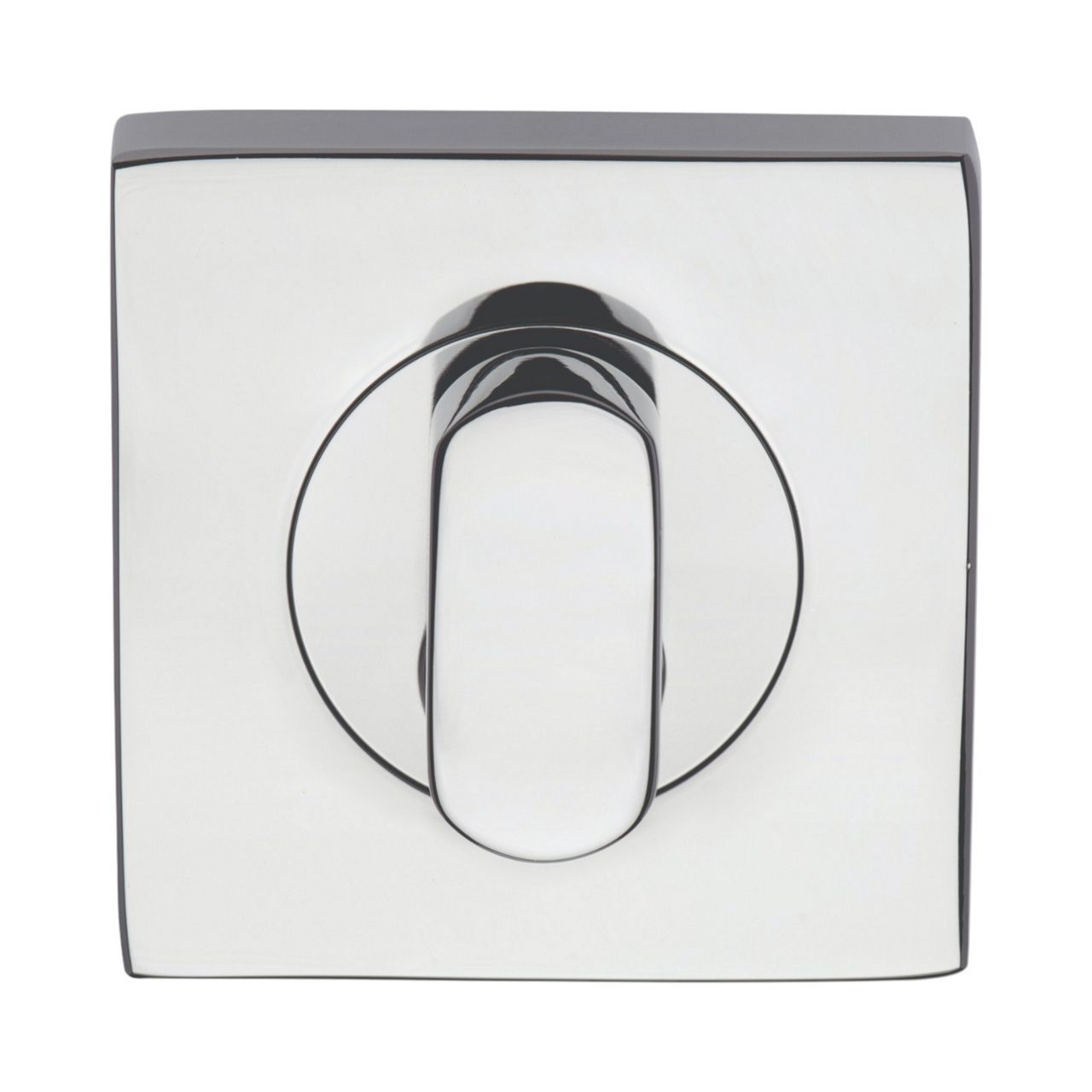

Turnknob Escutcheon (1427/IN)

Supplied with
2 x Short & 2 x Medium Wood Screws (SP1226-219)
1 x Short, Medium & Long Tail Bars and Spring (SP1227-219)
1 x Flat Tail Bar & Split Pin (SP12227-319)
1 x Instructions (1220-321)
(Replaces 1427)

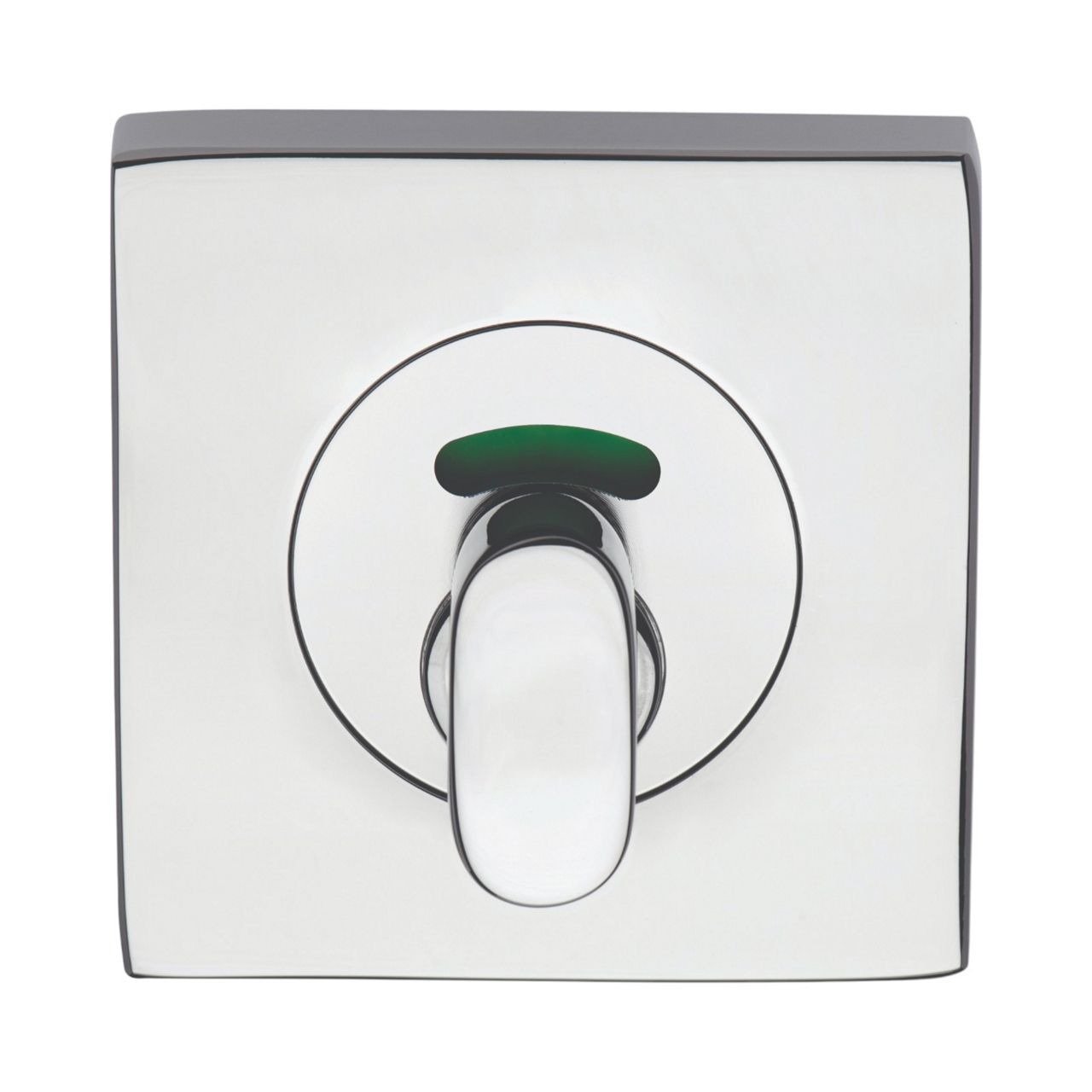

Privacy Indicating Turnknob Escutcheon (1427/IP)

Supplied with
2 x Short & 2 x Medium Wood Screws (SP1226-219)
1 x Short, Medium & Long Tail Bars and Spring (SP1227-219)
1 x Flat Tail Bar & Split Pin (SP12227-319)
1 x Instructions (1220-321)
(Replaces 1427P)

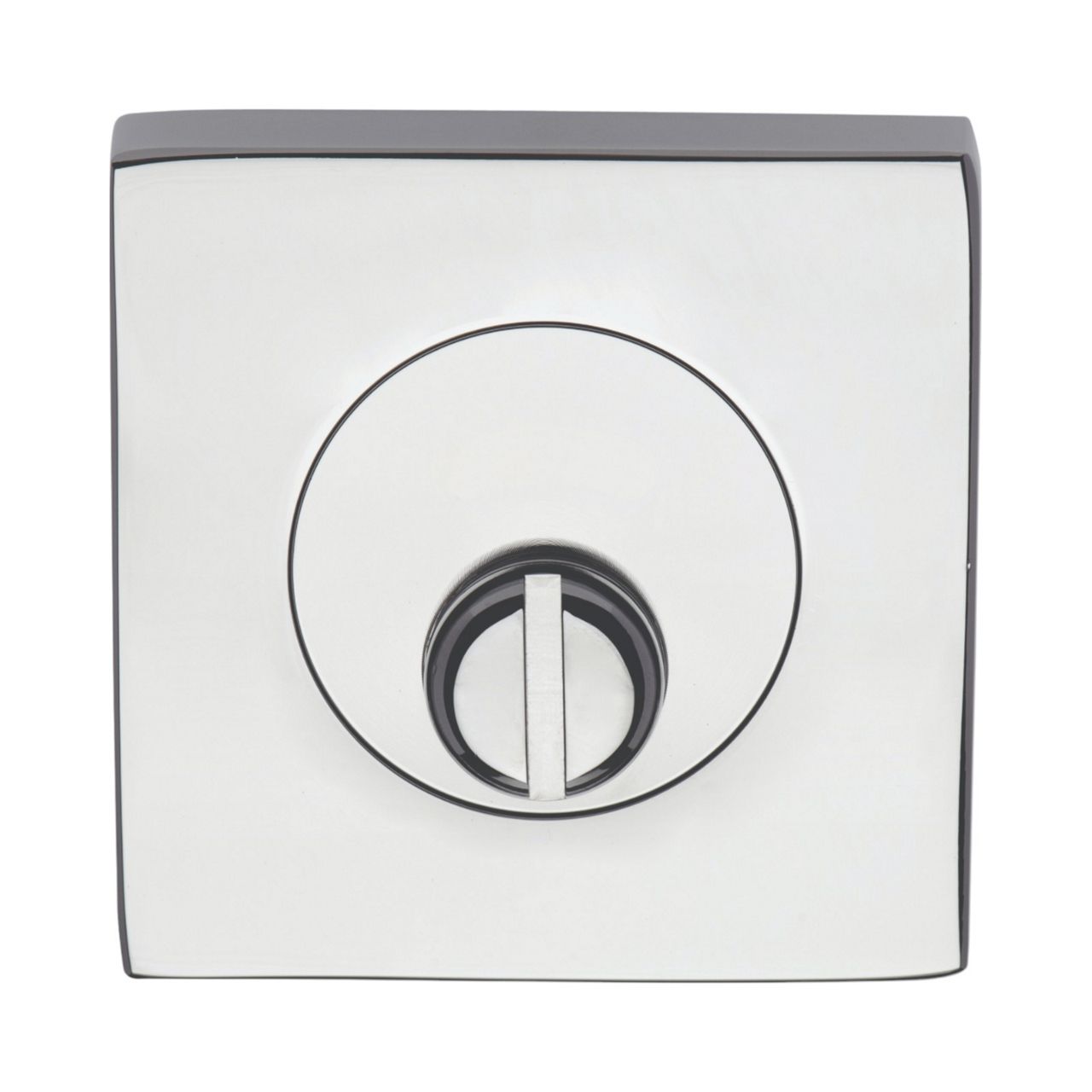

Emergency Turn Escutcheon (1428/IN)

Supplied with
2 x Short & 2 x Medium Wood Screws (SP1226-219)
1 x Emergency Tail Bar (SP1227-119)
(Replaces 1428P)

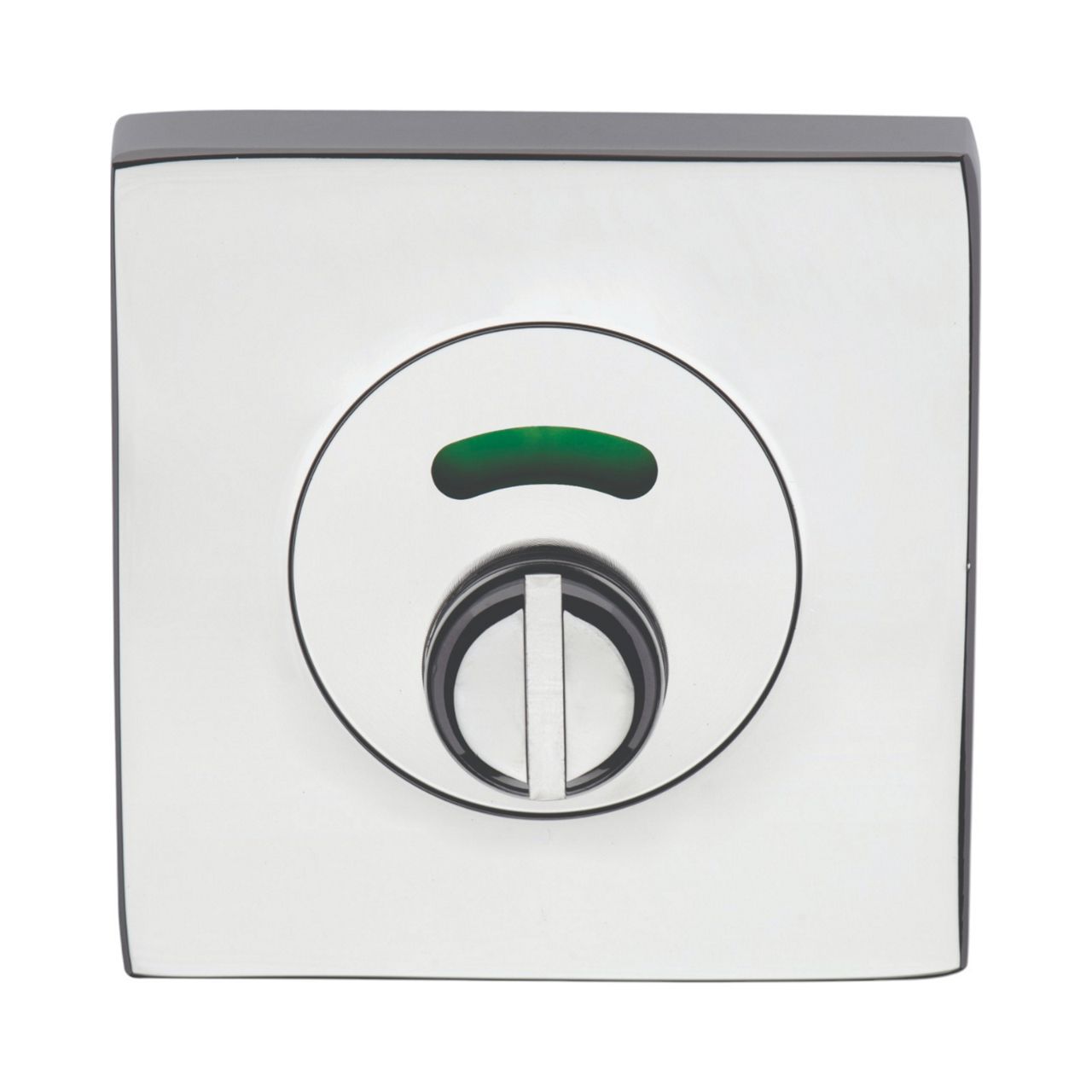

Privacy Indicating EmergencyTurn Escutcheon (1428/IP)

Supplied with
2 x Short & 2 x Medium Wood Screws (SP1226-219)
1 x Emergency Tail Bar (SP1227-119)
(Replaces 1428P)

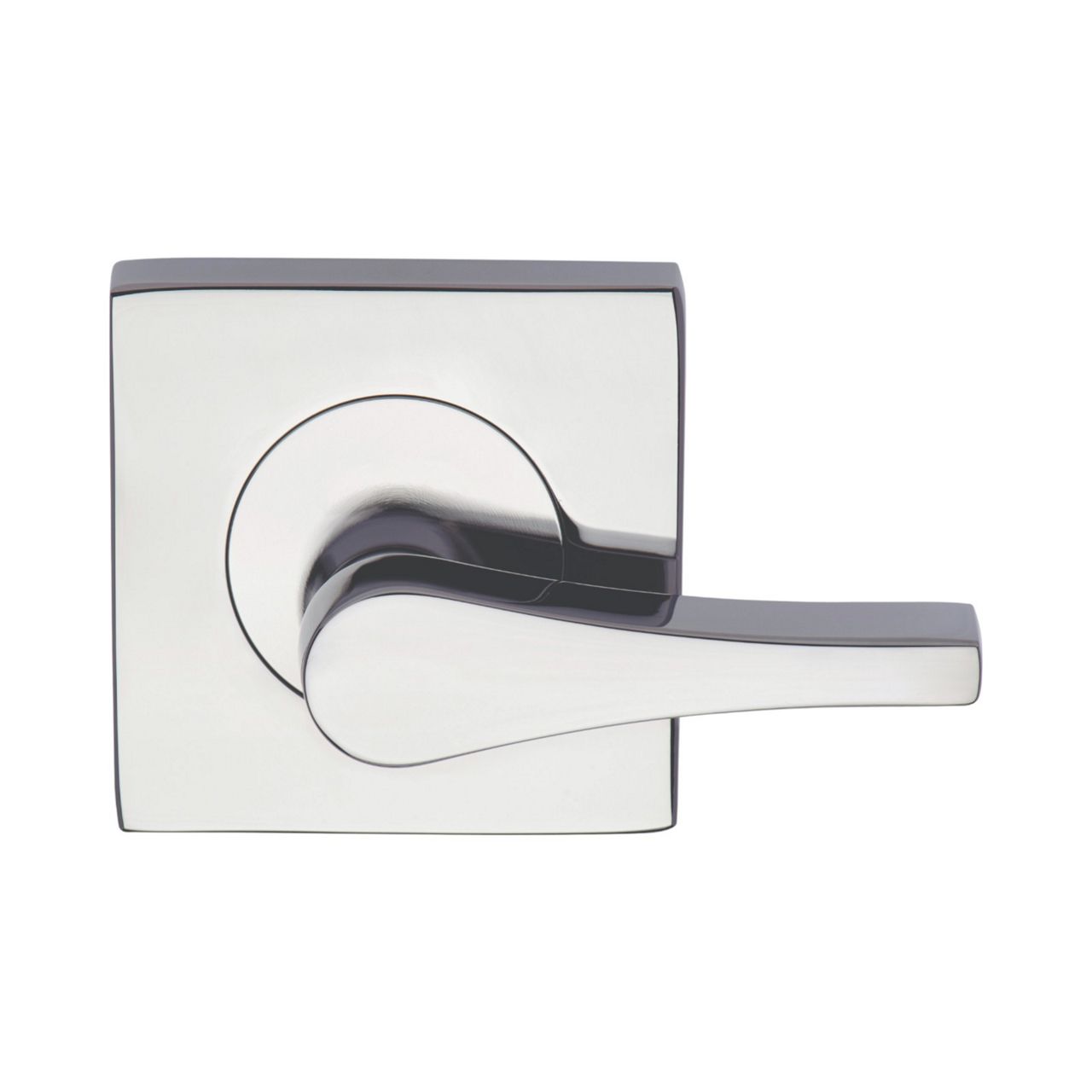

Disabled Accessible Turnknob (1429/IN)

Supplied with
2 x Short & 2 x Medium Wood Screws (SP1226-219)
1 x Short, Medium & Long Tail Bars and Spring (SP1227-219)
1 x Flat Tail Bar & Split Pin (SP12227-319)
1 x Instructions (1220-321)
(Replaces 1427DT)

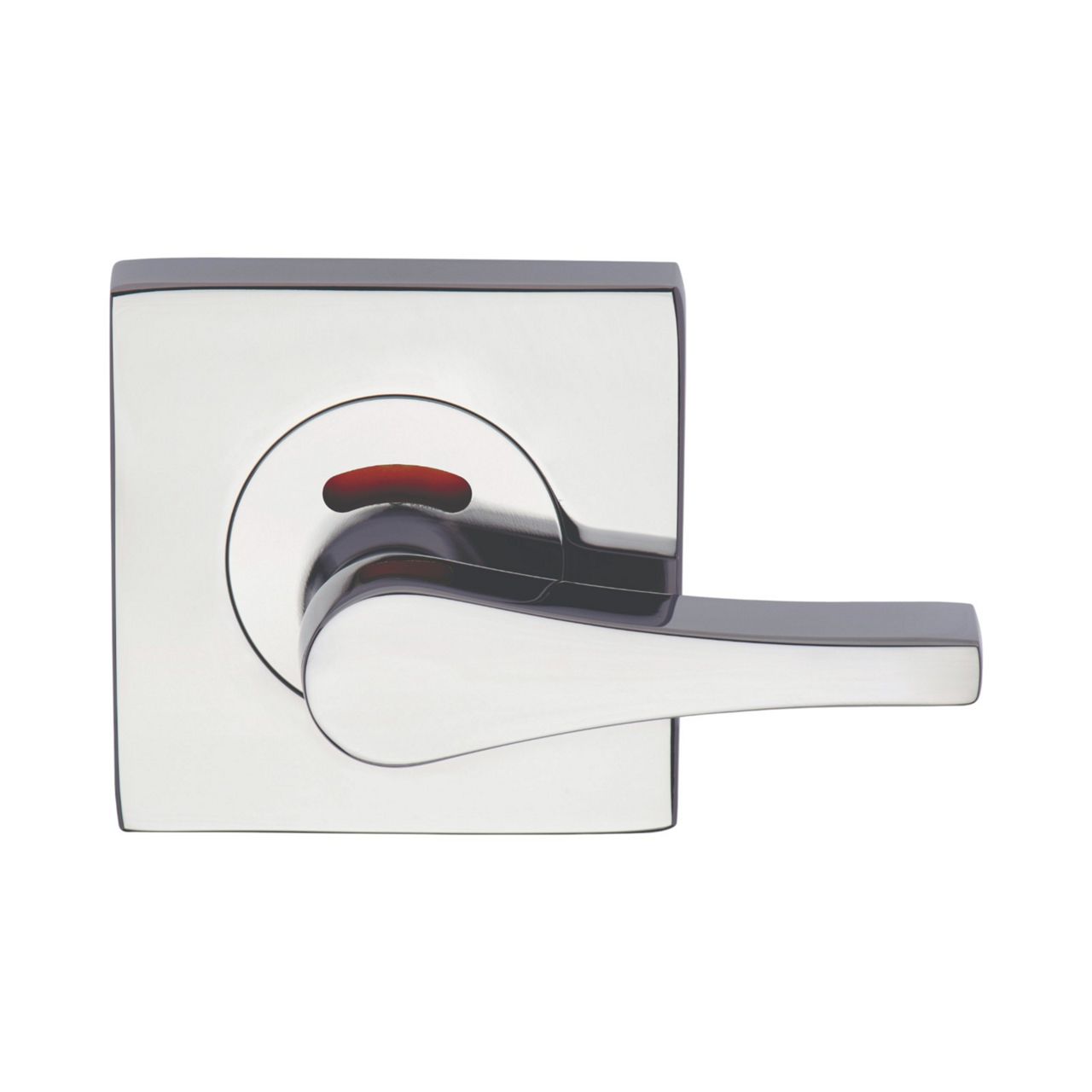

Disabled Accessible Privacy Indicating Turnknob (1429/IP)

Supplied with
2 x Short & 2 x Medium Wood Screws (SP1226-219)
1 x Short, Medium & Long Tail Bars and Spring (SP1227-219)
1 x Flat Tail Bar & Split Pin (SP12227-319)
1 x Instructions (1220-321)

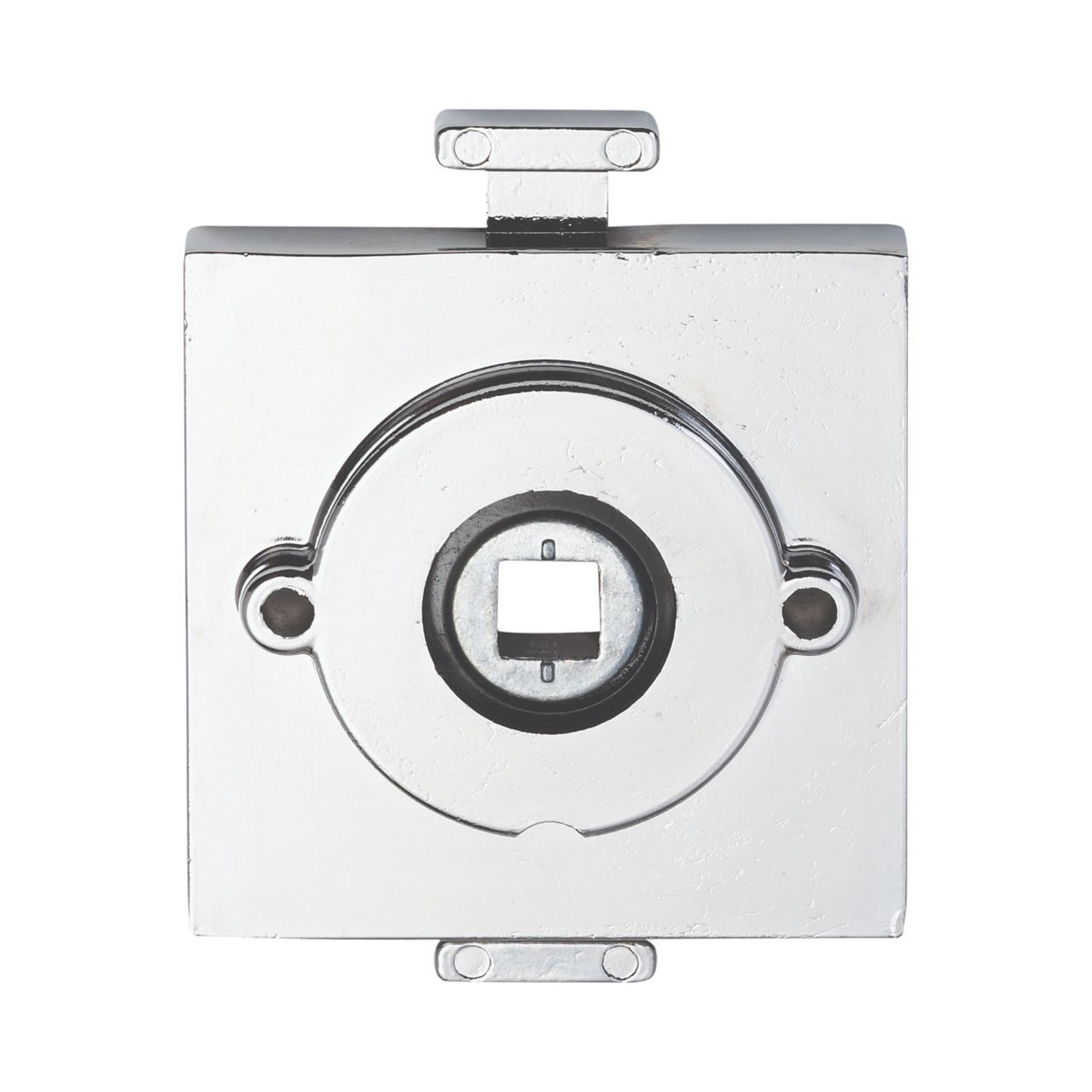

Privacy Adaptor 3690 (3690)

Dimensions: 58mm x 11.6mm
Supplied with
2 x M4 x 77mm Stainless Steel Screws (SP0655MBK)
1 x Spindle 7.6mm x 90mm
1 x Instructions (3890-121)
Finishes

• Satin Chrome (SC)
• Chrome Plate (CP)
• Powder Coat (PC)

Not available in brass finishes

The 3690 Privacy Adaptor has a patented built in clutching mechanism which allows the engaged mode to be overridden by use of specified force applied in a single downward action on the lever. This will allow entry in an emergency situation without the use of any type of tool. The privacy adaptor can be installed onto any existing Lockwood lever set and standard 5260 Tubular Latch.
