Lockwood Pull Handles
Available in a range of sizes.

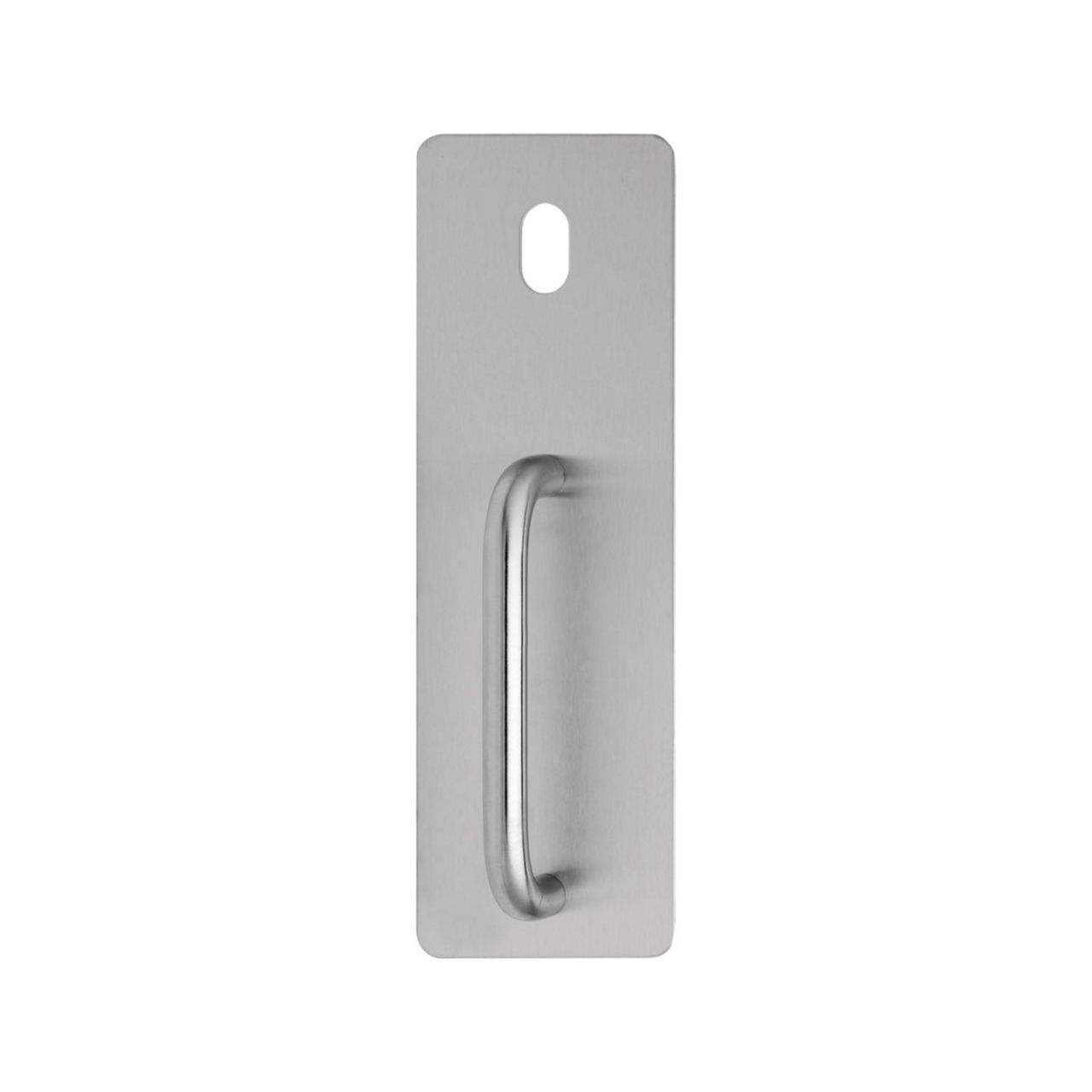

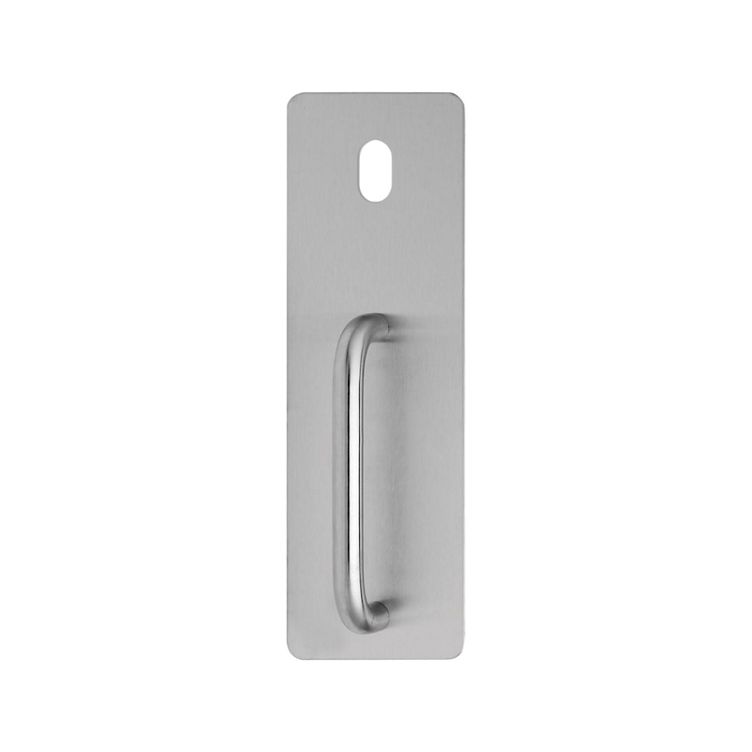

Lockwood 214/215 Series 10mm Radius Corner Push and Pull Plates
The 214 Series Door Furniture is 300 x 100 x 2mm thick stainless steel or brass plates with 10mm radius corners. Concealed fixed plates have studs with internal threads located in each corner, visible plates have corresponding countersunk holes and are fixed back to back through the door.
Application
Designed for use with 3570 Series Mortice Locks.
Lockwood 214/215 Series 10mm Radius Corner Push and Pull Plates
Materials
Stainless steel or brass.Door Thickness
35 to 45mm standard. For doors 45 to 55mm thick, specify long fixing screws SP2000-208.Finishes
Standard
- Satin Stainless Steel SS
Non Standard
- Polished Stainless Steel PS
- Powdercoat PC
- Polished Brass PB
- Marine Grade MG
Dimensions
300 x 100 x 2mm.Description (Trade Pack) Part number 300mm x 100mm x 2mm with 10mm Radius Corners - Plain Plate (Visible Fix) 21507NNSS 300mm x 100mm x 2mm with 10mm Radius Corners - Plain Plate (Concealed Fix) 21407NNSS 300mm x 100mm x 2mm with 10mm Radius Corners - Plate With Oval Cyl Hole (Visible Fix) 21500NASS 300mm x 100mm x 2mm with 10mm Radius Corners - Plate With Oval Cyl Hole (Concealed Fix) 21400NASS 300mm x 100mm x 2mm with 10mm Radius Corners - Plate With Oval T/Knob (Visible Fix) 21506NNSS 300mm x 100mm x 2mm with 10mm Radius Corners - Plate With Oval T/Knob (Concealed Fix) 21406NNSS 300mm x 100mm x 2mm with 10mm Radius Corners - Push Engraved On Plate (Visible Fix) 21507FNSS 300mm x 100mm x 2mm with 10mm Radius Corners - Push Engraved On Plate (Concealed Fix) 21407FNSS 300mm x 100mm x 2mm with 10mm Radius Corners - Male Engraved On Plate (Visible Fix) 21507BNSS 300mm x 100mm x 2mm with 10mm Radius Corners - Male Engraved On Plate (Concealed Fix) 21407BNSS 300mm x 100mm x 2mm with 10mm Radius Corners - Female Engraved On Plate (Visible Fix) 21507DNSS 300mm x 100mm x 2mm with 10mm Radius Corners - Female Engraved On Plate (Concealed Fix) 21407DNSS 300mm x 100mm x 2mm with 10mm Radius Corners - Male International Symbol Engraved On Plate (Vis. Fix) 21507ANSS 300mm x 100mm x 2mm with 10mm Radius Corners - Male International Symbol Engraved On Plate (Con. Fix) 21407ANSS 300mm x 100mm x 2mm with 10mm Radius Corners - Female International Symbol Engraved On Plate (Vis. Fix) 21507CNSS 300mm x 100mm x 2mm with 10mm Radius Corners - Female International Symbol Engraved On Plate (Con. Fix) 21407CNSS 300mm x 100mm x 2mm with 10mm Radius Corners - Disabled International Symbol Engraved On Plate (Vis. Fix) 21507ENSS 300mm x 100mm x 2mm with 10mm Radius Corners - Disabled International Symbol Engraved On Plate (Con. Fix) 21407ENSS Plain Plate With D Handle (Concealed Fix) - 170 X 17.5MM 21424NN/P2SS Plain Plate With D Handle (Concealed Fix) - 220 X 17.5MM 21424NN/P3SS Plain Plate With D Handle (Concealed Fix) - 267 X 17.5MM 21424NN/P4SS Plain Plate With D Handle (Visible Fix) - 170 X 17.5MM 21524NN/P2SS Plain Plate With D Handle (Visible Fix) - 220 X 17.5MM 21524NN/P3SS Plain Plate With D Handle (Visible Fix) - 267 X 17.5MM 21524NN/P4SS Pull Engraved On Plate With D Handle (Concealed Fix) - 170 X 17.5MM 21424GN/P2SS Pull Engraved On Plate With D Handle (Concealed Fix) - 220 X 17.5MM 21424GN/P3SS Pull Engraved On Plate With D Handle (Visible Fix) - 170 X 17.5MM 21524GN/P2SS Pull Engraved On Plate With D Handle (Visible Fix) - 220 X 17.5MM 21524GN/P3SS D Handle On Plate With Cyl Hole (Concealed Fix) - 170 X 17.5MM 21425NA/P2SS D Handle On Plate With Cyl Hole (Concealed Fix) - 220 X 17.5MM 21425NA/P3SS D Handle On Plate With Cyl Hole (Visible Fix) - 170 X 17.5MM 21525NA/P2SS D Handle On Plate With Cyl Hole (Visible Fix) - 220 X 17.5MM 21525NA/P3SS D Handle On Plate With Oval Turnsnib (Concealed Fix) - 170 X 17.5MM 21427NN/P2SS D Handle On Plate With Oval Turnsnib (Concealed Fix) - 220 X 17.5MM 21427NN/P3SS D Handle On Plate With Oval Turnsnib (Visible Fix) - 170 X 17.5MM 21527NN/P2SS D Handle On Plate With Oval Turnsnib (Visible Fix) - 220 X 17.5MM 21527NN/P3SS D Handle On Plate With Privacy Indicator & Emergency Turn (Concealed Fix) - 170 X 17.5MM 21428NN/P2SS D Handle On Plate With Privacy Indicator & Emergency Turn (Concealed Fix) - 220 X 17.5MM 21428NN/P3SS D Handle On Plate With Disabled Turnsnib (Visible Fix) - 170 X 17.5MM 21542NN/P2LSS 214/215 Push & Pull Sets, Bulk Pack (Set of 10) - 214P2NN & 21524NN/P2 214CONPPSS 214/215 Push & Pull Sets, Bulk Pack (Set of 10) - 215P2NN & 21524NN/P2 215VISPPSS (Sold in pack of 10 only/No split packs/price is per each, not pack)
