Lockwood 260 Series Round Rose Door Furniture Levers
55mm Rose.
Lockwood 260SQ Series Square Rose Furniture Levers
Concealed fixed plates have studs with internal threads located on the rose, visible roses have corresponding countersunk holes and are fixed back to back through the door.
Application
Designed for use with Lockwood 3770 Selector & 3570 Synergy Series Mortice Latches and with 5250 Tubular Latches.

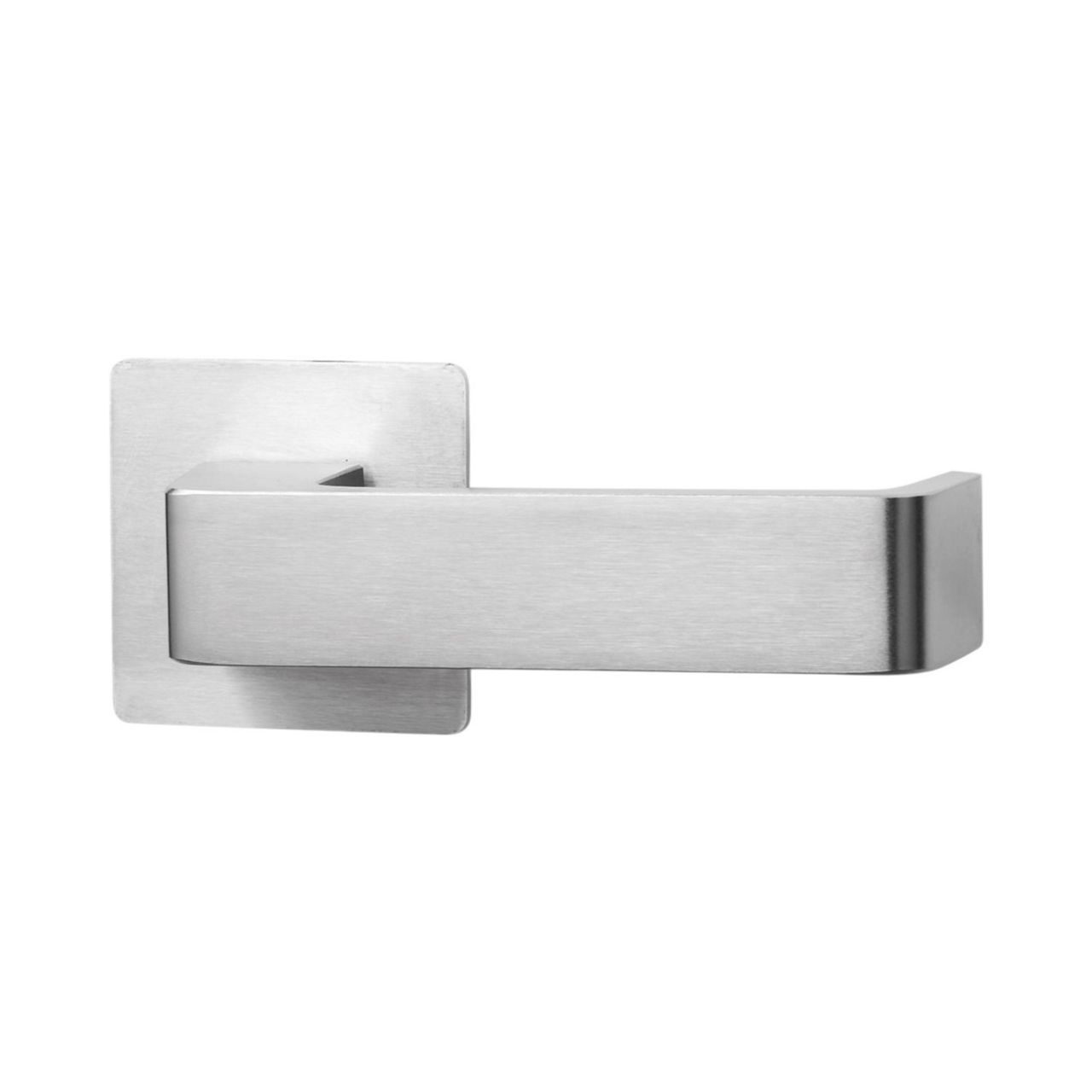

Lockwood 260SQ Series Square Rose Furniture Levers
Materials
Stainless steel only.Door Thickness
For use with 3570 Series Mortice Latches: Door thickness 35 to 45mmFor use with 5260 Tubular Latches: Door thickness 37-45mm
(Extended screws and packing plates available forinstallation on thicker and thinner doors.)
Standard Finish
Stainless Steel SS
Dimensions
Lever Rose
55 x 2mm - stainless steel
Escutcheon Rose
50 x 2mm - stainless steel
Description (Trade Pack) Part number Square 55 x 55 x 2mm - External & Internal Lever Furniture Set 260/261/SQ96SS Square 55 x 55 x 2mm - External Blank Rose (Concealed Fix) 262SQSS Square 55 x 55 x 2mm - Internal Blank Rose (Visible Fix) 263SQSS Square 55 x 55 x 2mm - External 1/2 Set With Fixed Lever (Concealed Fix) 264/SQ96SS Square 55 x 55 x 2mm - Internal 1/2 Set With Fixed Lever (Visible Fix) 265/SQ96SS
