Lockwood Paradigm® Pull Handle Lockset - Deadbolt
Deadbolt version for an elegant entry.
Lockwood 005 Double Cylinder Square Deadbolt
Designed in Australia, the Paradigm 005 Double Cylinder Deadbolt represents the pinnacle in deadbolt security products.
Incorporating innovative safety features including Safety Release™, LockAlert® and DualSelect®, the 005 Double Cylinder Deadbolt is ideal for residential and architectural applications.
Features of the 005 Double Cylinder Deadbolt
- Conforms to the security and durability requirements of Australian Standard AS4145.2-2008 | SL8D8C6K5
- Multi-mode slimline deadbolt providing safety, security and convenience
- Simple to install
- High security cut resistant stainless steel bolt
- Available in round or square designs
- Box strike with concealed crossgrain doorframe strengthening screw
 | LockAlert |
 | Secure Mode Locked from the inside and outside. |
 | Safety Mode Locked from the outside and free to exit from inside. |
 | Passage Mode Free to enter from outside and free to exit from inside. |
 | DualSelect® |
 | SafetyRelease™ |
 | Anti-Corrosion Successfully tested in accordance with AS2332.3.1:2001 neutral salt spray test. |
 | Kinetic Defence® Bump and pick resistant. |
 | Counterbalance Bolt Proportionally distributes the load between the door and door frame. |
 | Retrofitable Replace your existing Deadbolt. Fits 54mm hole. 60-70mm adjustable backset. 32-48mm door thickness. |
 | 2 Keys Included Can be keyed alike to other Lockwood door locks. |

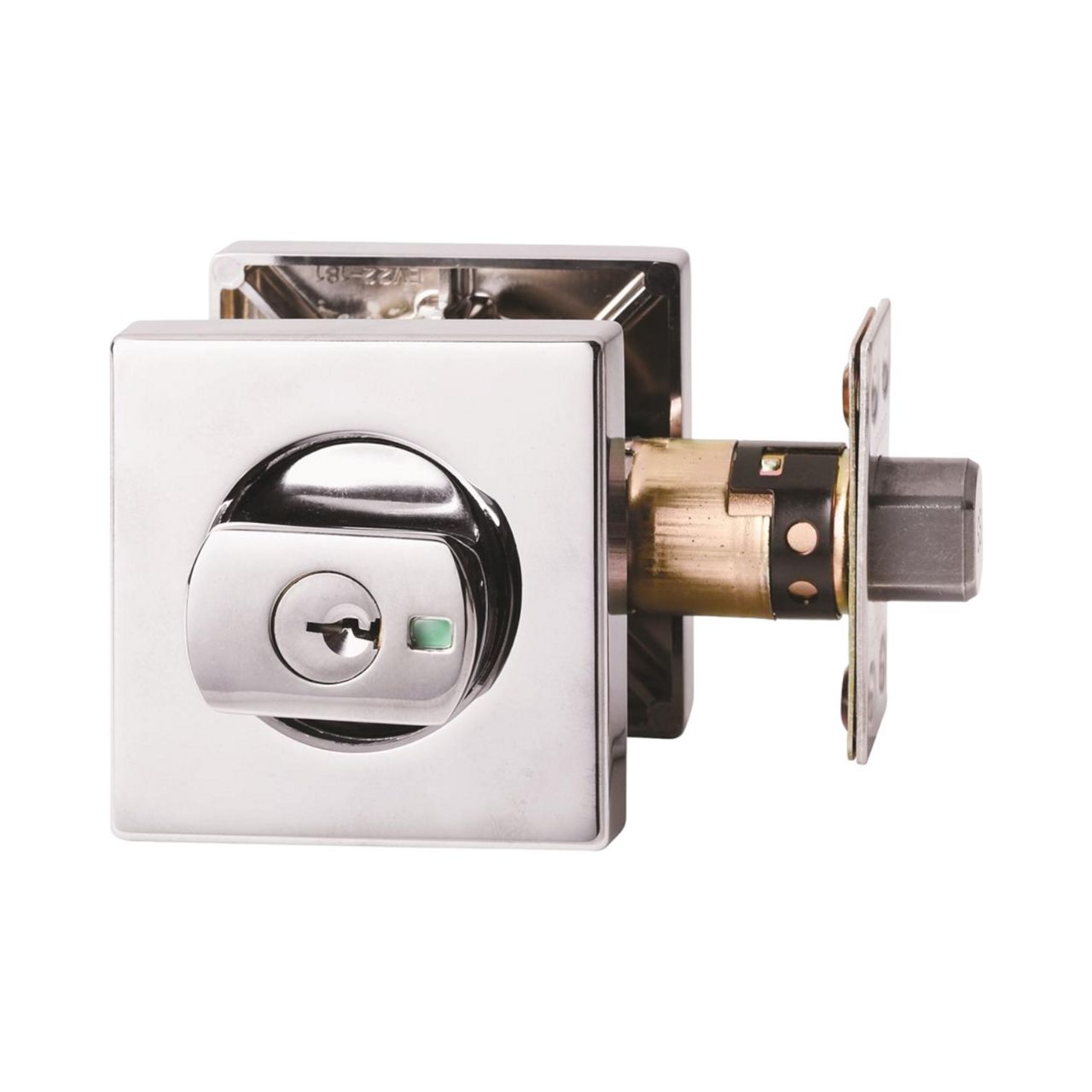

005 Double Cylinder Deadbolt - Square - Chrome Plate - Interior View

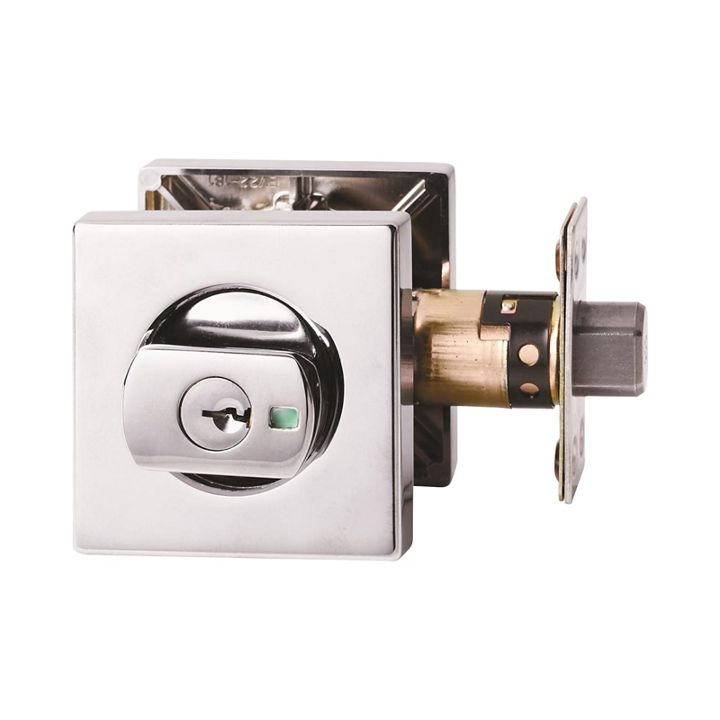

005 Double Cylinder Deadbolt - Square - Chrome Plate - Interior View

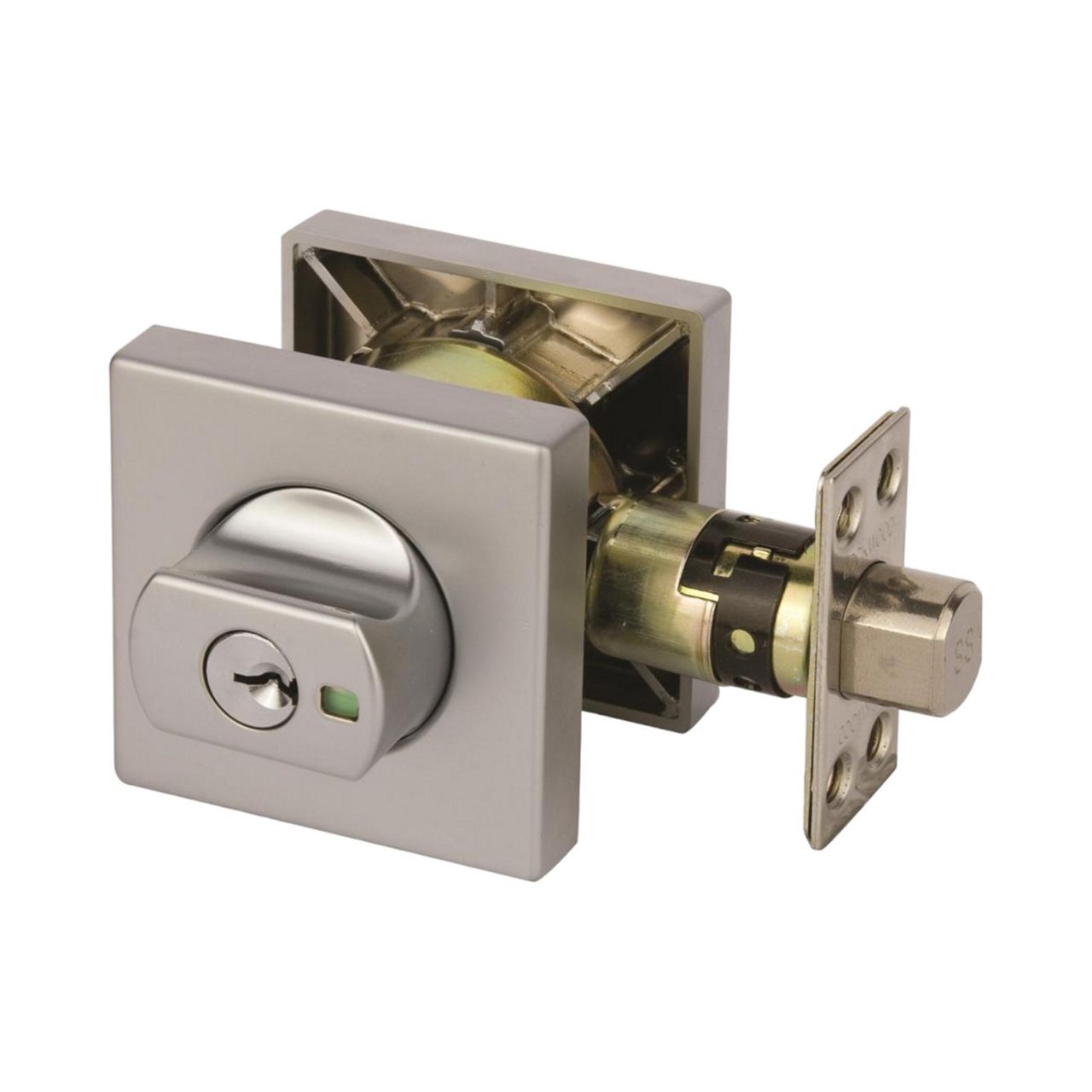

005 Double Cylinder Deadbolt - Square - Brushed Satin Chrome - Interior View
Backset
60 to 70mm adjustable stainless steel bolt.
Cylinder
- 5 pin tumbler mechanism
- Brass cylinder and brass barrel
Standard Finishes
- Chrome Plate CP
- Satin Chrome Pearl SP
- Satin Chrome Brushed LSC
- Everbrass EVB
- Satin Stainless Steel SSS (Round version)
Materials
- High purity zinc alloy
- Stainless steel version features 304 grade satin stainless steel rose, turn knob and trim
Door Thickness
32 – 48mm. However, 32 – 36mm doors require spacer ring (included).
Keying
Standard Keying
- Supplied individually keyed with two keys per lock
- 78,000 key combinations
- Key blank KB2015P
- AS 4145.2-2008 K5
Restricted Special Keying
Lockwood locks can be keyed to a number of controlled and/or specially keyed systems.
These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.Lockwood Keying Platforms - more information
Security
Conforms to the security and durability requirements of Australian Standard AS4145.2-2008 | SL8D8C6K5
Durability
Paradigm 005 Deadbolt conforms to level D8. (Durability) Australian Lock Standard (AS 4145.2: 2008)
Anti-Corrosion
Successfully tested in accordance with AS2332.3.1:2001 neutral salt spray test.
Available in stainless steel for increased corrosion resistance.
Dimensions
Paradigm 005 Deadbolt Square Rose
Description Part number Barcode DISPLAY PACK 005 Double Cylinder Deadbolt | Square Rose - Satin Chrome Pearl 005/B2SPDP 93-11847-08456-8 005 Double Cylinder Deadbolt | Square Rose - Chrome Plate 005/B2CPDP 93-11847-08452-0 005 Double Cylinder Deadbolt | Square Rose - Brushed Satin Chrome 005/B2LSCDP 93-11847-08454-4
