Lockwood Symmetry® Series - Vicinity Leverset
Available in entrance, privacy, passage or dummy models.

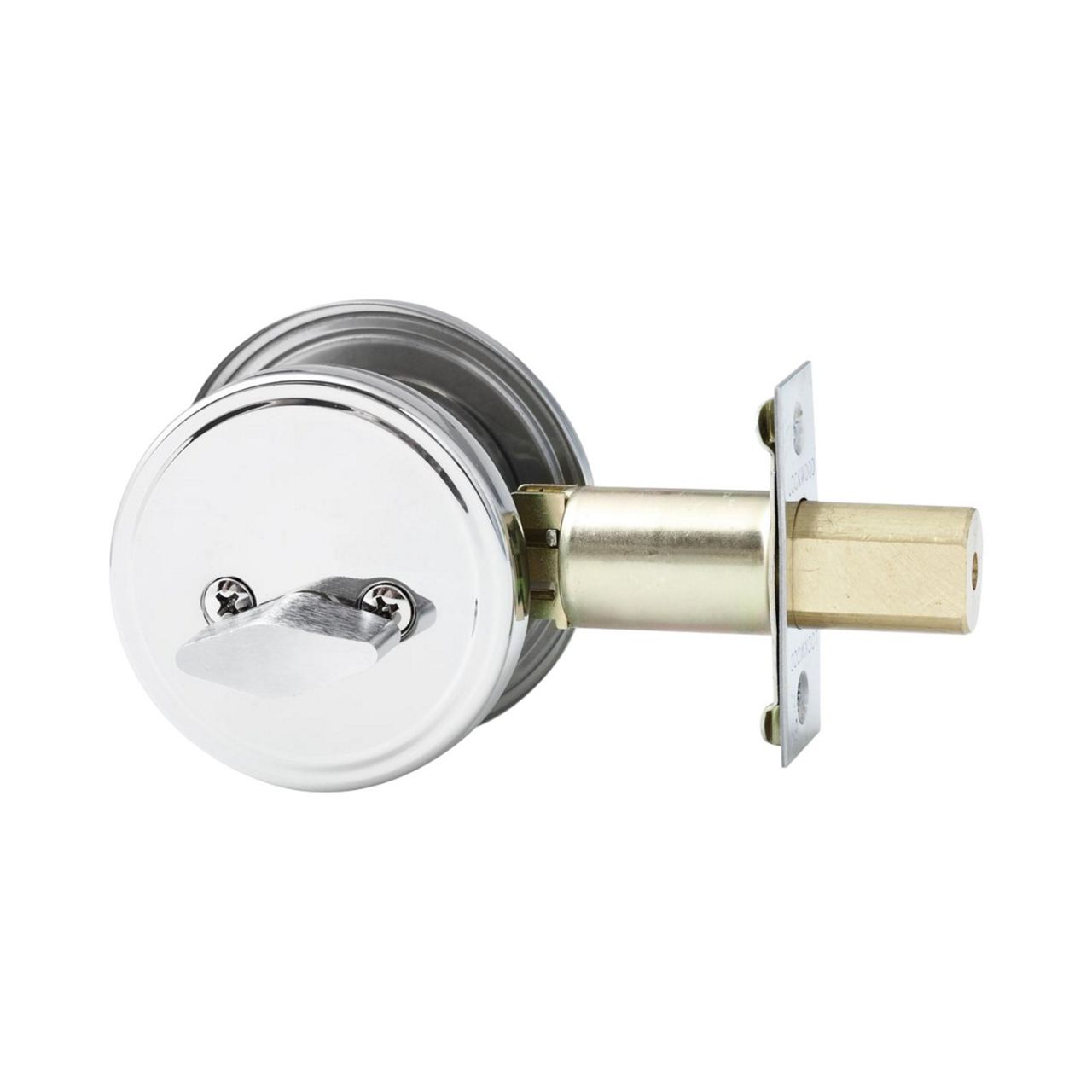

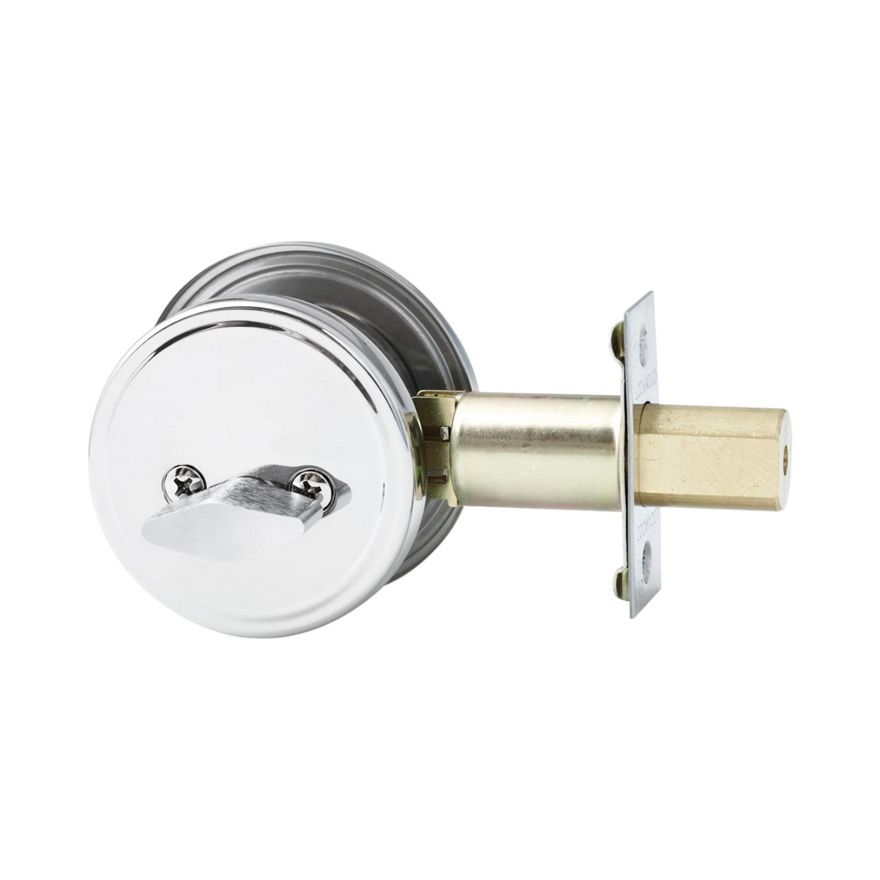

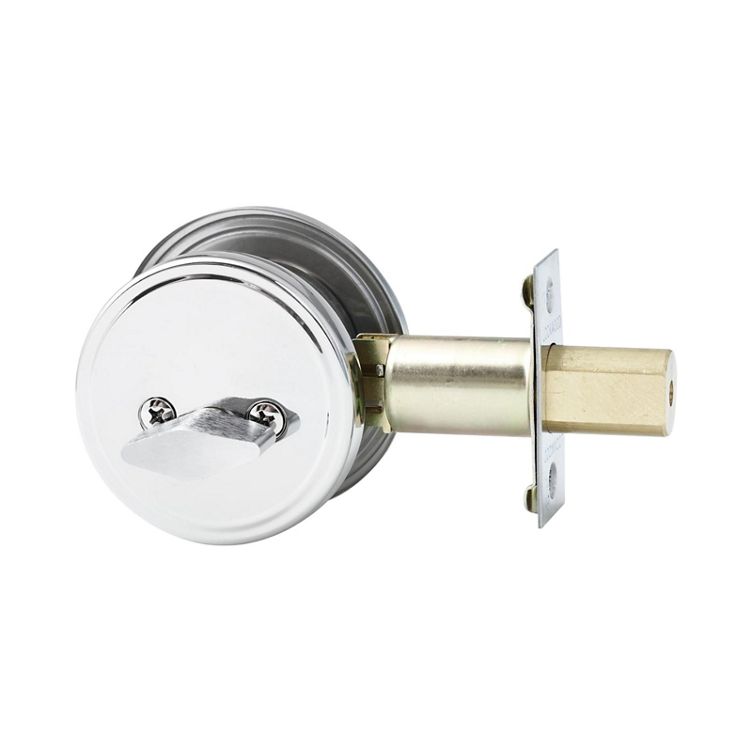

Lockwood Symmetry 7106 Single Cylinder Deadbolt
Features of the Symmetry 7106 Single Cylinder Deadbolt
- General purpose single cylinder deadbolt
- Operated by key from outside and turn knob inside
Suits left or right hand opening doors - Solid brass bolt with 25mm projection
- Hardened insert in locking bolt
Cylinder
- The one cylinder assembly solution “OneCyl®” has been designed for the Lockwood Symmetry Range, which grants the convenience of cylinder interchangeability
- 5 pin Lockwood C4 brass cylinder assembly (6 pin compatible)
Lockwood Symmetry 7106 Single Cylinder Deadbolt
Backset
Adjustable 60 – 70mm bolt.
Door Thickness
35* to 45mm.
* Requires spacer ring (included)Keying
Standard Keying
- Supplied individually keyed with three keys per lock
- 78,000 key combinations
- Key blank KB2015P
Restricted Special Keying
Lockwood locks can be keyed to a number of controlled and/or specially keyed systems. These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.
Lockwood Keying Platforms - more information
Standard Finishes
- Polished Brass PB
- Polished Stainless Steel PSS
- Satin Stainless Steel SSS
- Satin Chrome Brushed SC
Dimensions
Description Part number Barcode TRADE PACK Single Cylinder - Polished Brass 7106PB 93-11847-03310-8 Single Cylinder - Satin Stainless Steel 7106SSS 93-11847-03316-0 DISPLAY PACK Single Cylinder - Polished Brass 7106PBDP 93-11847-03210-1 Single Cylinder - Satin Stainless Steel 7106SSSDP 93-11847-03216-3
