Lockwood 530 Series Key in Knob Lockset
Non handed, easy to install lockset.

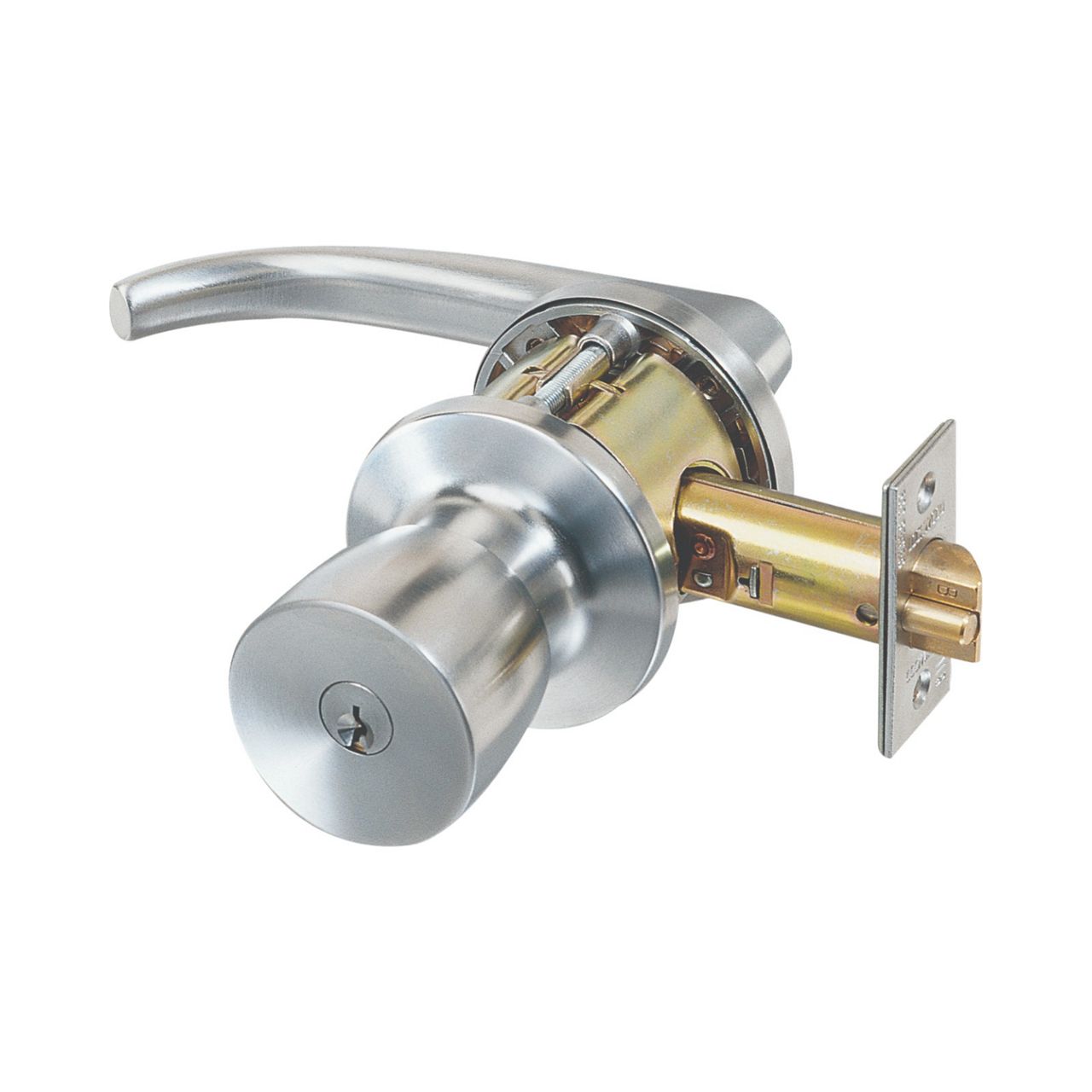

Lockwood 530/930 Key in Lever/Key in Knob Combination
The Lockwood 530/930 Combination Locksets combines the vandal resistant design of the external 530 knob together with the escape features of the internal 930 levers. They are ideally suited to external escape doors.
Lockwood 530/930 Combination Locksets have been successfully tested to 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1:2005 Fire Resistant Doorsets.
Features of the 530/930 Key in Lever/Key in Knob Combinations
- Brass bolt with 13mm projection
- Can be keyed alike, master keyed, grand master keyed, maison keyed or construction keyed.
Lockwood 530/930 Key in Lever/Key in Knob Combination
Backset
- 70mm standard backset
- 60mm and 127mm latches available separately
Door Thickness
32mm to 45mm.Fire Rating
Lockwood 530/930 Combination Locksets have been successfully tested to 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1:2005 Fire Resistant Doorsets.Description Part number Barcode TRADE PACK 536-936 Exterior Escape Deadlatch 536-936SC 538-938 Exterior Escape Deadlatch 538-938SC ACCESSORIES Long- Lipped Strike - Satin Chrome Brushed 530-153SC 530 Rebated Conversion Kit - Satin Chrome Brushed 530-9SC Tubular Latches - Plainlatch - 60mm Backset 531-122SC 93-11847-46612-8 Tubular Latches - Deadlatch - 60mm Backset 530-12SC 93-11847-46374-5 Tubular Latches - Plainlatch - 70mm Backset 531-222SC 93-11847-46009-6 Tubular Latches - Deadlatch - 70mm Backset 530-222SC 93-11847-46477-3 Tubular Latches - 127mm Backset, SC 530-225SC 93-11847-46315-8 Extended Spindle Kit Including Fixing Screws - Kit For 536, 536/936 Combo 536-6124SC 93-11847-98992-4 Extended Spindle Kit Including Fixing Screws - Kit For 938, 958, 538/938 Combo 936-6124SC 93-11847-98995-5
