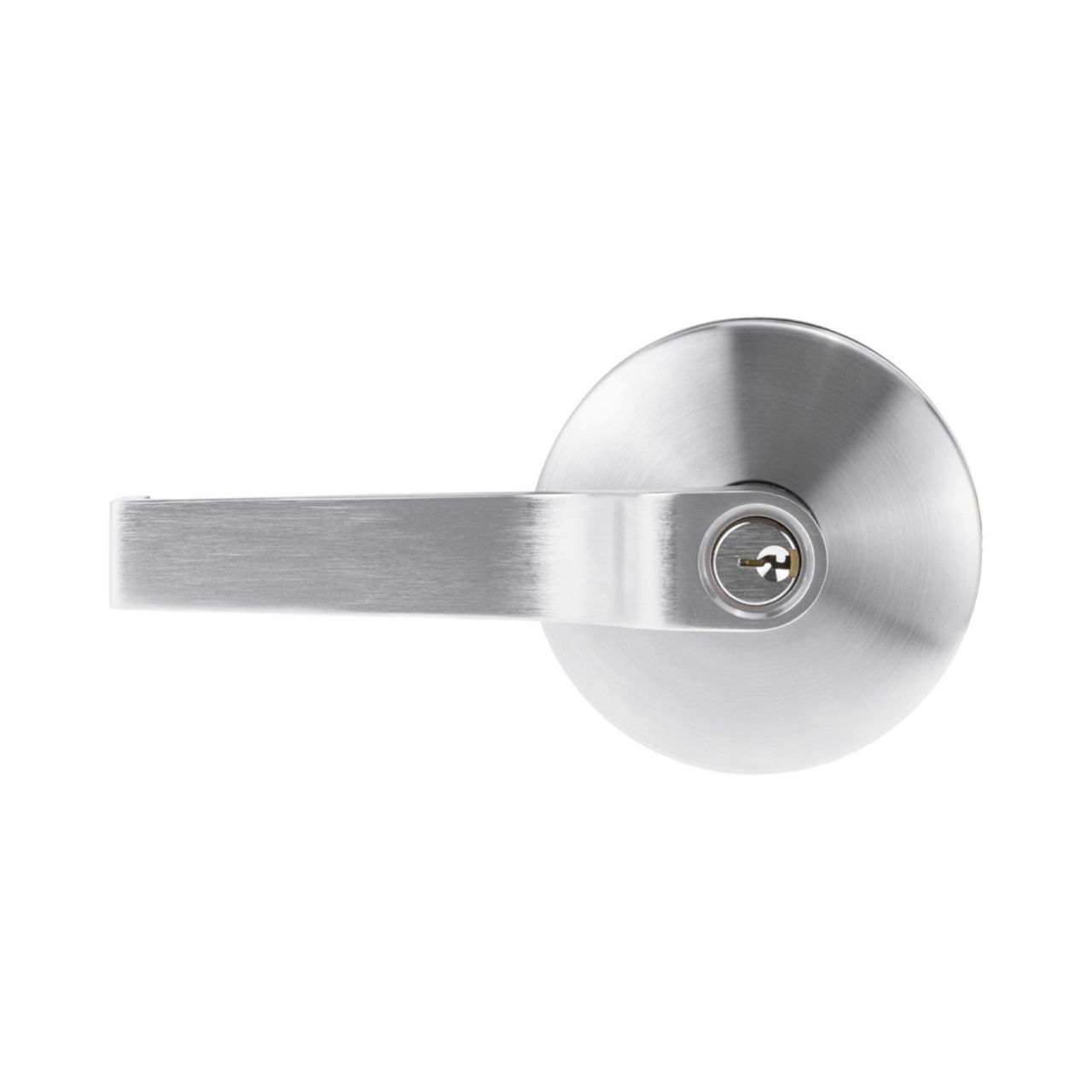

Lockwood Enable® Cylindrical Series Key in Lever Locksets
The new Lockwood Enable® Cylindrical Locksets are AS1428.1 compliant and incorporate a cylindrical chassis design housing a PD cylinder. This Lockwood Commercial Series offers a wide range of functions and is available in both 60mm and 70mm backsets. The lever is designed to enable positive grip to prevent fingers slipping off during use. A push button on the interior lever of the Exterior and Privacy Sets allows a single action egress function.
The new Lockwood Enable® Cylindrical Lockset range is available in Trade Pack and is suitable for a broad range of applications.
Features and Specifications
Door Clearance
To ensure correct functioning of the lockset, the clearance between the door and the frame should be at least 3mm.
Cylinder
- Standard "PD" type cylinder keyed to C4 profile with two keys
- Available in Exterior, Privacy, Passage, Dummy, Storeroom, Classroom Glass Door sets, Latching Halfset and Double Cylinder Storeroom
- Well suited to commercial applications
Restricted Special Keying
Lockwood locks can be keyed to a number of controlled and/or specially keyed systems. These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.
Product Details
| Backset | 60 or 70mm backset available |
| Door Thickness | 35 – 46mm |
| Finishes | Satin Chrome Brushed (SC) |
| Handing | Non handed |
| Latch | Stainless Steel latch bolt |
Standards and Compliance
 | Lockwood Enable® Cylindrical Range Locksets have been successfully tested up to 2 hours (depending on type of doorsets) on fire door assemblies in accordance with Australian Standard AS1905.1-2015, Part 1: Fire Resistant Doorsets. |
Enable® Cylindrical Series
Part Number KL17D00SC
Exterior Deadlatch
Part Number KL17D00SC (70mm backset)
KL16D00SC (60mm backset)Outside Opened by handle when unlocked. Key unlocks exterior handle. Inside Opened by handle at all times. Push button locks exterior handle.
Passage Set
Part Number KL17D10SC (70mm backset)
KL16D10SC (60mm backset)Outside Opened by handle at all times. Inside Opened by handle at all times.
Privacy Set
Part Number KL17D20SC (70mm backset)
KL16D20SC (60mm backset)Outside Opened by handle when unlocked. Coin or screwdriver in emergency button unlocks handle. Inside Opened by handle at all times. Push button locks exterior handle.
Latching Halfset
Part Number KL17D30SC Outside Blank Plate Inside Opened by handle at all times.
Glass Door Set
Part Number KL17D40SC (70mm backset)
KL16D40SC (60mm backset)Outside Opened by handle when unlocked. Key locks or unlocks both handles. Inside Opened by handle when unlocked. Key locks or unlocks both handles.
Double Cylinder Storeroom
Part Number KL17D90SC Outside Opened by key only. Outside handle is rigid at all times. Inside Opened by key only. Inside handle is rigid at all times.
Dummy Set
Part Number KL17D50SC Outside For use where only a door pull is required. Inside For use where only a door pull is required.
Classroom Set
Part Number KL17D60SC (70mm backset)
KL16D60SC (60mm backset)Outside Opened by handle when unlocked. Key locks or unlocks exterior handle. Inside Opened by handle at all times.
Storeroom Set
Part Number KL17D80SC (70mm backset)
KL16D80SC (60mm backset)Outside Opened by key only. Outside handle is rigid at all times. Inside Opened by handle at all times.
Latches
Part Numbers Function SPL/DL60/SC Lockwood Enable® Cylindrical Deadlatch 60mm SPL/DL70/SC Lockwood Enable® Cylindrical Deadlatch 70mm SPL/PL60/SC Lockwood Enable® Cylindrical Plain Latch 60mm SPL/PLP60/SC Lockwood Enable® Cylindrical Privacy Latch 60mm
