The Lockwood Nexion® Mechanical Entry Locksets represent the next generation in home security.
Designed and manufactured to the highest quality standard, the Lockwood Nexion range has set the benchmark for safety, security and style. The Nexion range of deadlatches offers the ultimate protection for your home and family.
The Nexion Mechanical Entry Lockset is available in two different plate styles and a range of lever styles, allowing you to achieve a consistent style throughout your home.
Features of the Nexion Mechanical Entry Lockset
LockAlert® The Nexion Mechanical Entry Lockset Lockwood's patented LockAlert status indicator that shows the Lockset mode at a glance. The lockset can operate in three modes: |
Secure Mode Locked from the inside and outside. |
Safety Mode Locked from the outside and free to exit from inside. |
Passage Mode Free to enter from outside and free to exit from inside. |
SafetyRelease™ Automatically unlocks the internal knob upon entry minimising the risk of being locked in. |
Kinetic Defence® Bump and pick resistant. |
2 Keys Included Can be keyed alike to other Lockwood door locks. |
| Quick Installation Suitable for inward and outward opening doors of a thickness between 35-45mm. |

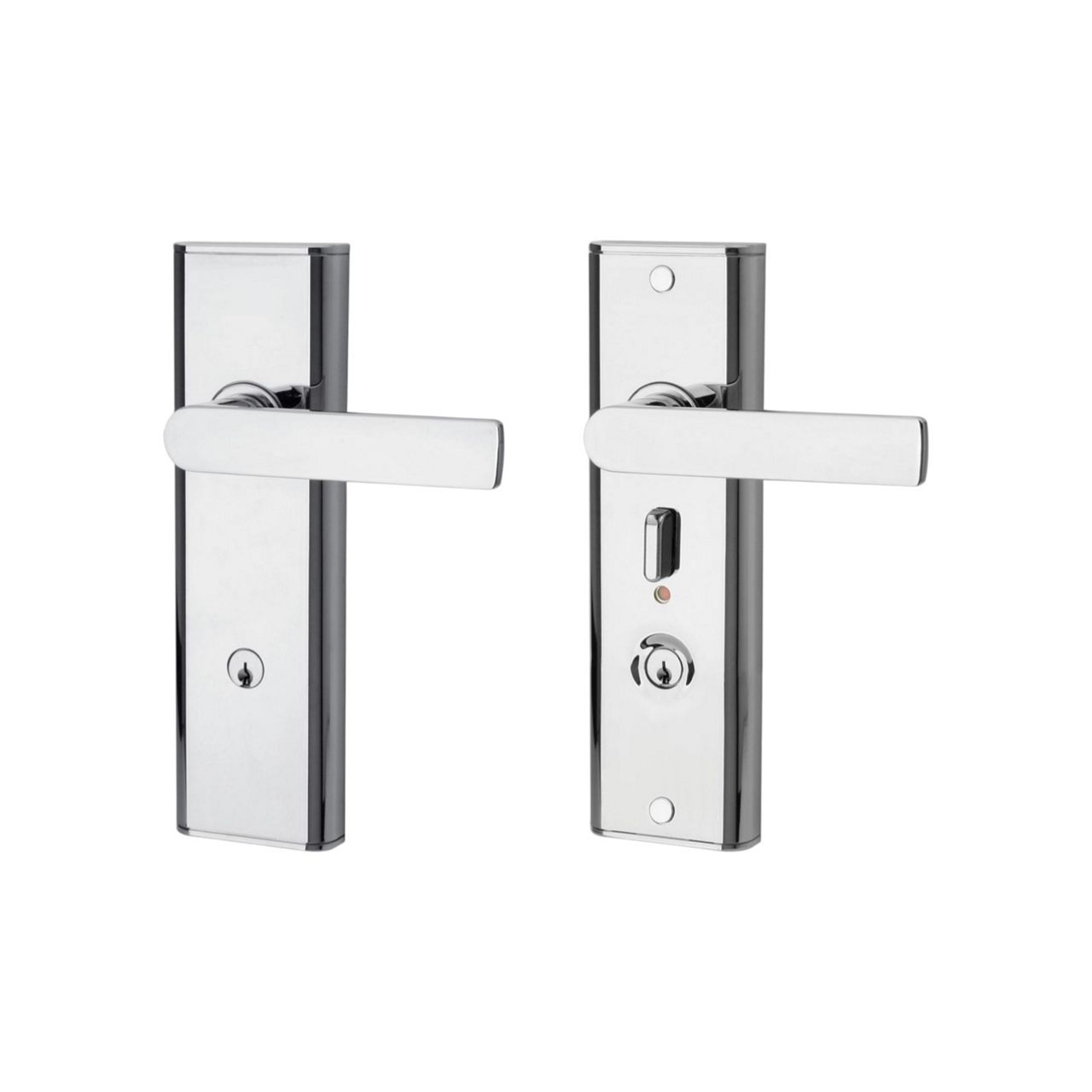

Nexion Mechanical Entry Lockset - Vision Plate - L3 Lever - External and Internal view
Nexion Mechanical Entry Lockset - Vision Plate - L3 Lever - External and Internal view

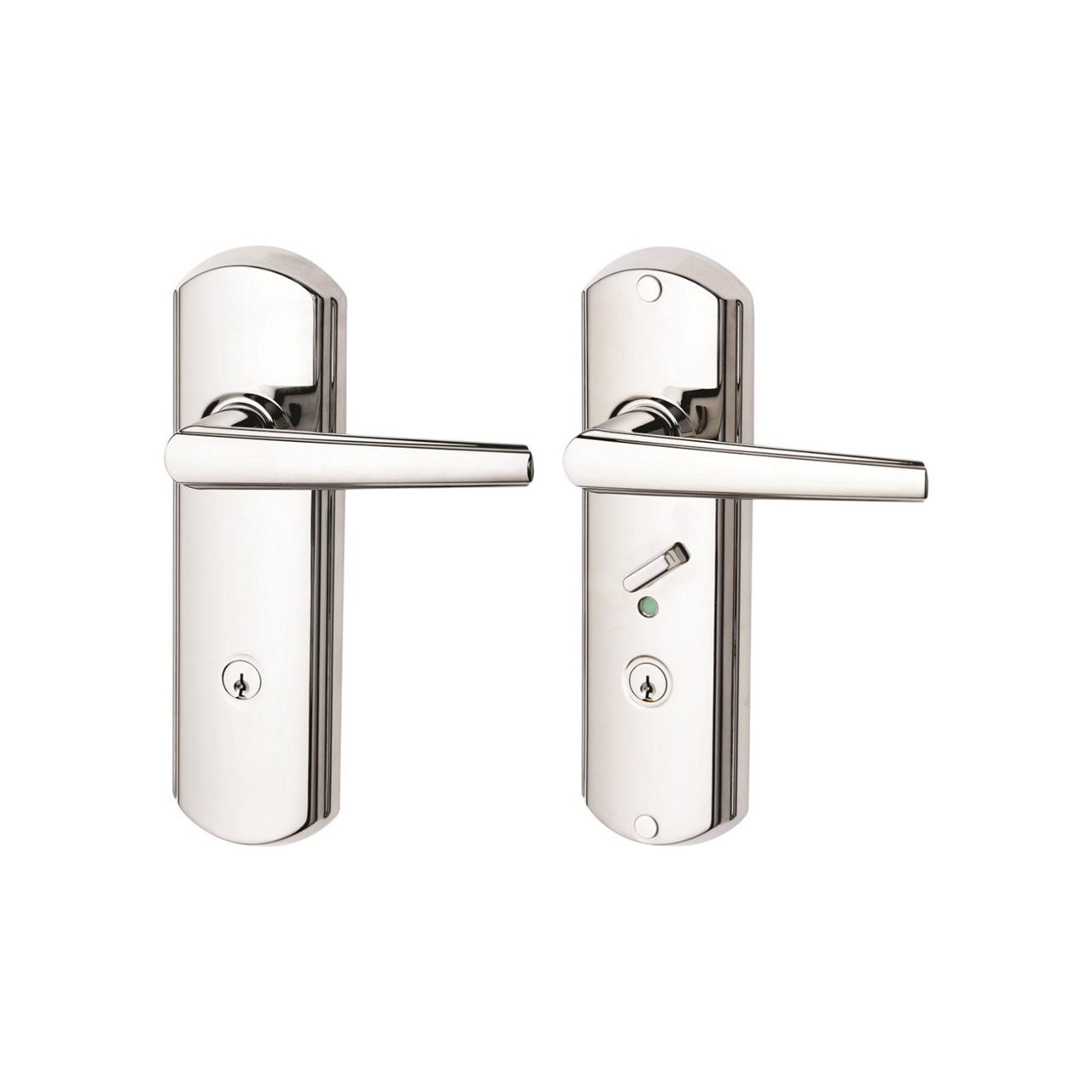

Nexion Mechanical Entry Lockset - Classic Plate - L2 Lever - External and Internal view

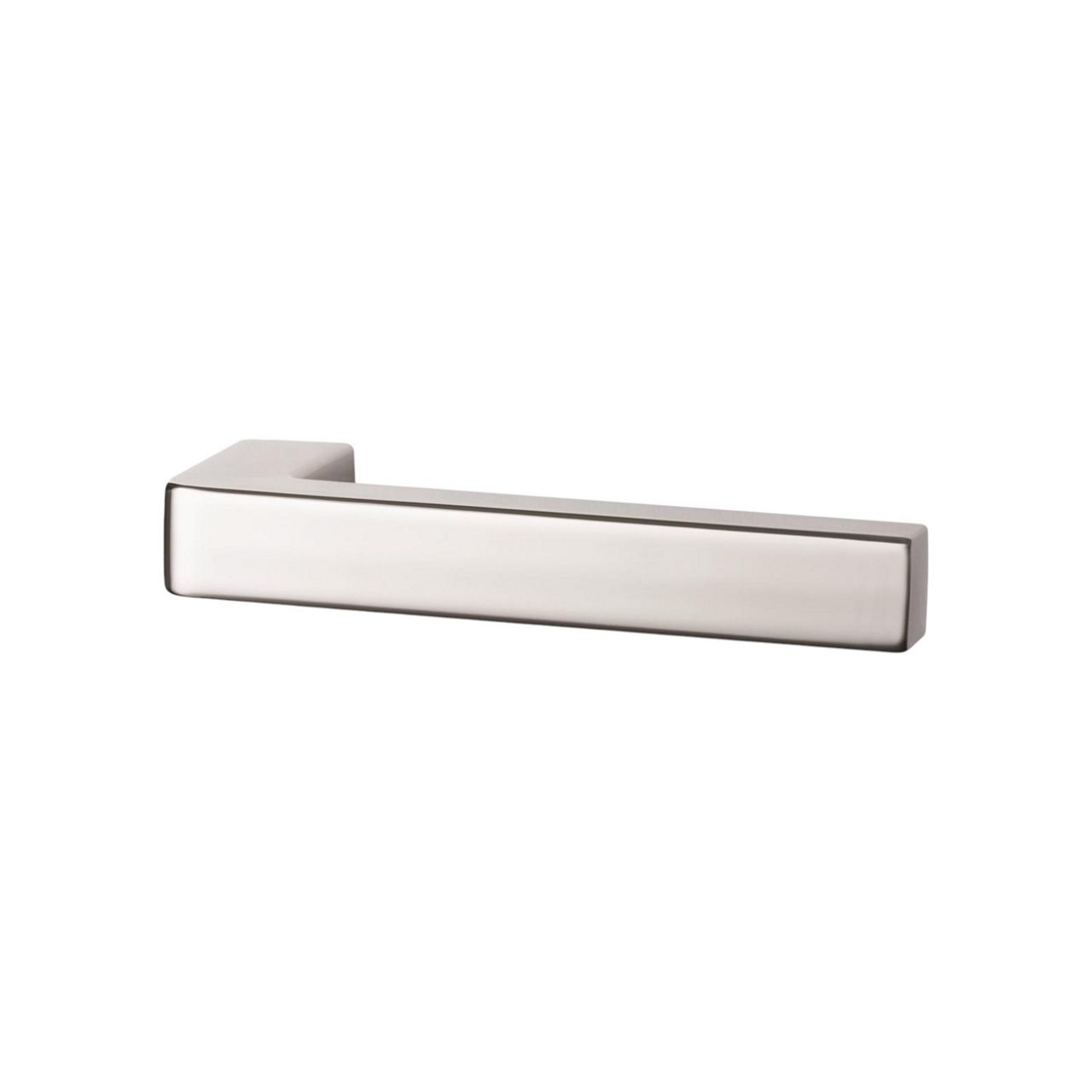

L1 Lever Handle - Summit

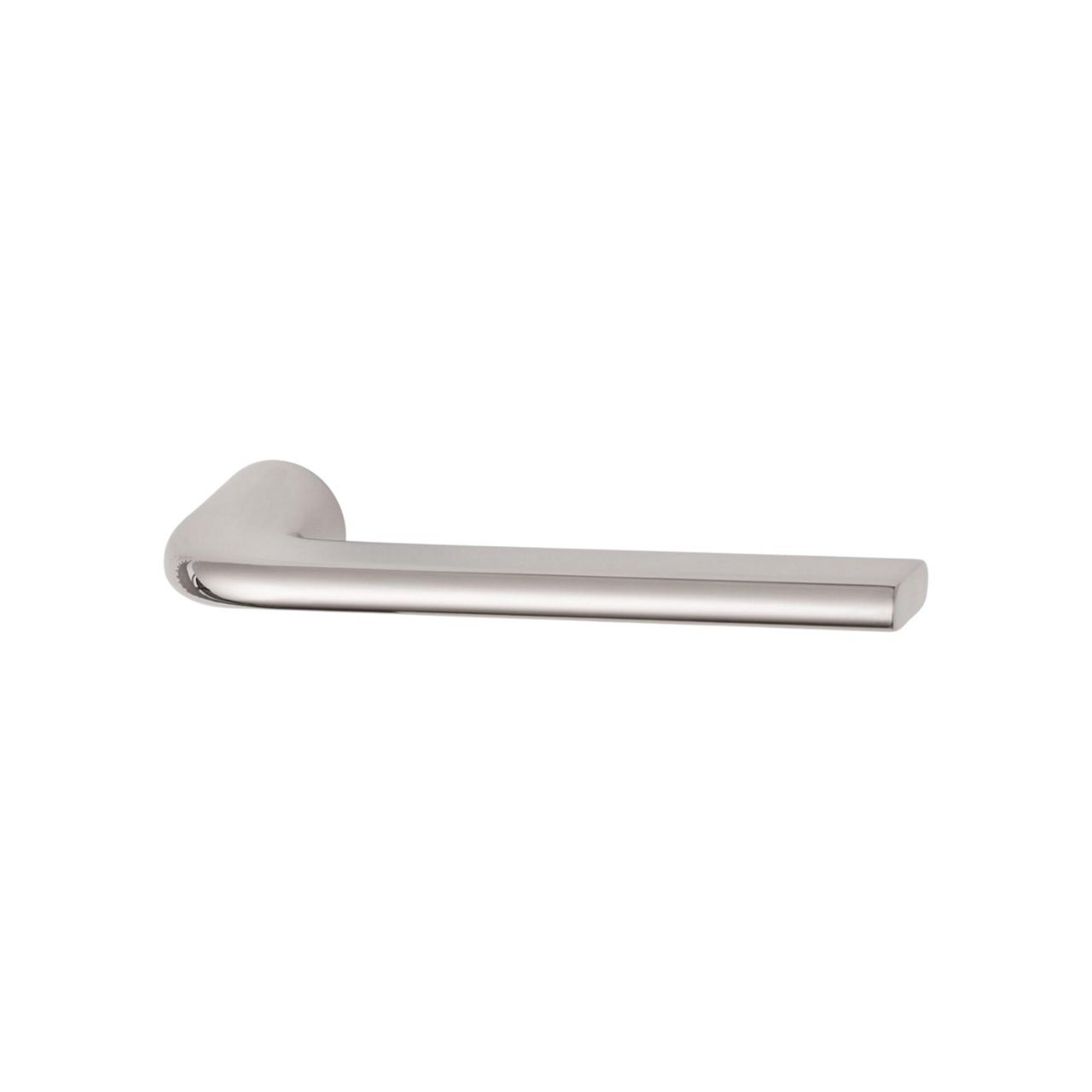

L2 Lever Handle - Spire

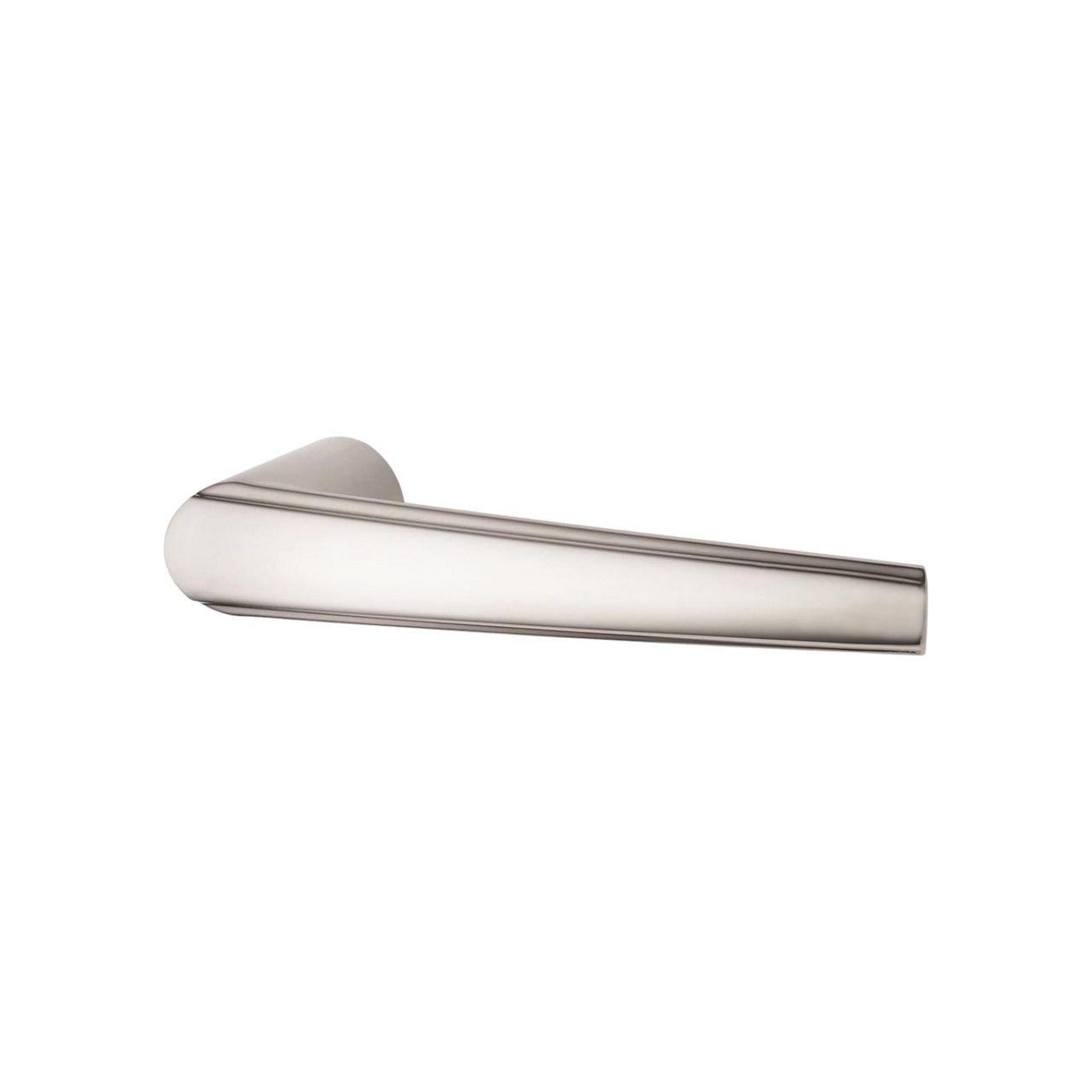

L3 Lever Handle - Element

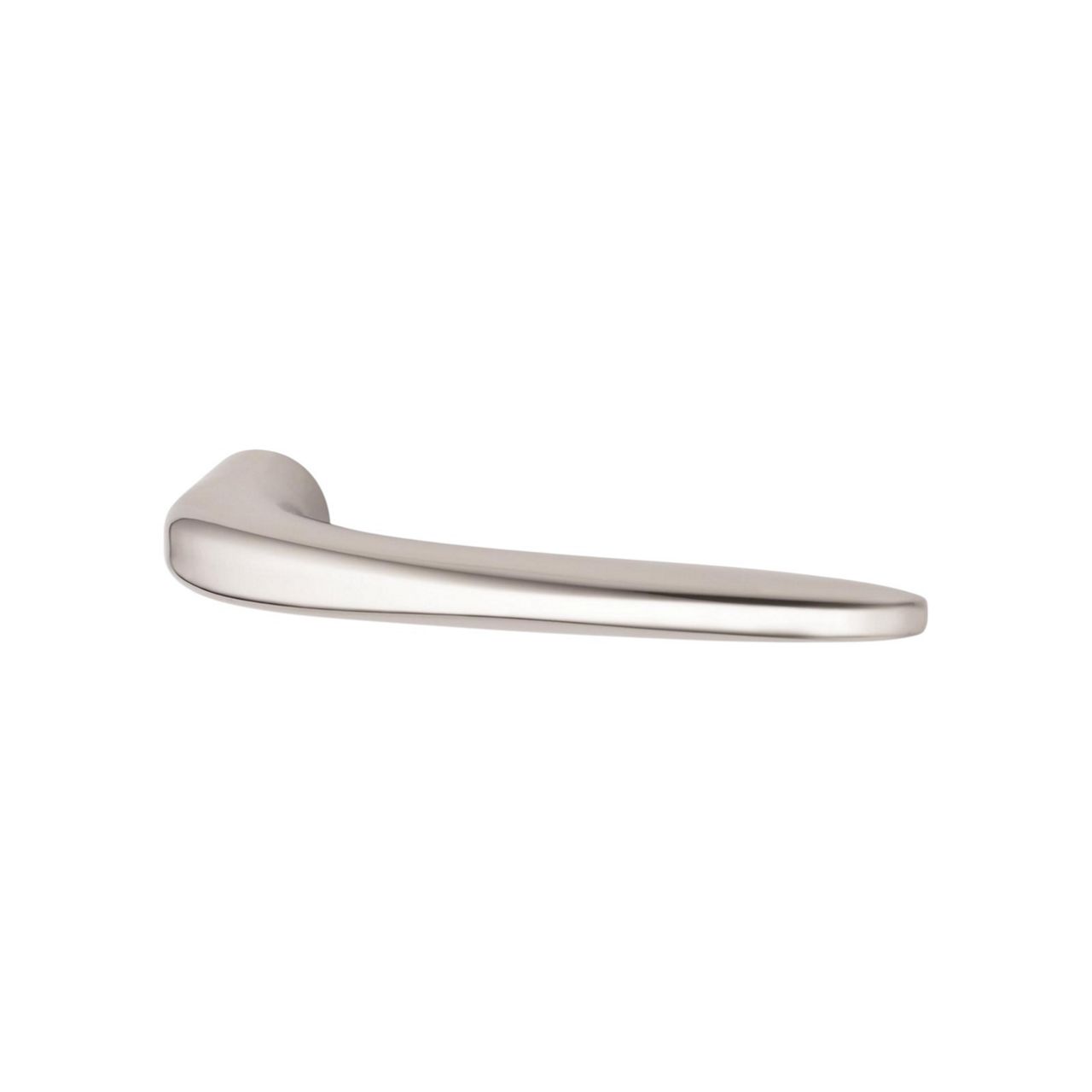

L4 Lever Handle - Glide

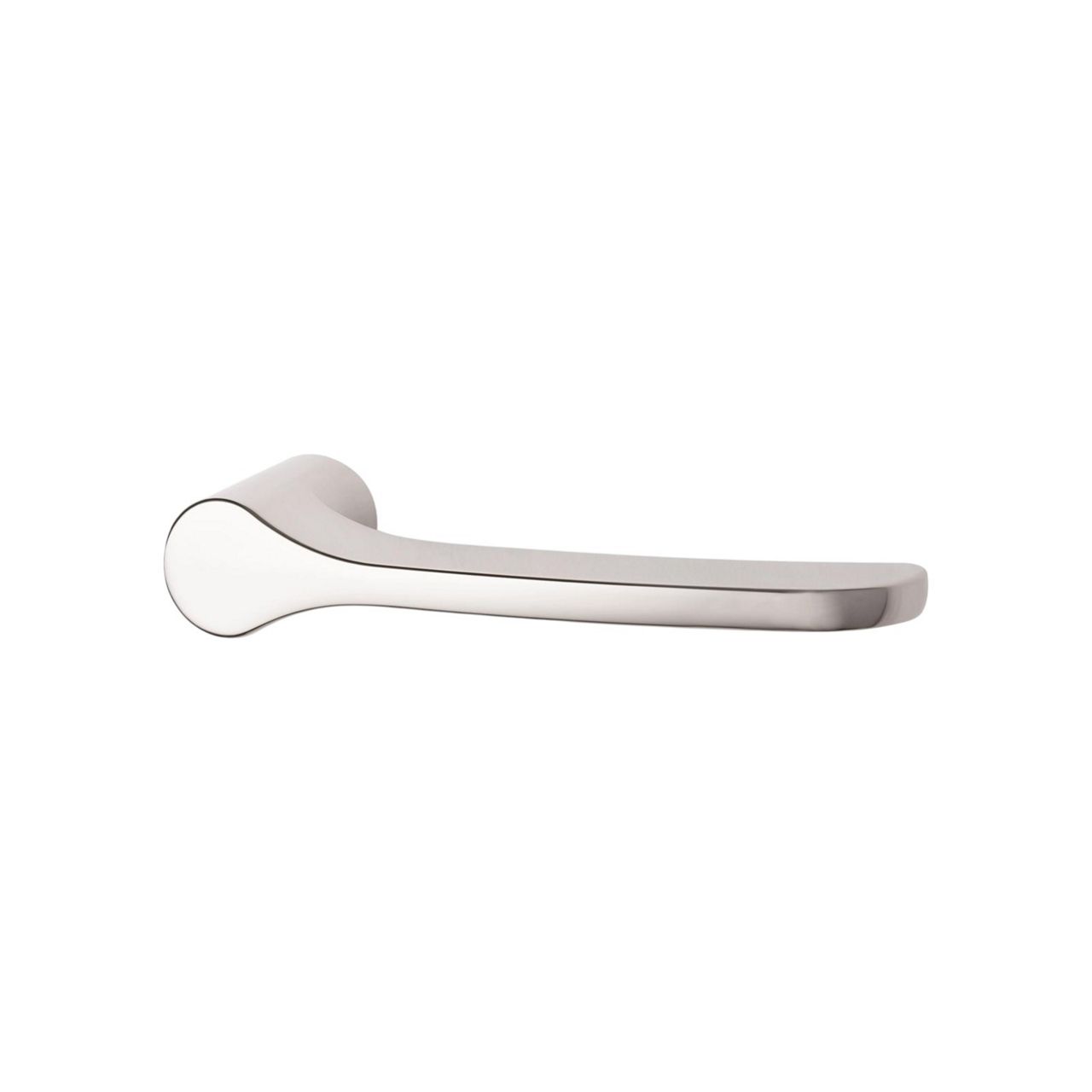

28 Lever Handle - Hakea
29 Lever Handle - Acacia
34 Lever Handle - Saltbush
Case
Backset
Latch
13mm projection brass bolt.
Door Thickness
35 to 45mm.
Cylinders
Keying
Standard Keying
Restricted Special Keying
Lockwood locks can be keyed to a number of controlled and/or specially keyed systems. These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.
Lockwood Keying Platforms - more information
Finishes
Dimensions (Shown with Element Lever)
Nexion Mechanical Lockset - Double Cylinder - Vision Plate
Description | Part Number | Barcode |
DOUBLE CYLINDER - SUMMIT | ||
Satin Chrome | NXV12/1L1SC | 93-11847-20275-7 |
Satin Chrome Pearl | NXV12/1L1SP | 93-11847-98405-9 |
Chrome Plate | NXV12/1L1CP | 93-11847-98373-1 |
DOUBLE CYLINDER - SPIRE | ||
Satin Chrome | NXV12/1L2SC | 93-11847-20276-4 |
Satin Chrome Pearl | NXV12/1L2SP | 93-11847-98407-3 |
Chrome Plate | NXV12/1L2CP | 93-11847-98406-6 |
DOUBLE CYLINDER - ELEMENT | ||
Satin Chrome | NXV12/1L3SC | 93-11847-21270-1 |
Satin Chrome Pearl | NXV12/1L3SP | 93-11847-98409-7 |
Chrome Plate | NXV12/1L3CP | 93-11847-98408-0 |
DOUBLE CYLINDER - GLIDE | ||
Satin Chrome | NXV12/1L4SC | 93-11847-21289-3 |
Satin Chrome Pearl | NXV12/1L4SP | 93-11847-98411-0 |
Chrome Plate | NXV12/1L4CP | 93-11847-98410-3 |
DOUBLE CYLINDER - HAKEA | ||
Satin Chrome | NXV12/128SC | 93-40116-00001-5 |
Satin Chrome Pearl | NXV12/128SP | 93-11847-99520-8 |
Chrome Plate | NXV12/128CP | 93-11847-99519-2 |
DOUBLE CYLINDER - ACACIA | ||
Chrome Plate | NXV12/129CP | 93-11847-99510-9 |
Satin Chrome | NXV12/129SC | 93-40116-00379-5 |
DOUBLE CYLINDER - SALTBUSH | ||
Satin Chrome | NXV12/134SC | 93-11847-21250-3 |
Satin Chrome Pearl | NXV12/134SP | 93-11847-99275-7 |
Chrome Plate | NXV12/134CP | 93-11847-99503-1 |
DUMMY – ELEMENT | ||
Satin Chrome | NXV40/1L3SC | 93-11847-00811-3 |
Nexion Mechanical Lockset - Double Cylinder - Classic Plate
Description | Part Number | Barcode |
DOUBLE CYLINDER - SUMMIT | ||
Satin Chrome Pearl | NX12/1L1SP | 93-11847-78098-9 |
Chrome Plate | NX12/1L1CP | 93-11847-78094-1 |
DOUBLE CYLINDER - SPIRE | ||
Satin Chrome Pearl | NX12/1L2SP | 93-11847-78104-7 |
Chrome Plate | NX12/1L2CP | 93-11847-78100-9 |
Nexion Accessories
Description | Part Number | Barcode |
Rebate Kit | ||
Satin Chrome | NX8/20SC | 93-11847-78159-7 |
Metal Frame Strike Kit | ||
Satin Chrome | NX8/40SC | 93-11847-78247-1 |
Latch with 60mm Backset | ||
Satin Chrome Pearl | 530-12SC | 93-11847-46374-5 |
Latch with 70mm Backset | ||
Satin Chrome Pearl | 530-222SC | 93-11847-46477-3 |
Also available in Matt Black finish.
