• Backset
    60 - 70mm adjustable latch.

    Dimensions
    External handle length - 600mm
    Internal handle length - 500mm
    Handle width - 30mm

    Cylinder

    • 5 pin tumbler mechanism
    • Brass cylinder and brass barrel

    Keying

    Standard Keying

    • Supplied individually keyed with two keys per lock
    • 78,000 key combinations
    • Key blank KB2015P
    • AS 4145.2-2008 K5

    Restricted Special Keying

    Lockwood locks can be keyed to a number of controlled and/or specially keyed systems.

    These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.

    Lockwood Keying Platforms - more information

    Security

    Conforms to the security and durability requirements of Australian Standard AS4145.2-2008 | SL8D8C6K5

    Durability

    Conforms to level D8. (Durability) Australian Lock Standard (AS 4145.2: 2008)

    Anti-Corrosion

    Successfully tested in accordance with AS2332.3.1:2001 neutral salt spray test.

  • Description (Display Pack)Part numberBarcode

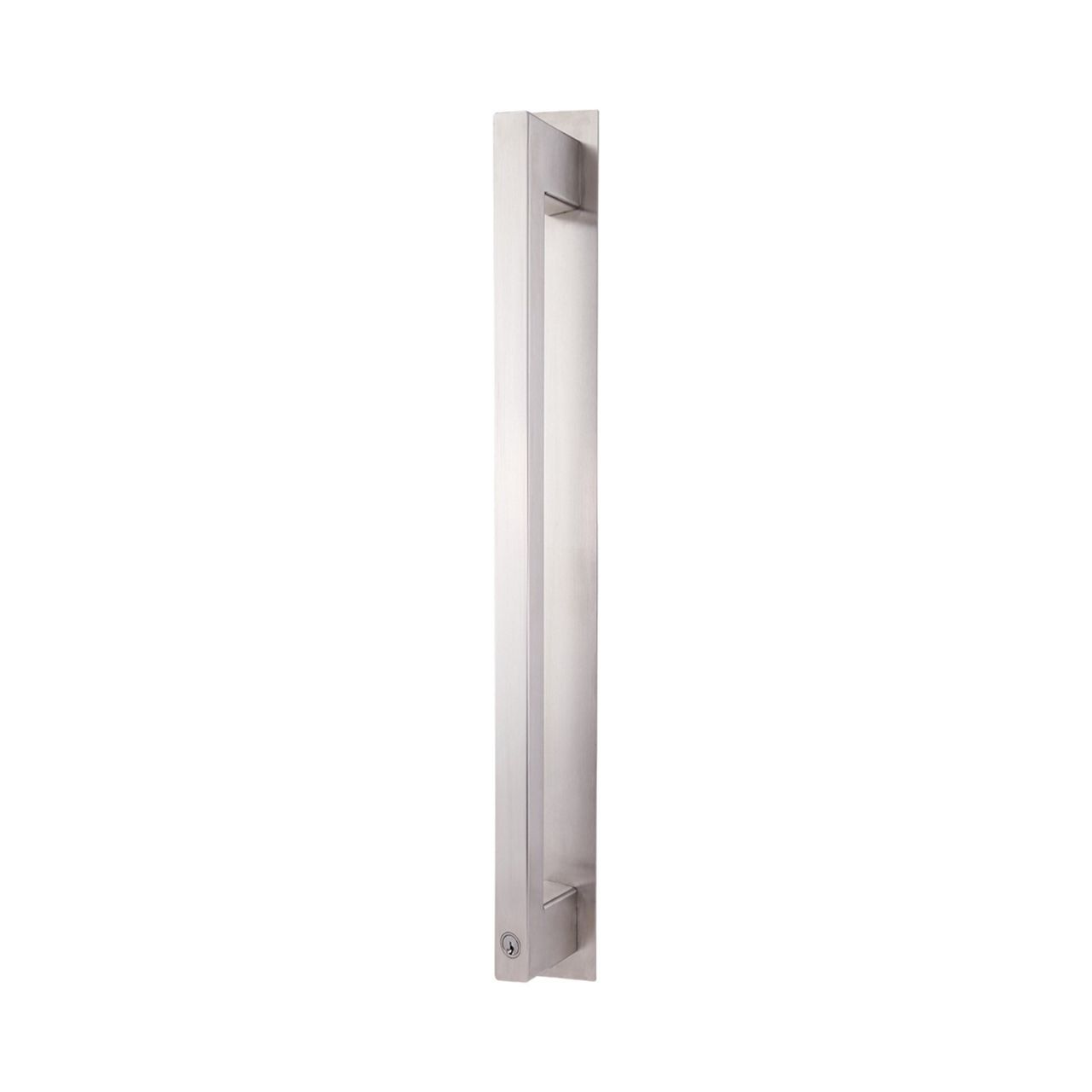

    Paradigm Pull Handle Lockset - Double Cylinder Deadbolt (Stainless Steel)005/DPHBSSS9340116023588
    Paradigm Pull Handle Lockset - Dummy (Stainless Steel)005/PHDSSS9340116023618
