The Symmetry door furniture range offers builders, developers, specifiers and interior designers a wide selection of product that can be used in any residential application
The Symmetry series is produced to meet the demanding quality and style requirements of the Australian market.
All products are tested in accordance with the security and durability requirements of the Australian Standards.
Symmetry Everbrass® Warranty
Lockwood Everbrass® product is coated both on the exterior and interior surfaces with a lifetime anti-tarnish finish. Lockwood warrants that Everbrass® branded product will not corrode, tarnish or discolour for a lifetime when properly installed and subject to no more than fair wear and tear.
Symmetry 5 Year Finish Guarantee
Lockwood guarantees to replace Symmetry product if within five years from the proven date of purchase it tarnishes, discolours or corrodes when properly installed and subject to no more than fair wear and tear.
OneCyl
The exclusive one cylinder assembly solution ‘OneCyl®’ has been designed for the entire Lockwood Symmetry Range, which grants the convenience of cylinder interchangeability.

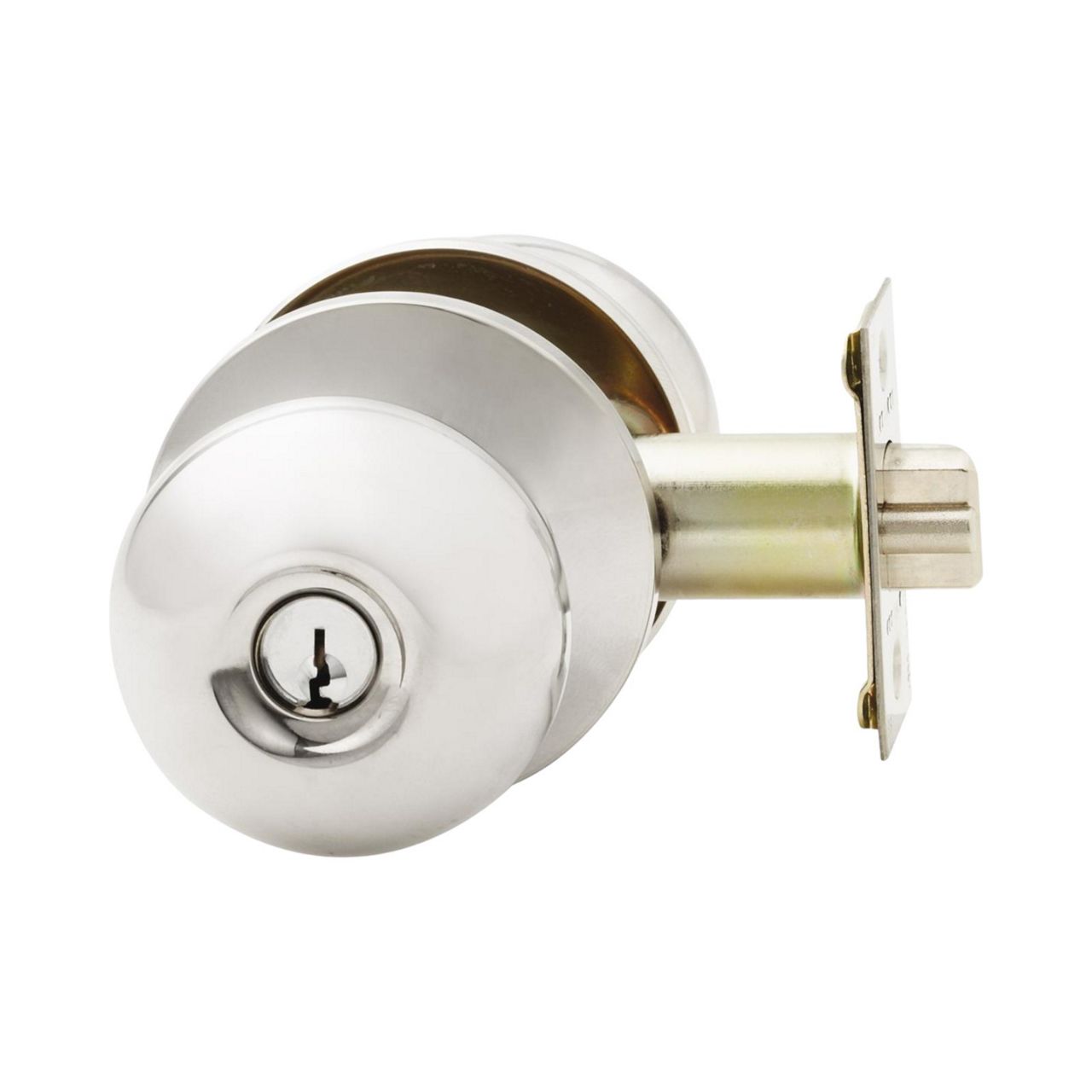

Lockwood Symmetry Series - Manor Knobset
Installation
Easy to install. Supplied with detailed mounting instructions.
Type
Tubular Latch.
Handing
Suitable for left and right handed doors.
Materials
Knob – Stainless Steel and Brass
Chassis: Steel
Bolt head: Zinc
Fixing
Horizontal mounting screw fixing.
Door Thickness
35 to 45mm for timber doors.
Backset
60 to 70mm adjustable latch standard.
Latch
13mm throw.
Strike
D-strike with anti-rattle tab as standard.
Cylinder
5 pin Lockwood C4 brass cylinder assembly (6 pin compatible).
Functions
Entrance, privacy, passage and dummy available.
Keying
Standard Keying
Restricted Special Keying
Lockwood locks can be keyed to a number of controlled and/or specially keyed systems. These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.
Lockwood Keying Platforms - more information
Finishes
Packaging
Trade pack and display packs available.
Dimensions
Description | Part number | Barcode |
---|---|---|
TRADE PACK | ||
Tubular Key In Knob Locksets - Entrance Set, Everbrass (Lifetime Finish Warranty) | 7010EVB | 93-11847-74793-7 |
Tubular Key In Knob Locksets - Entrance Set, Polished Stainless Steel | 7010PSS | 93-11847-74795-1 |
Tubular Key In Knob Locksets - Entrance Set, Satin Stainless Steel | 7010SSS | 93-11847-74794-4 |
Tubular Key In Knob Locksets - Passage Set, Polished Brass | 7011PB | 93-11847-19536-3 |
Tubular Key In Knob Locksets - Passage Set, Polished Stainless Steel | 7011PSS | 93-11847-74678-7 |
Tubular Key In Knob Locksets - Passage Set, Satin Stainless Steel | 7011SSS | 93-11847-74671-8 |
Tubular Key In Knob Locksets - Privacy Set, Polished Brass | 7012PB | 93-11847-19530-1 |
Tubular Key In Knob Locksets - Privacy Set, Polished Stainless Steel | 7012PSS | 93-11847-74679-4 |
Tubular Key In Knob Locksets - Privacy Set, Satin Stainless Steel | 7012SSS | 93-11847-74672-5 |
Double Cylinder Deadbolt, Keyed-Alike - Satin Stainless Steel | 7117SSSCOMBODP | 93-11847-79005-6 |
DISPLAY PACK | ||
Tiebolt Key In Knob Lockset - Entrance Set, Everbrass (Lifetime Finish Warranty) | 7010EVBDP | 93-11847-74666-4 |
Tiebolt Key In Knob Lockset - Entrance Set, Polished Stainless Steel | 7010PSSDP | 93-11847-74674-9 |
Tiebolt Key In Knob Lockset - Entrance Set, Satin Stainless Steel | 7010SSSDP | 93-11847-74667-1 |
Tiebolt Key In Knob Lockset - Passage Set, Polished Brass | 7011PBDP | 93-11847-19136-5 |
Tiebolt Key In Knob Lockset - Passage Set, Polished Stainless Steel | 7011PSSDP | 93-11847-74675-6 |
Tiebolt Key In Knob Lockset - Passage Set, Satin Stainless Steel | 7011SSSDP | 93-11847-74668-8 |
Tiebolt Key In Knob Lockset - Privacy Set, Polished Brass | 7012PBDP | 93-11847-19130-3 |
Tiebolt Key In Knob Lockset - Privacy Set, Polished Stainless Steel | 7012PSSDP | 93-11847-74676-3 |
Tiebolt Key In Knob Lockset - Privacy Set, Satin Stainless Steel | 7012SSSDP | 93-11847-74669-5 |
Tiebolt Key In Knob Lockset - Dummy Knob, Polished Brass | 7015PBDP | 93-11847-74683-1 |
Tiebolt Key In Knob Lockset - Dummy Knob, Polished Stainless Steel | 7015PSSDP | 93-11847-74677-0 |
Tiebolt Key In Knob Lockset - Dummy Knob, Satin Stainless Steel | 7015SSSDP | 93-11847-74670-1 |
