The Lockwood Velocity Entrance Lockset is the latest development in the Entrance Lockset range. Designed and manufactured to Australian Standards, the Velocity Entrance Lockset provides a simple and functional entrance lock to complement the Velocity Door Handle range.
Features and Specifications
Product Details
Backset | 60mm as supplied 70mm optional (order part 530-222SC) |
Case | High purity zinc alloy |
Door Thickness | 35 to 45mm |
Finishes | Satin Chrome (SC) |
Handles | Lever 3 |
Latch | 13mm projection brass bolt |
Strike | Box strike with concealed crossgrain door frame strengthening screw |
Templates | Installation template included |
Handing | Adjustable handing by set screw |
Cylinder | Internal and external. 5 pin tumber mechanism with 6pin capability. Brass cylinders and brass barrels. |
* See ordering procedure for product range
Standards and Compliance
| (Security) Australian LockStandard (AS4145.2.2008) |
(Durability) Australian LockStandard (AS4145.2.2008) | |
| (Corrosion) Australian LockStandard (AS4145.2.2008) |
| CE Approved |
Conforms to Australian Standard (AS4145.2‑2008 SL7D8C5K6) |
Keying
Restricted Special Keying Lockwood locks can be keyed to a number of controlled and/or specially keyed systems. These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.
Please refer to Lockwood Keying Catalogue or contact your local sales office or customer service for specific information.
Kinetic Defence® Bump and pick resistant. | |
Safety Release™ Minimises the risk of being locked in. | |
Safety Mode Securely locked from outside and free from inside. | |
Secure Mode Securely locked from both inside and outside. For when nobody is home. | |
Passage Mode Free to enter from outside and free to exit from inside. | |
Deadlatch Bolt 13mm projection brass bolt. | |
2 Keys Included Can be keyed alike to other Lockwood door locks. | |
Quick Installation Suitable for door thicknesses between 35–45mm. | |
Retrofitable Fits majority of doors with 54mm hole. |

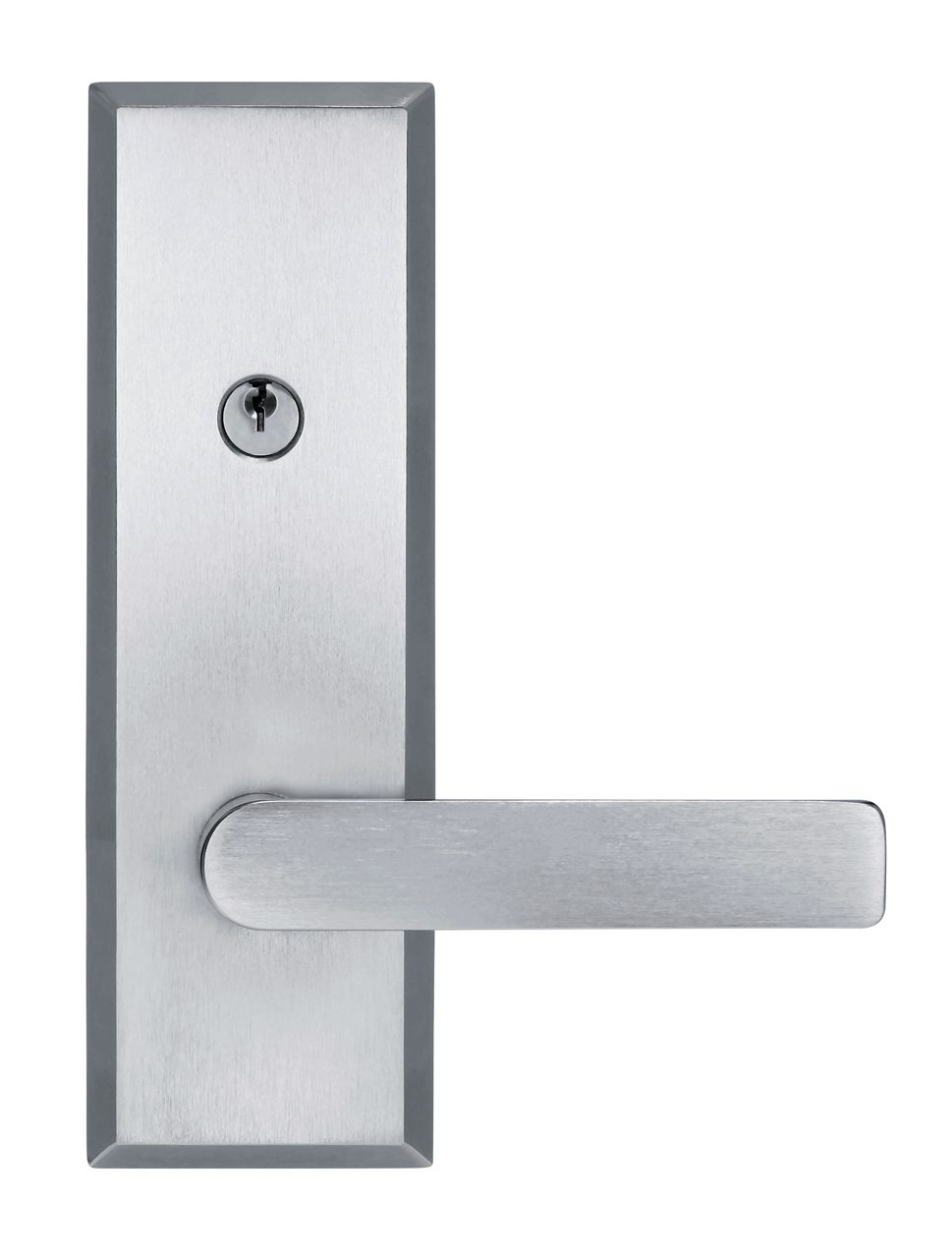

Velocity Entrance Lockset - Exterior

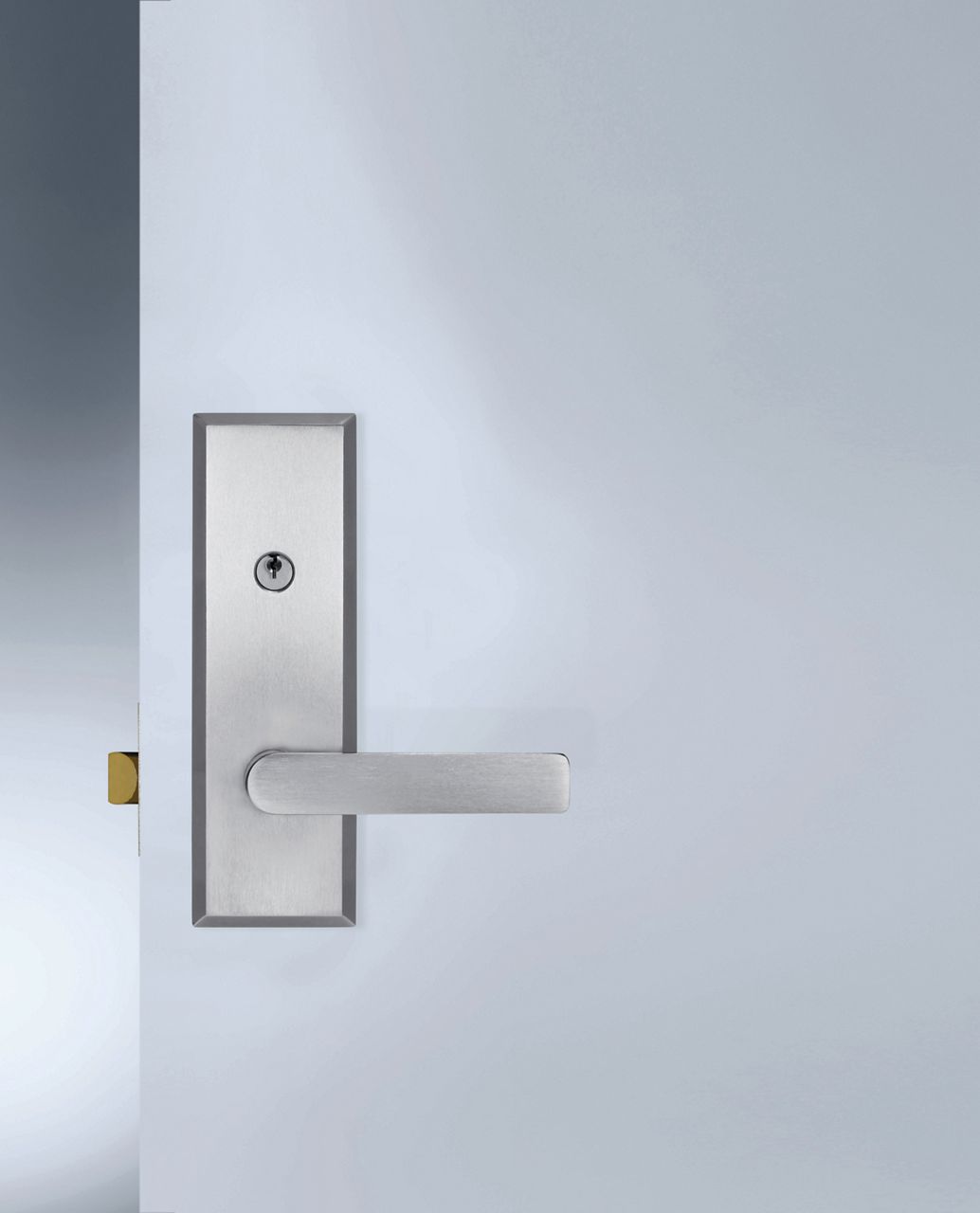

Velocity Entrance Lockset - Exterior

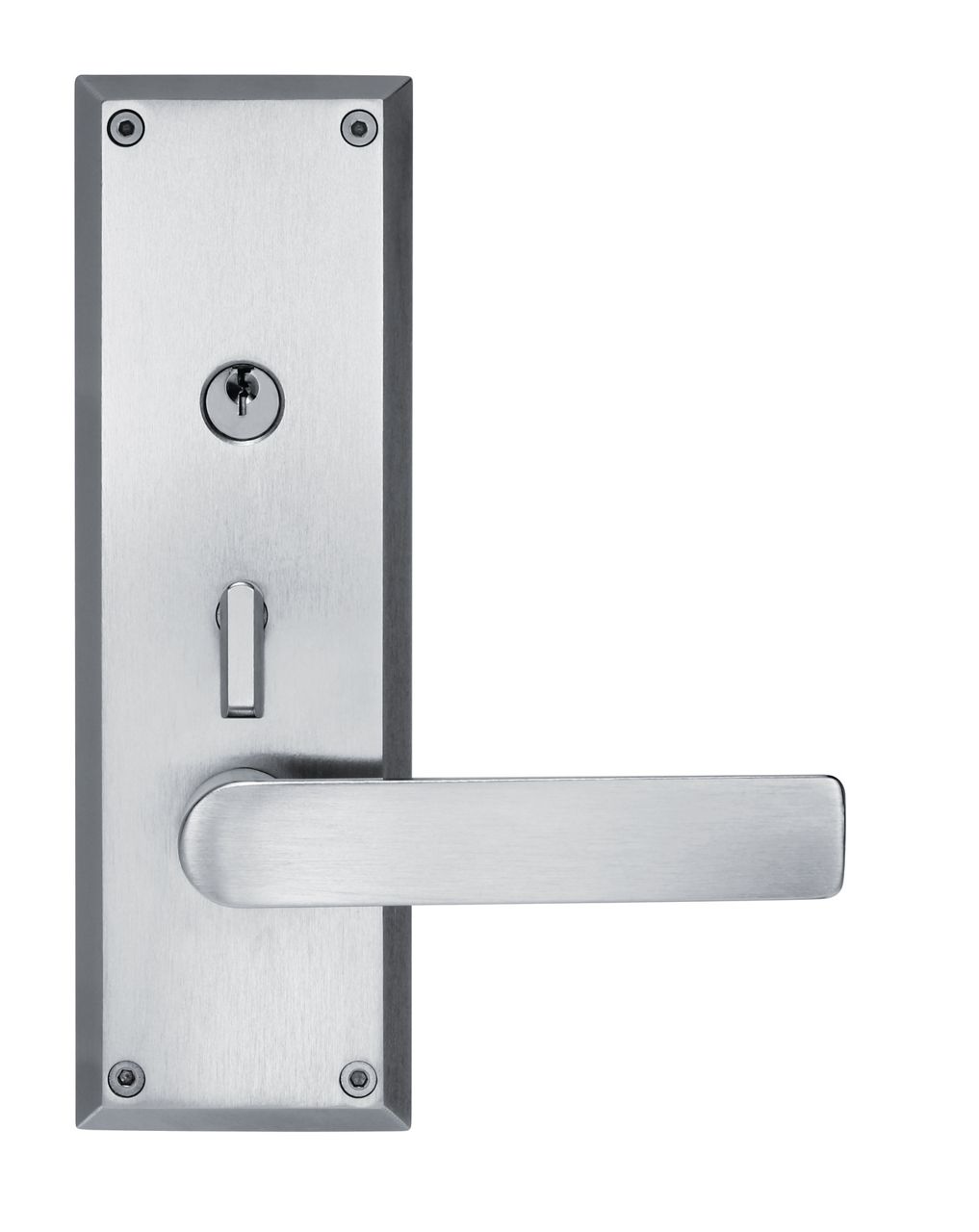

Velocity Entrance Lockset - Interior

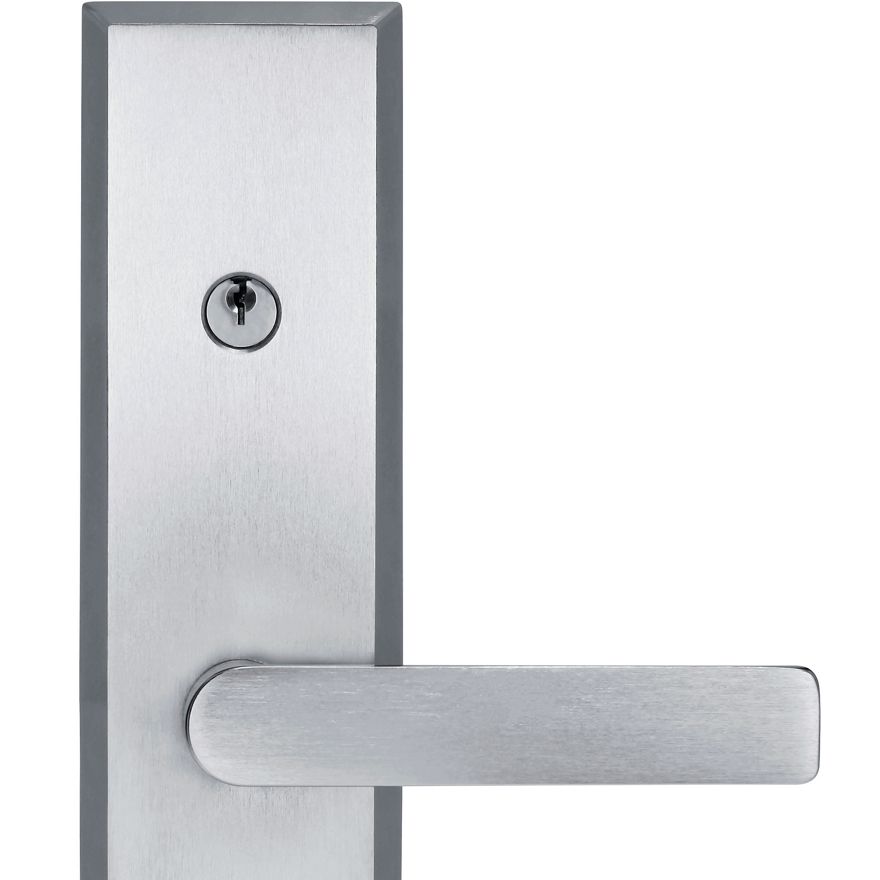

Velocity Entrance Lockset
Description | Part number |
---|---|
DISPLAY PACK | |
Keyed-to-Differ Display Pack | VEL0/L3SCDP |
TRADE PACK - SPECIAL KEYING | |
Keyed Alike 5 Pins | VEL0/L3SC5KA |
Project Keyed 5 Pins | VEL0/L3SC5PK |
Restricted Profile 5 Pins | VEL0/L3SC5RP |
Keyed Alike 6 Pins | VEL0/L3SC6KA |
Project Keyed 6 Pins | VEL0/L3SC6PK |
TRADE PACK - NO CYLINDER | |
No Cylinder | VEL0/L3SCNOCYL |
