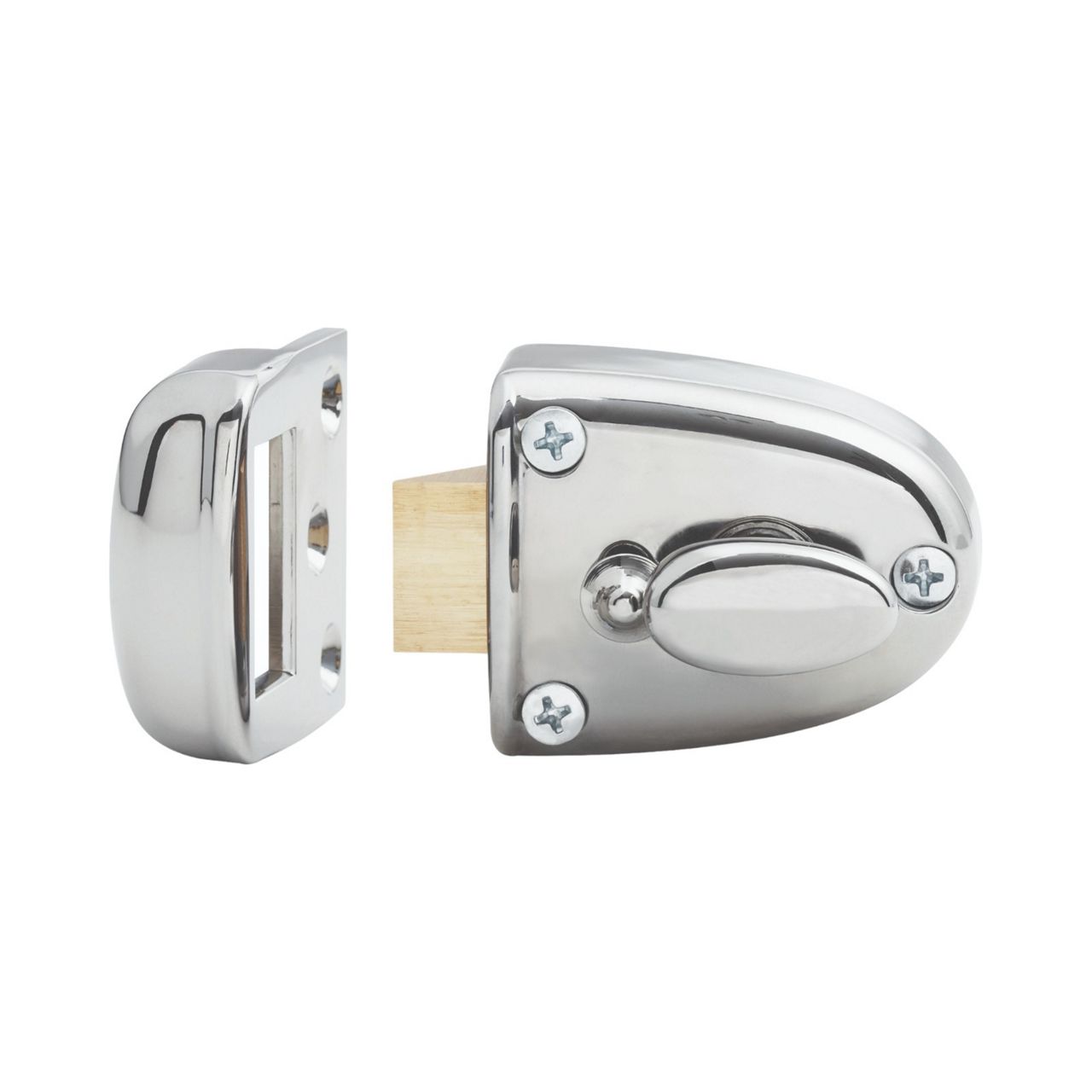

Lockwood 200 Narrow Stile Streamlatch
General purpose streamlatch designed to suit narrow doors.
Features of the 200 Narrow Stile Streamlatch
- Opened by key from outside and turn knob inside
- Inside snib may be used to hold-back or deadlock bolt so that key will not operate
- Available in trade pack only
Case
- High purity zinc alloy
- 68mm wide, 57mm high, 43mm projection
Backset
38mm for narrow stile doors.Latch
- Brass
- Reversible
- 13mm projection
Door Thickness
32 - 45mmCylinder
- 5 pin tumbler mechanism
- Brass cylinder and brass barrel
Keying
Standard Keying
- Supplied individually keyed with two keys per lock
- 78,000 key combinations
- Key blank KB2015P
Restricted Special Keying
Lockwood locks can be keyed to a number of controlled and/or specially keyed systems. These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.
Lockwood Keying Platforms - more information
Dimensions
Description (Trade Pack) Part number Barcode 200 Narrow Stile Streamlatch - Chrome Plate 200CPAO 93-11847-01224-0 200 Narrow Stile Streamlatch - Satin Chrome Pearl 200SPAO 93-11847-01222-6 200 Narrow Stile Streamlatch - Satin Chrome Pearl (No Cylinder) 200SPAONOCYL 200 Narrow Stile Streamlatch - Open Out Strike SP201-67SC
