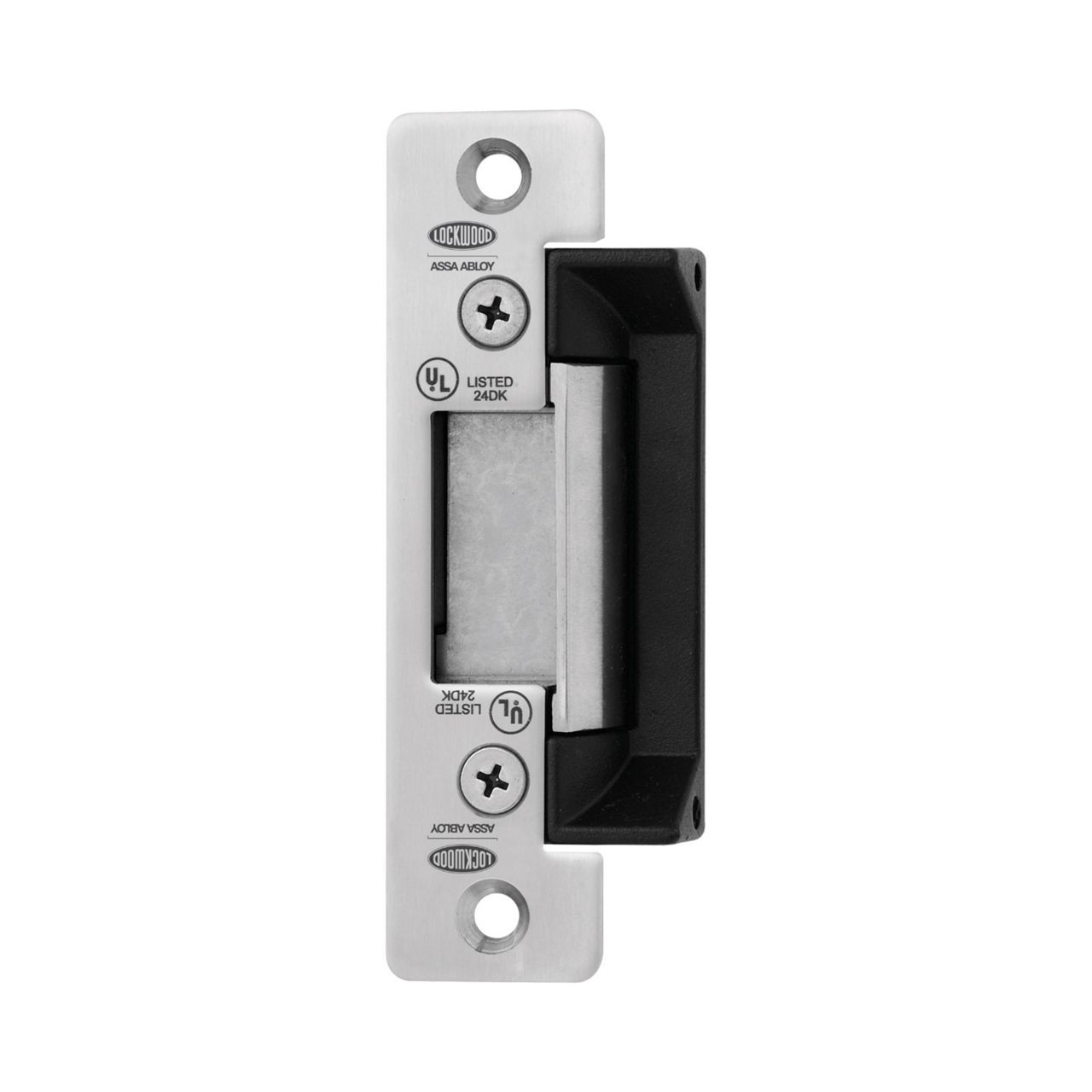

The ES110 is a cost efficient robust electric strike with a solid construction of one-piece cast aluminium body and stainless steel striker. Having a deeper than normal strike-keeper area, ES110 is designed to work with an extensive range of locks and offers the same level of security and reliability usually provided by more expensive electric locking solutions.
Extension lips are available to accommodate the installation of electric strikes on door frames with different thickness. The ES110 product range of patented electric strikes are suitable for use with all access control installations where flexibility, security and lower cost are required.
Key Features
Applications
Standards and Compliance
Lockwood Padde Series ES110 Electric Strike
Voltage
12Vdc & 24Vdc
Current
250 mA @ 12Vdc - 125mA @ 24Vdc
Solenoid
Solenoids are rated for continuous use.
Monitoring
None
Holding Force
680 kg Static Strength Rating
Endurance
Cycle tested to 1,000,000 operations
Environment
Operational temperature range -20°C to + 60°C
Weather resistant construction Standard. (IP56)
Body
Cast Aluminium Construction
Keeper
Stainless Steel
Latch
Suitable for 15mm latchbolt with 3mm door gap
Specification Statement
Where Power to Lock and Power to Open functions may be required in the same building, the strike must be interchangeable from either "Power to Lock" or "Power to Open" on site. The electric strike should not consume current greater than 250 mA @ 12Vdc - 125mA @ 24Vdc and have a solenoid suitable for continuous use. Certifications must include CE, C-tick and 4hr fire rating. The strike should have a minimum holding force of 680kg, and an endurance rating of 1 million cycles.
Dimensions
Description | Part Number |
ES110 12/24VDC Fail Safe Non Monitored | ES110-1M |
ES110 12/24VDC Fail Secure Non Monitored | ES110-2M |
Note: All strikes come pre drilled with Extension lip holes.
Description | Part Number |
Accessories - 15mm Extension Lip (26mm total) | 220110-502 |
Accessories - 25mm Extension Lip (36mm total) | 220110-503 |
Accessories - 50mm Extension Lip (61mm total) | 220110-504 |
Accessories - Mounting Kit | 220200-518 |
Note: For additional face plate options refer to catalogue.
Description | Part Number |
Faceplates - A (ANSI Short) (Refer to catalogue) | 210100-544 |
Faceplates - B (ANSI Long) (Refer to catalogue) | 210100-530 |
Faceplates - J (Refer to catalogue) | 210100-523 |
Faceplates - F (UK Sash RH) [DIN Left] (Refer to catalogue) | 210100-528 |
Faceplates - G (UK Sash LH) [DIN Right] (Refer to catalogue) | 210100-527 |
Note: All face plates are sold separately
