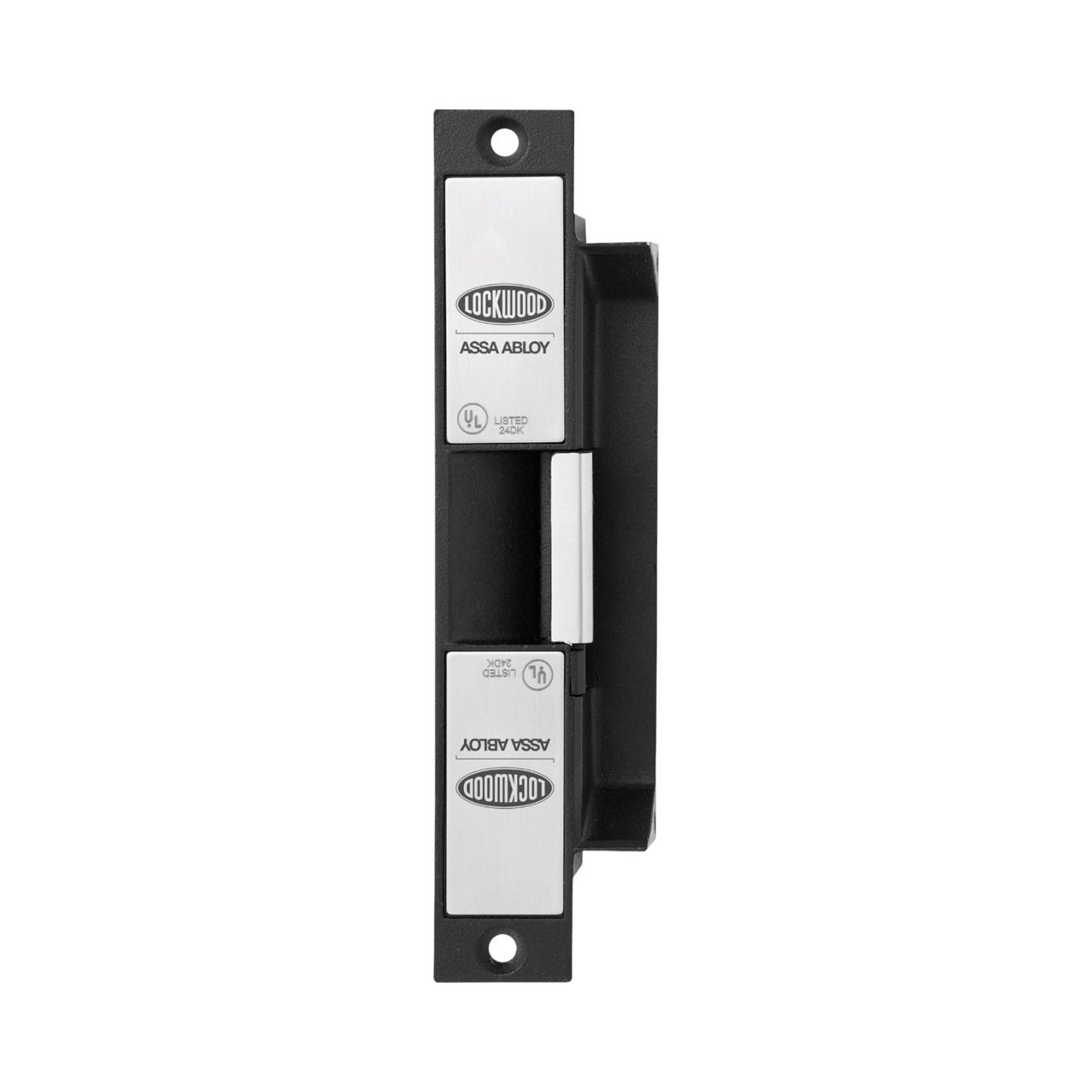

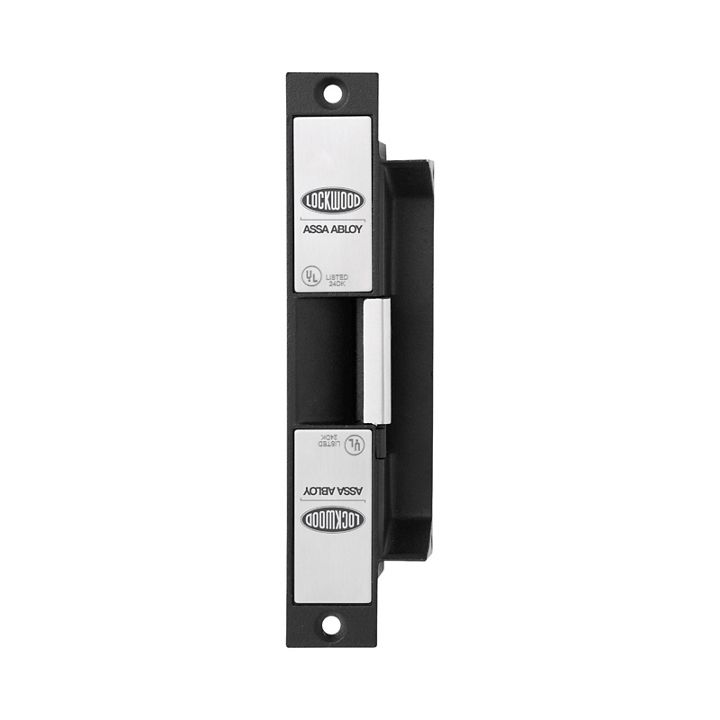

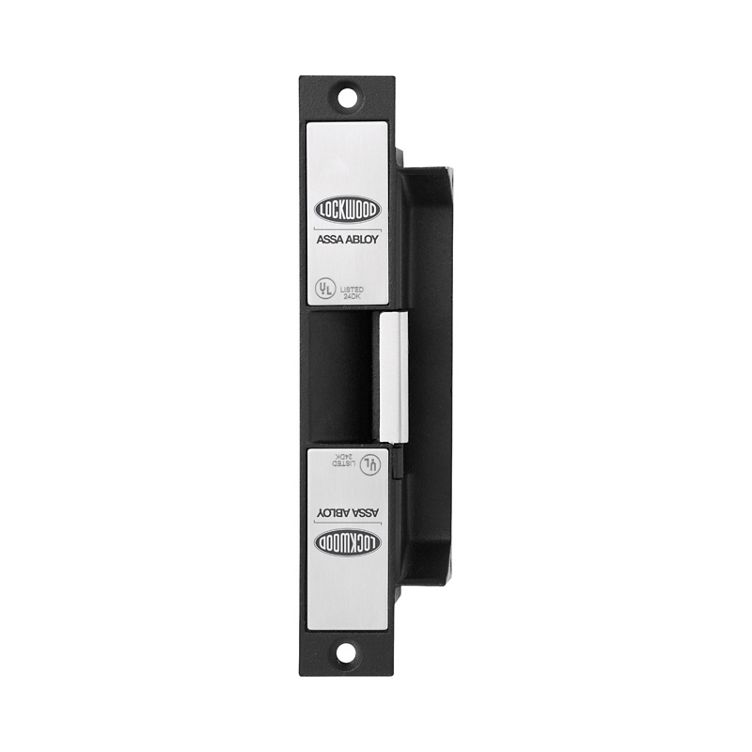

Lockwood ES200 Electric Strike

The ES200 series electric strikes are high security products manufactured from stainless steel and designed for use with all access control systems. The strikes are suitable for use with hinged doors which require either fire or security control as part of a building management system.

These strikes are flexible and can be changed from fail safe to fail secure, mounted on the left or right hand side of the door and are available in 12 or 24Vdc.

They offer a strong, dependable and long-lasting electric strike solution.

Key Features

• Fail safe/fail secure changeable on site
• High security
• 4 Hour fire rating
• 850kg holding force
• 1 million cycles endurance rating
• Cast stainless steel body
• Stainless steel locking pins
• Low Current consumption - Max 175mA @12Vdc
• Mounting kit supplied as standard
• TRICARE^® 5 Year Warranty

Applications

• High traffic areas
• Fire rated door sets
• Open in/open out doors
• Suitable for use with all access control systems

Standards and Compliance

• S3 (Security) Australian Lock Standard (AS4145.2.1993)
• D3 (Durability) Australian Lock Standard (AS4145.2.1993)
• BS 5872 Approved
• Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets)
• Approved to UL1034 (highest level)
• CE Approved
• C-Tick Certified
