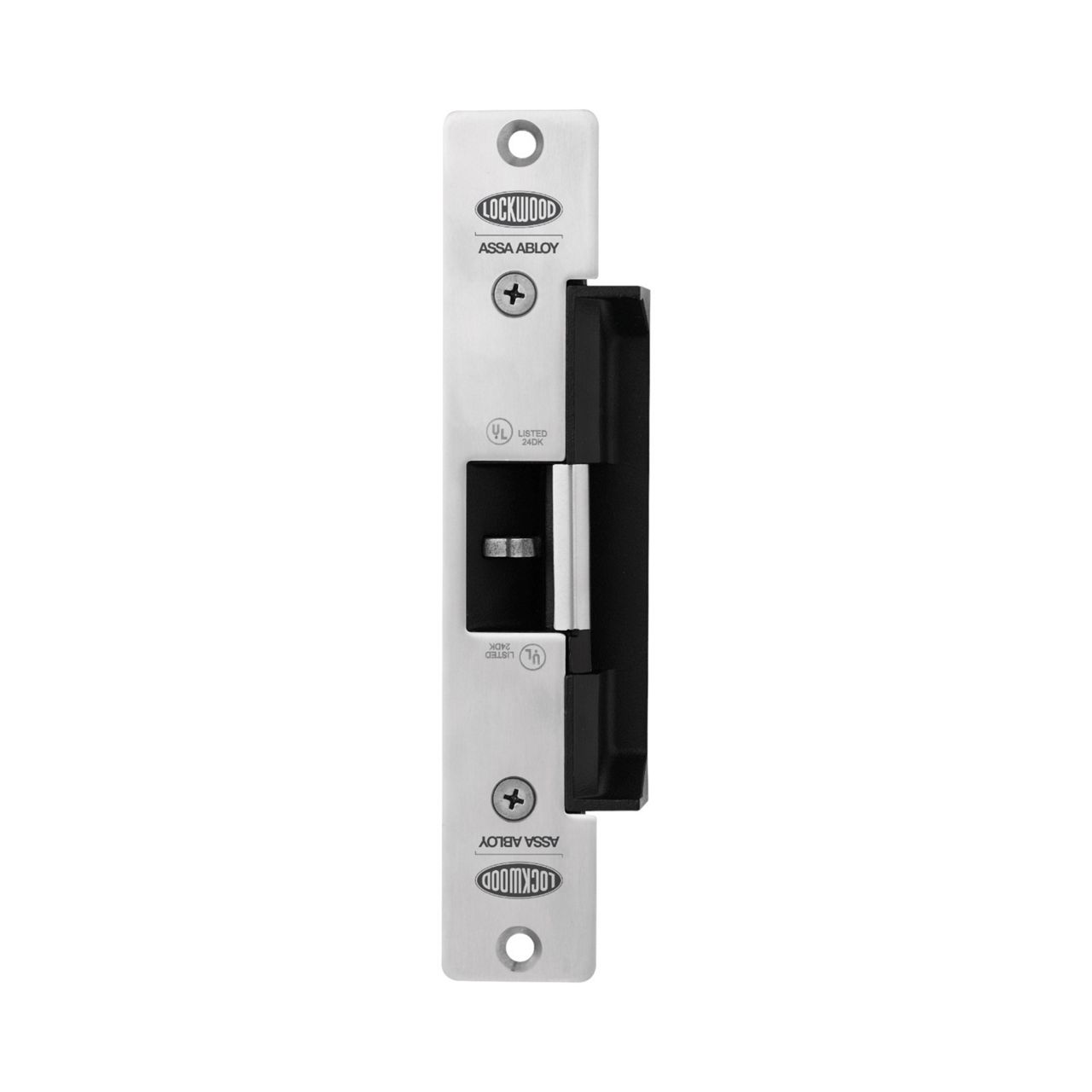

Lockwood ES3200 Monitored Electric Strike
The ES3200 series electric strikes are designed for high security applications and manufactured from solid stainless steel.
These long ANSI strikes offer a strong dependable and long-lasting electric strike solution and are suitable for use with any access control system. These strikes are extremely flexible and can be changed from fail safe to fail secure and mounted on the left or right hand side of the door, thus reducing the amount of variants needed to cover each application.
Key Features
- Strike and Latch Monitoring
- Fail safe/fail secure changeable on site
- Available in 12Vdc
- 850kg holding force
- 1 million cycles endurance rating
- Stainless Steel locking pins
- Continuously rated solenoid
- TRICARE® 5 Year Warranty
Applications
- Timber or metal doors
- Open in/open out doors
- Suitable for use with all access control systems
Standards and Compliance
- Approved to UL1034 (highest level)
- CE Approved
- C-Tick Certified
Lockwood Padde Series ES3200 Monitored Electric Strike
Voltage
12 or 24VdcCurrent
175mA @ 12Vdc
Solenoid
Solenoids rated for continuous use.Monitoring
Solenoid Monitor - 1 amp NO/NC microswitch
Door / Latch - 1 amp NO/NC microswitchHolding Force
850kg static strength ratingEndurance
Cycle tested to 1,000,000 operationsEnvironment
Operational temperature range -20ºc to +60ºcBody
Solid stainless steel constructionKeeper
Stainless Steel
Latch
Suitable for 18mm latchbolt with 3mm door gapSpecification Statement
The strike should be constructed of solid stainless steel, have a minimum holding force of 850kg and have an endurance rating of 1 million cycles. Monitoring must include independent door / latch& solenoid monitoring. The one strike must be changeable from fail safe to fail secure on site where required. The strike should not consume current greater than 175mA @ 12Vdc and have a solenoid rated for continuous use. Certifications must include CE and C-Tick.Dimensions
Description (Trade Pack) Part number ES3200 E/Strike 12Vdc Fail Safe Monitored ES3200-1
