Lockwood Padde Series Z4 and Z8 Single Monitored Electromagnetic Locks
Site selectable dual voltage, 12 or 24 Vdc.
Lockwood Padde Series Weather Resistant Electromagnetic Lock
The Z8 weather Resistant Electromagnetic Lock operates with holding a force up to 430kg. Covering a range of applications this magnet is ideal for applications where it is exposed to the weather. With fixing options including wood, aluminium and steel constructions, the range caters to most external needs. The Electromagnet is available in monitored models using Hall-Effect monitoring. An additional advantage is the ability to select either 12V or 24V DC application on site.
Key Features
- Fail-safe: unlocks when power is removed
- Easy installation: suitable for both new and retrofit usage
- Self-alignment: armature plate pivots to accommodate door drop
- Silent operation: no humming or buzzing
- Dual voltage: site selectable 12 or 24 Vdc
- Monitored versions: Hall-Effect status monitoring available
Monitoring
Hall / Bond Monitoring
Hall Effect position sensors are non-contact devices that convert energy from a magnetic field into an electrical signal. This indicates that the lock is powered and that the armature plate is in position and magnetically bonded (it monitors if the magnet is locked)
Applications
- Outdoor / Exposed doors
- Doors located in coastal areas
Standards and Compliance
- CE Approved
- C-Tick Certified
Lockwood Padde Series Weather Resistant Electromagnetic Lock

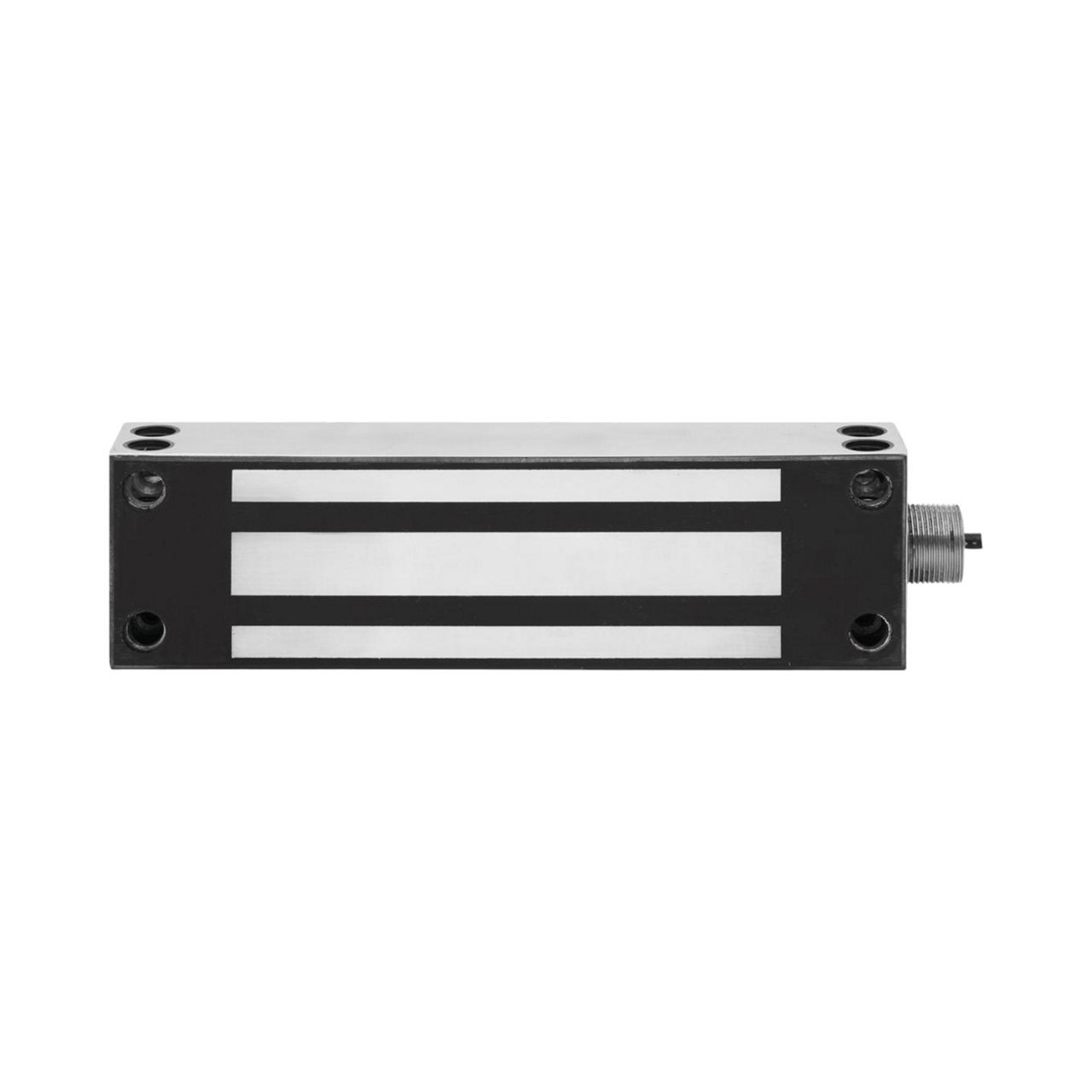

Z8 Weather Resistant Electromagnet
Nominal Holding Force 430kg*
Voltage 12Vdc/ 24Vdc ±10%
Current 512mA @ 12Vdc 256mA @ 24Vdc
Monitoring Hall-Effect
Operating Temperature -10 to 55 Degrees
Operating Humidity 0-95%
*Stated Holding Force represents a reliable indicative measure of expected performance but it may vary depending on installation and environmental factors.Specification Statement
The Weather Resistant Series Electromagnetic Lock should be constructed in an aluminium case with heavy duty electromagnet. The range only operates in fail safe mode and relies on a secondary lock or battery backup system. In some cases the magnet armature plate pivots to accommodate door drop.Dimensions
(L)230 x (H)67 x (D)43 mm
Description (Trade Pack) Part number EMZ8 E/Magnet Weather Res 12/24Vdc Single Monitored EMZ8-WSM
