The Single Series Electromagnetic Locks operate with holding forces from 200kg to 450kg. Covering a range of applications the Z4 and Z8 Electromagnets are ideal for applications from standard doors through to high use commercial swing doors.
With fixing options including wood, aluminium and steel constructions, as well as glass door applications, the range caters to most electromagnetic needs.
Key Features
Monitoring
Hall/Bond Monitoring
This indicates that the lock is powered and that the armature plate is in position and magnetically bonded (it monitors if the magnet is locked)
Reed switch monitoring
An integrated reed switch monitors the door position separately (it monitors the position of the door)
Applications
Standards and Compliance
Lockwood Padde Series Z4 Electromagnetic Lock - Monitored
Lockwood Padde Series Z4 Electromagnetic Lock - Monitored
Lockwood Padde Series Z8 Electromagnetic Lock - Monitored

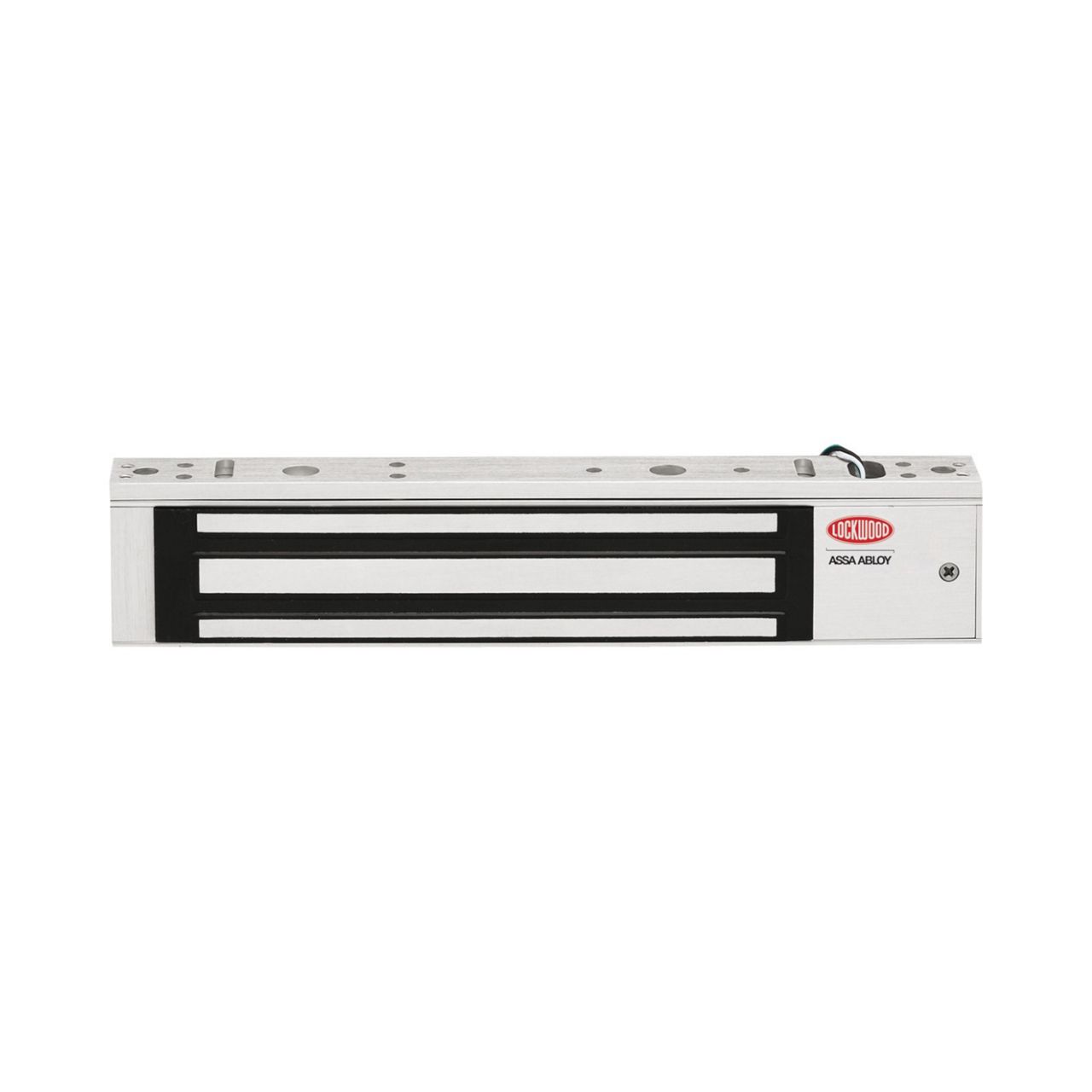

Z4 Magnet
Nominal Holding Force 200kg*
Dimensions (L)238 x (H)48 x (D)27 mm
Voltage 12Vdc/ 24Vdc ±10%
Current 450mA @ (12Vdc) 225mA @ (24Vdc)
Monitoring Hall-Effect/Bond sensing & Reed Switch
Operating Temperature -10 to 55 Degrees
Operating Humidity 0 - 95%

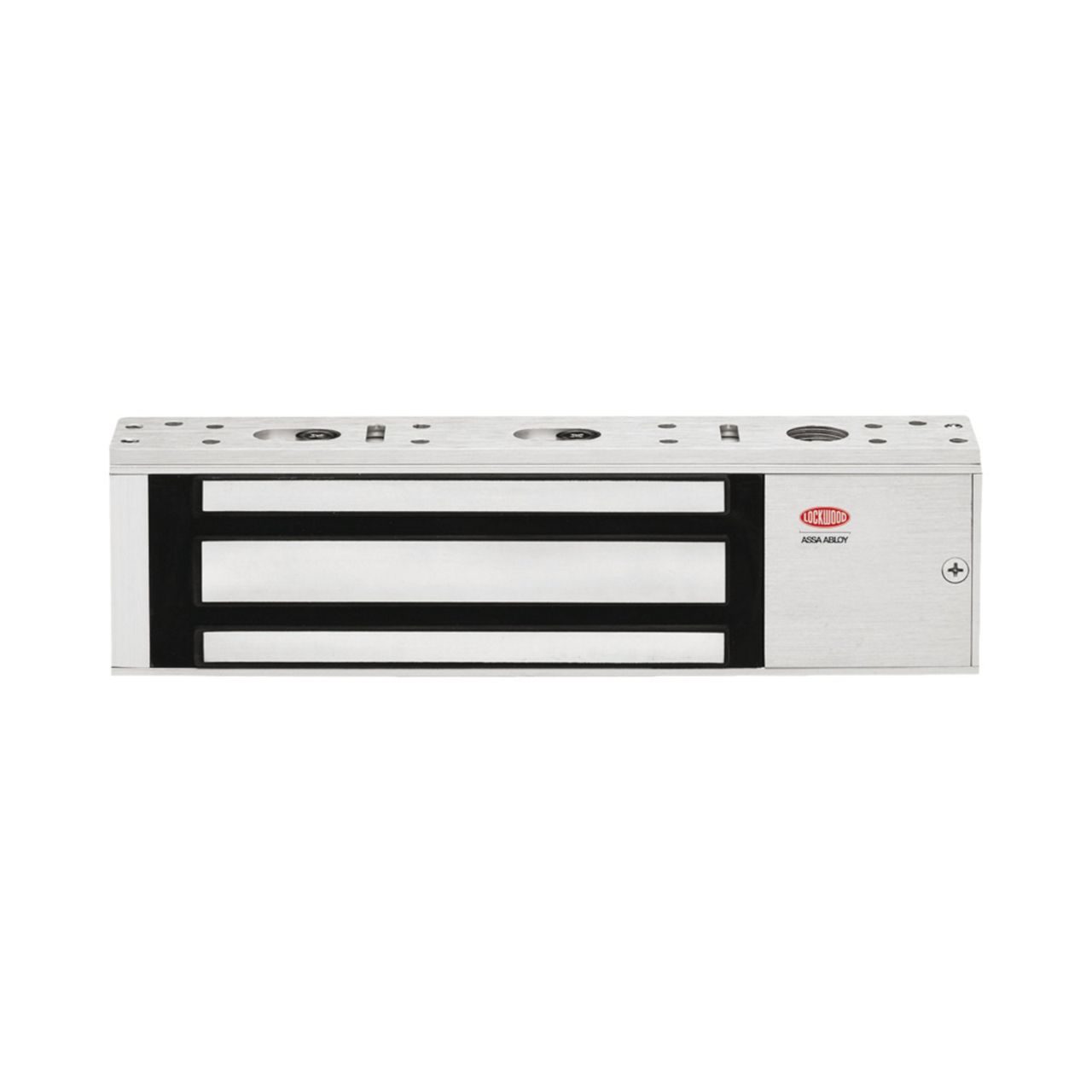

Z8 Magnet
Nominal Holding Force 450Kg*
Dimensions (L)266 x (H)72 x (D)40 mm
Voltage 12Vdc/ 24Vdc ±10%
Current 512mA @ (12Vdc) 256mA @ (24Vdc)
Monitoring Hall-Effect/Bond sensing & Reed Switch
Operating Temperature -10 to 55 Degrees
Operating Humidity 0 - 95%
Holding force is measured directly between armature and magnet, holding force on the door may vary depending on the leverage created.
*Stated Holding Force represents a reliable indicative measure of expected performance but it may vary depending on installation and environmental factors.
Specification Statement
The Single Series Electromagnetic Lock should be constructed in an aluminium case with heavy duty electromagnet. The range only operates in fail safe mode and relies on a secondary lock or battery backup system. In some cases the magnet armature plate pivots to accommodate door drop. The lock needs to be equipped with "smart electronics" that have zero residual magnetism, (instantaneous release). This is crucial for correct operation.
Dimensions
Description (Trade Pack) | Part number |
---|---|
EMZ4 E/Magnet 12/24Vdc Single Monitored | EMZ4-SM |
EMZ8 E/Magnet 12/24Vdc Single Monitored | EMZ8-SM |
Accessories - EMZ4 Bracket Single L & Z | EMZ4B-SLZ |
Accessories - EMZ4 Bracket Glass U 12Mm Glass | EMZ4B-GU |
Accessories - EMZ4 Bracket Glass Armature | EMZ4B-GA |
Accessories - EMZ4 Bracket Armature Monitored W/Magnet | EMZ4B-AM |
Accessories - EMZ4 Bracket Single Mounting Plate | EMZ4B-SMP |
Accessories - EMZ4 Spare Part Screw Kit | EMZ4SP-SC |
Accessories - EMZ4 Spare Part Pcb Monitored | EMZ4SP-PCBM |
Accessories - EMZ8 Bracket Single L & Z | EMZ4B-SLZ |
Accessories - EMZ8 Bracket Glass U 12Mm Glass | EMZ8B-GU |
Accessories - EMZ8 Bracket Glass Armature | EMZ8B-GA |
Accessories - EMZ8 Bracket Armature Monitored W/Magnet | EMZ8B-AM |
Accessories - EMZ8 Bracket Single Mounting Plate | EMZ8B-SMP |
Accessories - EMZ8 Spare Part Screw Kit | EMZ8SP-SC |
Accessories - EMZ8 Spare Pcb Monitored | EMZ8SP-PCBM |
