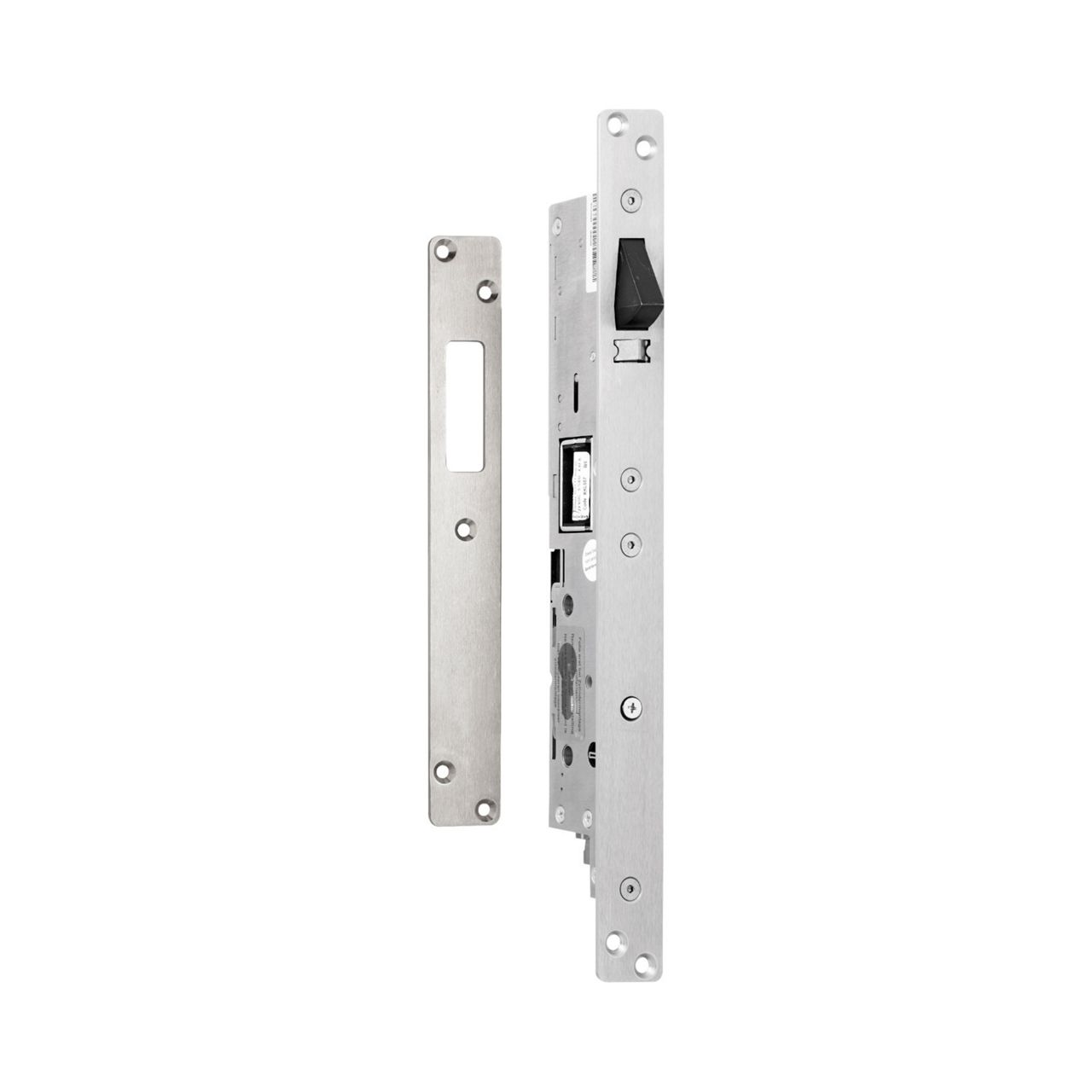

Lockwood Padde Series ES8200 Technilock
ES8200 Technilock is a high security locking solution with comprehensive resistance against all types of attack and manipulation. Originally designed and developed for custodial purposes, the Technilock is in use today in Government Institutions, Banks, Embassies and Jewellers.
ES8200 is available in 30mm and 60mm backset, in both Power to Lock or Power to Open configuration. Key override monitoring version is also available.
Features
- Side load Pre Load capable - Bolt will release with up to 70kg of side pressure - ideal for use on doors with seals or doors that are subjected to high wind load or air-conditioning pressures
- Extreme holding force -Will withstand more than 2500kgs.
- Power to Lock and Power to Open (must be specified). Versions available on request. The bolt is not interchangeable in the field and configuration must be specified when ordering
- High speed operation - Locks in less than 1 second
- Multiple orientations - Can be mounted horizontally or Vertically
- Comprehensive monitoring - Bolt Locked, Door Closed, Optional Key- Override monitoring
Applications
- High Security Locking
- Government Applications
- Custodial Applications
- Banking and Security Applications
Standards and Compliance
- CE Approved
- SCEC Endorsed for SL3 Medium Threat Level Areas
- C Tick Certified
- Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets).
Lockwood Padde Series ES8200 Technilock
Voltage
3 wire control - 24 Vdc regulated supply onlyCurrent
Start Current 4.5 Amp (24Vdc) for ½ second
Holding Current 500mA (24Vdc).Monitoring
Bolt Position 25mA (30Vdc) NC - Door Position 25mA (30Vdc) NCHolding Force
In excess of 2500kg Holding ForcePre Load
Will open with 70kg of Side Pressure (Pre-Load)Bolt Throw
Dead Bolt throw of 20mmDoor Clearance
Maximum door gap = 5.5mmEnvironment
Operational temperature range: -20°C to + 80°CLock Body
Solid Stainless Steel ConstructionLock Bolt
Solid Stainless SteelSpecification Statement
The lock must be capable of side pressure and with an overall holding force not less than 2500kgs. Also with side load pressure under pre Load condition up to 70kg. The lock could be mounted both horizontally or vertically. It also must be monitored in the following ways; bolt locked, door closed, with an optional Key-Override.Dimensions
Description (Trade Pack) Part number ES8203 24Vdc Technilock Fail safe 30mm 118203-000 ES8203 24Vdc Technilock Fail safe 60mm 118203-001 ES8204 24Vdc Technilock Fail secure 30mm 118204-000 ES8204 24Vdc Technilock Fail secure 60mm 118204-001 Accessories - Optional security escutcheon for ES8200 High Security Bolt 228200-000
