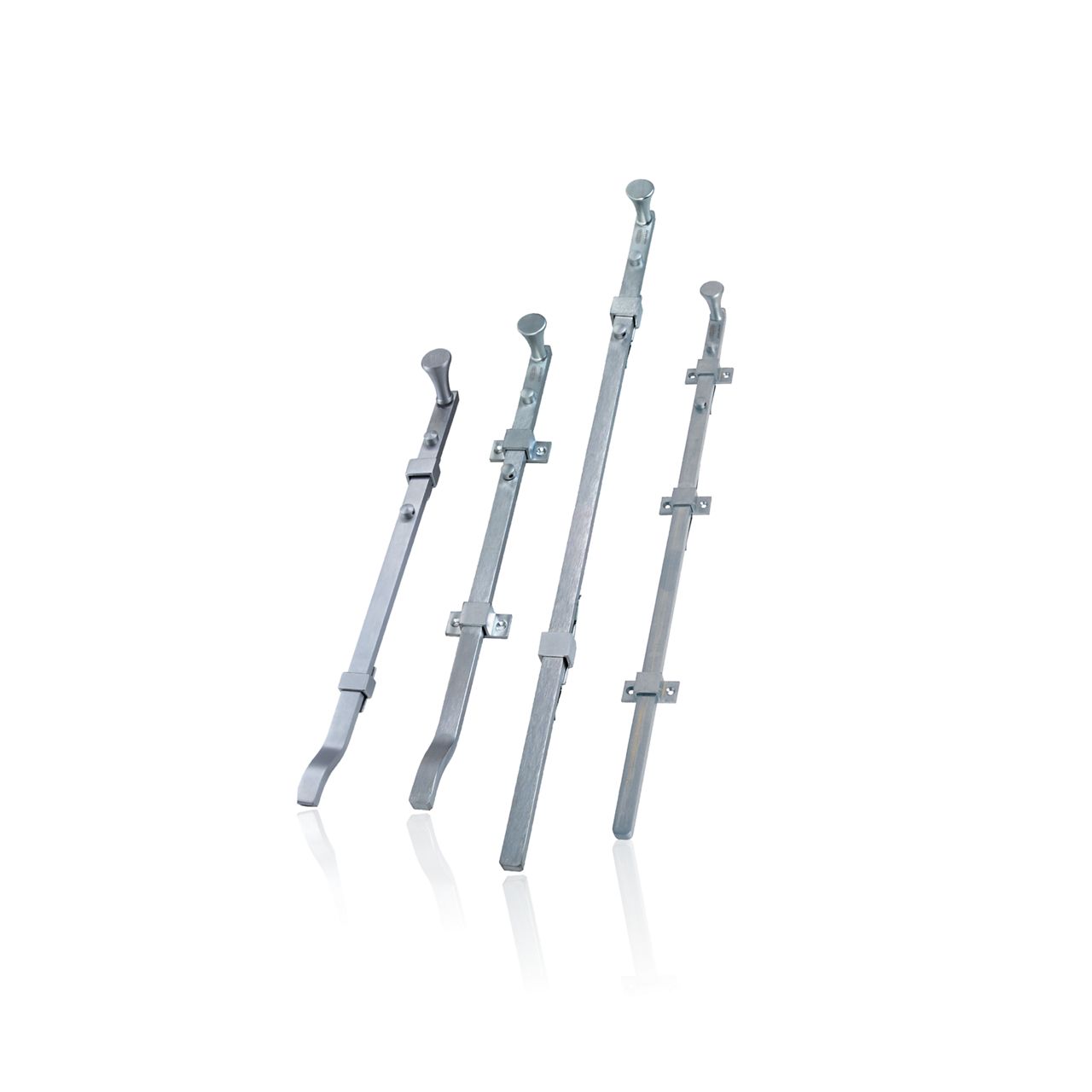

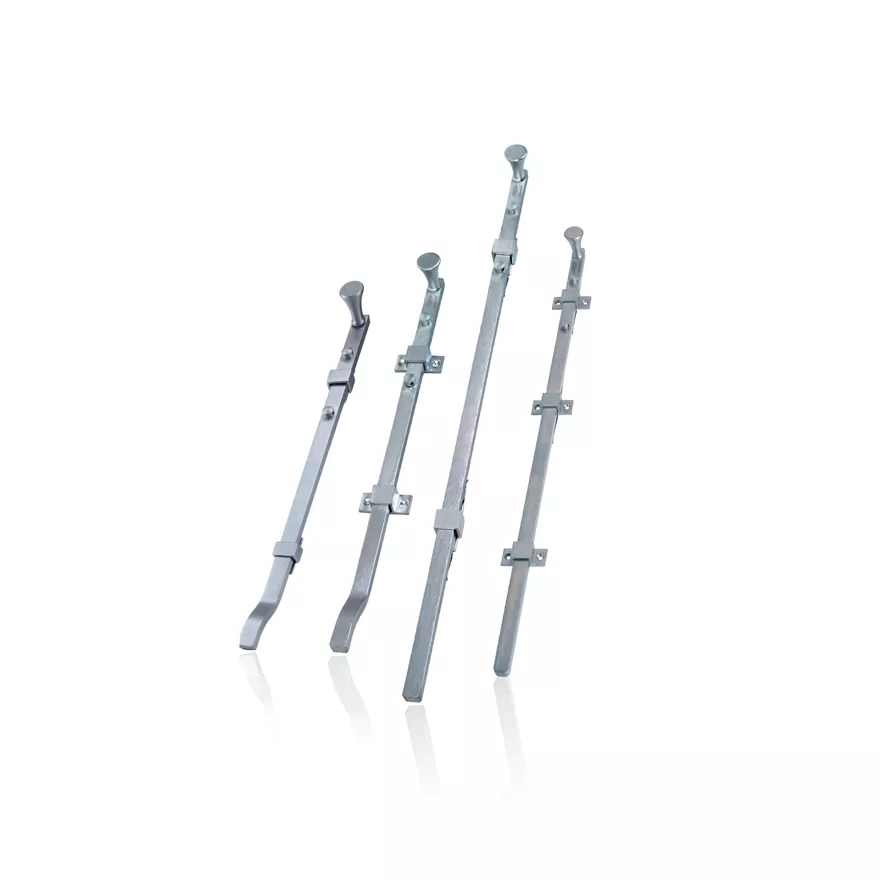

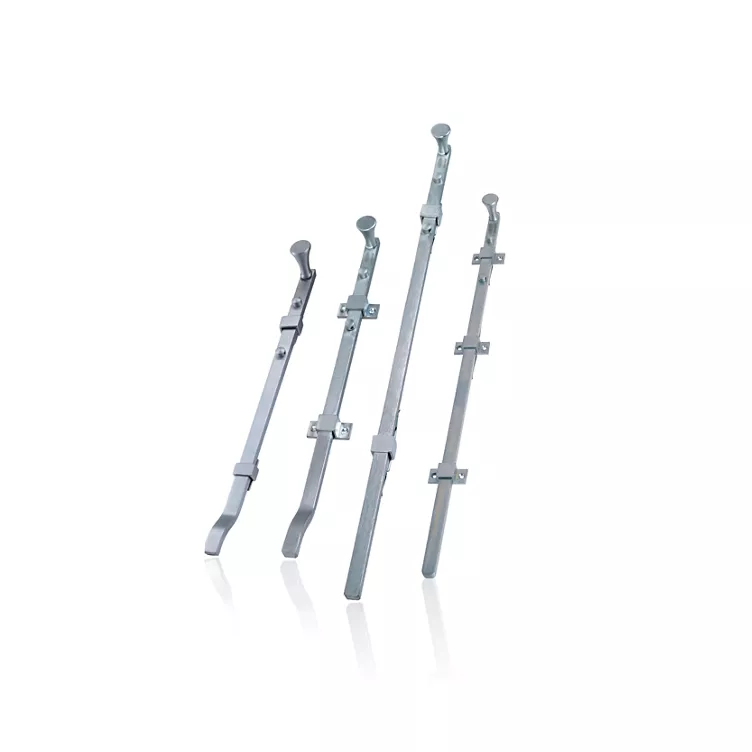

Lockwood 781/791 Series Panic (Skeleton) Bolts

The Lockwood 781/791 Series Panic (Skeleton) Bolts are ideally suited to doors where barrel bolts would be inadequate and where a high degree of strength and durability are required.

Single action bolt with positive locking into keeper at the top or bottom of the door. When fixed to the door the bolt is supported by a high grade stainless steel spring which holds the bolt in the locked position.

Available with both visible and concealed fixing suitable for timber, metal doors and gates in commercial, industrial, institutional and residential buildings, where there is a need for high grade, durable fittings. These bolts are generally installed on the inactive leaf of double doors or doors where there is no need for primary egress.

Each pack contains items necessary for timber door fixing.

Application
Available with both visible and concealed fixing suitable for timber, metal doors and gates in commercial, industrial, institutional and residential buildings, where there is a need for high grade, durable fittings.

Where to buy

  • Bolt Throw
    The bolt throw is the distance the bolt moves from the fully retracted position to the fully locked position. Standard throw is 50 mm.

    Offset Bolt
    Offset bolts are now available both in concealed and visible fix options. Also, only available in the following lengths: 450 mm and 600 mm.

    Fixing
    Available in both visible and concealed fixing with 6 point fixing up to 1000 mm in length. Concealed fixing is ideal for an installation where a more aesthetic appearance is required. Sufficient screws are supplied with all bolts. Each bolt is supplied with a floor plate and top guide. These can also be purchased as spare parts.

    Anti-Corrosion
    All Lockwood 781/791 series panic bolts confirm with Level C6 (168 hours) when tested for NSS exposure according to the standard AS 4145-2: 2008 - Locksets and hardware for doors and windows Part 2: Mechanical locksets for doors and windows in buildings.

    Lengths
    Available in the following lengths: 230mm, 300mm, 450mm, 600mm, 1000mm.

    Bolt Material
    All Lockwood panic/skeleton bolts and accessories are made of the highest grade brass material.

    Standard Finish
    Satin Chrome Plate SC

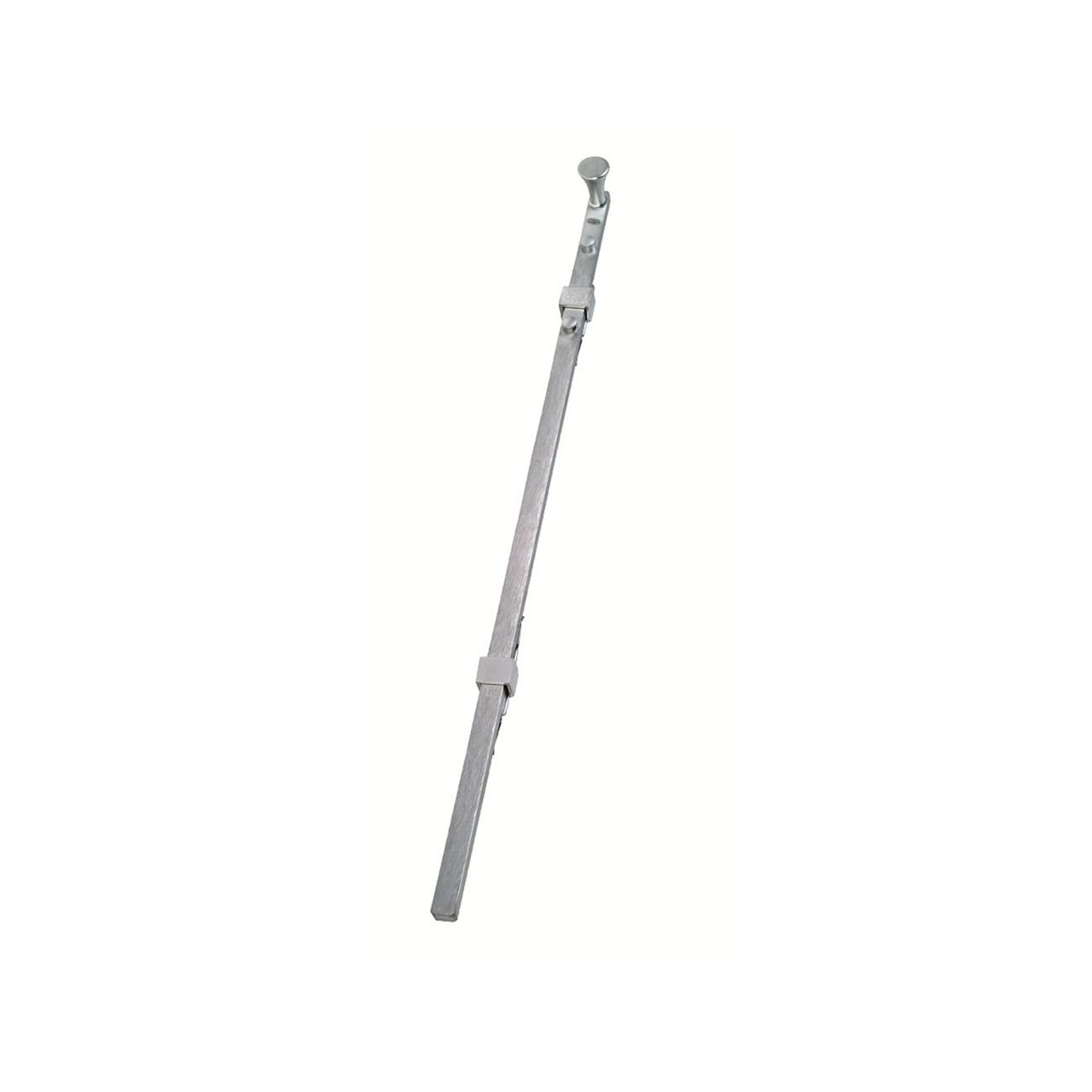

    781 Concealed Fix Panic Bolt

    Available Lengths: 230mm, 300mm, 450mm, 600mm, 1000mm

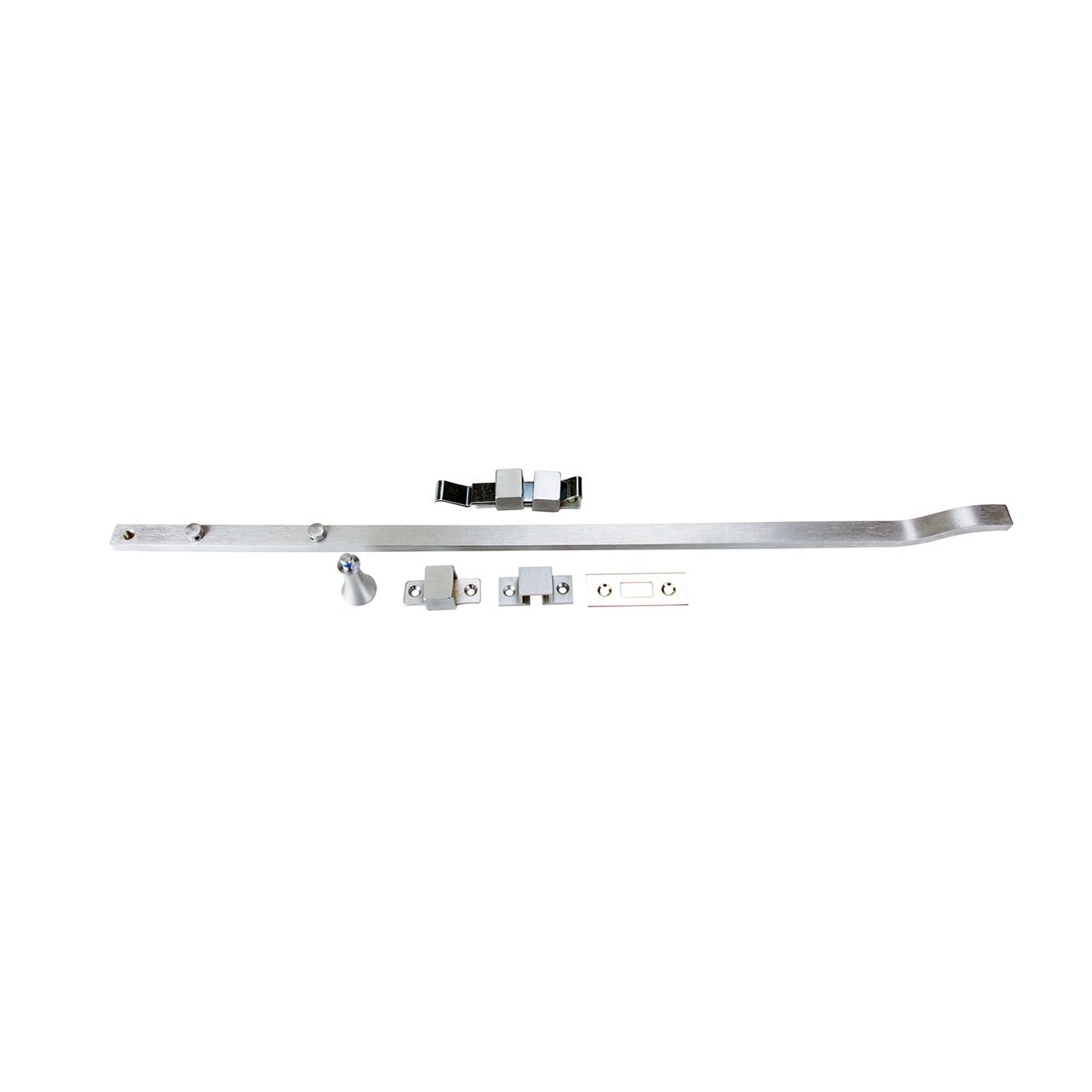

    781 Concealed Fix Offset Panic Bolt

    Available Lengths:  450mm, 600mm



    791 Visible Fix Panic Bolt

    Available Lengths: 230mm, 300mm, 450mm, 600mm, 1000mm

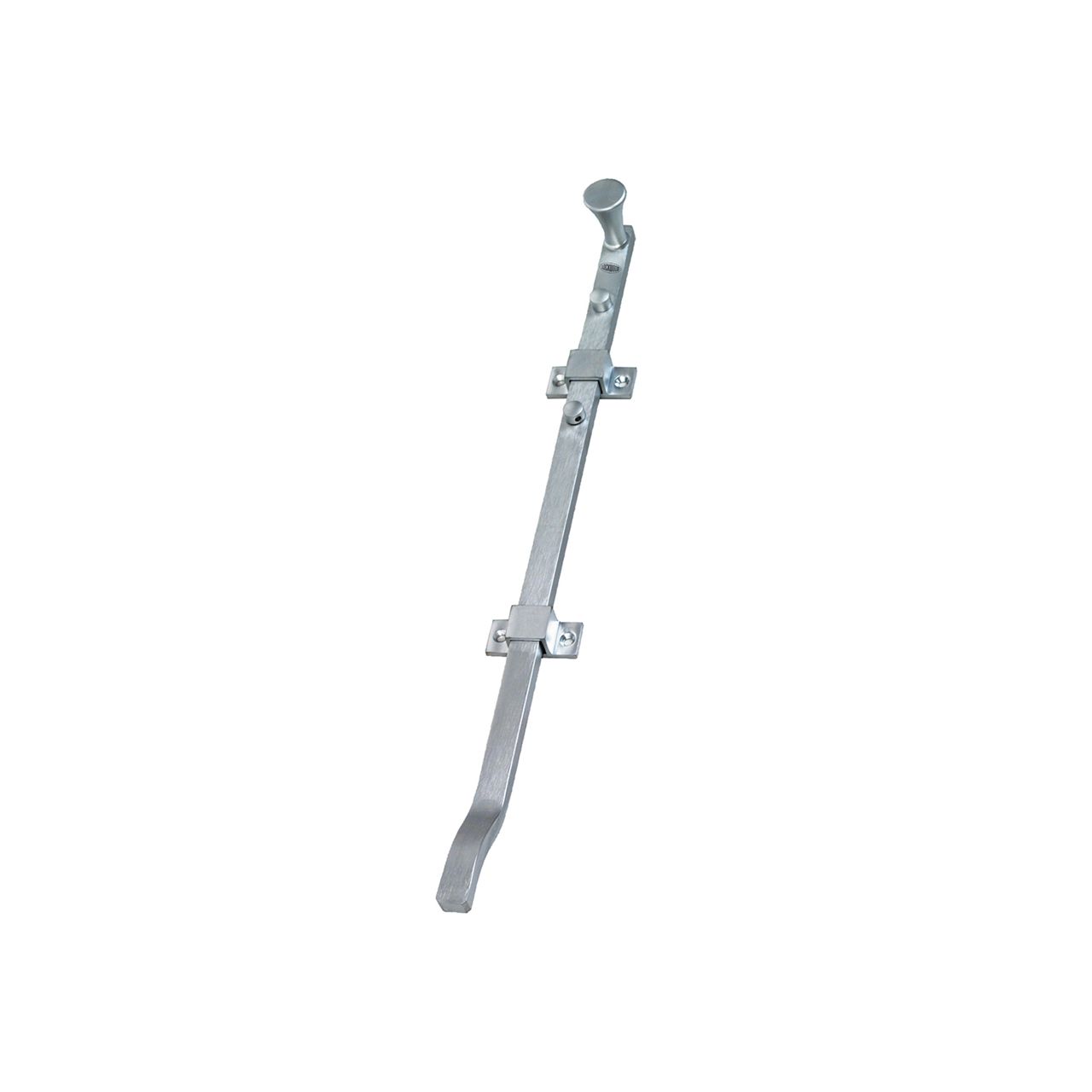

    791 Visible Fix Offset Panic Bolt

    Available Lengths:  450mm, 600mm



  • Lockwood Bolts Catalogue(PDF, 2 MB)
  • Description (Trade Pack)Part numberBarcode
    Concealed Fix Panic Bolt 230mm TP781X230SC93-11847-82331-0
    Concealed Fix Panic Bolt 300mm TP781X300SC93-11847-79404-7
    Concealed Fix Panic Bolt 450mm TP781X450SC93-11847-81469-1
    Concealed Fix Panic Bolt 600mm TP781X600SC93-11847-79283-8
    Concealed Fix Panic Bolt 1000mm TP781X1000SC93-11847-82332-7
    Concealed Fix offset Panic Bolt 450mm TP781O/SX450SC93-40116-13231-0
    Concealed Fix offset Panic Bolt 600mm TP781O/SX600SC93-40116-13230-3
    Visible Fix Panic Bolt 230mm TP791X230SC93-11847-79388-0
    Visible Fix Panic Bolt 300mm TP791X300SC93-11847-79237-1
    Visible Fix Panic Bolt 450mm TP791X450SC93-11847-79239-5
    Visible Fix Panic Bolt 600mm TP791X600SC93-11847-79240-1
    Visible Fix Panic Bolt 1000mm TP791X1000SC93-11847-79238-8
    Visible Fix Offset Panic Bolt 450m TP791O/SX450SC93-11847-80556-9
    Visible Fix Offset Panic Bolt 600m TP791O/SX600SC93-11847-82333-4
