The Lockwood Digital DX Locksets provide a mechanical method of keyless entry.
For extra security when under forced attack, the inbuilt clutching mechanism allows the outside knob to rotate without operating or damaging the lock.
The factory set 5 digit code is easily changed to any 4, 5 or 6 digit code using the code changing kit provided with each lock.
Lockwood Digital DX Locksets are designed to control access into commercial areas, especially when frequent combination changes are needed to maintain security.
As the digital lockset utilizes mechanical operation, electrical wiring is not required. Selected locksets combined with digital access pads provide keyless entry.
Suitability
Features of the 002 Digital DX Deadlatch
Outside
Press the C button, enter the correct code, then turn the knob to unlock the door. Upon releasing the turn knob the code is automatically cancelled.
Inside
Opened by knob/lever at all times.

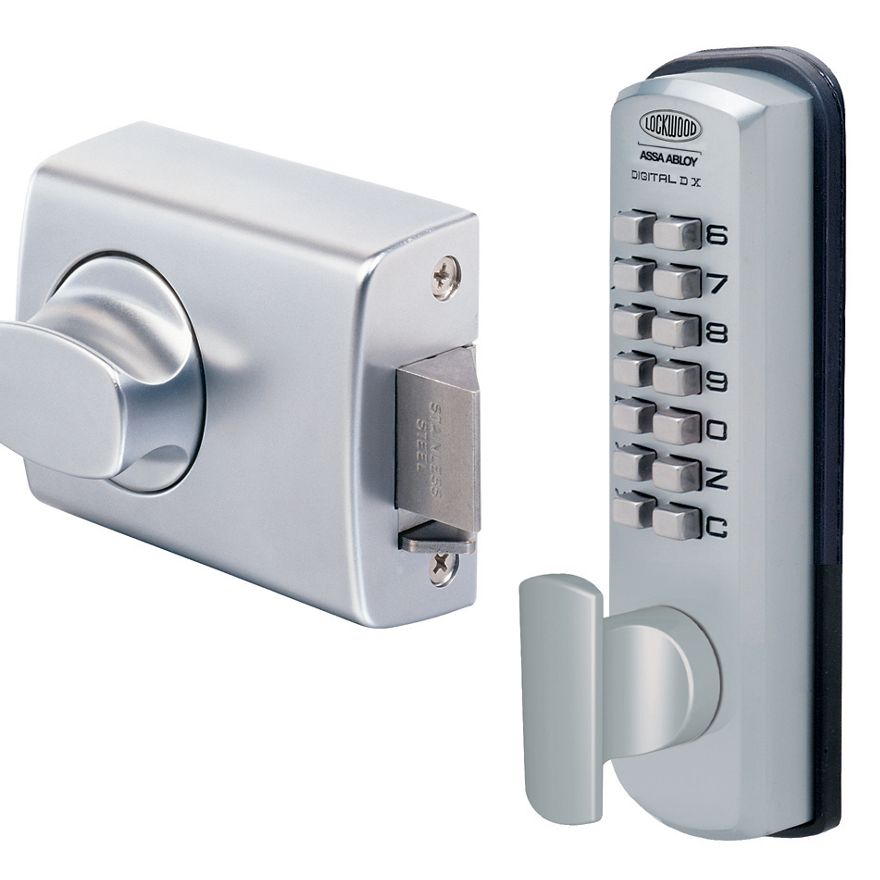

Lockwood 002 Digital DX Deadlatch
Door Thickness
32 to 45mm.
Internal Case Assembly
High purity zinc alloy, 92mm wide, 72mm high,
54mm projection.
Latch
18mm projection, stainless steel.
Backset
60mm.
Hold-back Function
Bolt hold-back function activated by rotating inside knob/lever clockwise, past 90 degrees.
Standard Finishes
Dimensions
Standard Finishes: Satin Chrome Brushed
Note: 002 Lock body is supplied in Satin Chrome Pearl finish
Part numbers below are right hand
Description | Part Number |
002 Digital Lockset, Knob Timber Frame Strike | 002-1KDXSC |
002 Digital Lockset, Knob Open Out Strike | 002-4KDXSC |
002 Digital Lockset, Lever Timber Frame Strike | 002-1LDXSC |
002 Digital Lockset, Lever Metal Frame Strike | 002-3LDXSC |
002 Digital Lockset, Lever Open Out Strike | 002-4LDXSC |
Part numbers below are right hand
Description | Part Number |
Keypad | SPDX-50SC |
Keypad Tumblers Red | SPDX-42 |
Keypad Tumblers Blue | SPDX-43 |
Digital Keypad Mounting Plate | SPDX-520 |
Keypad Spindle 002/3572/3582 (Pk=5) | SP10000-138ZP |
002 Digital Accessory Pack | SP10000-3219ZP |
Mounting Screw Cup Washer (Pk=20) | SP10000-107SC |
DBL Keypad Mounting Screw M5 X 38mm (Pk=20) | SP10000-108ZP |
Adaptor Plate Screw M5 X 10.3mm (Pk=100) | SP10000-134ZP |
Mechanical Digital 002 Deadlatch - Keyless Lock (No Electrical Wiring Required)
Description | Part Number | Barcode |
Satin Chrome | 002-1KDXSCDP | 93-11847-78413-0 |
