The Lockwood Digital DX Locksets provide a mechanical method of keyless entry.
For extra security when under forced attack, the inbuilt clutching mechanism allows the outside knob to rotate without operating or damaging the lock.
The factory set 5 digit code is easily changed to any 4, 5 or 6 digit code using the code changing kit provided with each lock.
Lockwood Digital DX Locksets are designed to control access into commercial areas, especially when frequent combination changes are needed to maintain security.
As the digital lockset utilizes mechanical operation, electrical wiring is not required. Selected locksets combined with digital access pads provide keyless entry.
Features of the 3572 Key Override Digital DX Lockset
Outside
Press the C button, enter the correct code, then turn the knob to unlock the door. Upon releasing the turn knob the code is automatically cancelled. The key override pin tumbler cylinder enables quick access by key for authorities such as the fire brigade or those who need to carry a master key to access all rooms of a building.
Inside
By lever handle or knob at all times.

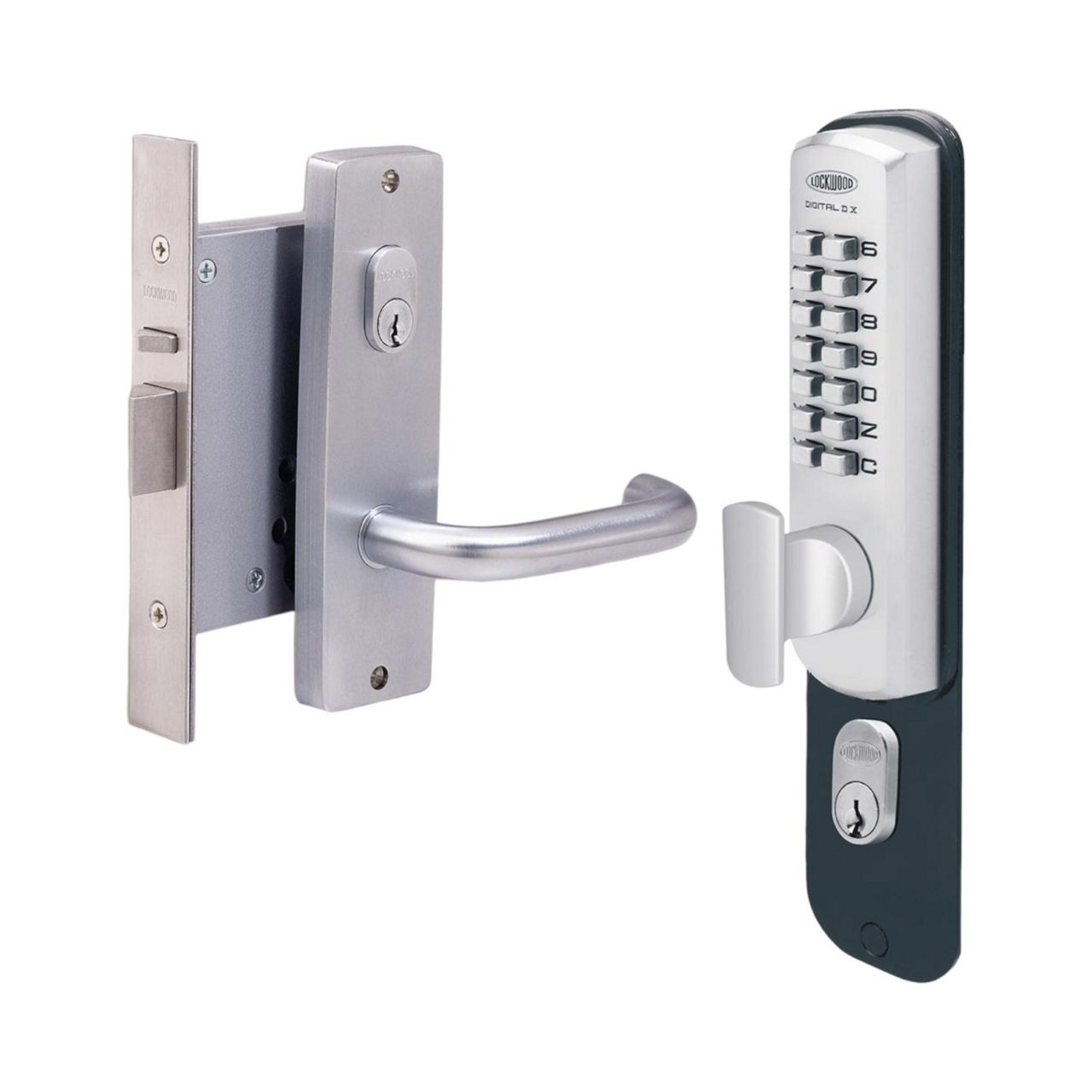

Lockwood 3572 Key Override Digital DX Lockset
Door Thickness
35 to 50mm.
Lock Assembly
3572 Series Cylinder Mortice Deadlatch.
Backset
Cylinder
Pin tumbler mechanism with round brass cylinder.
Keying
Standard Keying
Restricted Special Keying
Lockwood locks can be keyed to a number of controlled and/or specially keyed systems. These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.
Bolt Hold-back Function
A key operated hold-back function is available. This is achieved by a pin tumbler cylinder on the inside allowing the bolt to be held back. Will also require change to internal furniture plate.
Door Furniture
Order furniture separately. For furniture to suit 3572 Series Locksets select from Lockwood 1800 and 2800 Series.
Fire Rating
Successfully tested to 4 hours on fire door assemblies in accordance with Australian Standard AS 1905.1 2005 - Part 1, Fire Resistant Doorsets.
Standard Finishes
* Outside code pad is Satin Chrome Pearl. Inside furniture and face plate is Satin Chrome Brushed.
Dimensions
Description (Trade Pack) | Part Number (Left Hand) | Part Number (Right Hand) |
---|---|---|
60mm Backset, Lockset/Digital Mechanism | 3572DXKOLSC | 3572DXKORSC |
89mm Extended Backset, Lockset/Digital Mechanism | 4572DXKOLSC | 4572DXKORSC |
127mm Extended Backset, Lockset/Digital Mechanism | 5572DXKOLSC | 5572DXKORSC |
60mm Backset, Lockset/Digital Mechanism No Cyl | 3572DXKOLSCNCYL | 3572DXKORSCNCYL |
89mm Extended Backset, Lockset/Digital Mechanism No Cyl | 4572DXKOLSCNCYL | 4572DXKORSCNCYL |
127mm Extended Backset, Lockset/Digital Mechanism No Cyl | 5572DXKOLSCNCYL | 5572DXKORSCNCYL |
