The Lockwood Digital DX Locksets provide a mechanical method of keyless entry.
For extra security when under forced attack, the inbuilt clutching mechanism allows the outside knob to rotate without operating or damaging the lock.
The factory set 5 digit code is easily changed to any 4, 5 or 6 digit code using the code changing kit provided with each lock.
Lockwood Digital DX Locksets are designed to control access into commercial areas, especially when frequent combination changes are needed to maintain security.
As the digital lockset utilizes mechanical operation, electrical wiring is not required. Selected locksets combined with digital access pads provide keyless entry.

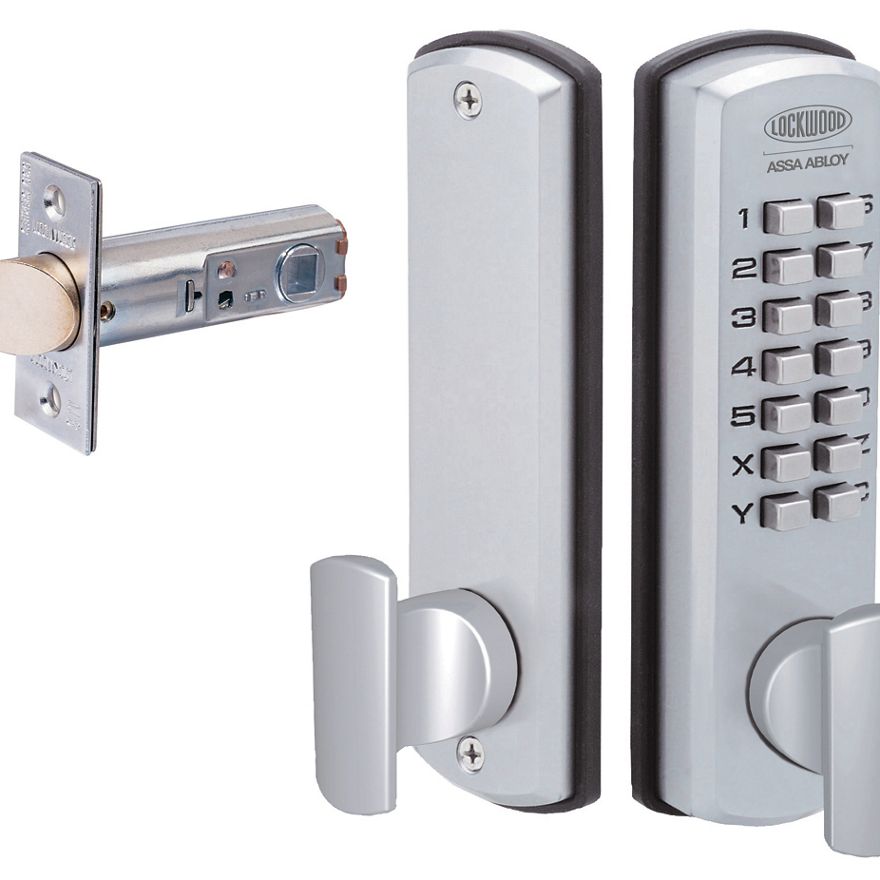

Features of the 530 Digital DX Entrance Set
Outside
Press the C button, enter the correct code, then turn the knob to unlock the door. Upon releasing the turn knob the code is automatically cancelled.
Inside
Opened by knob at all times.
Door Thickness
35 to 45mm.
Backset
Options: Also available in double keypad version, which provides a keypad on each side of the door.
For product availability please contact customer service or your local sales office.
Standard Finishes
Fire Rating
Lockwood 530 Digital DX Entrance Set (excluding rubber gasket) has been successfully tested to 2 hours on fire door assemblies in accordance with Australian Standard AS 1905.1: 1997, Fire Resistant Doorsets.
Dimensions
Description | Part Number (RH) |
530 Digital Lockset, 60mm Backset | 530DXSC |
530 Digital Lockset, 60mm Backset 2 Keypads | 530DXSC/PADSX2 |
Description | Part Number (RH) |
External Keypad | SPDX-20SC |
Internal Plate | SPDX-30SC |
Internal Keypad | SPDX-220SC |
Keypad Tumblers Red | SPDX-42 |
Keypad Tumblers Blue | SPDX-43 |
530 Latch Assembly 60mm (Idc 24) | 530-12SC |
530 Latch Assembly 70mm (Idc 24) | 530-222SC |
530 Latch Assembly 127mm (Idc 24) | 530-225SC |
Spindle 33mm To 45mm Thick Door | SP10000-127ZP |
Spindle 46mm To 55mm Thick Door | SP10000-627ZP |
Spindle 56mm To 65mm Thick Door | SP10000-727ZP |
Fixing Screw 33mm To 45mm Thick Door | SP930-108ZP |
Fixing Screw 46mm To 55mm Thick Door | SP930-208ZP |
Mechanical Digital 530 Deadlatch - Keyless Lock (No Electrical Wiring Required)
Description | Part Number | Barcode |
Satin Chrome | 530DXSCDP | 93-11847-78244-0 |
