Lockwood’s innovative door handle with integrated electronic security, offers simple and effective keyless locking, without compromising aesthetics.
Designed to enable conveniently controlled access to a door with easy installation. Code Handle is ideal for offices, store rooms or a study at home.
The Lockwood Code Handle provides flexible locking options for doors that need to be always locked or alternatively can be left open to provide free access during the day and locked at night. The Code Handle is an electronic product that is not weather rated, so use should be limited to appropriate environments.
Features of the Code Handle Keyless Lockset

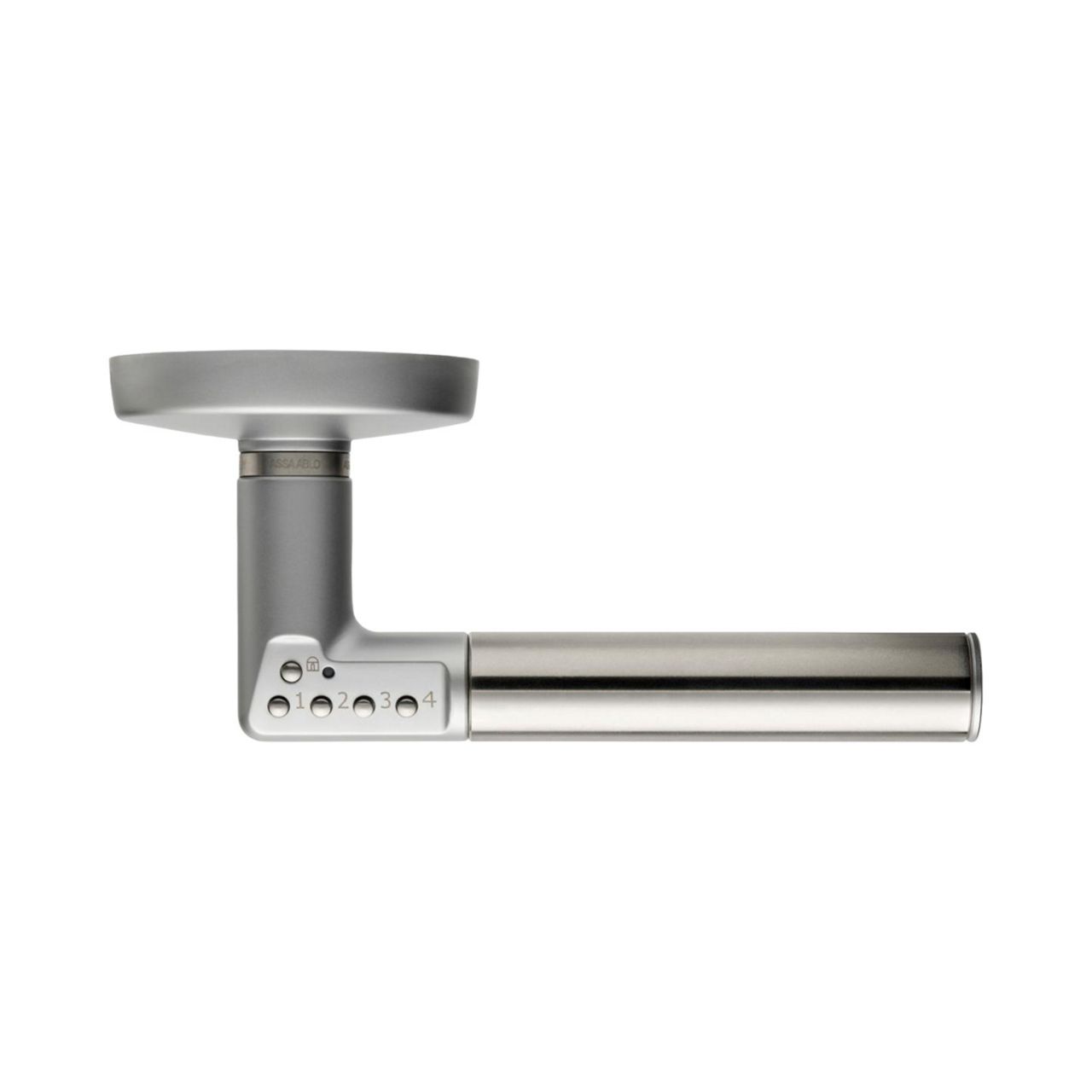

Code Handle Keyless Lockset

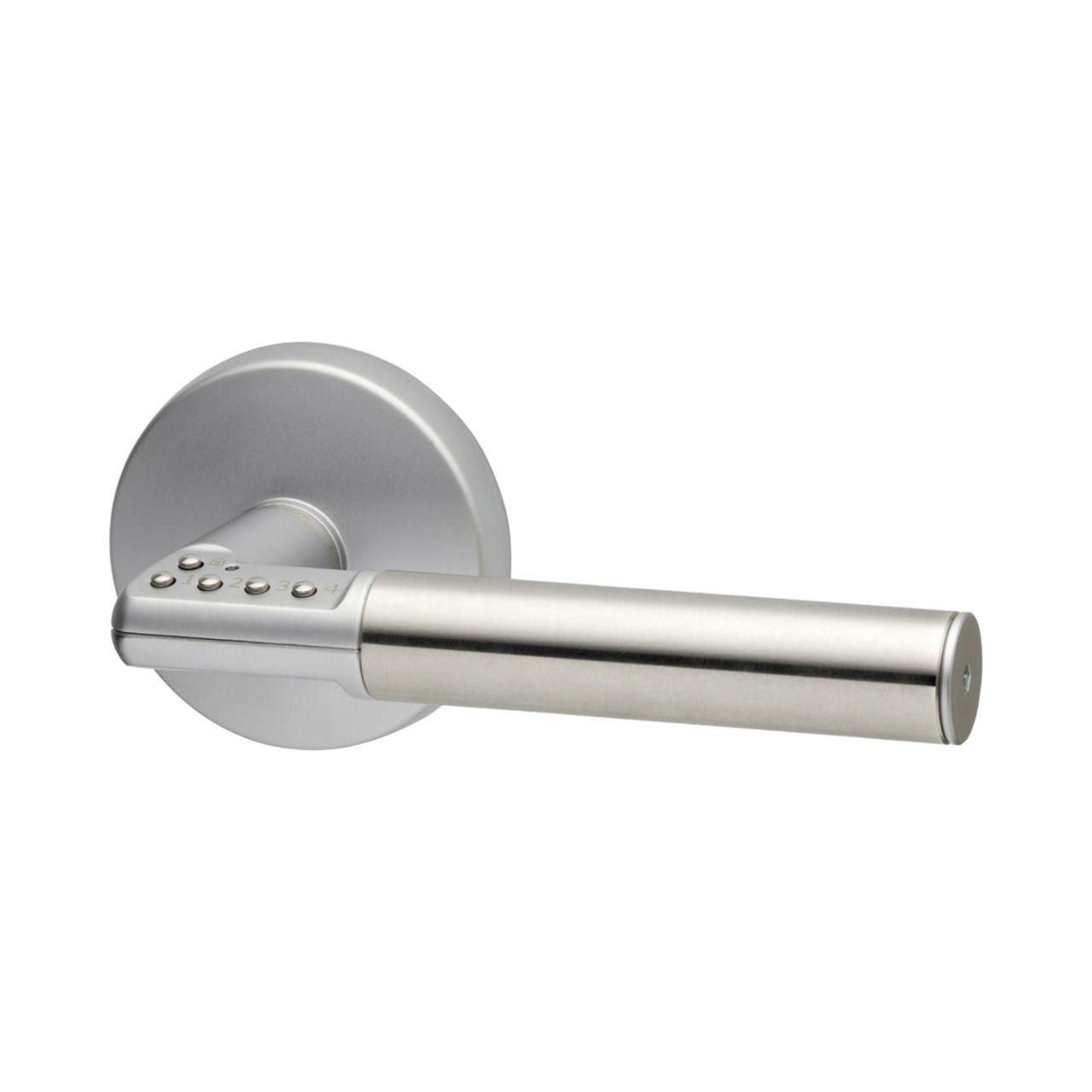

Code Handle Keyless Lockset
Code Handle Keyless Lockset - Top view

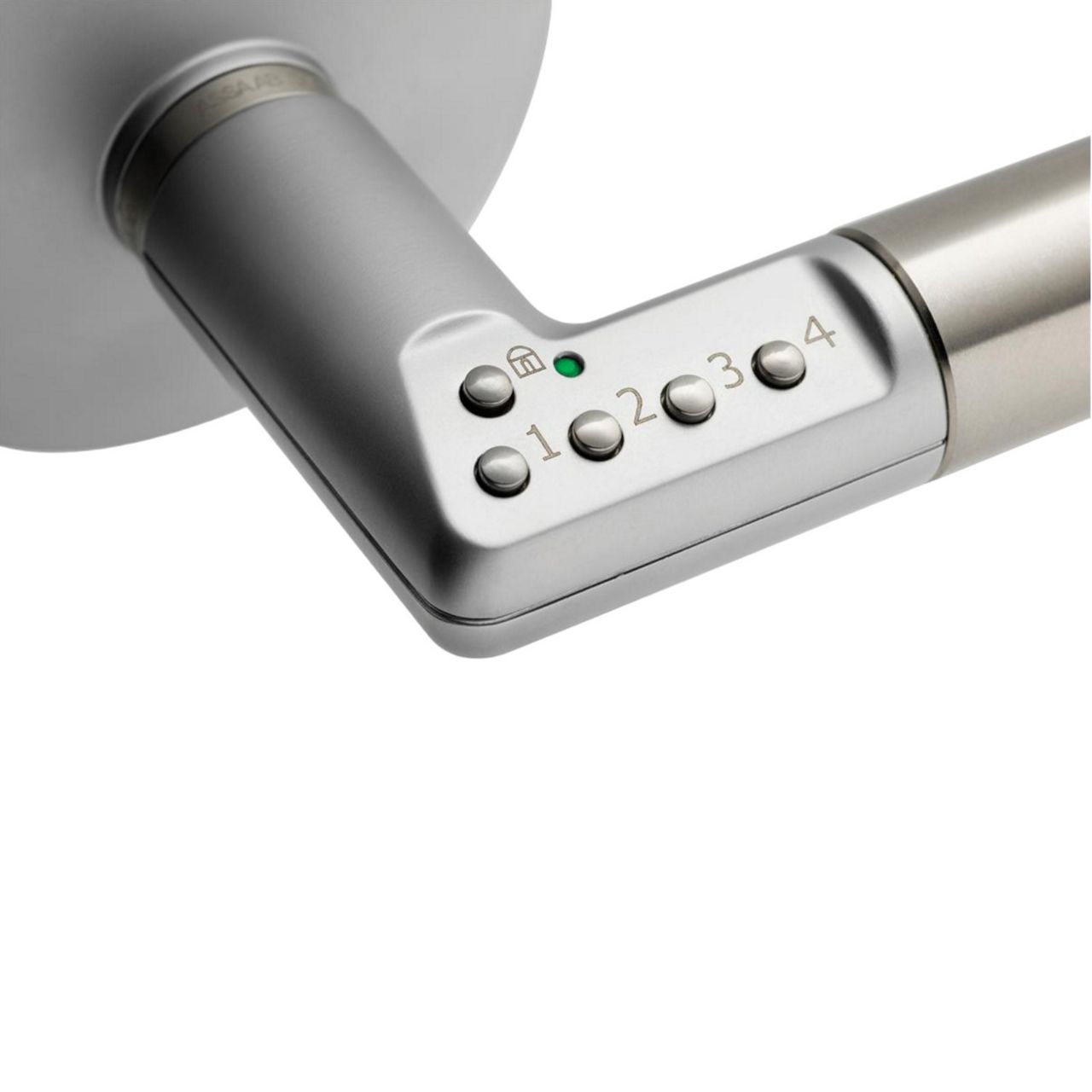

Code Handle Keyless Lockset - Keypad
Installation
25mm latch hole and 54mm lock hole
Backset
60mm (70mm latches available)
Latch
Brass 13mm projection deadlatch
Door Thickness
32 to 55mm
Finish
Satin Pearl with Stainless Steel

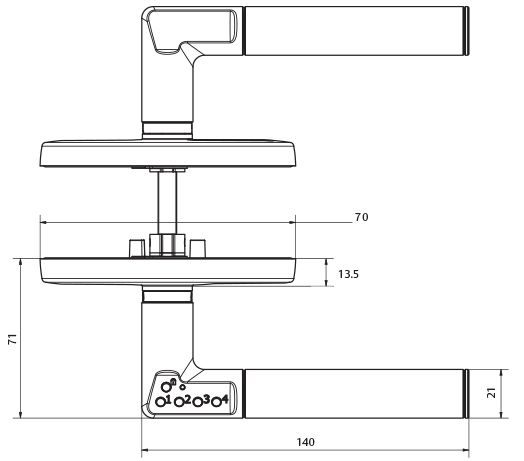

Dimensions
Display Pack
Please select the correct handed product for your application
View from code side of door
|
|
Description | Part number | Barcode |
---|---|---|
Right Handed Code Handle | 8816RSS | 9311847150225 |
Left Handed Code Handle | 8816LSS | 9311847150249 |
Code Handle Latch 70mm Backset | 8823-70 | 9340116060491 |
Step by step instructions to install and setup your Lockwood Code Handle
