Lockwood SDL™ Deadbolt
EXCLUSIVE TO BUNNINGS
Complete Entrance solution for both New installation/Retrofitting
You can either use a Lockwood Lever set with Lockwood SDL™ Deadbolt for complete new entrance solution installation or replaces your existing deadbolt (54mm bore hole) with SDL™ Deadbolt in minutes with just a screwdriver.
| One Touch Locking Lock-up with a simple touch of the keypad. |
| Digital Touchscreen Backlit touchscreen keypad supports up to 25 unique PIN codes. |
| Simple Installation Suits a 54mm bore hole and door thickness from 32mm to 50mm. |
| Emergency Power Supply When the batteries are completely flat, you can easily supply emergency power to the lock with a standard 9V battery. |
Note: Lockwood Lever is sold separately.
Available Finishes
Satin Chrome

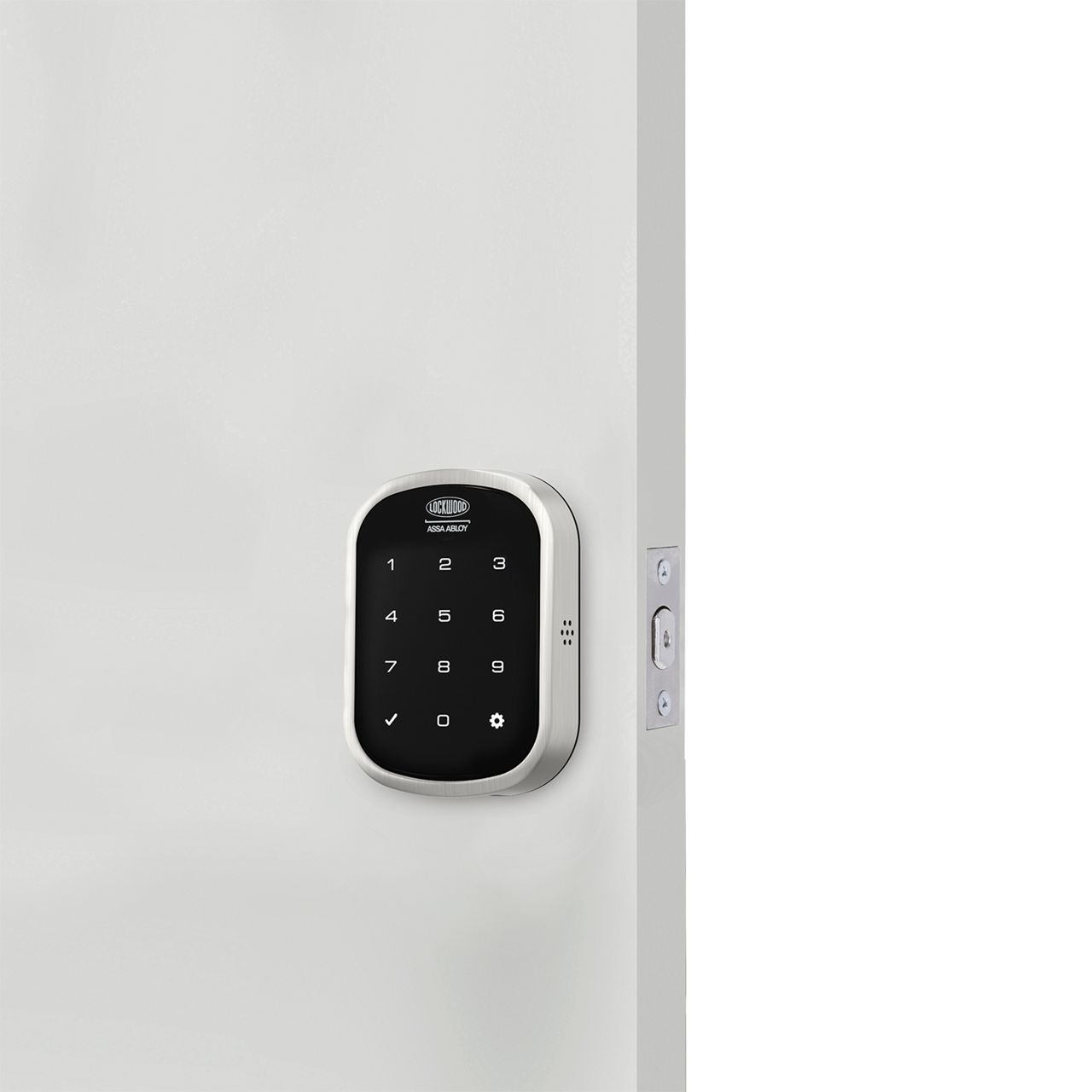

Lockwood SDL™ Deadbolt (Front)
Lockwood SDL™ Deadbolt (Front)
Lockwood SDL™ Deadbolt (Back)
Lockwood SDL™ Deadbolt with Lockwood Lever

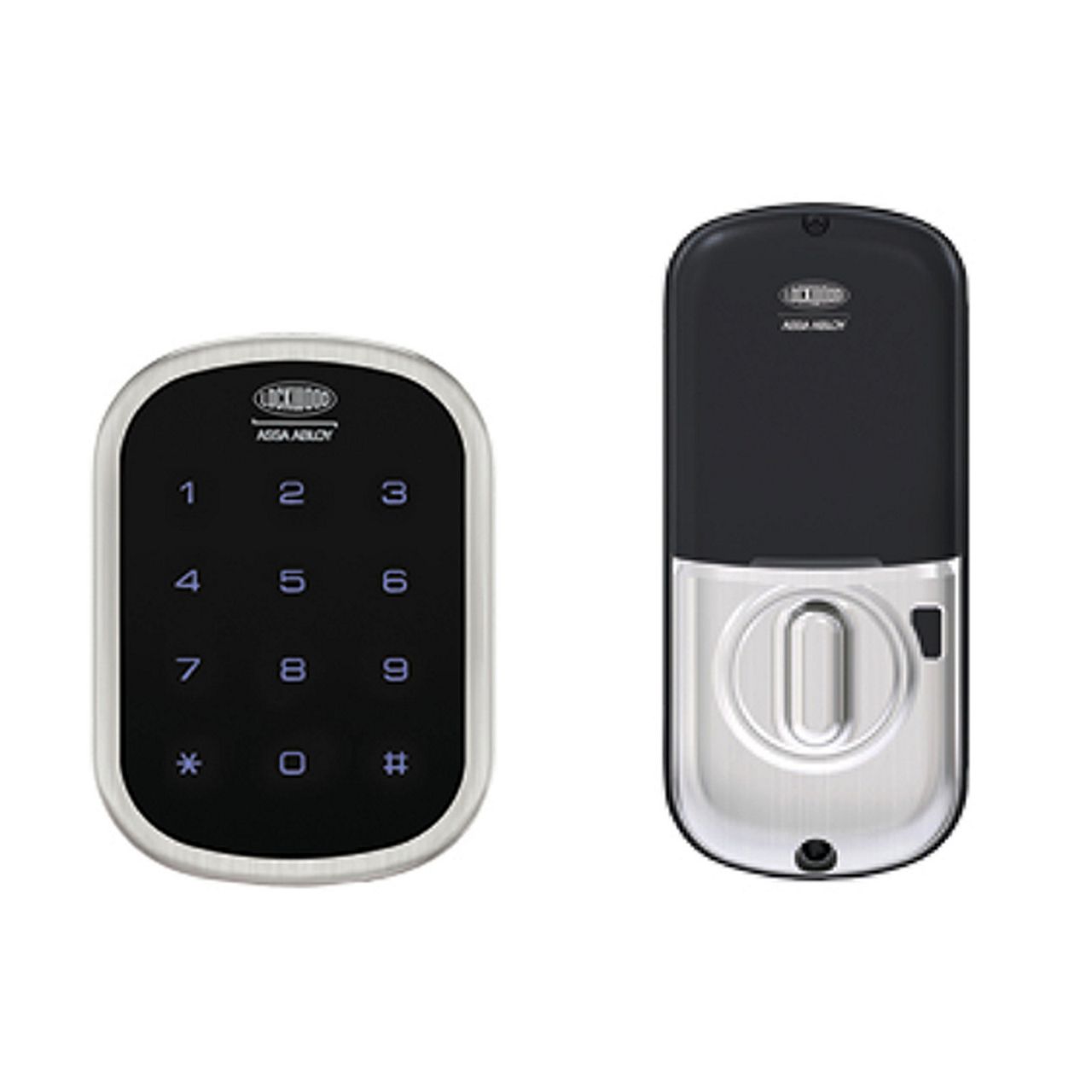

Lockwood SDL™ Deadbolt Front & Back View
Compatible with Yale Network Module for Home Automation Integration
The Lockwood SDL™ Deadbolt can be upgraded with a Yale network module (available in Yale Home, Z-Wave & Zigbee variants)** to integrate into most home automation systems.
Learn more about Yale Home Module, Zigbee and Z-Wave.
Yale Connect Plus Wi-Fi Bridge
Pair your Lockwood SDL™ deadbolt and Yale Home module with Yale Connect Wi-Fi Bridge for remote access and compatibility with Amazon Alex, Samsung SmartThings and Hey Google. See below compatibility chart for detail. (The Yale Connect Plus Wi-Fi bridge is sold separately)
**There are many different home automation controllers available that use Zigbee or Z-Wave communication.
The lock connects to the controller, allowing the controller to interact with the lock, and control it. This means the locks functionality will vary depending on the controller the lock is connected to, and the configuration of the controller.
Retrofitable Fits majority of doors with 54mm hole Backset Adjustable 60-70mm Power 4 x AA Alkaline batteries Body / Case Material Zinc Bolt Type / Function Deadbolt Door Thickness Range 35mm to 57mm Door Preparation 25mm latch hole and 54mm lock hole Lock Type Deadbolt Standard Finish Satin Chrome Warranty / Guarantee ASSA ABLOY 3 year Electromechanical Operational Temperature range -25C to 60C Operating Humidity up to 95% Approvals RCM Compliant (EN 61000.6.3 2012 & EN 55032 2016)
ANSI/BHMA A156.36 Grade 2 CertifiedProduct Dimensions
External Internal Height 92mm 175mm Width 66mm 75mm Length 17mm 54mm Description Part number Barcode Lockwood SDL™ Deadbolt (No Network Module) SC LWL-DDB1-SC 9348313050673 Yale Home Module YD-MD01 9348313053087 Yale Connect Plus Wi-Fi Bridge AYR-BDG-CB2-ANZ 4893862054573 YRD-ZBM-1 Yale Zigbee Network Module 9348313024919 YRD-ZWM-1 Yale Z-Wave Network Module 9348313025589
