Lockwood Optimum Sliding Door Mortice Locks
30mm and 40mm backset variants available.

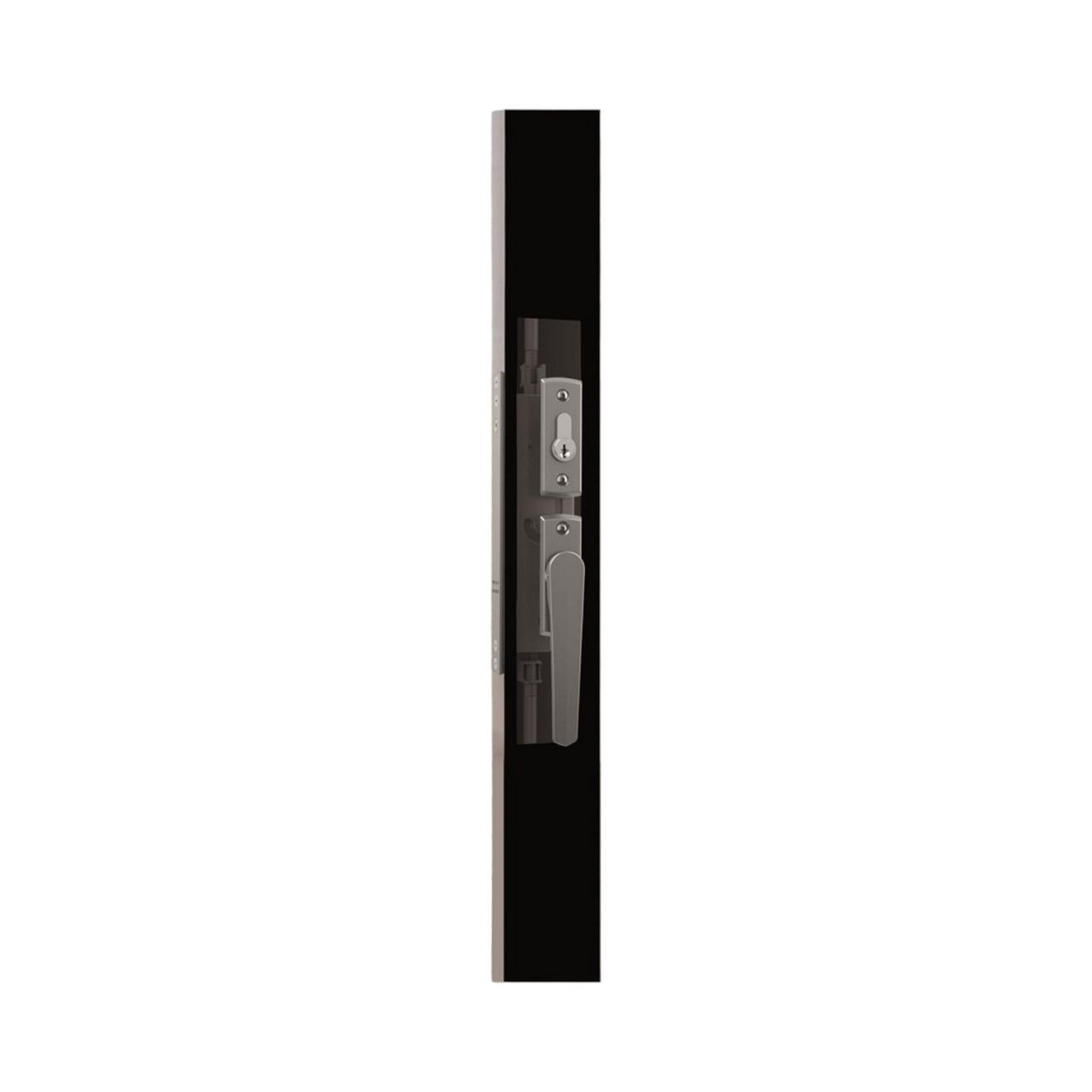

The Pinnacle Mortice lock has been designed for use on bi-fold windows and doors. The Pinnacle lock combines security features with a practical design, fulfilling the needs created by architectural innovations within the residential market.
Suitable for use with aluminium windows and doors.
Features
Lockwood Pinnacle Bi-Fold Mortice Lock - Face plate
Lockwood Pinnacle Bi-Fold Mortice Lock - Face plate

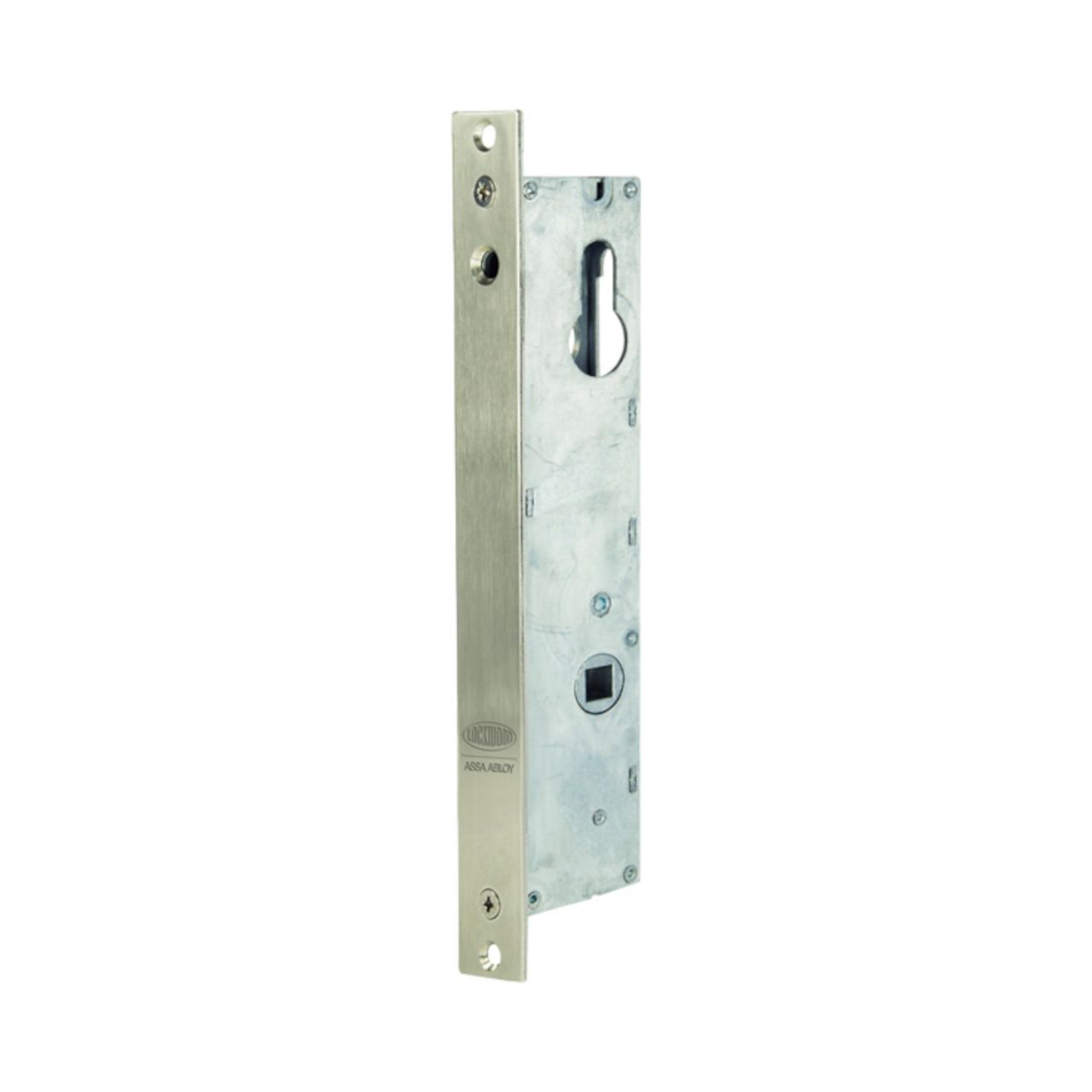

Lockwood Pinnacle Bi-Fold Mortice Lock - Body
Keying
Compatible with 5 pin or 6 pin fixed cam Euro profile cylinders. Cylinders must be ordered separately.
Standard Finishes
Brushed stainless steel faceplate supplied.
Kits are avialable in black (BLK) and satin chrome pearl (SP) finishes.

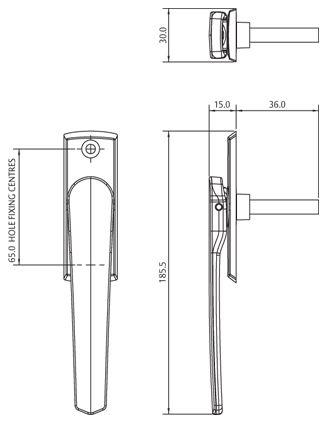

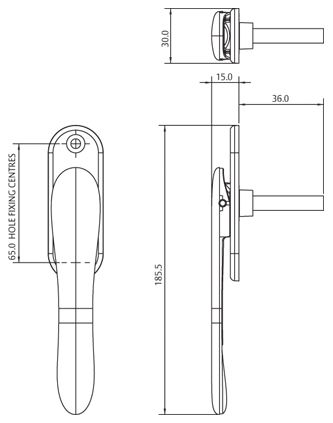

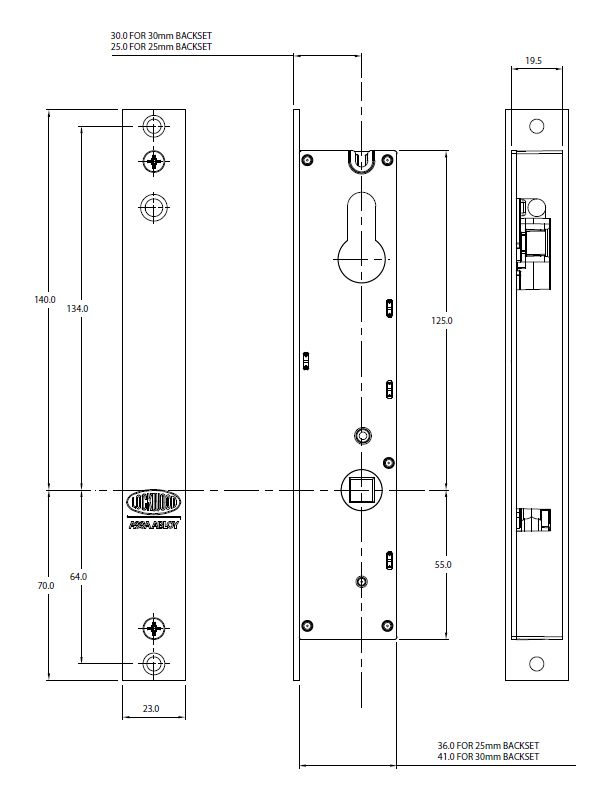

Dimensions
Description (Trade Pack) | Part number |
---|---|
Pinnacle Bi-Fold Lock Kit Aria 25mm Backset | PBE201/1/27* |
Pinnacle Bi-Fold Lock Kit Aria 25mm Backset - Double Handle and Escutcheon | PBE201/2/27* |
Pinnacle Bi-Fold Lock Kit Aria 30mm Backset | PBE311/1/27* |
Pinnacle Bi-Fold Lock Kit Aria 30mm Backset - Double Handle and Escutcheon | PBE311/2/27* |
Pinnacle Bi-Fold Lock Kit Uno 25mm Backset | UB201/1/* |
Pinnacle Bi-Fold Lock Kit Uno 25mm Backset - Double Handle and Escutcheon | UB201/2/* |
Pinnacle Bi-Fold Lock Kit Uno 30mm Backset | UB311/1/* |
Pinnacle Bi-Fold Lock Kit Uno 30mm Backset - Double Handle and Escutcheon | UB311/2/* |
Pinnacle Bi-Fold Lock Only 25mm Backset Lock Body | PS25/2PTN/SS |
Pinnacle Bi-Fold Lock Only 30mm Backset Lock Body | PI30/2PTN/SS |
* Denotes finish code |
