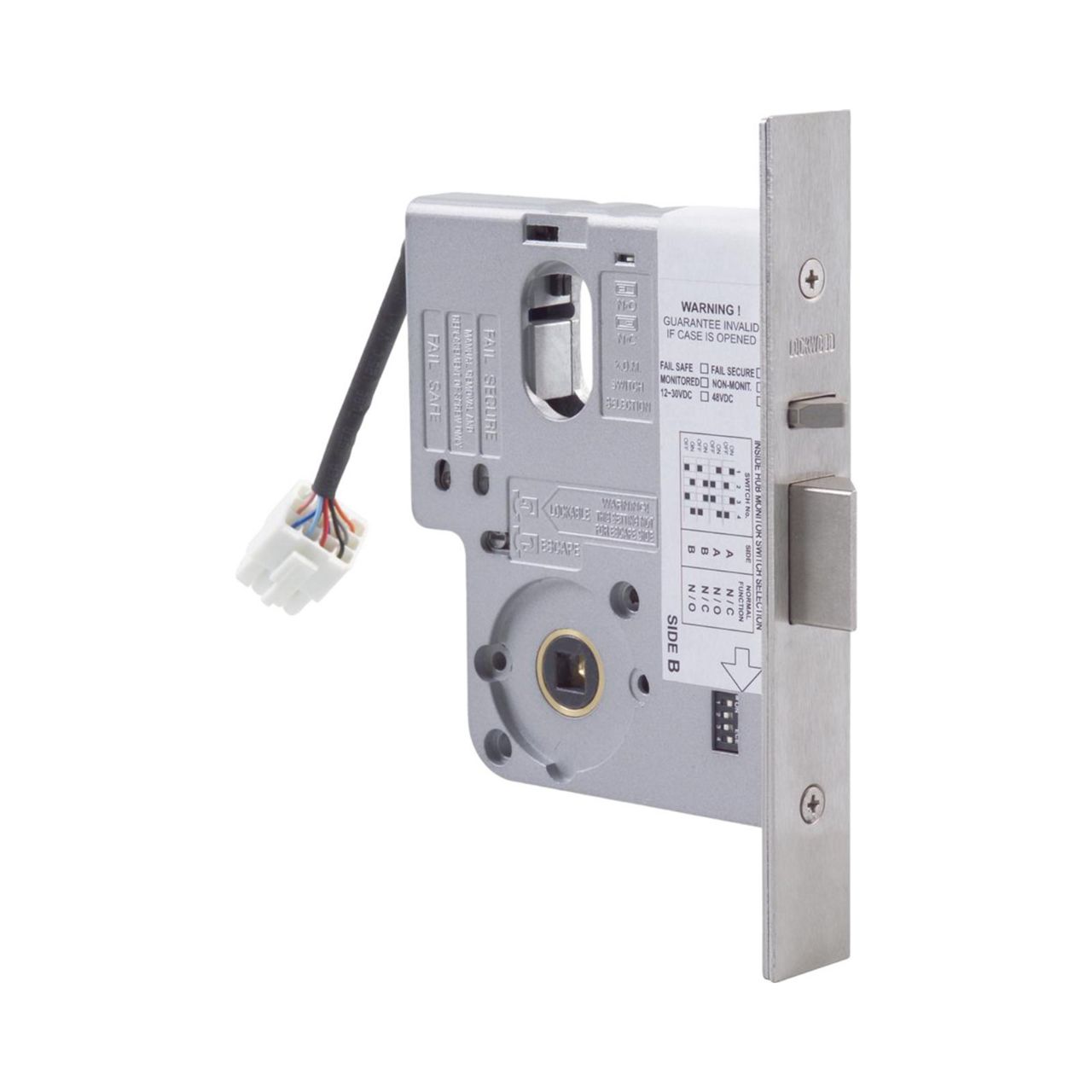

Lockwood 3570 Series Electric Mortice Lock
Designed and manufactured in Australia, the 3570 series electric mortice is a high performance lock of superior quality. It is constructed from high grade zinc alloy, with a stainless steel latch bolt and face plate and is suited for all commercial applications.
The lock can be operated by push buttons, intercom systems and key switches; or integrated with electronic access control systems for use with higher security devices such as keypads or card readers.
Key Features
Designed with flexibility in mind, the one lock can cover all functions and is easily configured on site for the required application. Available in non monitored and monitored versions.
Monitoring features:
- Dead latched and Locked
- Door position/Reed switch
- Dual key override monitoring
- Request to exit/REX
- LED indication
Field Changeable settings:
- Fail safe/fail secure configuration.
- Multi-voltage - will work on 12-24 Vdc systems.
- Handing - left hand and right hand doors
- Selection of free lever or locked lever on both sides of the door
- Key override monitoring either side of the door
- Monitoring contacts - normally closed, normally open (for key override and request
to exit only)
Standards and Compliance
- SL8 (Security) Australian Lock Standard (AS4145.2.2008) (when used with equivalent security level keying system)
- D8 (Durability) Australian Lock Standard (AS4145.2.2008)
- RCM Certified
- SCEC Endorsed for SL3 Medium Threat Level Areas
Lockwood 3570 Series Electric Mortice Lock
Voltage
12Vdc - 24Vdc Operating VoltageCurrent
500mA (max) 80mA holding @ 12Vdc
275mA (max) 50mA holding @ 24VdcLED Current
When LED's are fitted, add 15mA (max) to total current drawMonitoring
- Dual Key override
- Deadlatched
- Locked
- Door closed
- Request to exit
- Microswitches: 500mA (max) @ 30Vdc each circuit.
- Reedswitch: 100mA (max) @ 30Vdc
Environment
Operational temperature range -20c to + 60cCase / Cover
High purity Zinc alloy constructionBackset
60mm standard, 89 & 127 mm availableLatch bolts
Reversible with Stainless Steel construction.Door Clearance
3 - 6.5 mmDoor thickness
Standard applications 32 to 50mm.Cylinder
Standard Lockwood oval shaped cylinders.Cabling
1.6 metre length of cable with 12 pin socket supplied with each lock.
Recommended cable: 18AWG (0.82mm²) cable runs up to 30m.Furniture
Compatible with Lockwood series door furniture.Standard Finishes
Satin Chrome (SC) standard.Note: For detailed electrical specifications, refer to catalogue.
Specification Statement
The lock should be capable of operation on voltages between 12 - 24Vdc and have a current consumption not more than 80mA (holding) @12Vdc and 50mA (holding) @24Vdc.
Monitored locks must be capable of monitoring the following functions: Key override, door position / reed switch, selectable hub / Request to exit, & locking bar status.
All monitoring outputs must have the ability to be wired independently.
All settings - including: fail safe / fail secure, handing, hub selection must be field configurable.Dimensions
Trade Pack
Please refer to catalogue.
Ordering Notes- 3570 Primary Locks can be set to achieve all lock functions post purchase, and should be the preferred option when ordering.
- Customised locks are available upon request and incur an additional surcharge and 10 day lead time.
- Primary locks can be set post purchase to achieve all desired lock settings e.g. fail safe or fail secure, left hand or right hand, combination lock (locked both sides) or vestibule lock (locked outside & free lever inside)
- All locks are Multi-voltage 12-24Vdc
- 3570 Primary locks (std 60mm backset) are stocked items. All other items are made to order, 10 day lead time.
Primary Electric Mortice Lock Ordering Procedure
Non-Monitored
Description Cylinders Part Number Electric Mortice Lock 3570 Primary Lock 60 mm Backset No Cylinder 3570ELN0SC Electric Mortice Lock 3570 Primary Lock 60 mm Backset 1 Cylinder 3570ELN1SC Electric Mortice Lock 3570 Primary Lock 60 mm Backset 2 Cylinder 3570ELN2SC Electric Mortice Lock 4570 Primary Lock 89mm Backset No Cylinder 4570ELN0SC Electric Mortice Lock 4570 Primary Lock 89 mm Backset 1 Cylinder 4570ELN1SC Electric Mortice Lock 4570 Primary Lock 89 mm Backset 2 Cylinder 4570ELN2SC Electric Mortice Lock 5570 Primary Lock 127 mm Backset No Cylinder 5570ELN0SC Electric Mortice Lock 5570 Primary Lock 127 mm Backset 1 Cylinder 5570ELN1SC Electric Mortice Lock 5570 Primary Lock 127 mm Backset
2 Cylinder 5570ELN2SC Monitored
Description Cylinders Part Number Electric Mortice Lock 3570 Primary Lock 60 mm Backset No Cylinder 3570ELM0SC Electric Mortice Lock 3570 Primary Lock 60 mm Backset 1 Cylinder 3570ELM1SC Electric Mortice Lock 3570 Primary Lock 60 mm Backset 2 Cylinder 3570ELM2SC Electric Mortice Lock 4570 Primary Lock 89 mm Backset No Cylinder 4570ELM0SC Electric Mortice Lock 4570 Primary Lock 89 mm Backset 1 Cylinder 4570ELM1SC Electric Mortice Lock 4570 Primary Lock 89 mm Backset 2 Cylinder 4570ELM2SC Electric Mortice Lock 5570 Primary Lock 127 mm Backset No Cylinder 5570ELM0SC Electric Mortice Lock 5570 Primary Lock 127 mm Backset 1 Cylinder 5570ELM1SC Electric Mortice Lock 5570 Primary Lock 127 mm Backset
2 Cylinder 5570ELM2SC Note: Please refer to catalogue for Accessories and cylinder information.
