• Case

    • High purity zinc alloy
    • 92mm wide, 64mm high, 43mm projection

    Backset
    60mm

    Latch

    • Brass
    • Reversible
    • 13mm projection

    Door Thickness
    28 to 45mm.

    Cylinder

    • 5 pin tumbler mechanism
    • Brass cylinder and brass barrel

    Keying

    Standard Keying

    • Supplied individually keyed with two keys per lock
    • 78,000 key combinations
    • Key blank KB2015P

    Lockwood locks can be keyed to a number of controlled and/or specially keyed systems. These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.

    Lockwood Keying Platforms - more information

    Dimensions

  • DescriptionPart numberBarcode

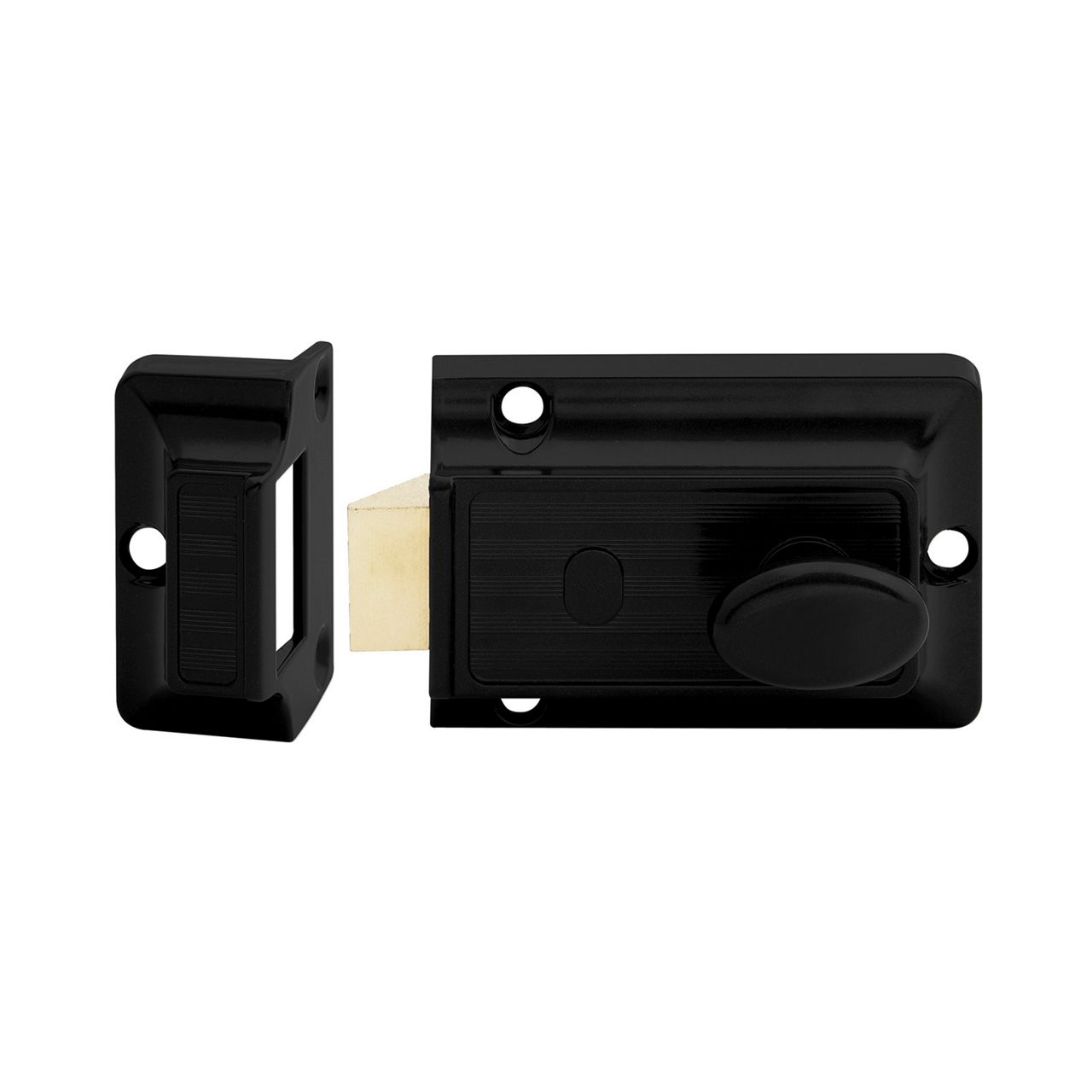

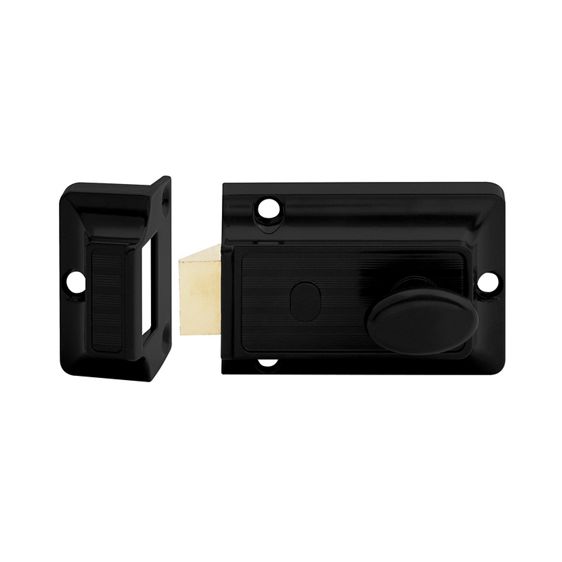

    100 Matt Black Enamel Case & Strike - Chrome Plate Cylinder100MBKDP9340116113852

Also available in other finishes.
