• Dimensions

    Lever Dimensions

    Length: 122mm
    Projection: 54.5mm
    Finger clearance: 47.5mm

    Rose Dimensions

    Round Rose: 55mm by 12.5mm
    Square Rose: 58mm by 12.5mm

    Product Details

    Functions Mortice
    Passage
    Privacy
    Dummy
    Materials Solid zinc die-cast
    Door Thickness 32 to 45mm
    Latches

    Mortice sets are supplied with a pair of lever handles to be used with commerical mortice locks

    Passage sets are supplied with a pair of lever handles and a 60mm backset tubular latch

    Privacy sets are supplied with a pair of lever handles and a 60mm backset privacy tubular latch which includes an activating pin for the inside of the door and an external emergency release function. The privacy setting is automatically released when the internal handle is operated

    Dummy sets are supplied with one fixed lever handle

    All latches are supplied with industry standard "D" strikes



    Standards and Compliance

    Durability - Australian Lock Standard AS4145.2-2008
      Corrosion - Australian Lock Standard AS4145.2-2008

  • Description (Trade Pack)Part number

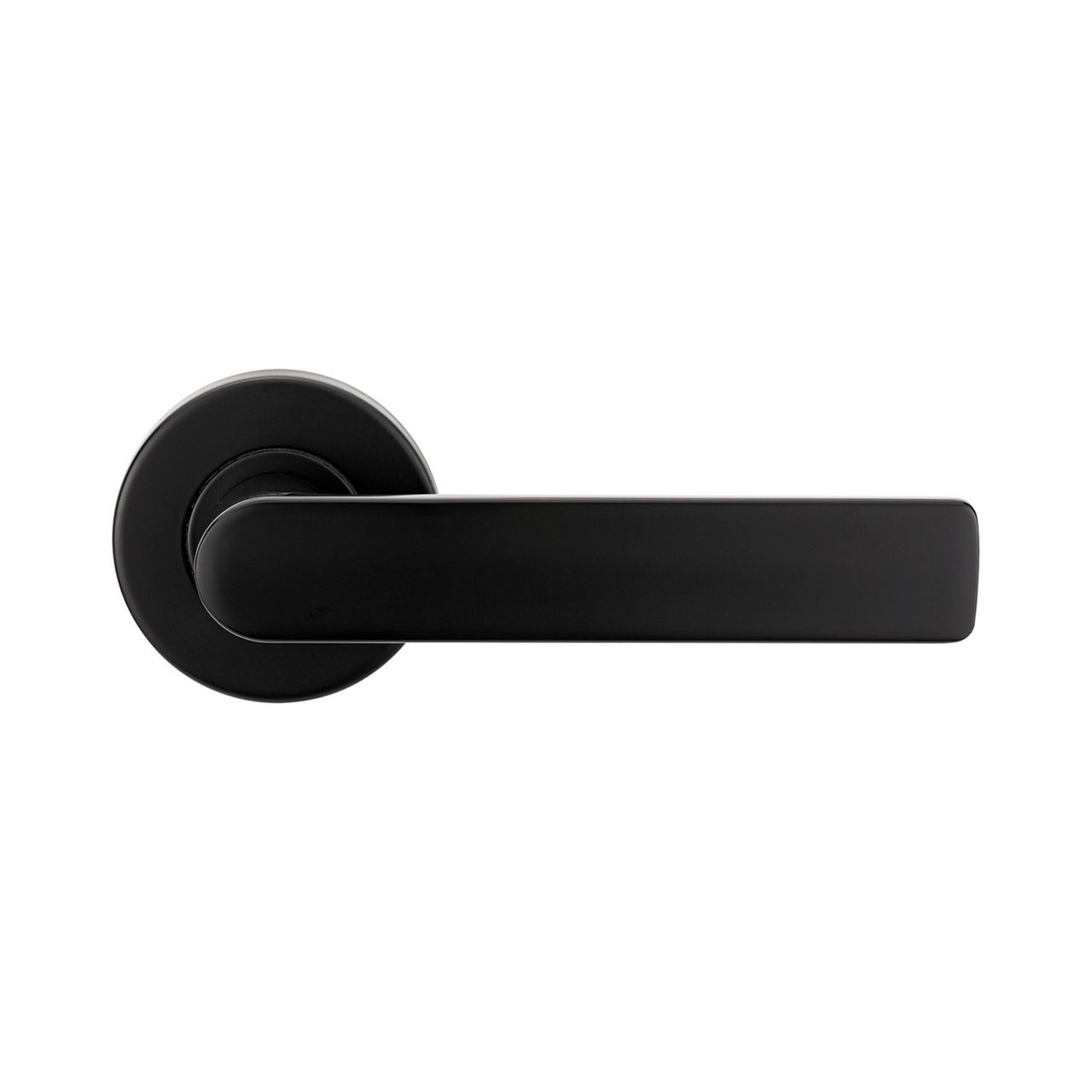

    Leversets - VELOCITY 55MM ROUND MORTICE LEVER SET & L3 LEVER MBK TPVSR0/L3MBK
    Leversets - VELOCITY 55MM ROUND MORTICE LEVER SET & L8 LEVER MBK TPVSR0/L8MBK
    Leversets - VELOCITY 55MM ROUND PASSAGE SET & L3 LEVER MBKVSR1/L3MBK
    Leversets - VELOCITY 55MM ROUND PASSAGE SET & L8 LEVER MBK TPVSR1/L8MBK

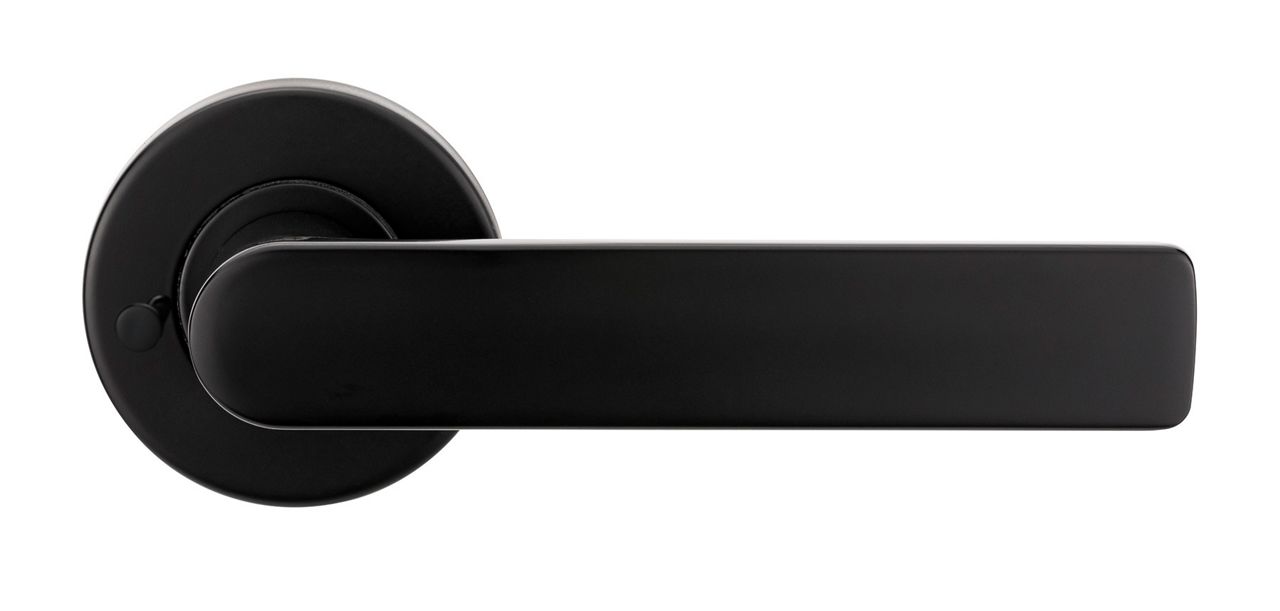

    Leversets - VELOCITY 55MM ROUND PRIVACY SET & L3 LEVER MBKVSR2/L3MBK
    Leversets - VELOCITY 55MM ROUND PRIVACY SET & L8 LEVER MBK TPVSR2/L8MBK
    Leversets - VELOCITY 55MM DUMMY HALF SET & L3 LEVER TPVSR3/L3MBK
    Leversets - VELOCITY 55MM ROUND EUROPEAN CYLINDER ESCUTCHEONVSR5/MBK
    Leversets - VELOCITY 55MM ROUND OVAL CYLINDER ESCUTCHEONVSR6/MBK
    Leversets - VELOCITY 55MM ROUND TURN SNIBVSR7/MBK
    Leversets - VELOCITY 55MM ROUND EMERGENCY INDICATING TURN SNIB MBKVSR8/MBK
    Leversets - VELOCITY 55MM RND DISABLED ACCESSIBLE TURN SNIBVSR9/MBK
    Leversets - VELOCITY SMALL ROSE SQUARE TRIM PASSAGE MBK - 1 PAIRVSS1-TRIMMBK

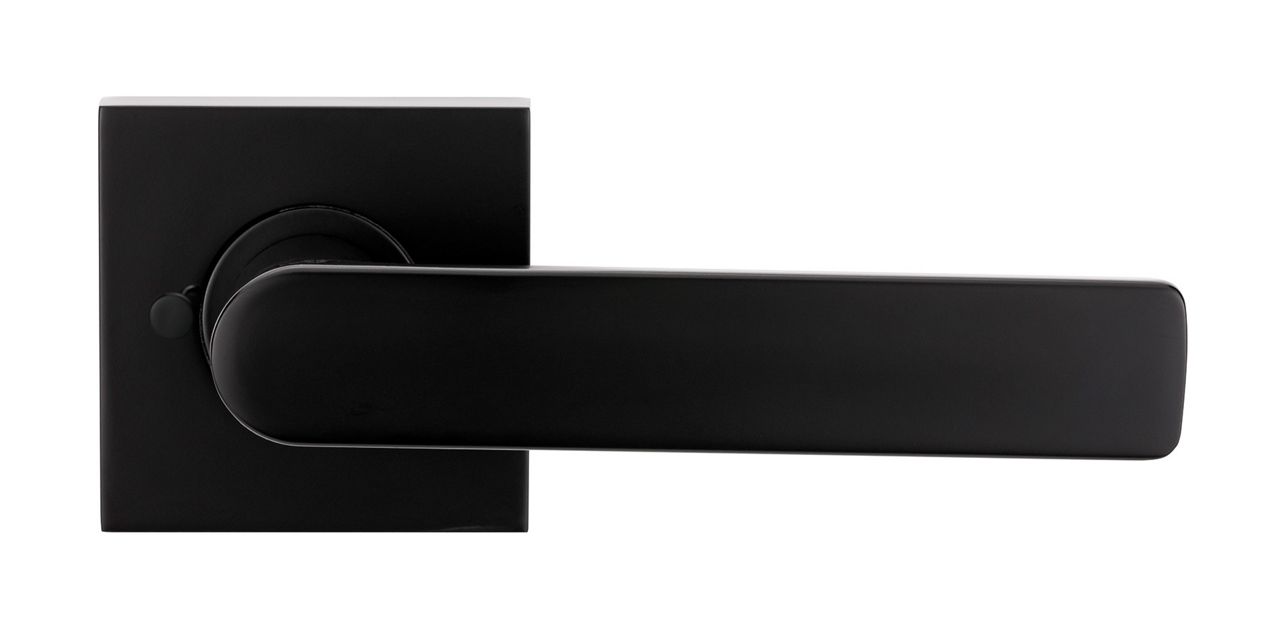

    Leversets - VELOCITY SMALL ROSE SQUARE TRIM PRIVACY MBK - 1 PAIRVSS2-TRIMMBK
    Leversets - VELOCITY SMALL ROSE SQUARE TRIM ESCUTCHEON MBK - 1 PAIRVSS6-TRIMMBK

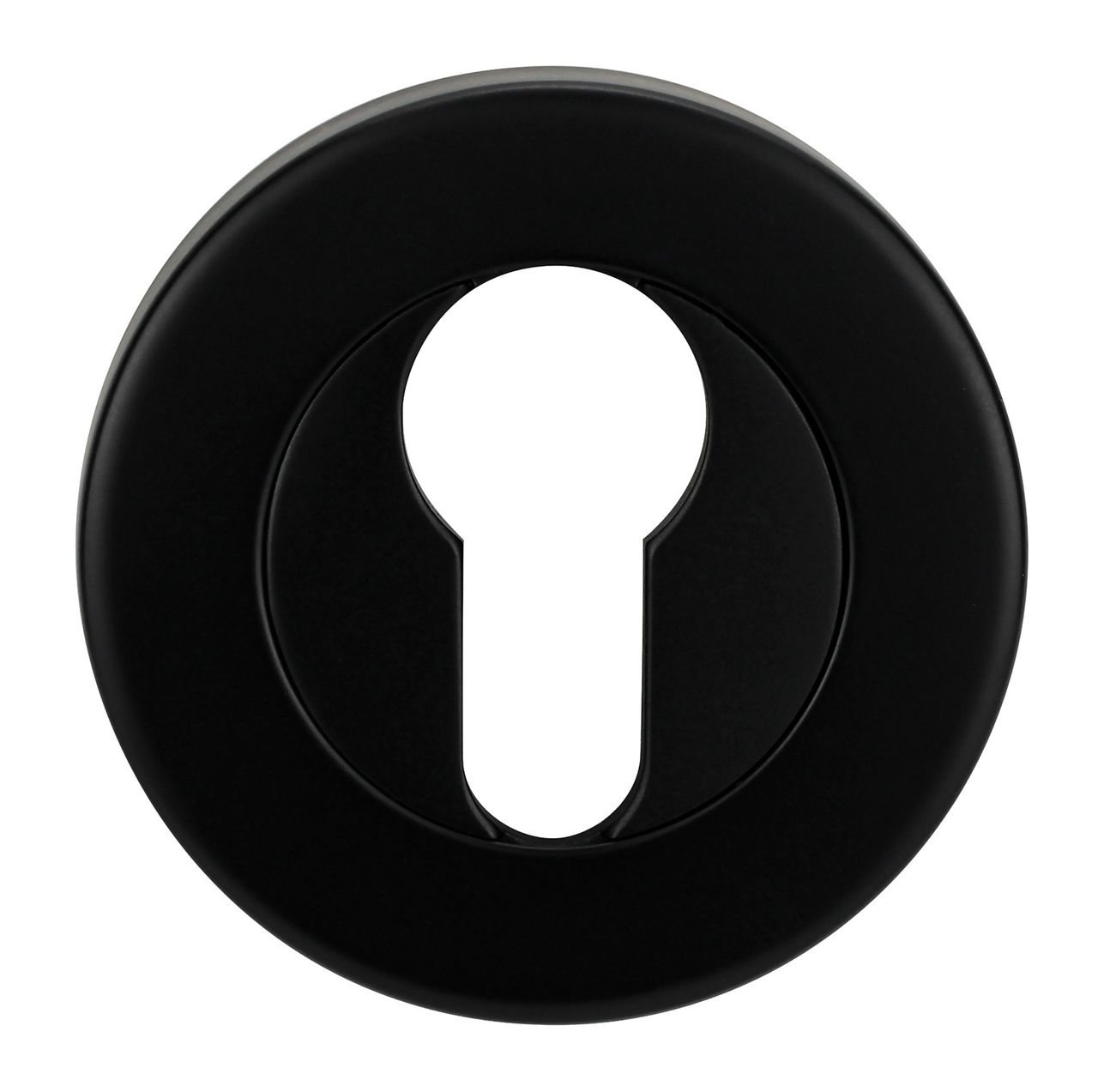

    Escutcheons - Euro Cylinder EscutcheonVSR5/MBK

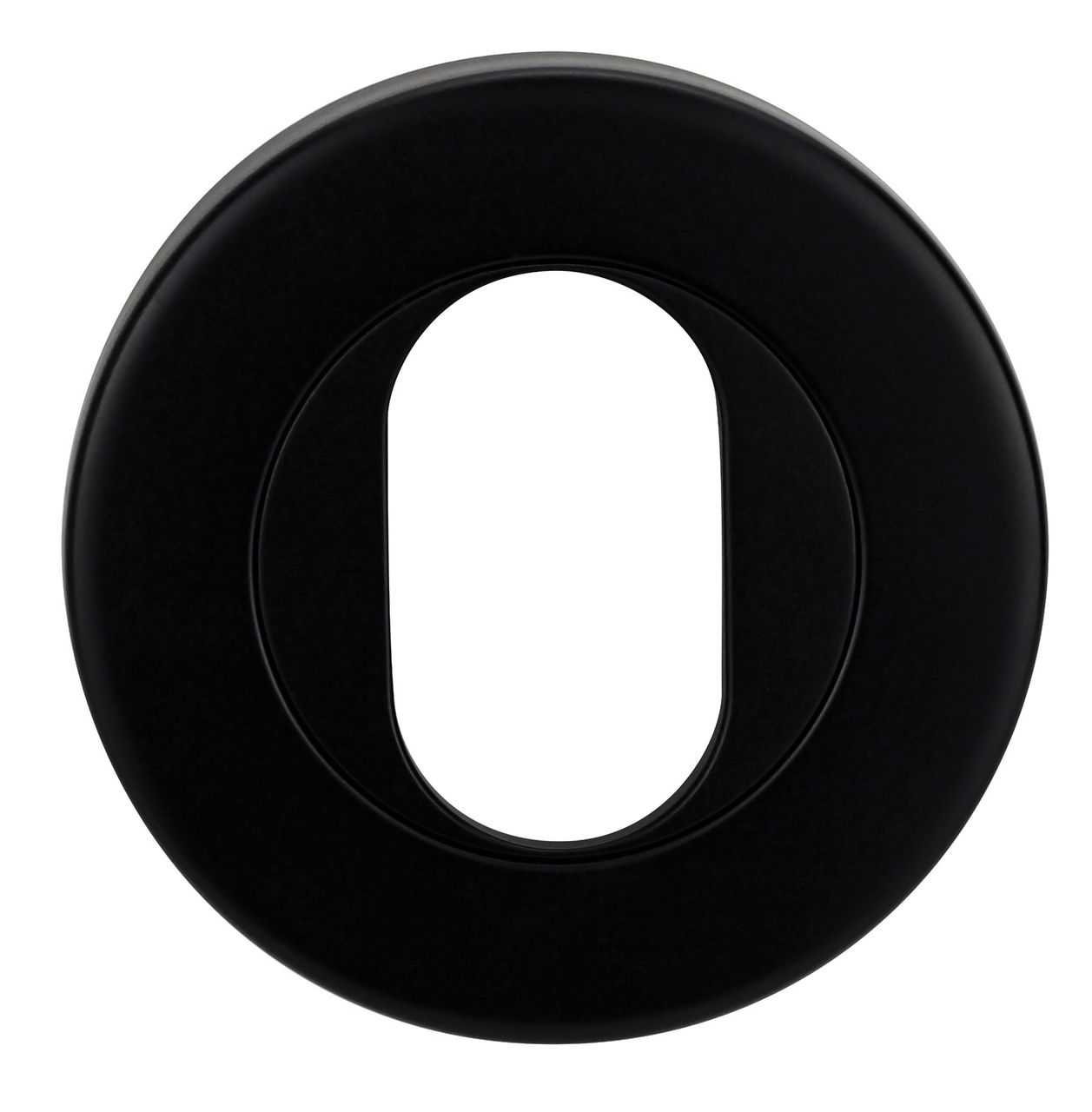

    Escutcheons - Oval Cylinder EscutcheonVSR6/MBK

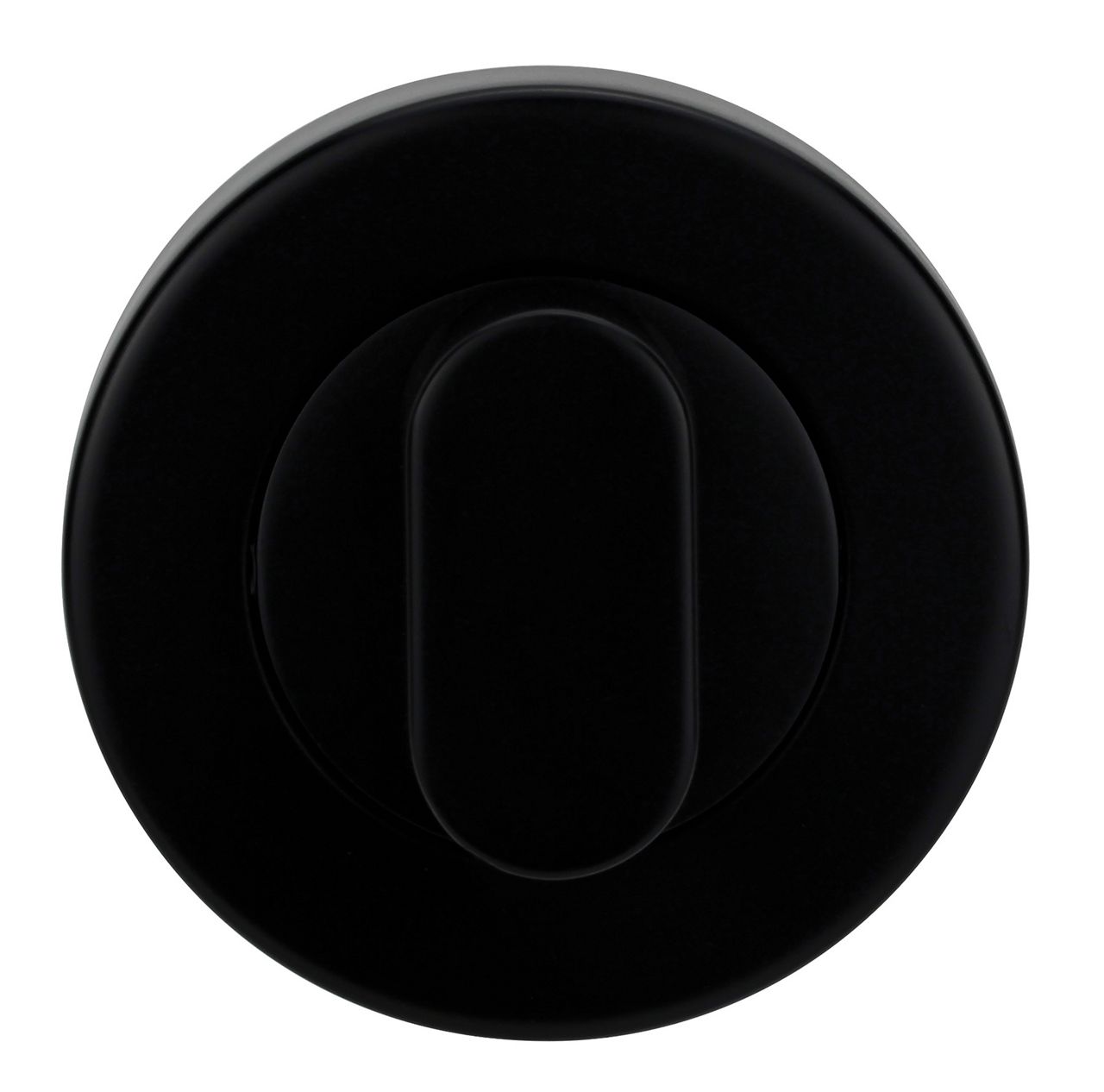

    Escutcheons - Standard TurnknobVSR7/MBK

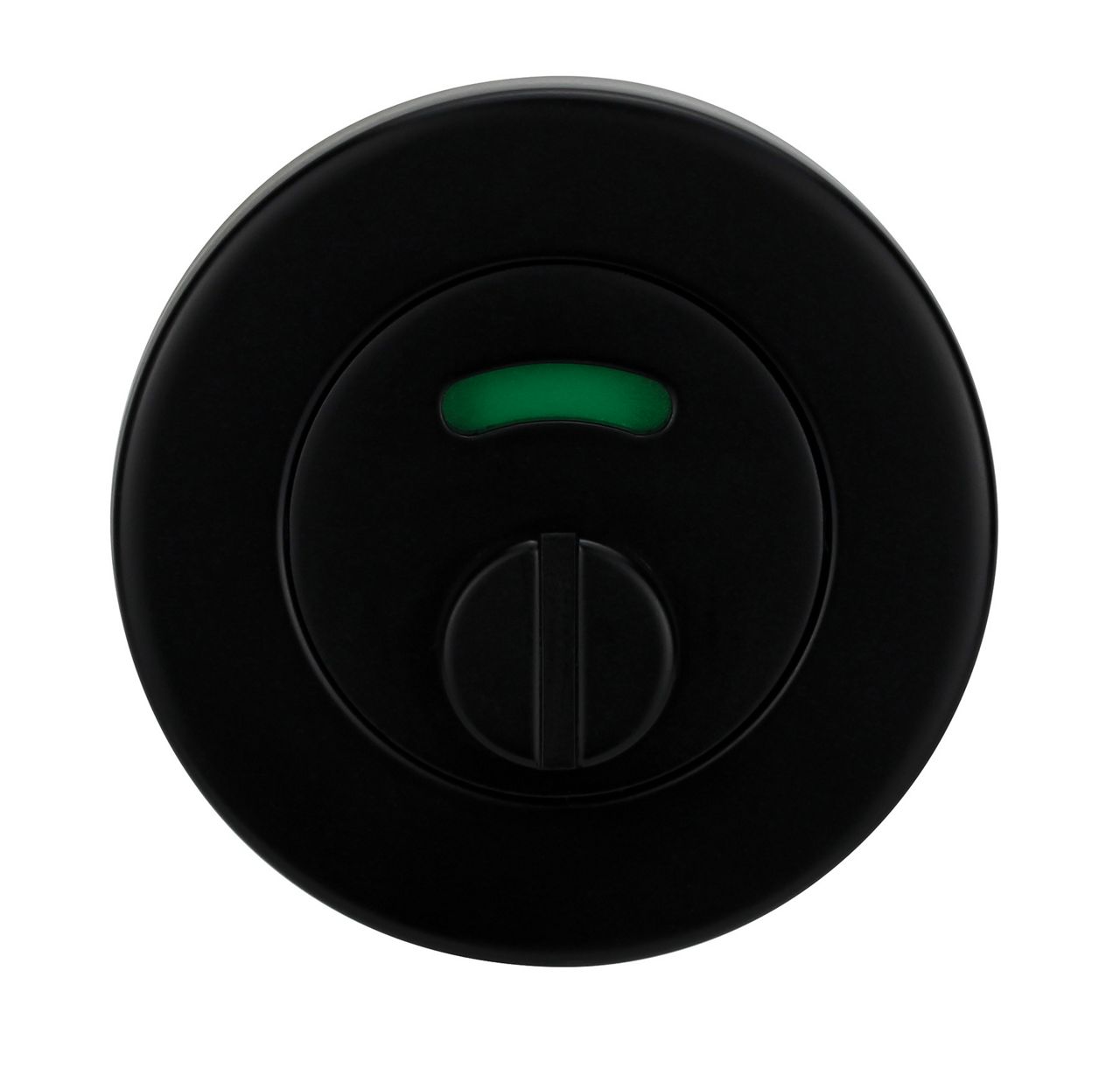

    Escutcheons - Privacy Indicating Emergency TurnVSR8/MBK

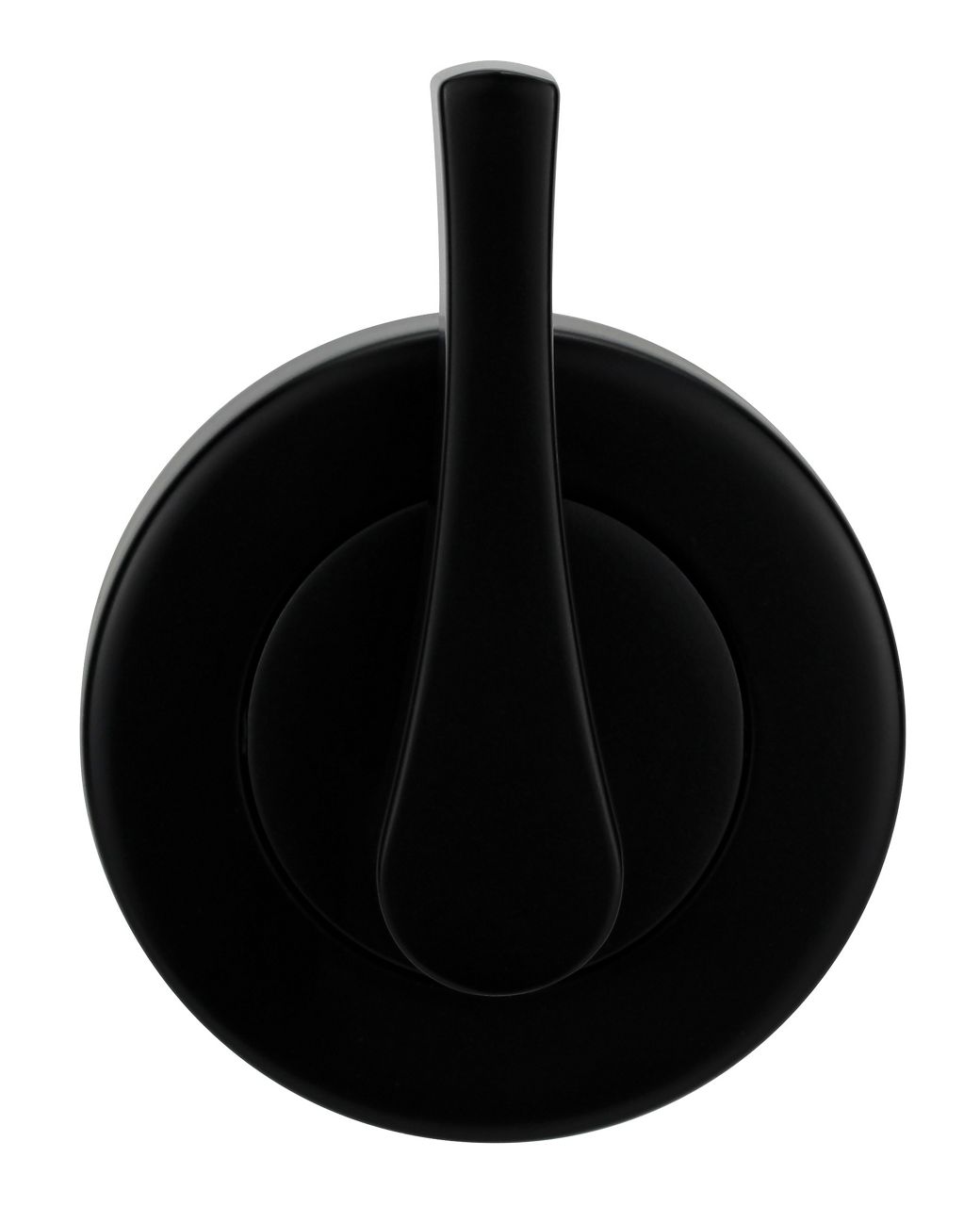

    Escutcheons - Disabled Accessible TurnknobVSR9/MBK

Also available in other finishes.
