Lockwood 724 Series Slide Arm Door Closer

The Lockwood 724 Rack and Pinion Slide Arm Series provides a clean appearance on the door whilst utilising the same robust features and benefits of Rack and Pinion functionality. This door closer can be matched with the Nero range of leversets to be used in commerical applications.

Find your local Lockwood stockist
Nero® Collection Feature Page

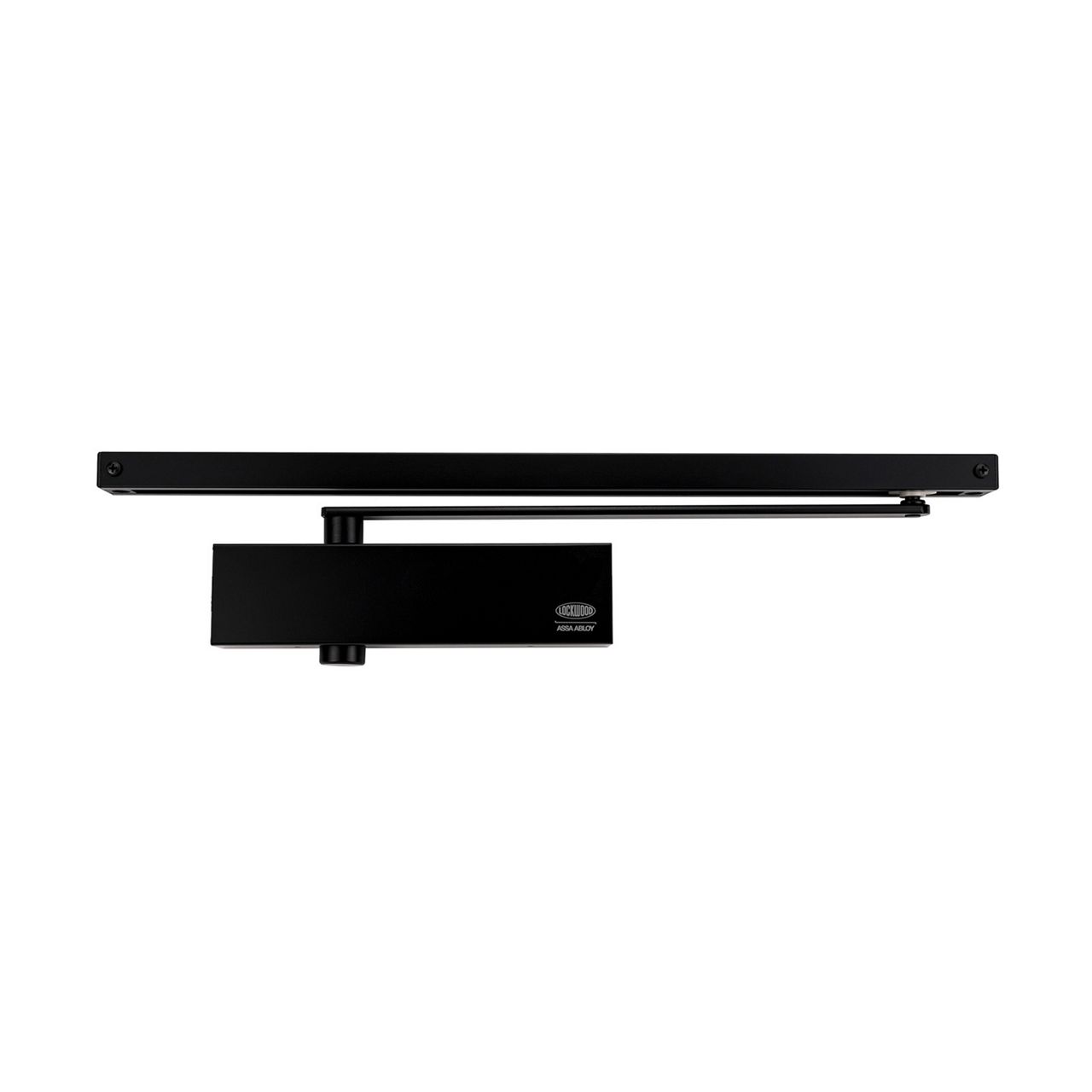

724 Slide Arm Door Closer

28885-724slidearmdoorcloser28885-724slidearmdoorcloser

  • Product Details

    Power EN adjustable 2 to 4.
    Back check (BC) Adjustable.
    Hold Open Adjustable. Hold-open can be set at any angle up to 150° of opening.
    Handing Non-handed.
    Suitable for left or right hand doors.
    Cover Clip-on.
    Materials Extruded aluminium body manufactured from high-performance silicon alloy.
    Mechanism Rack and pinion design.
    Mounting Regular, parallel and over-door mounting.
    Valves Adjustable closing and latching speed valves with overload protection.

     Standards and Compliance

    The Lockwood 724 series closer has been successfully tested upto four hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS1905.1:2005, Part: Fire Resistant Door sets.

    Note: Hold open option is not approved on any fire door.

    Dimensions

    Installation
    Pull Side
    Push Side
    Over Door Mounting Push Side
  • Lockwood Nero Collection Catalogue(PDF, 5 MB)
    Technical Downloads
    7726-7714 Parallel Arm Drop Plate Mounting Template(PDF, 129 KB)
    724 Parallel Arm Mounting Template LH RH(PDF, 457 KB)
  • Description (Trade Pack)Part number
    724 Series Slide Arm Door Closer724SRBLK

Also available in other finishes.
