DualSelect®
Turn the key for safety mode. Turn the key further to select secure mode.
Lockwood Paradigm® Pull Handle Lockset - Deadbolt
Lockwood introduces its new Paradigm® Pull Handle lockset for an elegant entry to your home!
This Australian designed lockset comes in three variants including a Double Cylinder Deadbolt, Self-Latching Single and Double Cylinder.
The Double Cylinder Deadbolt is highly recommended for residential homes whether it’s a new build or an upgrade, this piece will make an excellent entrance choice. It incorporates the superior state-of-the-art design and safety features from the existing 005 Paradigm Deadbolt such as DualSelect®, Safety Release™ and LockAlert® that are renowned for performance. Now, the Double Cylinder Deadbolt comes with resilient, long-lasting Matt Black finish to adding a defining design element to any space.
Key Features
- Conforms to the security and durability requirements of Australian Standard AS4145.2-2008 | SL8D8C6K5
- High security cut resistant Stainless Steel bolt for added security
- 304 grade Stainless Steel Pull Handle in a sleek Matt Black finish
- Door Magnets included to hold the door(s) in position when it is in passage mode (Deadbolt version only)
- Concealed screw fixings provide a neat and clean appearance
- Can be matched with any of Lockwood's internal levers for a stunning and contemporary look throughout the house
- Can be matched with dummy (non-functioning) pull handle for double door applications

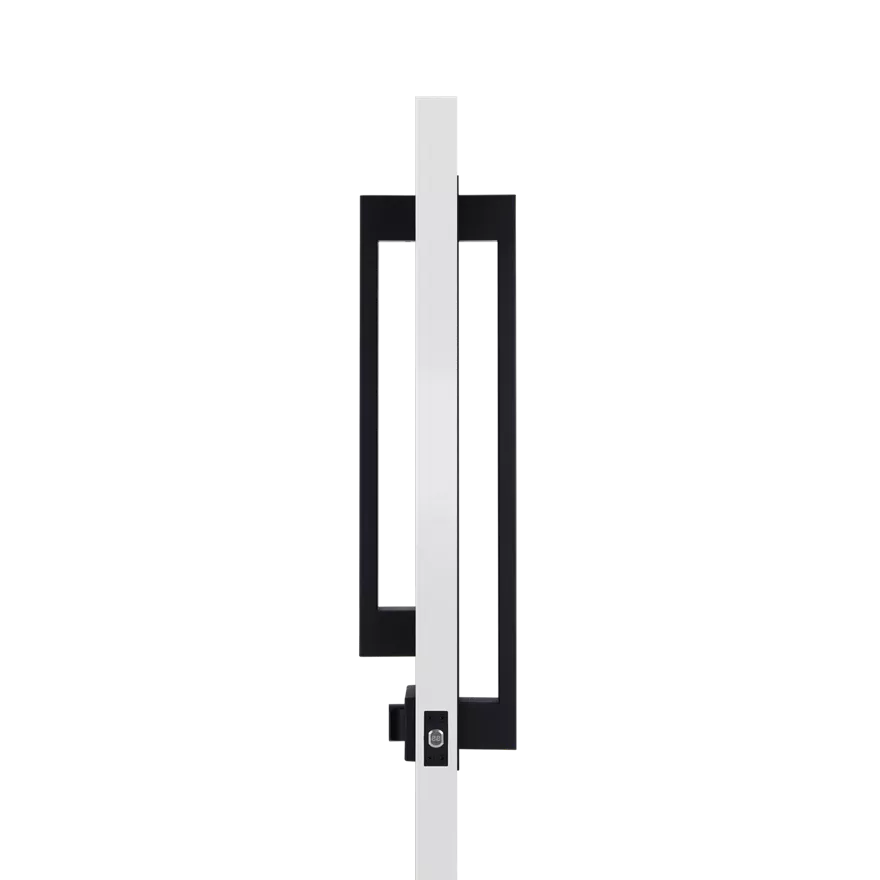

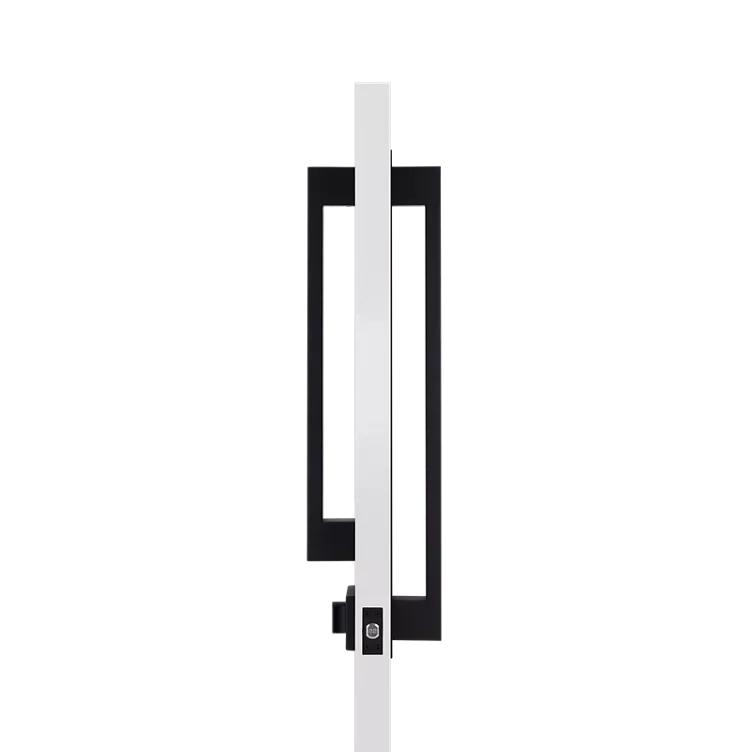

Side view

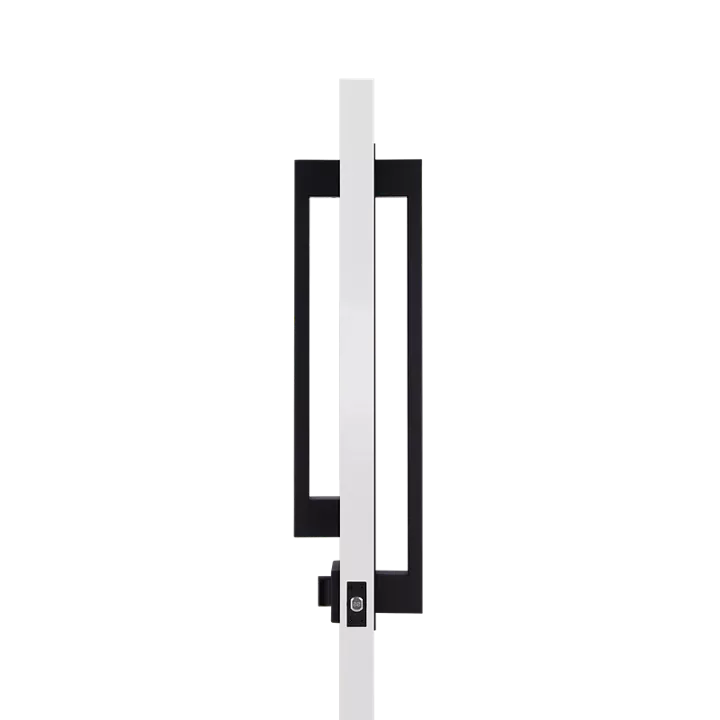

Side view

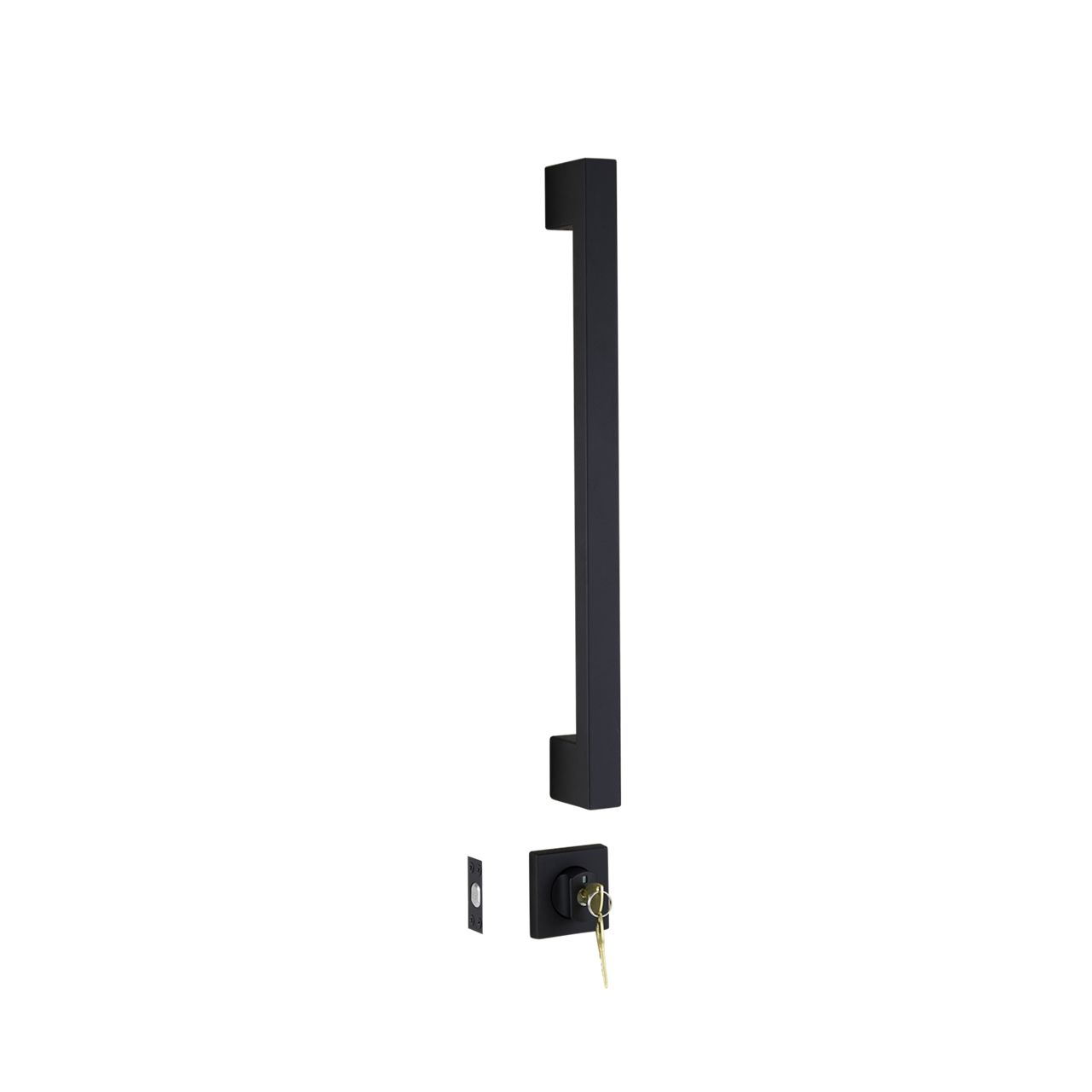

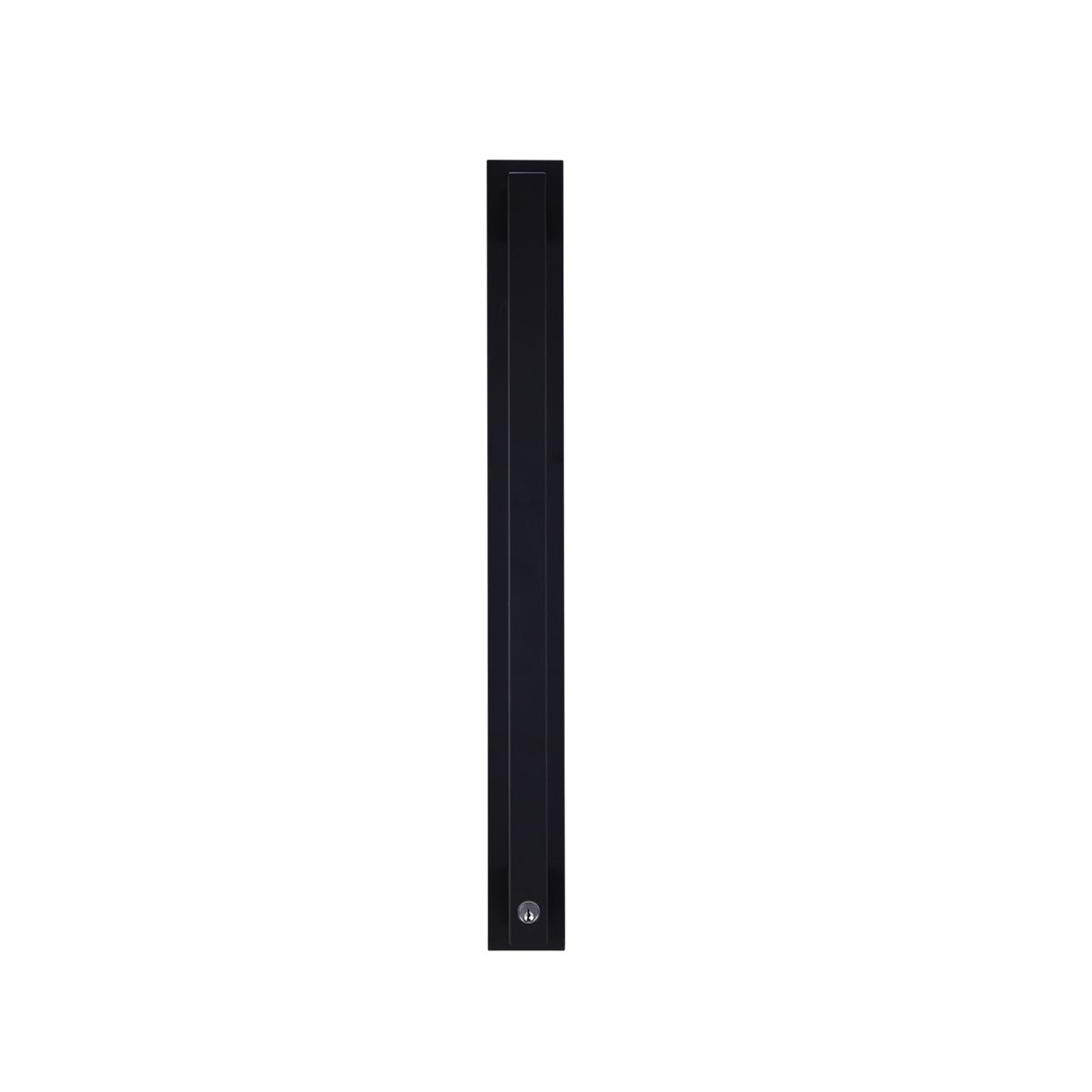

Exterior view
Exterior view (angled)

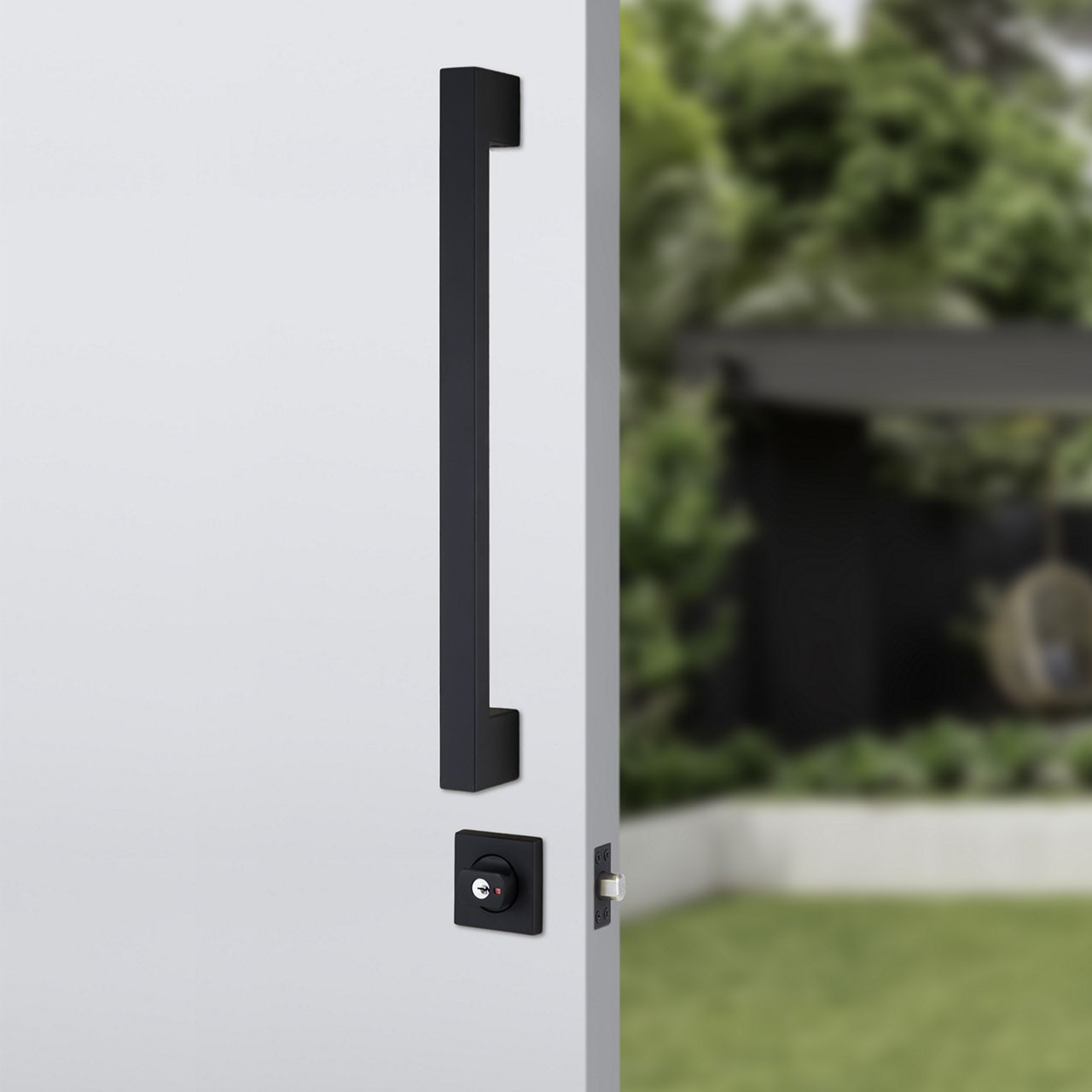

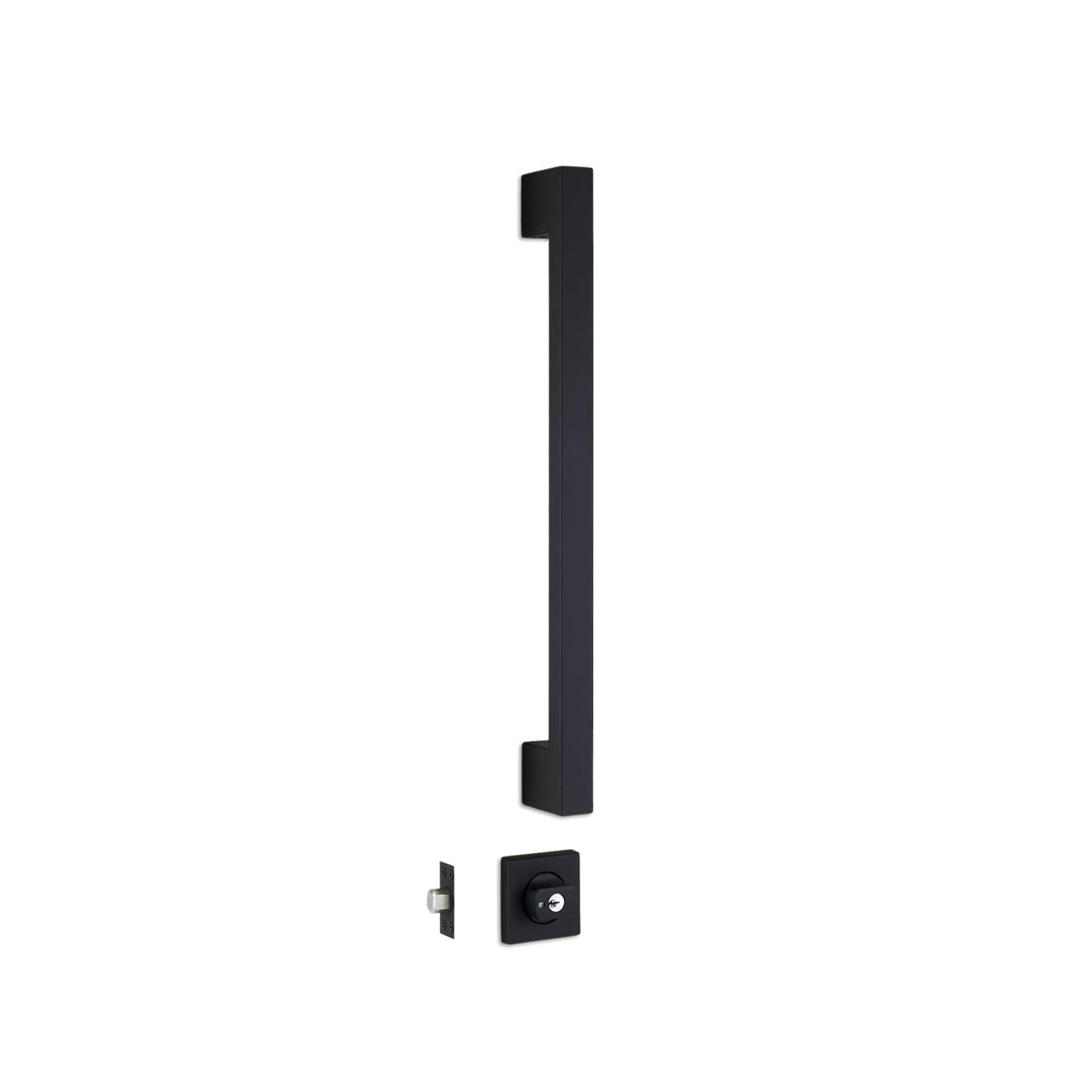

Interior view (angled)
Key Features
SafetyRelease™
Minimises the risk of being locked in.
Corrosion Resistant
Successfully tested in accordance with AS2332.3.1:2001 neutral salt spray test.
Kinetic Defence®
Bump and pick resistant.
Counterbalance Bolt
Proportionally distributes the load between the door and door frame.
2 Keys Included
Can be keyed alike to other Lockwood door locks.
Door Thickness
32mm to 48mm.
LockAlert®
Interior Indicator shows lock status at a glance.
Safety Mode
Securely locked from outside and free from inside.
Secure Mode
Securely locked from both inside and outside. For when nobody is home.
Passage Mode
Free to enter from outside and free to exit from inside.
Backset
60 - 70mm adjustable latch.Dimensions
External handle length - 600mm
Internal handle length - 500mm
Handle width - 30mmCylinder
- 5 pin tumbler mechanism
- Brass cylinder and brass barrel
Keying
Standard Keying
- Supplied individually keyed with two keys per lock
- 78,000 key combinations
- Key blank KB2015P
- AS 4145.2-2008 K5
Restricted Special Keying
Lockwood locks can be keyed to a number of controlled and/or specially keyed systems.
These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.Lockwood Keying Platforms - more information
Security
Conforms to the security and durability requirements of Australian Standard AS4145.2-2008 | SL8D8C6K5
Durability
Conforms to level D8. (Durability) Australian Lock Standard (AS 4145.2: 2008)
Anti-Corrosion
Successfully tested in accordance with AS2332.3.1:2001 neutral salt spray test.
Dimensions
Description (Display Pack) Part number Barcode Paradigm Pull Handle Lockset - Double Cylinder Deadbolt (Matt Black) 005/DPHBMBK 9340116141015
