Lockwood Symmetry 7107 Double Cylinder Deadbolt
General purpose double cylinder deadbolt recommended for use with Symmetry knob and lever locksets.
- General purpose double cylinder deadbolt
- Operated by key from both inside and outside
- Suits left or right hand opening doors
- Solid brass bolt with 25mm projection
- Hardened insert in locking bolt
Cylinder
- The one cylinder assembly solution “OneCyl®” has been designed for the Lockwood Symmetry Range, which grants the convenience of cylinder interchangeability
- 5 pin Lockwood C4 brass

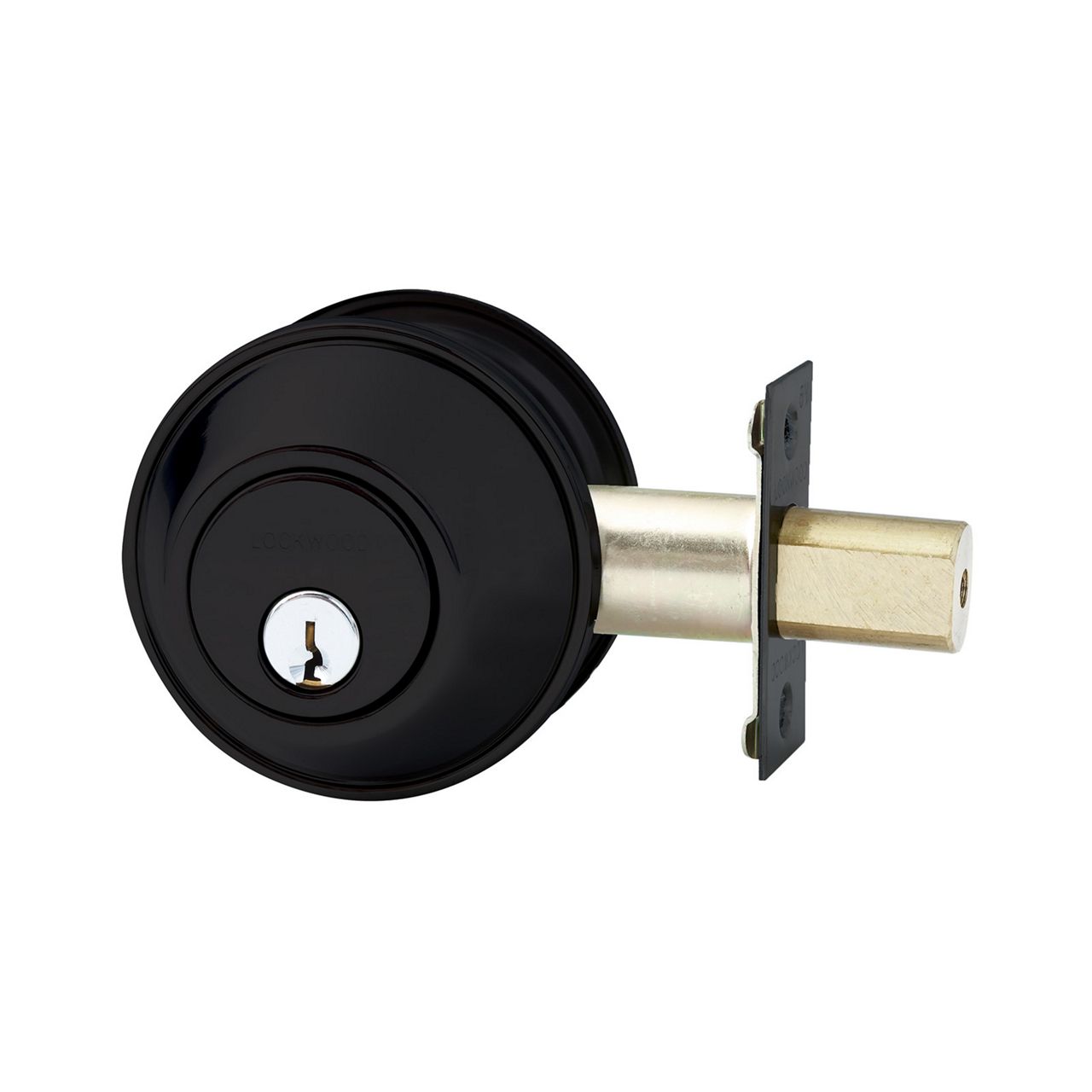

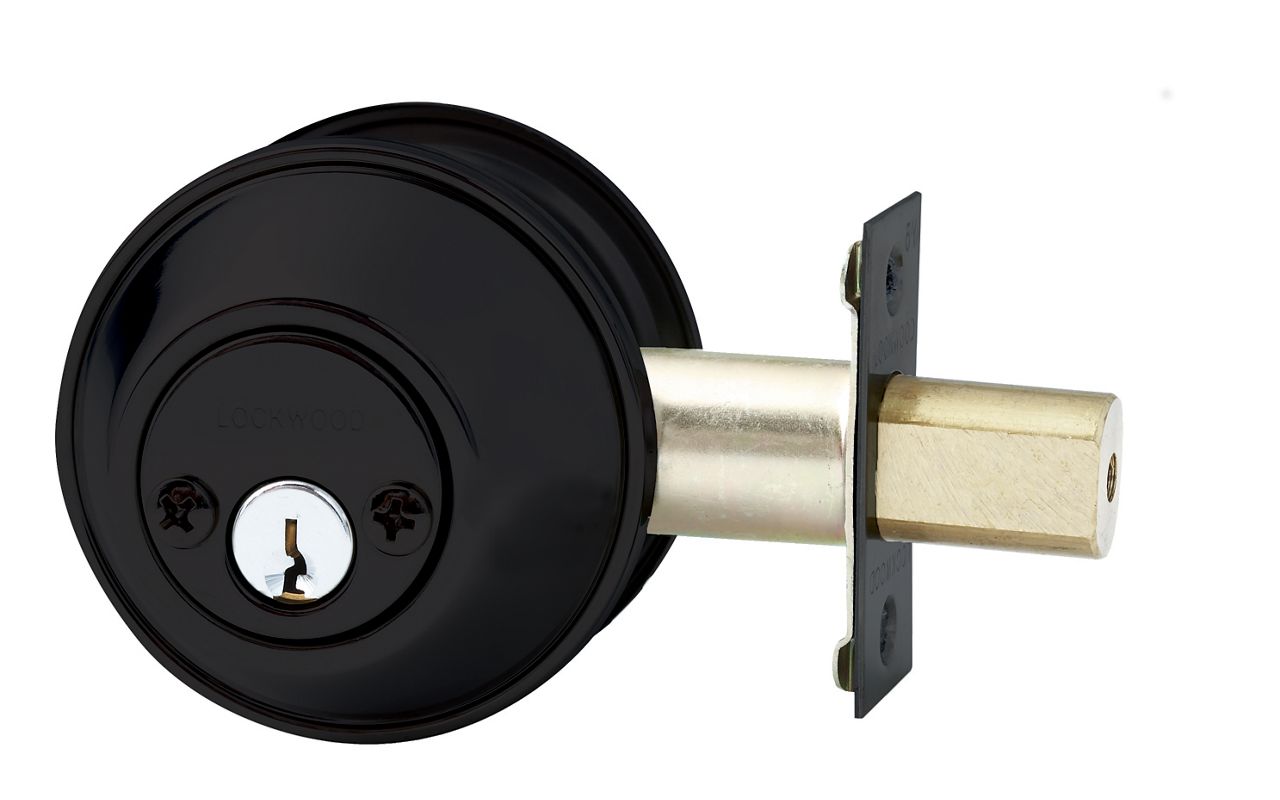

Lockwood Symmetry 7107 Double Cylinder Deadbolt (Exterior)
Lockwood Symmetry 7107 Double Cylinder Deadbolt (Exterior)
Lockwood Symmetry 7107 Double Cylinder Deadbolt (Interior)
Backset
Adjustable 60 – 70mm bolt.
Door Thickness
35* to 45mm.
* Requires spacer ring (included)Keying
Standard Keying
- Supplied individually keyed with three keys per lock
- 78,000 key combinations
- Key blank KB2015P
Restricted Special Keying
Lockwood locks can be keyed to a number of controlled and/or specially keyed systems. These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.
Lockwood Keying Platforms - more information
Finish - Matt Black (MBK)
Dimensions
Description Part number Barcode Symmetry Deadbolt Double Cylinder DP (Matt Black) 7107MBKDP 93-40116-10680-9 Symmetry Deadbolt Double Cylinder TP (Matt Black) 7107MBK 93-40116-11331-9
Also available in other finishes.
