Lockwood Elevation Rain Sensor (Obsolete)
This product is now obsolete, but you can upgrade to Yale Aeron® Window System for enhanced features and performance.
The Lockwood Elevation® Rain Sensor has been specifically designed to work with the Elevation actuators and your touch screen display. Basic automatic “close all” function can be achieved or advanced functionality can be programmed.
Functions
Rain Sensors will be triggered by rain and automatically close the windows. Rain sensors can also be configured to re-open to original position when the rain has stopped. Rain sensors can be even further configured so that if rain comes from one particular direction i.e. east location only, windows in the east will close and the rest will remain open. The rain sensor also has the ability to differentiate between rain and dew with built in heating elements that dry up moisture build up.
Application
- Automatically close windows in the event of rain
- Commercial Buildings
- Residential Buildings Rain Sensor Features
- Connect up to of four sensors per network
- Visual rainfall indicator on keypad
- Integrated heating elements to dry up dew or moisture
- Smart re-open function
- After rain has stopped “go to vent” function
 | Demonstration Video |
 | Installation and Programming Video This step by step video tutorial includes everything you need to know to install and program the Lockwood Elevation Window Control System. |

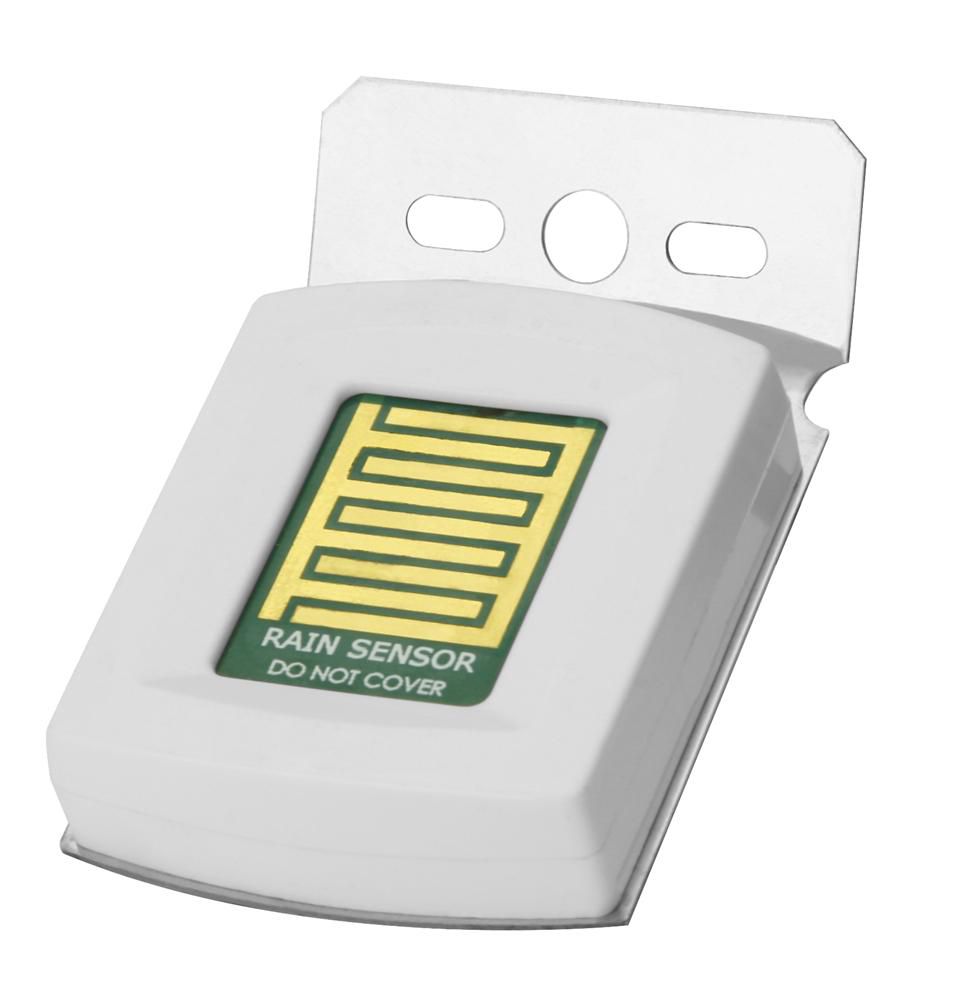

Lockwood Elevation Rain Sensor

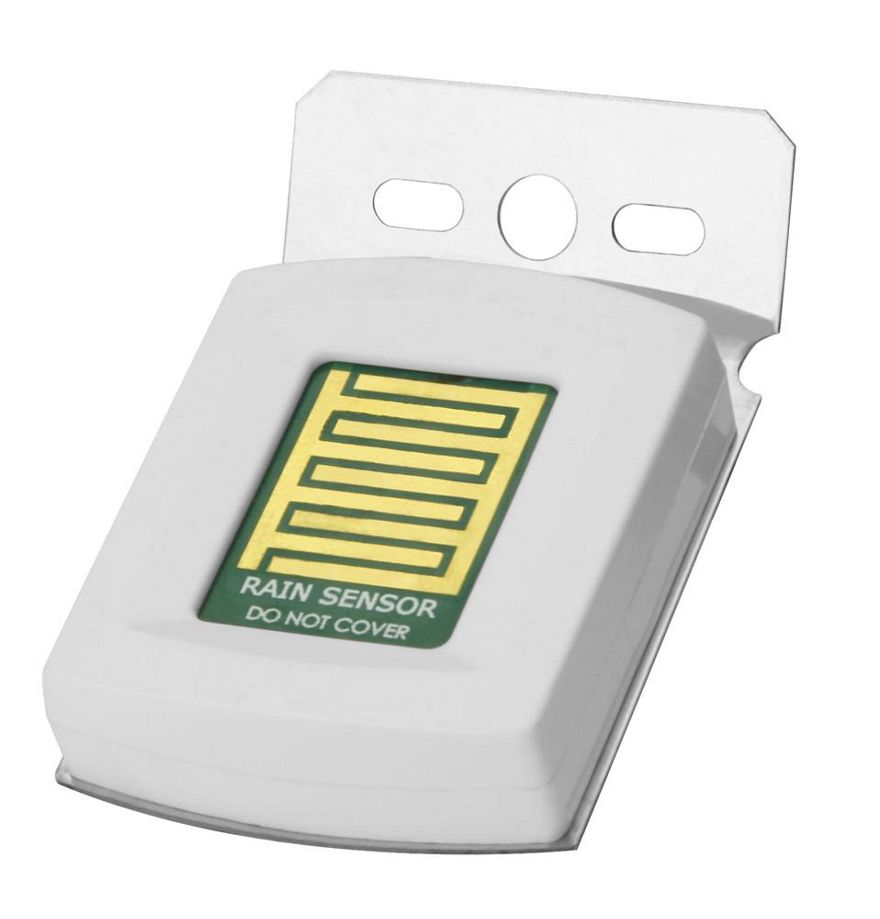

Lockwood Elevation Rain Sensor

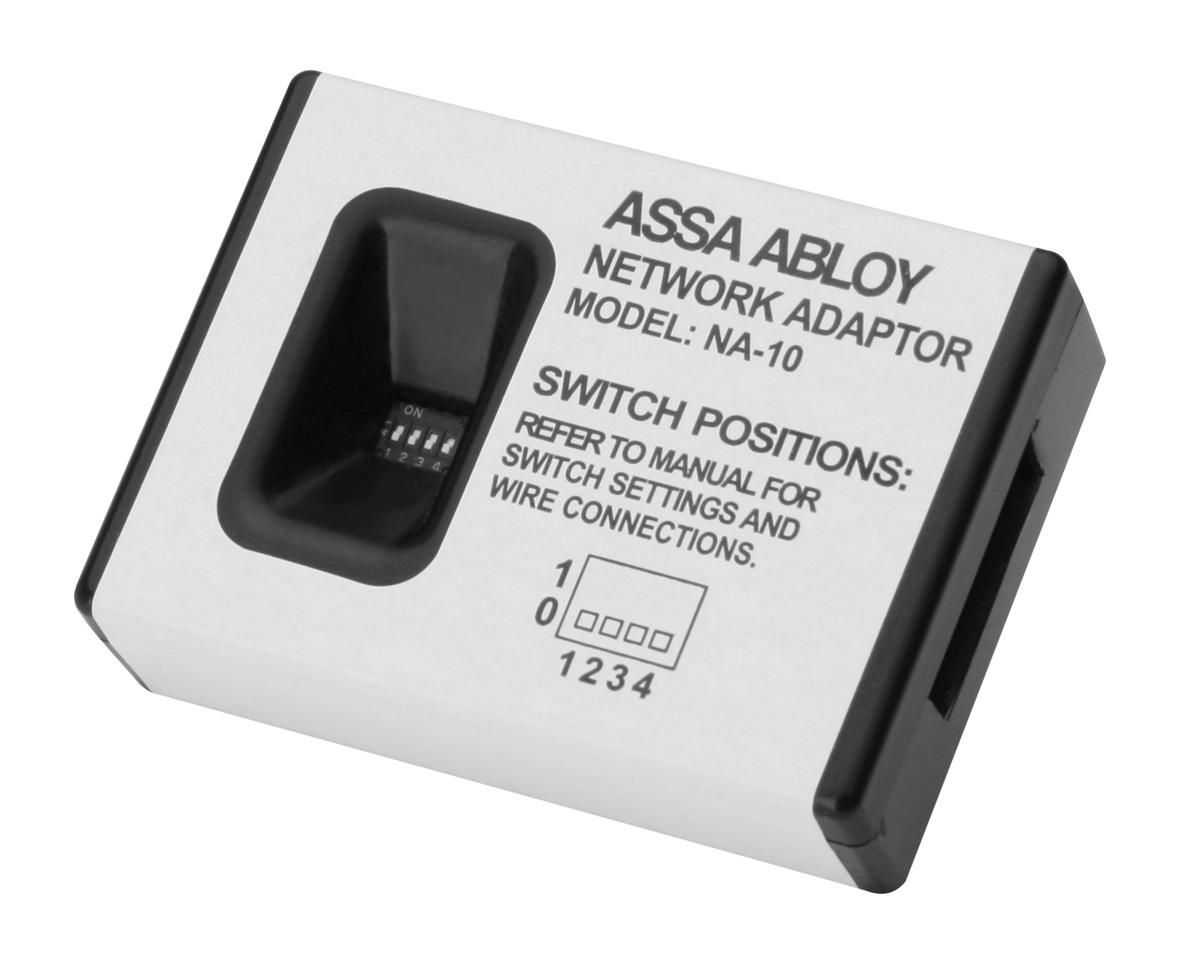

Lockwood Elevation Network Adaptor
Materials
Furniture body: Durable Acetal UV Stable.
Bracket: Stainless Steel 304Finish
White (WH)
Voltage
24-32 VDCCurrent
Standby Current 50mA
Operating Current 300mAEnvironment Operational temperature range
0° to +60°CHumidity
90% @ 35°CCabling Loom
2mDimensions

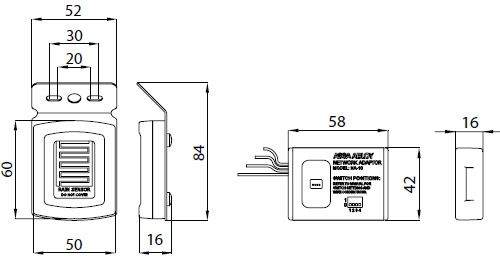

mm 60H x 50W x 16DInstallation Instructions and Guides
