The Lockwood Air Coupling Locks have been designed for the securing of Truck (Trailer) and industrial compressed air line applications. When attached to the air line this product provides security and safety.
Security
Whereby the air brakes air line fitting is effectively sealed when the lock is attached, preventing connection to the opposing fitting. In the case of a trailer application this reduces the risk of the trailer being connected to a truck without authorisation.
Safety
In an industrial application the sealing of the air line can reduce the risk of an accidental connection of equipment when shut down for maintenance etc.
Range
The Lockwood Air Coupling Lock range consists of two series, the AL Series and the TL series. The AL Series comes with an integrated cylinder that can be keyed to most restricted key systems while the TL Series is designed to be locked with a padlock.
The AL Series is available in two models to suit both the ½” NPT female air coupling and the ½” NPT male air coupling.
AL Series Features

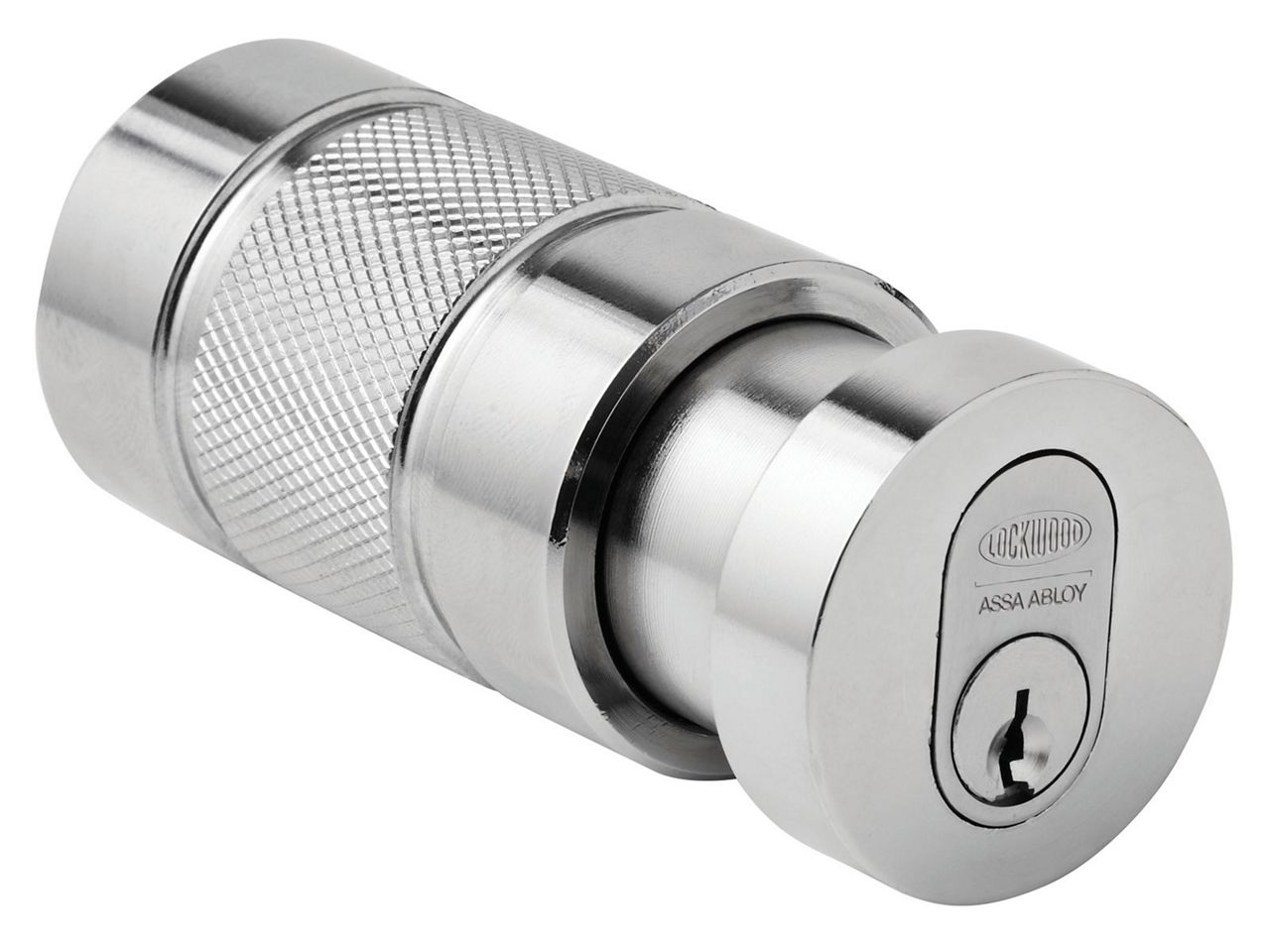

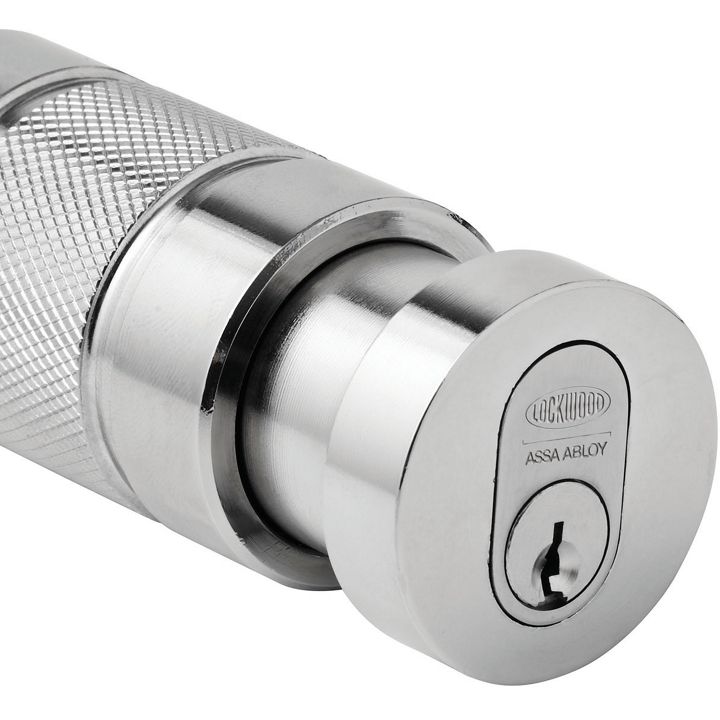

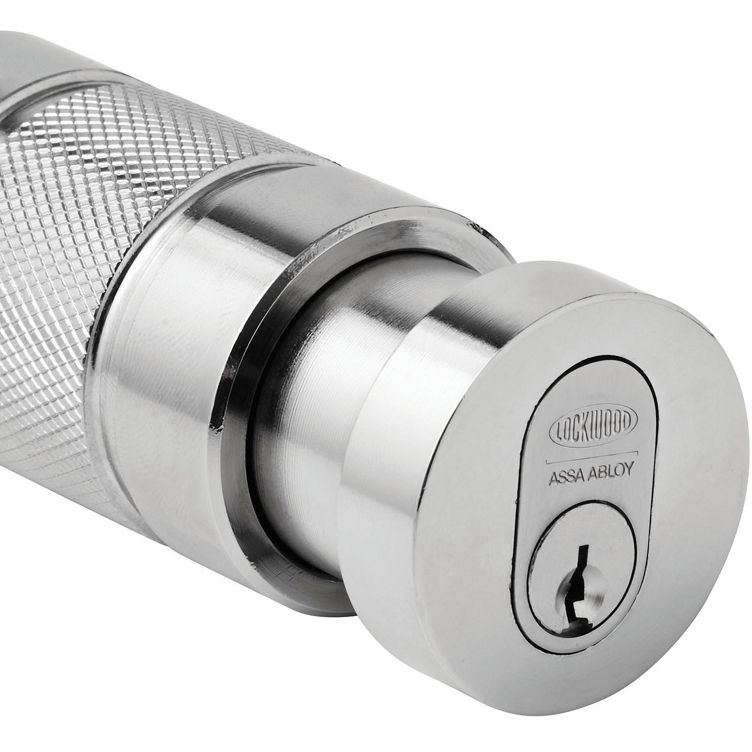

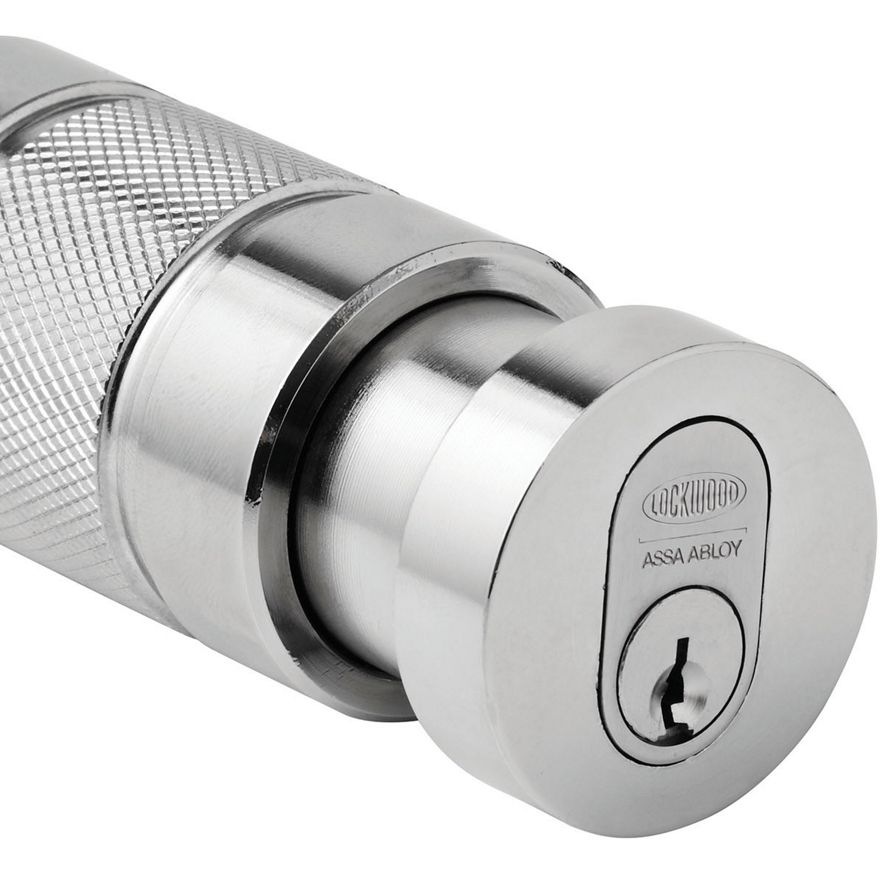

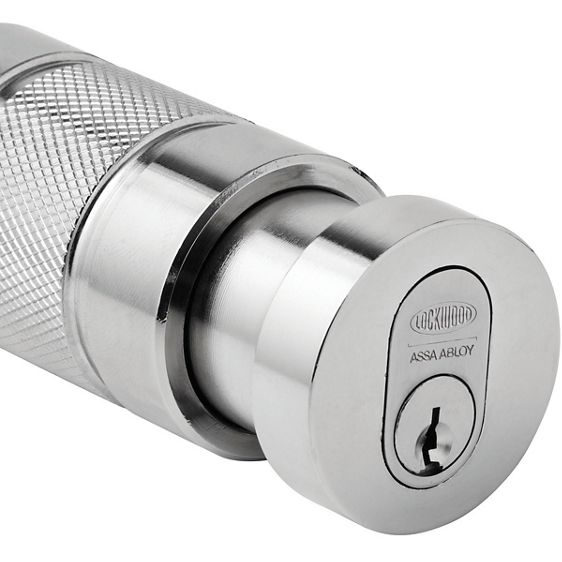

Lockwood Truck Air Coupling Lock
Lockwood Truck Air Coupling Lock

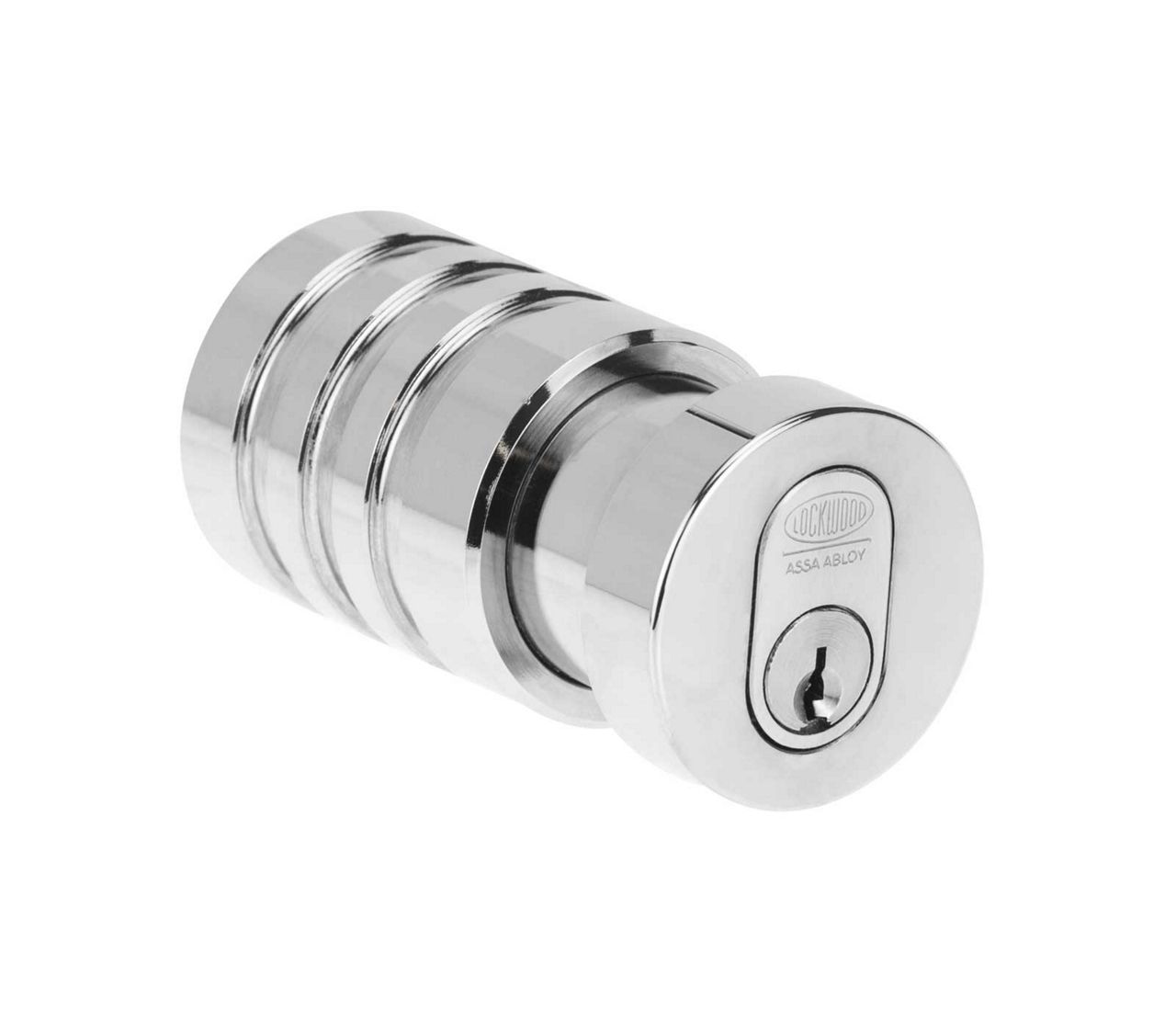

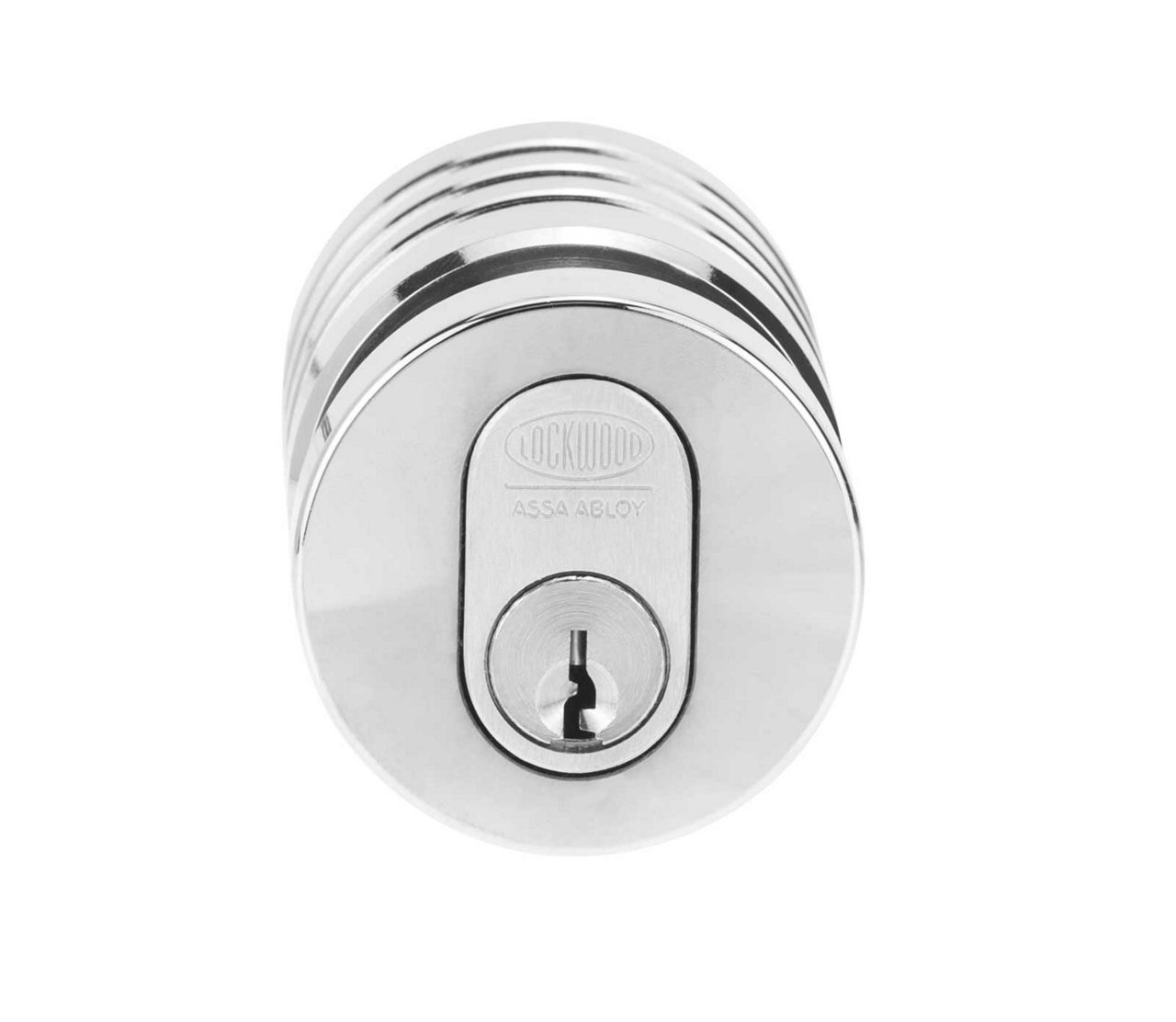

AL1/2/63MMKD
AL1/2/63MMKD

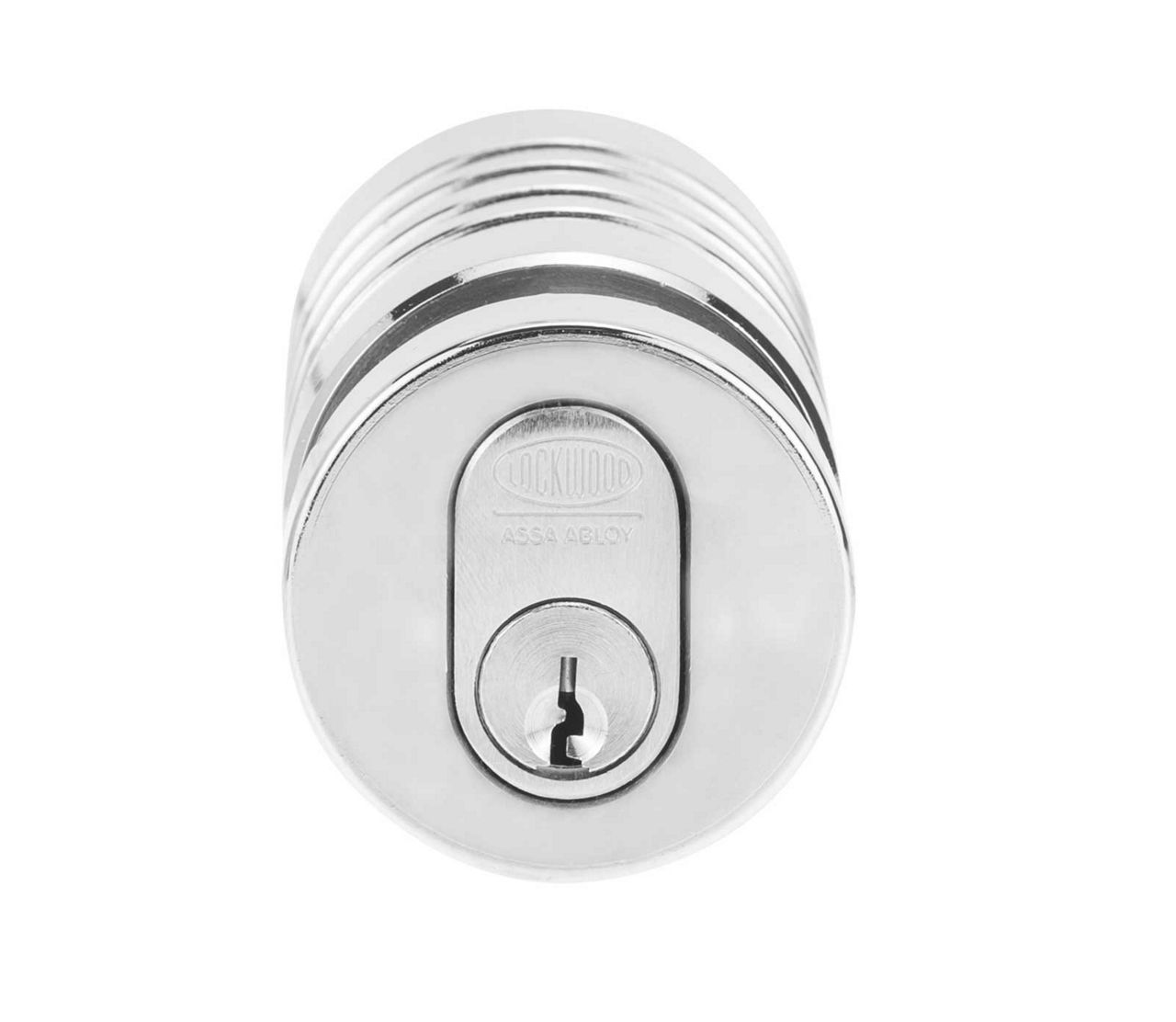

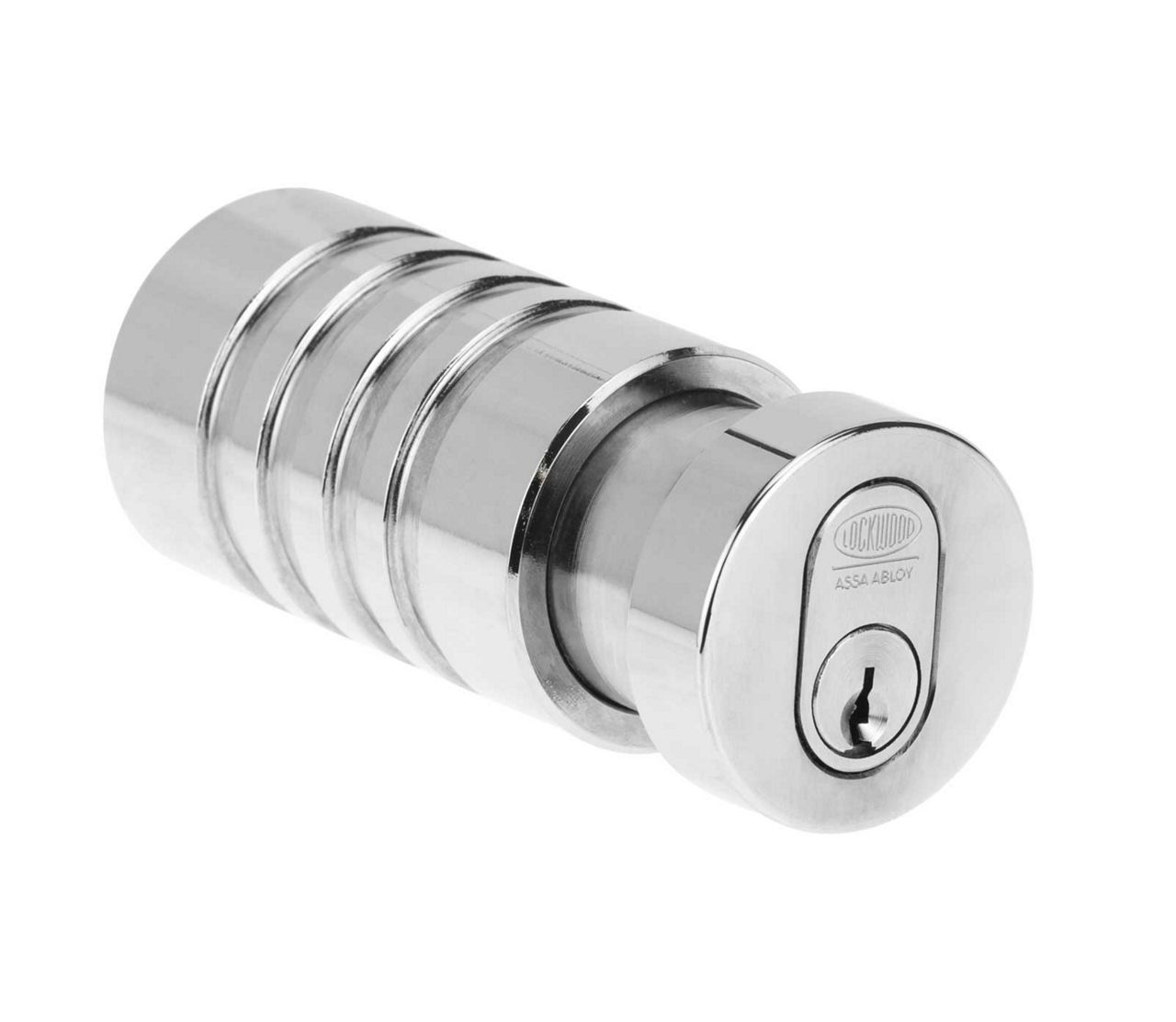

AL1/2/81MMKD
AL1/2/81MMKD
Materials
Inner Sleeve: Mild Steel
Outer Sleeve: Case hardened mild steel
Function
Spring loaded function allowing for quick snap-on attachment to ½” air coupling fittings.
Finish
Chrome Plate (CP)
Cylinder
577 Synergy 3500 Series dual access lower cylinder.
Special Keying
Locks can be keyed to a number of controlled and/or specially keyed systems. These range from legally protected keys to protect against unauthorised duplication and can also include specially designed keying systems such as master key systems. This allows for different levels of mechanical access control.
Serviceability
Rekeyable cylinder
Australian Standards
Conforms to AS4945-2000, airline fitting standard.
Air Coupling Types
Air Couplings come in different sizes, the AL Series is designed to work with ½ inch couplings;
½” NPT male coupling – AL Series 63
½” NPT female coupling - AL Series 81
Dimensions
AL Series 63
AL Series 81
Description | Part number | Coupling Type |
---|---|---|
AL Series 63 Air Coupling Lock | AL1/2/63MM## | ½” NPT male coupling |
AL Series 81 Air Coupling Lock | AL1/2/81MM## | ½” NPT female coupling |
Note: ## in part number is exchanged for keying type | ||
KD - Keyed to Differ (Standard C4 profile 6 pin) | ||
KA - Keyed Alike (Standard C4 profile 6 pin) | ||
6MK - Master Keyed (Standard C4 profile 6 pin) |
