The Lockwood Air Coupling Locks have been designed for the securing of Truck (Trailer) and industrial compressed air line applications.When attached to the air line this product provides security and safety.
Security
Whereby the air brakes air line fitting is effectively sealed when the lock is attached, preventing connection to the opposing fitting. In the case of a trailer application this reduces the risk of the trailer being connected to a truck without authorisation.
Safety
In an industrial application the sealing of the air line can reduce the risk of an accidental connection of equipment when shut down for maintenance etc.
Range
The Lockwood Air Coupling Lock range consists of two series, the AL Series and the TL series. The AL Series comes with an integrated cylinder that can be keyed to most restricted key systems while the TL Series is designed to be locked with a padlock.
The TL Series is available in two models to suit both the ½” NPT female air coupling and the ½” NPT male air coupling.
TL Series Features

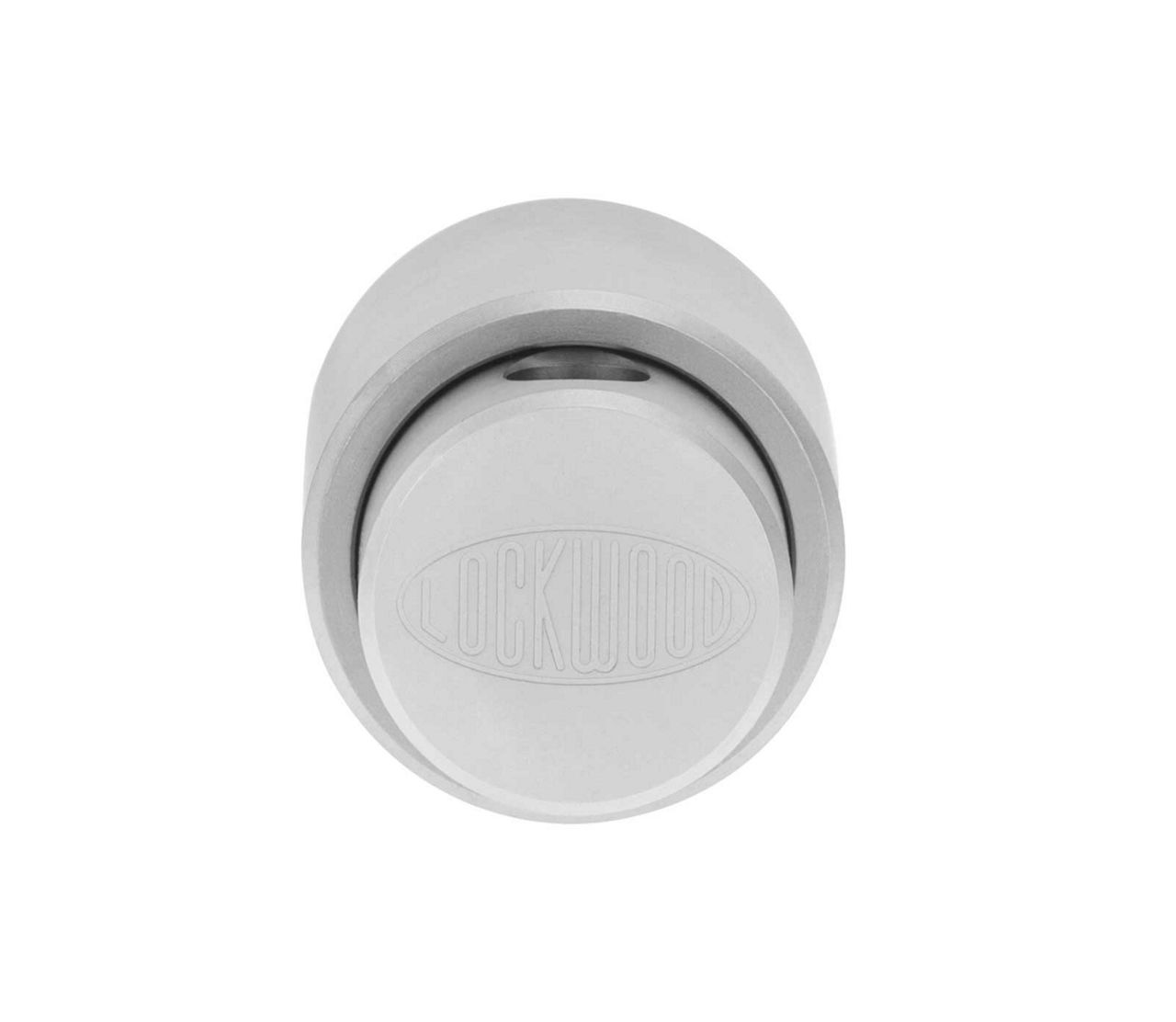

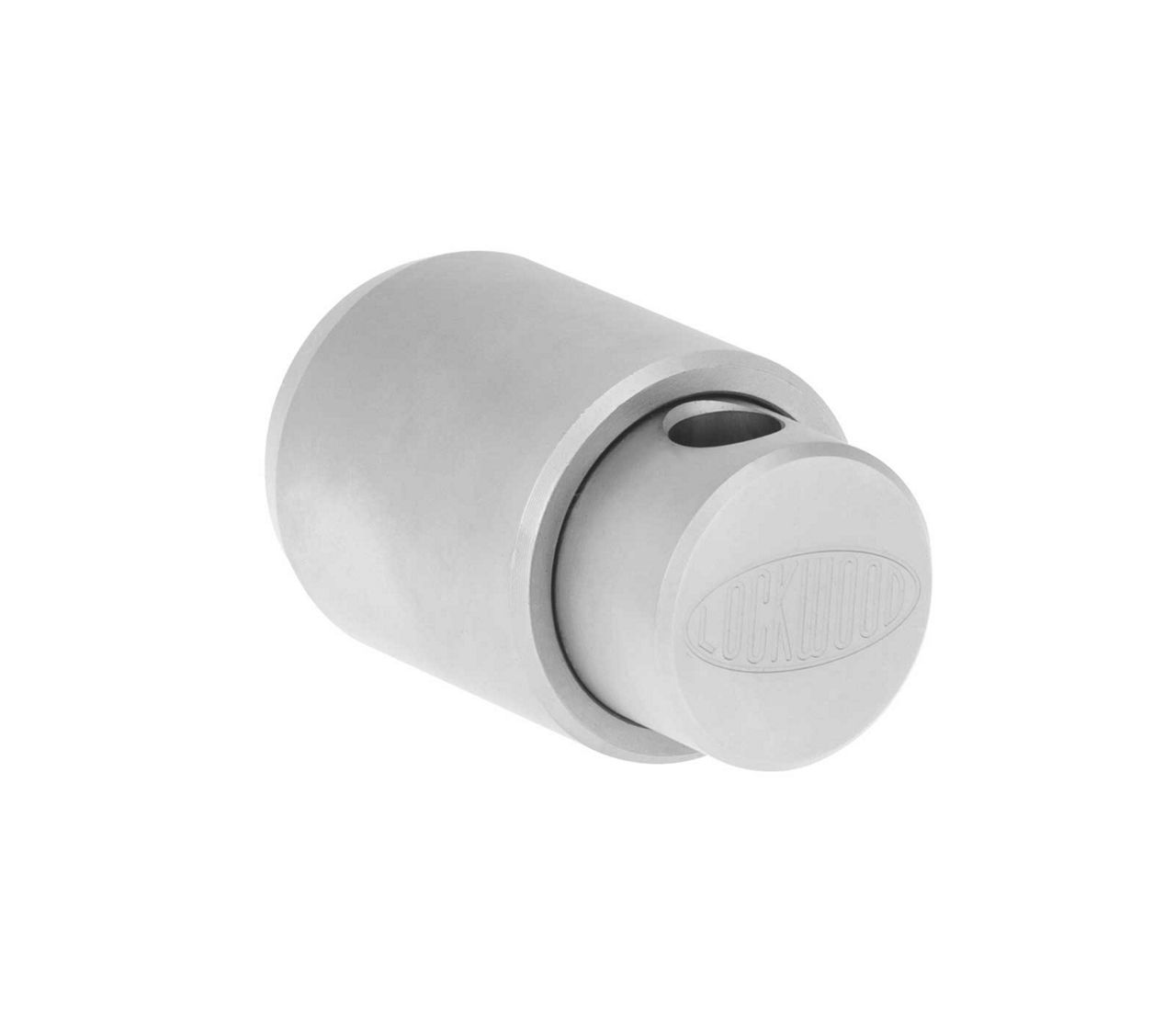

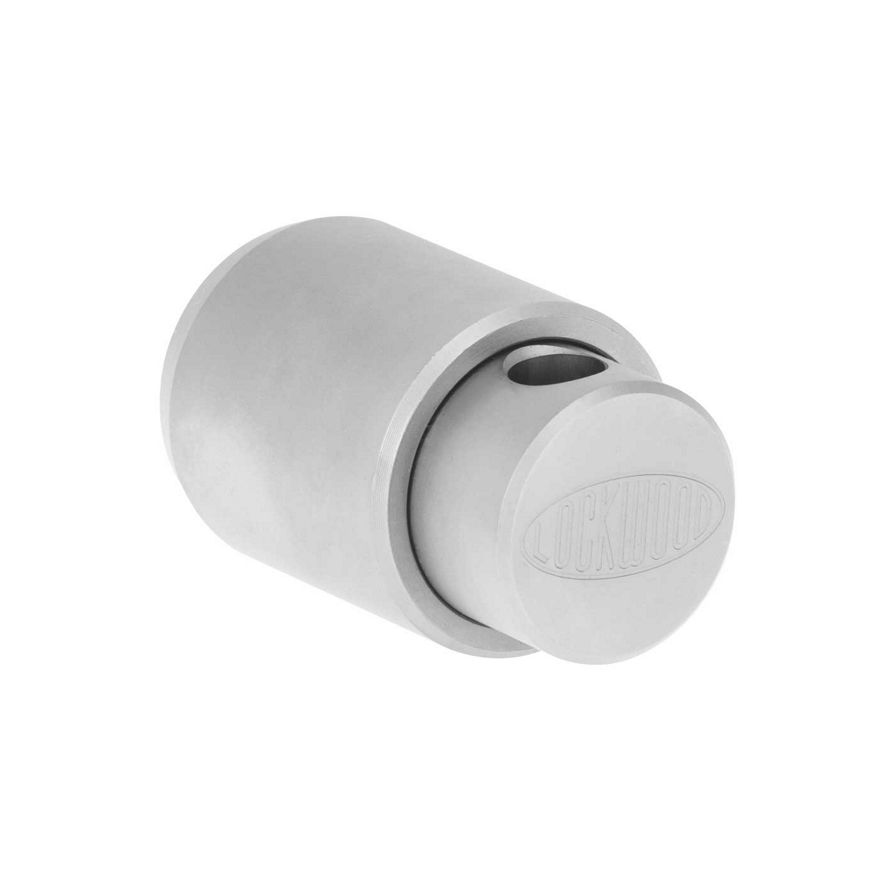

TL1/2IN
TL1/2IN
TL1/2IN

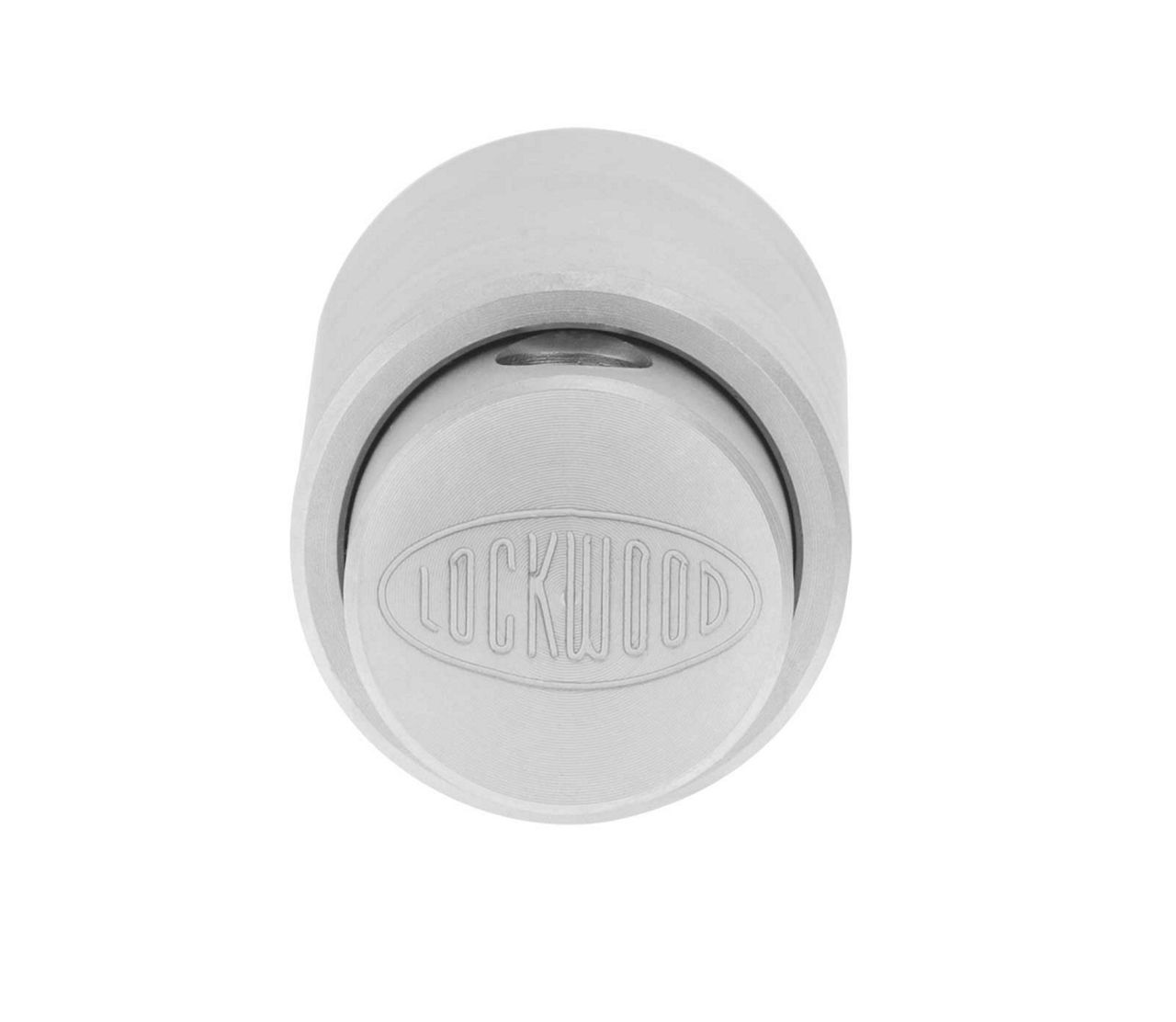

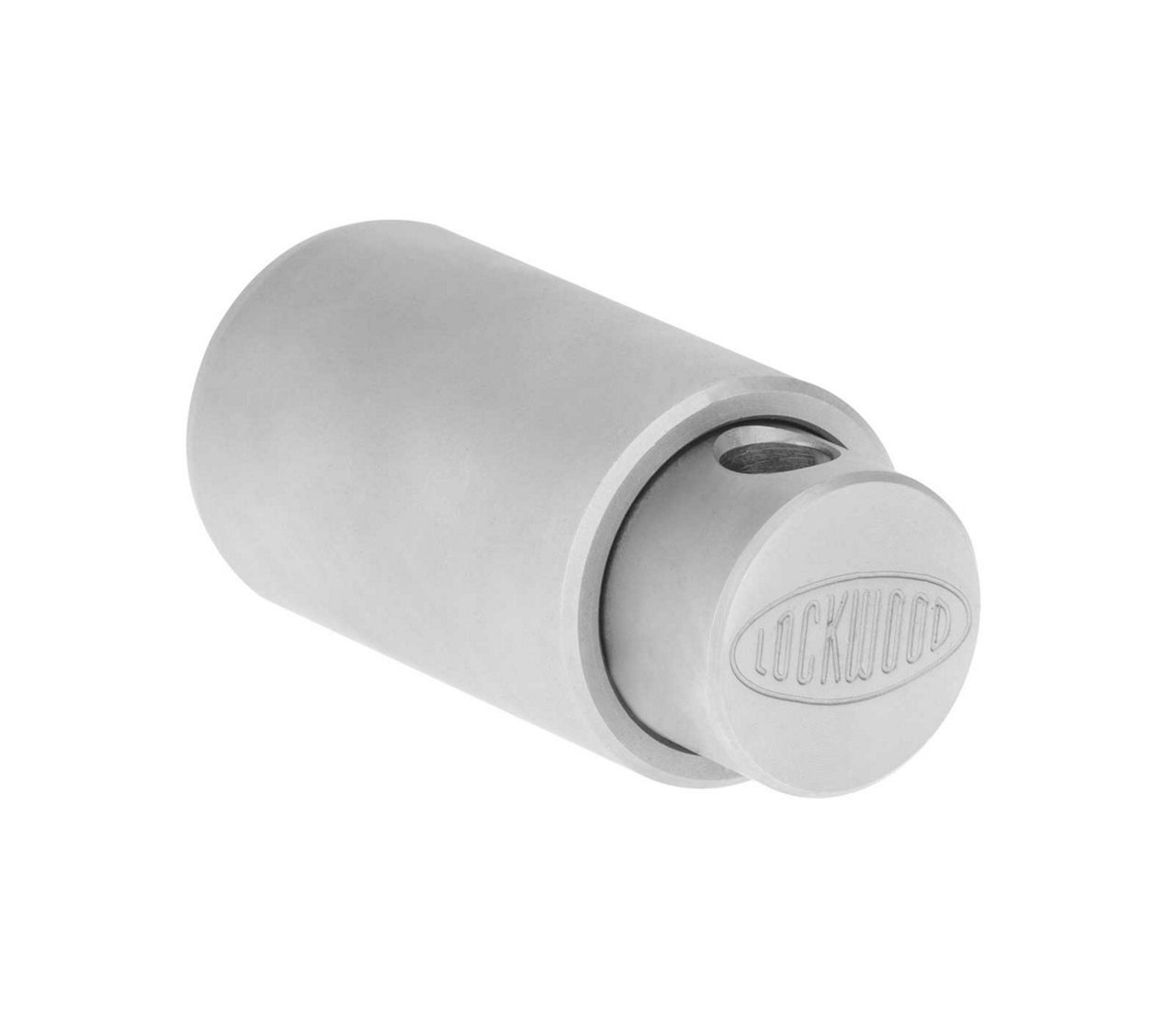

TL28MM
TL28MM
Materials
Inner Sleeve: Mild Steel
Outer Sleeve: Case hardened mild steel
Function
Spring loaded function allowing for quick snap-on attachment to ½” air coupling fittings.
Finish
Satin Chrome Pearl (SCP)
Locking
The TL Series is locked by padlock. Padlocks are available separately and not included.
Suits padlocks with a shackle diameter of under 10mm and minimum clearance height of 38mm.
Australian Standards
Conforms to AS4945-2000, airline fitting standard.
Air Coupling Types
Air Couplings come in different sizes, the TL Series is designed to work with ½ inch couplings;
½” NPT male coupling – TL Series 1/2IN
½” NPT female coupling - TL Series 28MM
Dimensions
TL Series 1/2IN
TL Series 28mm
Description | Part number | Suits Coupling Type |
---|---|---|
TL Series 1/2IN Air Coupling Lock | TL1/2IN | ½” NPT male coupling |
TL Series 28MM Air Coupling Lock | TL28MM | ½” NPT female coupling |
Note: Padlocks are available separately and not included |
