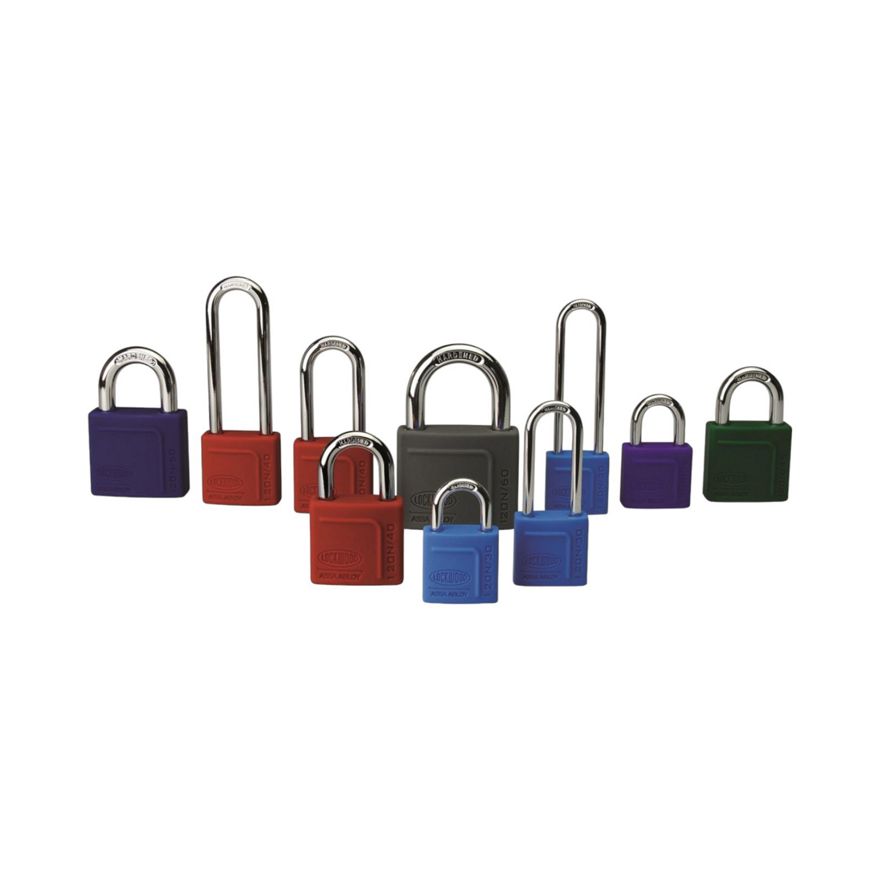

120N Series Padlocks include 14 different models, with single, twin and quad packs (keyed alike), as well as extended shackle lengths for selected models
All padlocks in this range come complete with jackets made from a tough silicone material which is weather resistant and UV stable to resist the impact of harsh environments.
The jackets also provide protection for both the padlock and the object to which it is attached. The 120N Padlocks are suitable for a broad range of general purpose applications including garden sheds, garages, letterboxes or locking up your bicycle.
All products are designed and tested to the Australian Padlock Standard AS4145.4 2002 and are rated for both security and corrosion resistance.
Features of the 120N Padlocks
Dimensions and Ratings
Note: the extended shackle reduces the shackle resistance to twisting which reduces the overall security rating. |
Model | A | B | C | D | E | Security Rating | Corrosion Resistance Rating |
120N/30/118 | 30 | 30 | 5 | 18 | 17 | 3 | 3 |
120N/30/150 | 30 | 30 | 5 | 50 | 17 | 2 | 3 |
120N/30/180 | 30 | 30 | 5 | 80 | 17 | 2 | 3 |
120N/35/123 | 35 | 32 | 6.4 | 23 | 18 | 4 | 3 |
120N/40/125 | 40 | 37 | 7.1 | 25 | 21 | 5 | 3 |
120N/40/150 | 40 | 37 | 7.1 | 50 | 21 | 4 | 3 |
120N/40/180 | 40 | 37 | 7.1 | 80 | 21 | 4 | 3 |
120N/45/127 | 45 | 41 | 8 | 27 | 22.5 | 6 | 3 |
120N/50/132 | 50 | 46 | 9.5 | 32 | 22.5 | 6 | 3 |
120N/60/135 | 60 | 50 | 10 | 35 | 35 | 6 | 3 |
Available Pack Variations
Model | Single Display Pack (DP) | Twin Display Pack (2DP) | 4 Display Pack (4DP) |
120N/30/118 | • | • | • |
120N/30/150 | • | • | • |
120N/30/180 | • | • | |
120N/35/123 | • | ||
120N/40/125 | • | • | • |
120N/40/150 | • | ||
120N/40/180 | • | ||
120N/45/127 | • | ||
120N/50/132 | • | ||
120N/60/135 | • |
Description (Display Pack) | Part number | Barcode |
---|---|---|
30MM Padlock 18MM Shackle with Silicone Jacket | 120N/30/118/DP | 93-11847-13109-5 |
30MM Padlock 18MM Shackle with Silicone Jacket | 120N/30/118/2DP | 93-11847-13107-1 |
30MM Padlock 18MM Shackle with Silicone Jacket | 120N/30/118/4DP | 93-11847-13108-8 |
30MM Padlock 50MM Shackle with Silicone Jacket | 120N/30/150/DP | 93-11847-13111-8 |
30MM Padlock 80MM Shackle with Silicone Jacket | 120N/30/180/DP | 93-11847-13113-2 |
35MM Padlock 23MM Shackle with Silicone Jacket | 120N/35/123/DP | 93-11847-13114-9 |
40MM Padlock 25MM Shackle with Silicone Jacket | 120N/40/125/DP | 93-11847-13117-0 |
40MM Padlock 25MM Shackle with Silicone Jacket | 120N/40/125/2DP | 93-11847-13115-6 |
40MM Padlock 25MM Shackle with Silicone Jacket | 120N/40/125/4DP | 93-11847-13116-3 |
40MM Padlock 50MM Shackle with Silicone Jacket | 120N/40/150/DP | 93-11847-13118-7 |
40MM Padlock 80MM Shackle with Silicone Jacket | 120N/40/180/DP | 93-11847-13119-4 |
45MM Padlock 27MM Shackle with Silicone Jacket | 120N/45/127/DP | 93-11847-13120-0 |
50MM Padlock 32MM Shackle with Silicone Jacket | 120N/50/132/DP | 93-11847-13121-7 |
60MM Padlock 35MM Shackle with Silicone Jacket | 120N/60/135/DP | 93-11847-13122-4 |
