Lockwood Exidor Series Panic Exit Devices
The Lockwood Exidor series panic hardware offers a modern, aesthetically pleasing style giving optimum safety and security.
Features
- Push bar activated panic exit device
- Available in configurations to suit single and double doors
- Fire rated for use on timber and steel doors
- Surface mounted
- Shoot bolts and latch options available
- Suitable for doors up to 1220mm wide and 2440mm high
- Tested to 200,000 cycles
- Non-handed
Standards and Compliance
- Successfully tested on fire door assemblies in accordance with Australian Standard AS1905.1-2015. Fire Resistant Doorsets.
- Conforms to the standards as set out in CE EN1125 -2008.
Accessories
Extended Top Shoot Tube
For doors exceeding 2440mm in height, the EXIP0804-SIL Extended Top Shoot Tube is designed as an addition to the vertical rod exit device and can be used in applications of up to 3180mm.
Available in SILVER only.

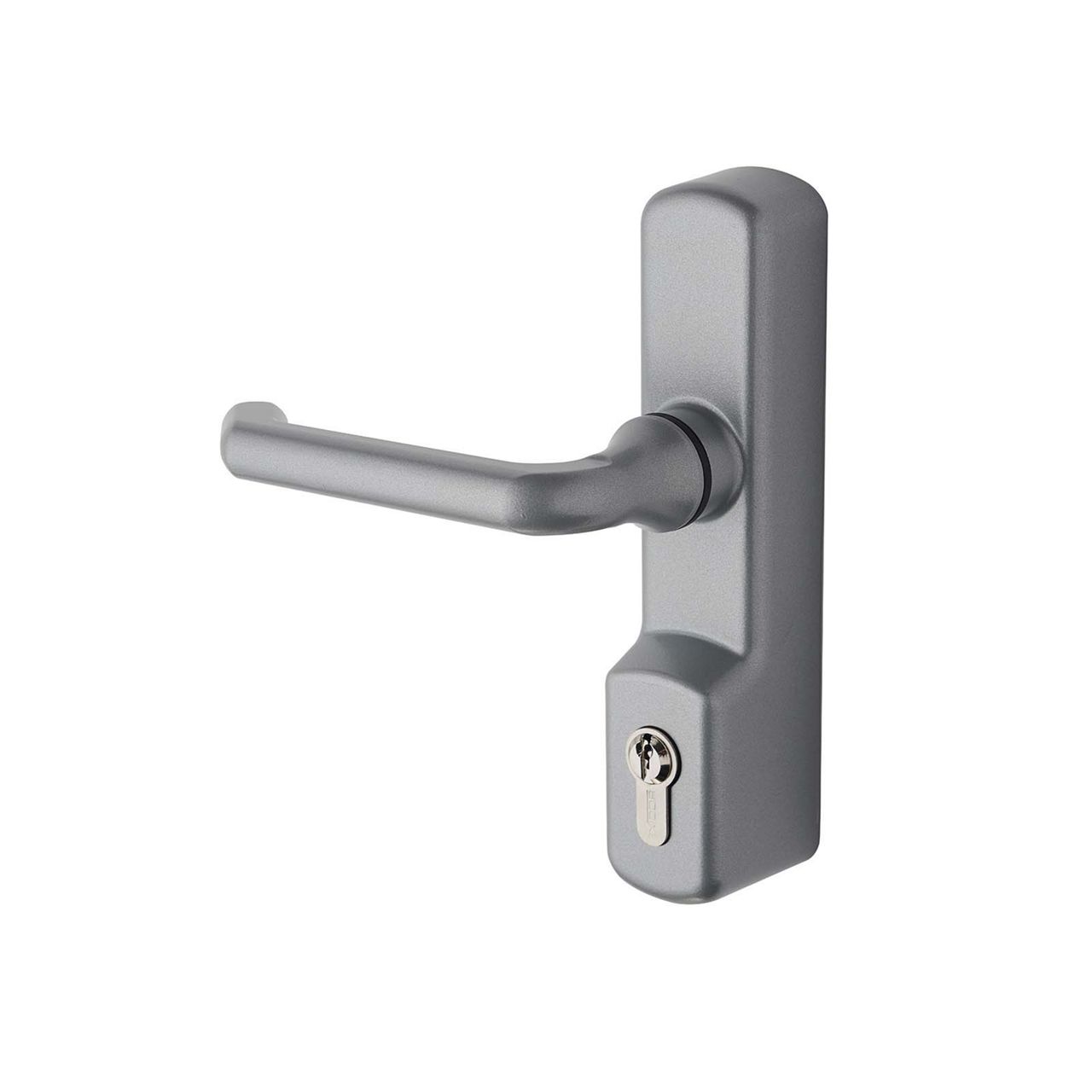

External Lever Trim
The Exidor 325 is an elegant lever operated outside access device. Euro profile cylinder supplied separately to allow flexibility of special keying requirements
Euro Profile Half Cylinder is required (not supplied).
Available in SILVER only.
Available Finishes
Silver

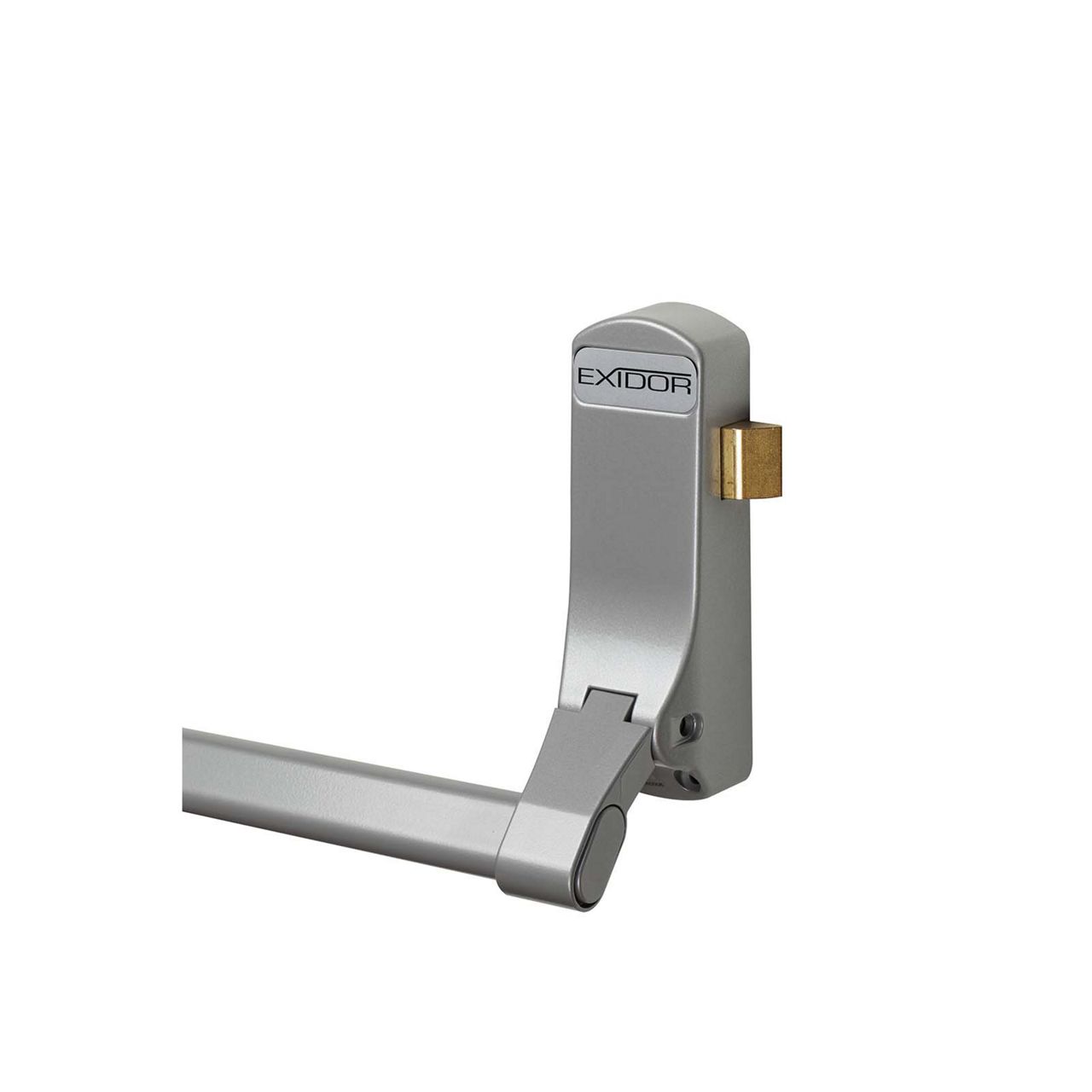

Exidor Series Single Point Panic Exit Device
Exidor Series Single Point Panic Exit Device

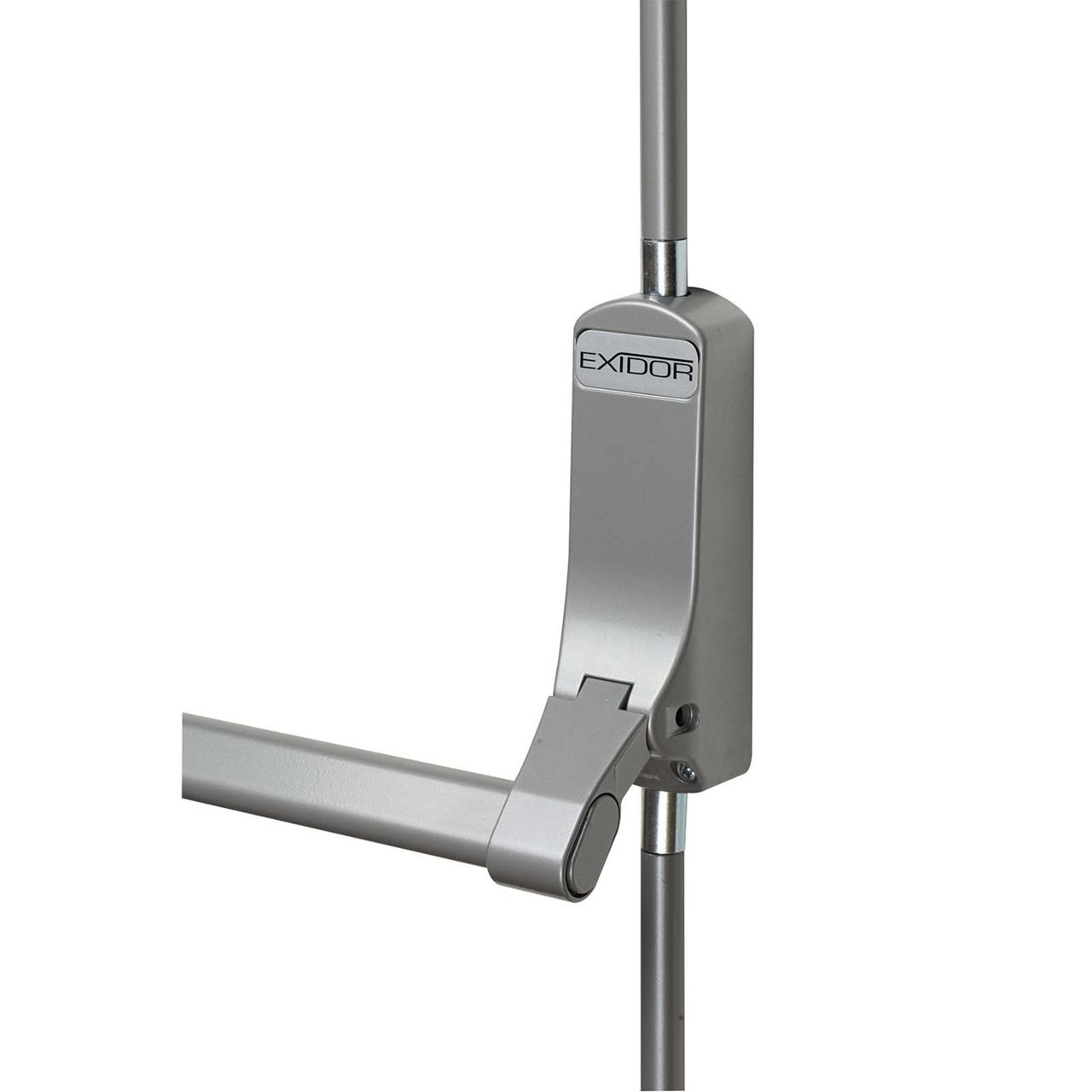

Exidor Series Two Point Panic Exit Device

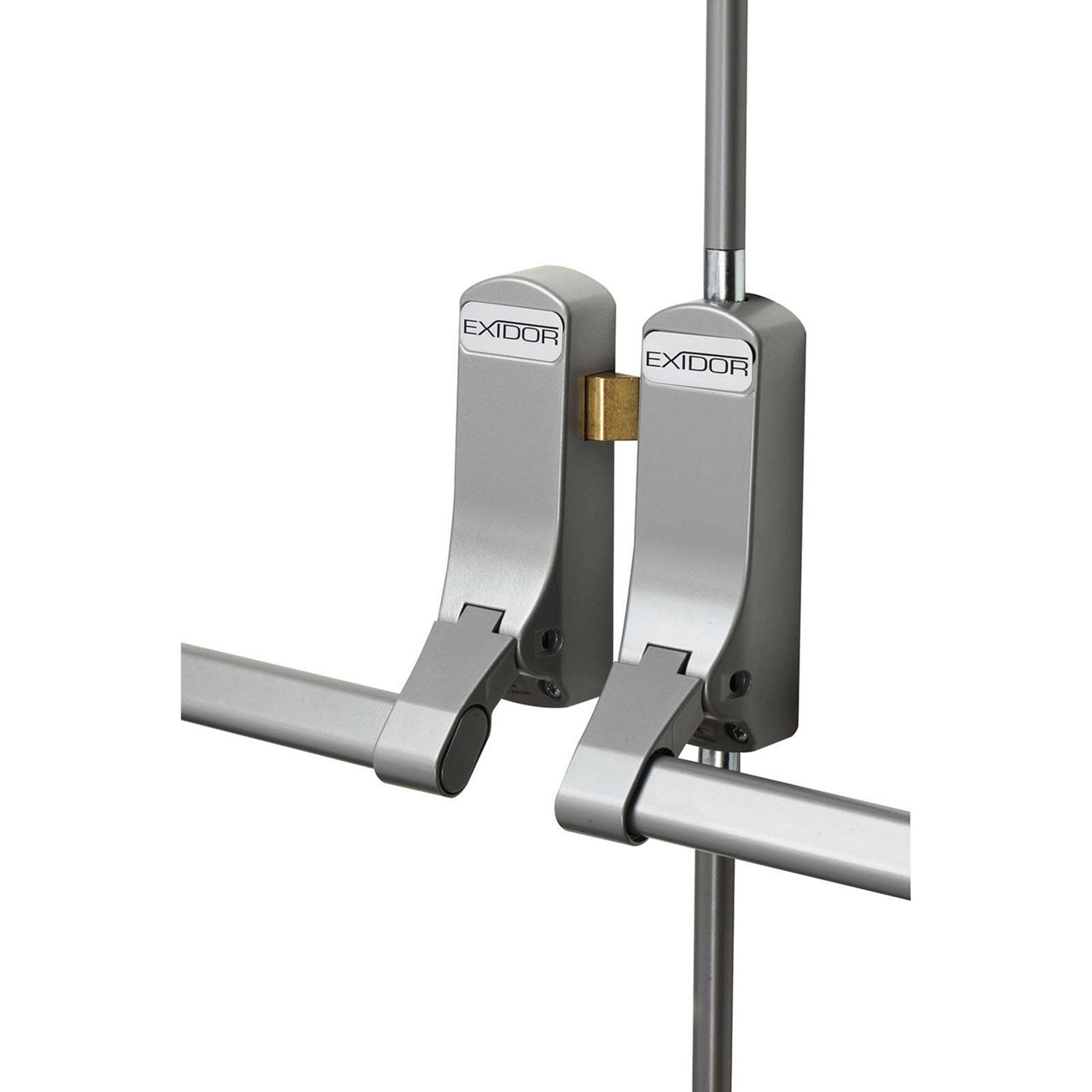

Exidor Series Three Point Panic Exit Device

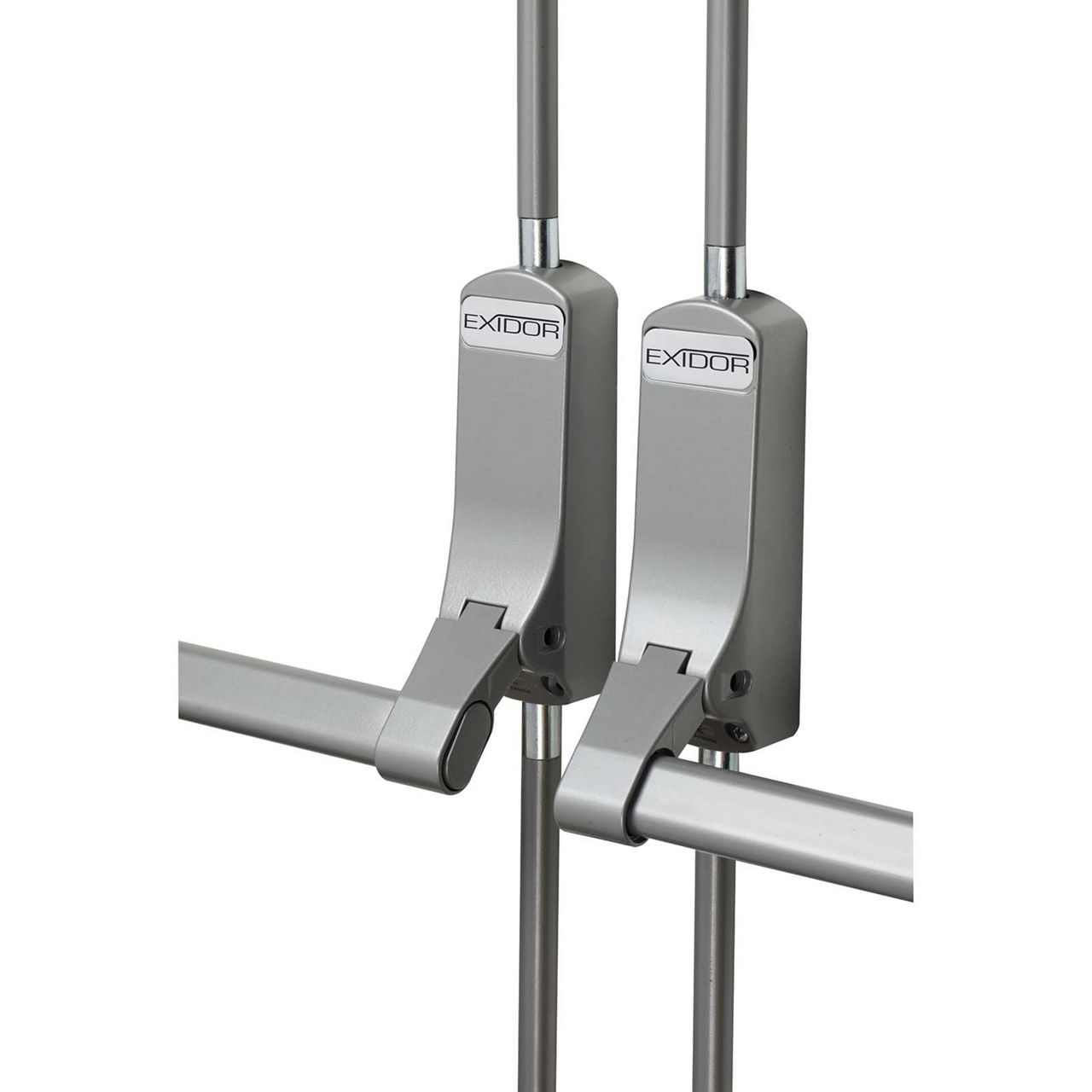

Exidor Series Four Point Panic Exit Device
Exidor Accessory - External Lever Trim
From commercial buildings to educational institutions, hospitals and hospitality venues, Exidor has become the go-to choice worldwide for anyone wanting to provide a ready means of escape at all times while still maintaining high levels of security.
Backed by our Lockwood 25 Year Mechanical warranty and fire door certified, the Exidor series is has been rigorously tested to meet local and international standards. So you can install an Exidor Panic Device with peace of mind.
Dimensions for EXI296-SIL*
*Also included in EXI285-SIL
Dimensions for EXI294-SIL*
*Also included in EXI285-SIL and EXI284-SIL
Description Part number Bar code Reversible panic latch (Single Point) EXI296-SIL 5011802414587 Single panic bolt (Two Point) EXI294-SIL 5011802394803 Double doorset Bolt and Latch (Three Point) EXI285-SIL 5011802414594 Double door set panic Bolts (Four Point) EXI284-SIL 5011802401082 Extended Top Shoot Tube for doors up to 3180mm high EXIP0804-SIL 5013904855756 Lever OAD Euro w/out lock (Euro Profile Half Cylinder not included) EXI325EA-SIL 5011802414600
