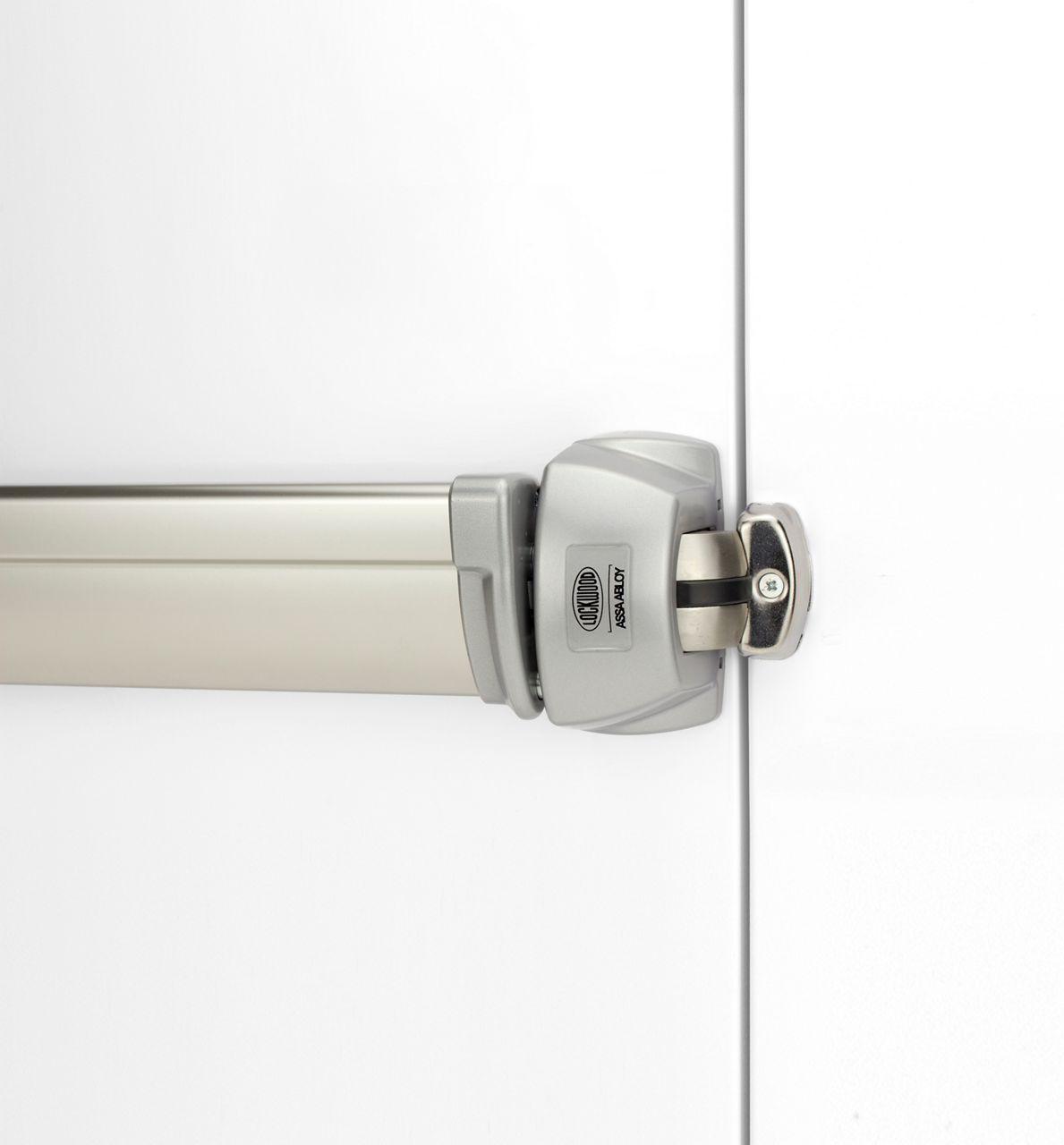

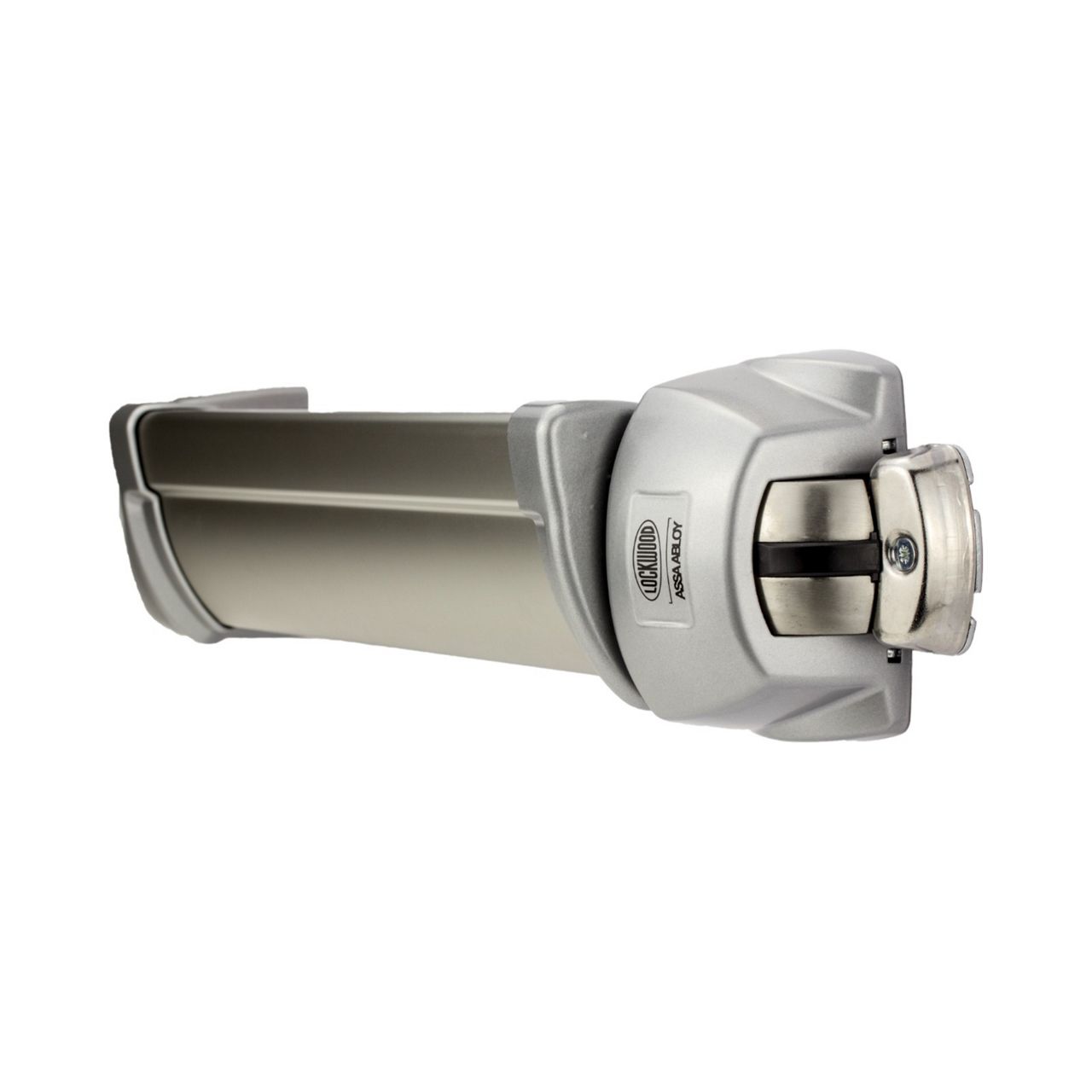

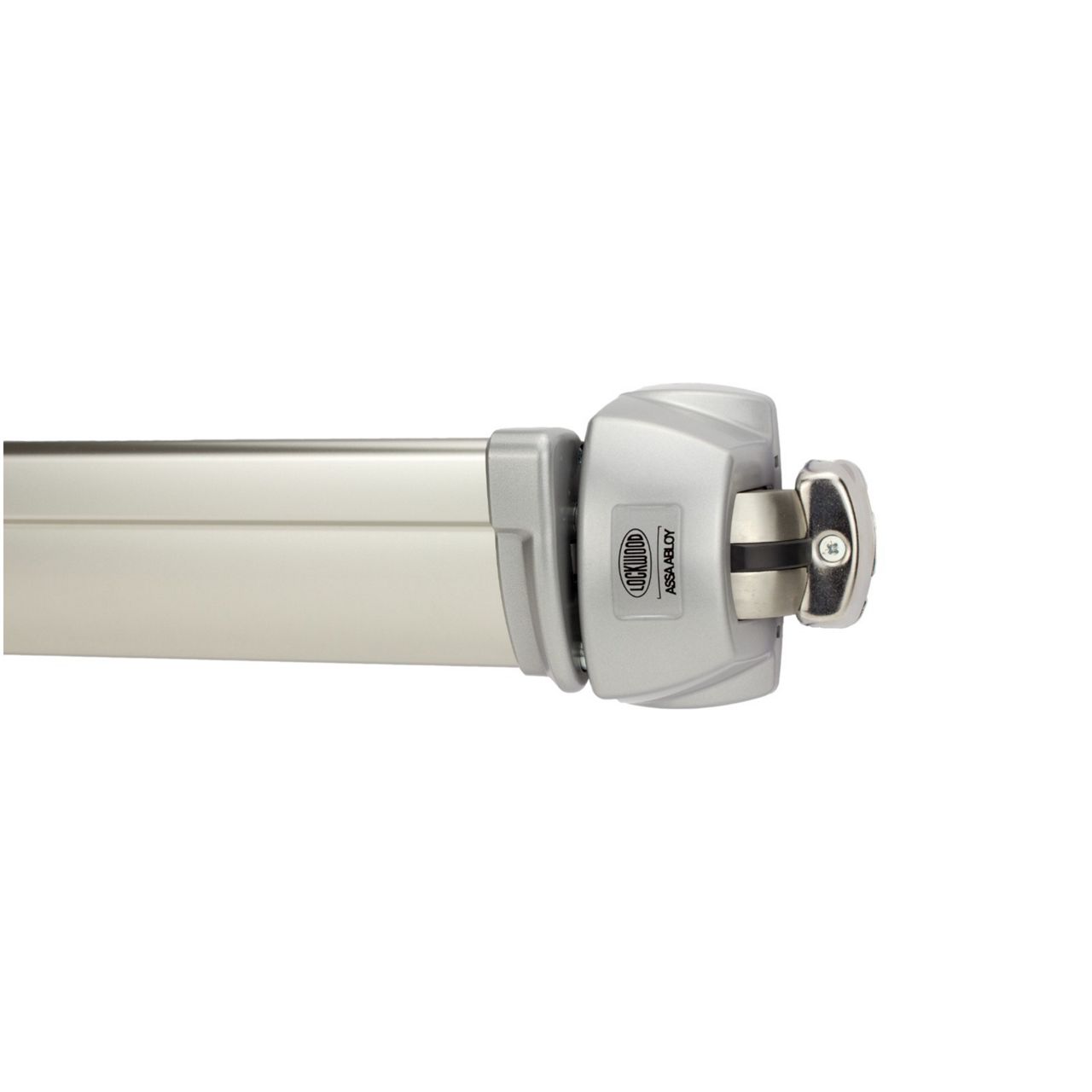

Lockwood FLUID FE100 Series Exit Device Single Point

The next generation in the Lockwood Panic Exit Device range, the FLUID Series provides for the fundamental means of escape whilst offering a completely unique locking mechanism and design aesthetic. With this type of unique innovation, ASSA ABLOY continues to evolve in standardising the market. The Lockwood FLUID Exit Device range combines ergonomics and performance with a completely new type of axis mechanism and high security bolt system.

Features

• Brushed Stainless Steel Bolt
• High level of resistance. Up to 500kg to each latching point.
• Tested to 1,000,000 cycles
• Auxiliary bolt activation from 1mm
• Effortless opening < 20N required
• Available in both vertical and horizontal latching positions in 2/3 point configurations
• Bar can be cut down to 350mm
• New fixing bracket and template design reduces installation time by up to 50%
• Protect. Evacuating people safely
• Secure. High vandal resistance
• Optimise. A simple and efficient installation process

Standards and Compliance

• Successfully tested on fire door assemblies in accordance with Australian Standard AS1905.1-2005. Fire Resistant Doorsets.
• Conforms to the standards as setout in CE EN1125 -2008.

ACCESSORIES

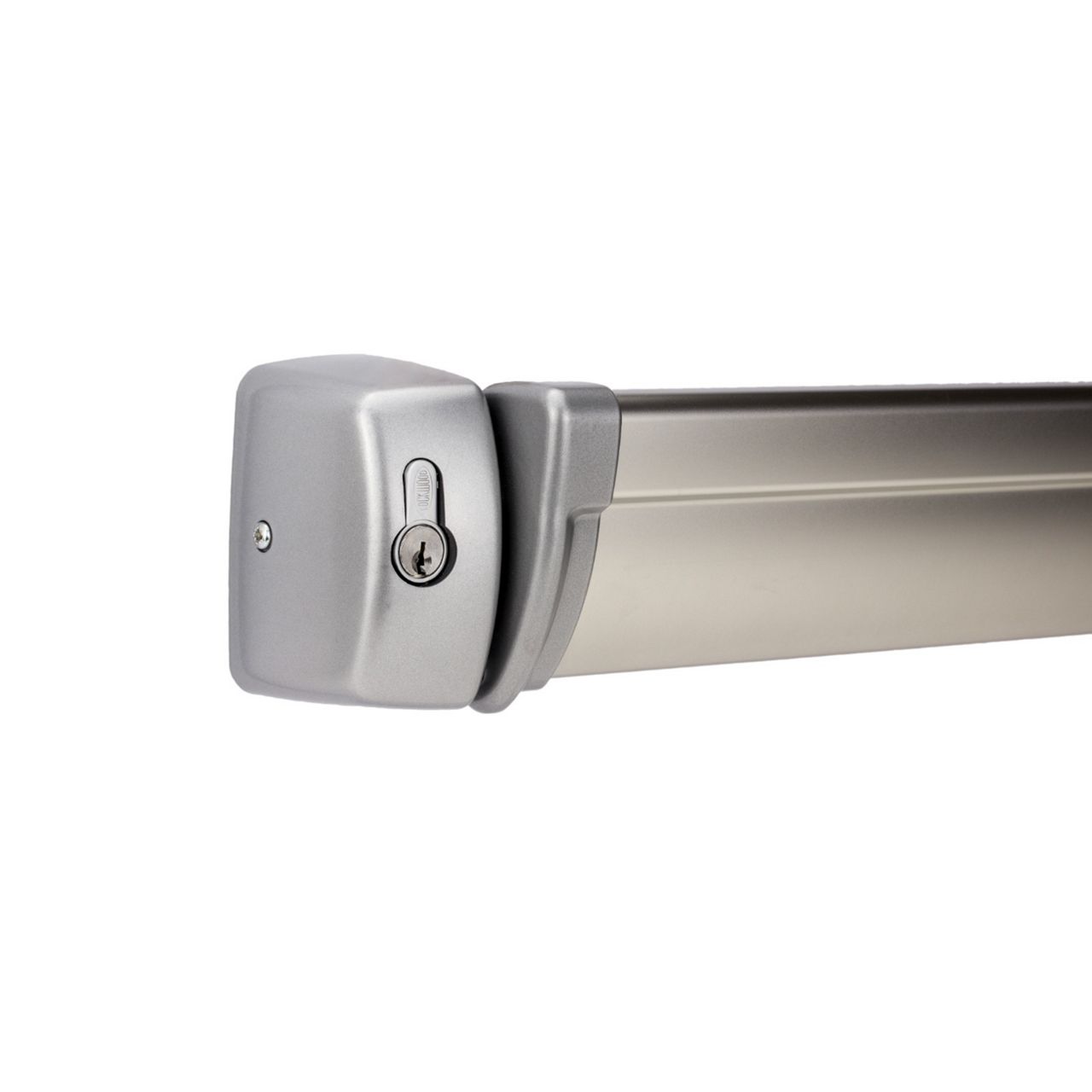

Cylinder Dogging

The Cylinder Dogging device is a simple mechanism designed to hold the push bar in the open position. Ideal for applications where access to the premises can be selected at any time and providing for a common thorough fare door. The Cylinder Dogging device can be ordered inclusive with the FLUID Exit Device or can be supplied as an optional accessory.

With the innovative locking mechanism integral to the FLUID Exit range, the latches are always retained behind their strike plate providing a positive latched state to the door as all times. The Cylinder Dogging option will not change the state of latch and for this reason, we are able to provide this option as successfully tested on fire doors for the first time.

*FLUID Exit Device can be ordered with Cylinder Dogging as standard. See Part Numbering guide.

Field Reversible
*Euro Half Cyl sold separately

Vertical Rod Extension Kit

For doors exceeding 2300mm in height, the FE0050SIL - Vertical Rod Extension Kit is designed as an addition to the vertical rod exit device and can be used in applications of up to 3000mm. To be ordered separately.

*when using an extension kit, please note that rod covers are not available for this kit.

Available in SILVER only. (Black & White finishes available on request)

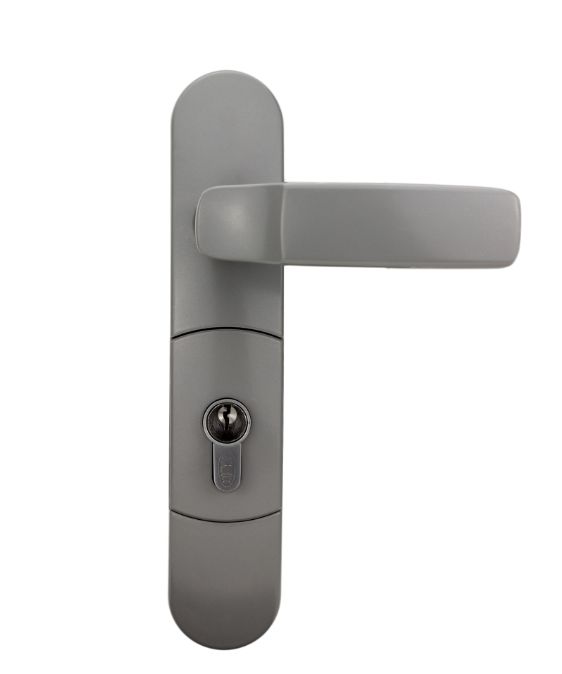

External Lever Trim

The FLUID External Lever Trim provides for access externally as required by use of key to lock and unlock the lever handle.

Euro Profile Half Cylinder is required (not supplied).

Available in SILVER only. (Black & White finishes available on request)

The next generation in the Lockwood Panic Exit Device range, the FLUID Series provides for the fundamental means of escape whilst offering a completely unique locking mechanism and design aesthetic. With this type of unique innovation, ASSA ABLOY continues to evolve in standardising the market. The Lockwood FLUID Exit Device range combines ergonomics and performance with a completely new type of axis mechanism and high security bolt system.

Features

• Brushed Stainless Steel Bolt
• High level of resistance. Up to 500kg to each latching point.
• Tested to 1,000,000 cycles
• Auxiliary bolt activation from 1mm
• Effortless opening < 20N required
• Available in both vertical and horizontal latching positions in 2/3 point configurations
• Bar can be cut down to 350mm
• New fixing bracket and template design reduces installation time by up to 50%
• Protect. Evacuating people safely
• Secure. High vandal resistance
• Optimise. A simple and efficient installation process

Standards and Compliance

• Successfully tested on fire door assemblies in accordance with Australian Standard AS1905.1-2005. Fire Resistant Doorsets.
• Conforms to the standards as setout in CE EN1125 -2008.

ACCESSORIES

Cylinder Dogging

The Cylinder Dogging device is a simple mechanism designed to hold the push bar in the open position. Ideal for applications where access to the premises can be selected at any time and providing for a common thorough fare door. The Cylinder Dogging device can be ordered inclusive with the FLUID Exit Device or can be supplied as an optional accessory.

With the innovative locking mechanism integral to the FLUID Exit range, the latches are always retained behind their strike plate providing a positive latched state to the door as all times. The Cylinder Dogging option will not change the state of latch and for this reason, we are able to provide this option as successfully tested on fire doors for the first time.

*FLUID Exit Device can be ordered with Cylinder Dogging as standard. See Part Numbering guide.

Field Reversible
*Euro Half Cyl sold separately

Vertical Rod Extension Kit

For doors exceeding 2300mm in height, the FE0050SIL - Vertical Rod Extension Kit is designed as an addition to the vertical rod exit device and can be used in applications of up to 3000mm. To be ordered separately.

*when using an extension kit, please note that rod covers are not available for this kit.

Available in SILVER only. (Black & White finishes available on request)

External Lever Trim

The FLUID External Lever Trim provides for access externally as required by use of key to lock and unlock the lever handle.

Euro Profile Half Cylinder is required (not supplied).

Available in SILVER only. (Black & White finishes available on request)

The Lockwood FLUID Exit Mortice Lock series is engineered for the specific use with the Lockwood 3772 Selector MKII High Security Mortice Lock and 1800/2800 Series brass door furniture.

Operation

• Inside: egress is always achieved by use of the FLUID Exit Panic Bar which will retract the latch bolt of the mortice lock.
• Outside: entry by operation oflever handle.
• Locking: Oval Cylinder to lock and unlock by turn of key. (Cylinder not supplied and must be ordered separately).

Standards and Compliance

• Successfully tested on fire door assemblies in accordance with Australian Standard AS1905.1-2005. Fire Resistant Doorsets.
