Lockwood FLUID Mortice Lock Series

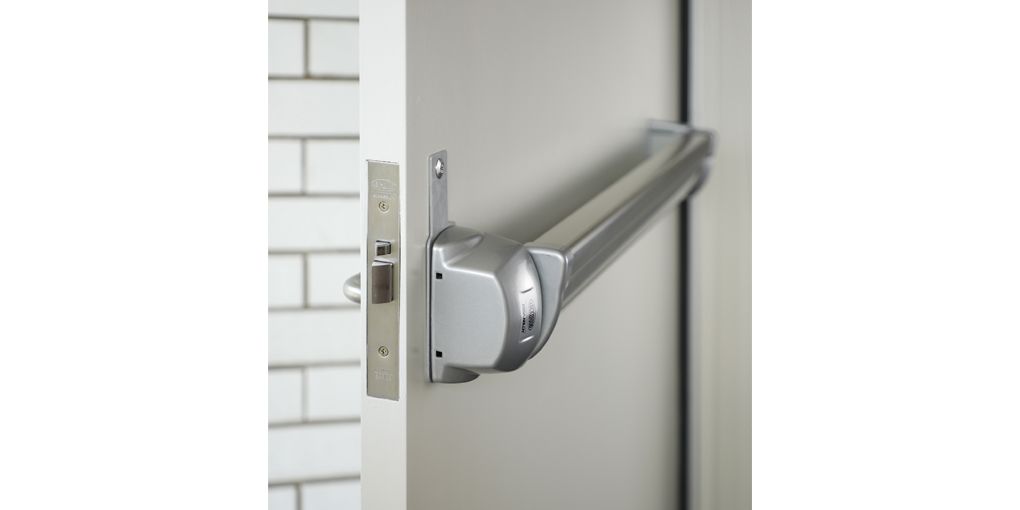

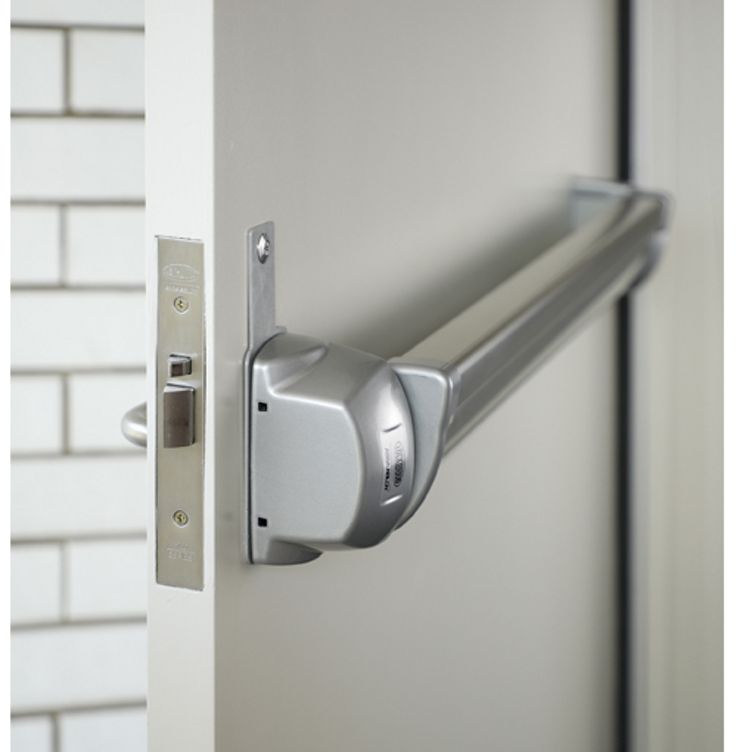

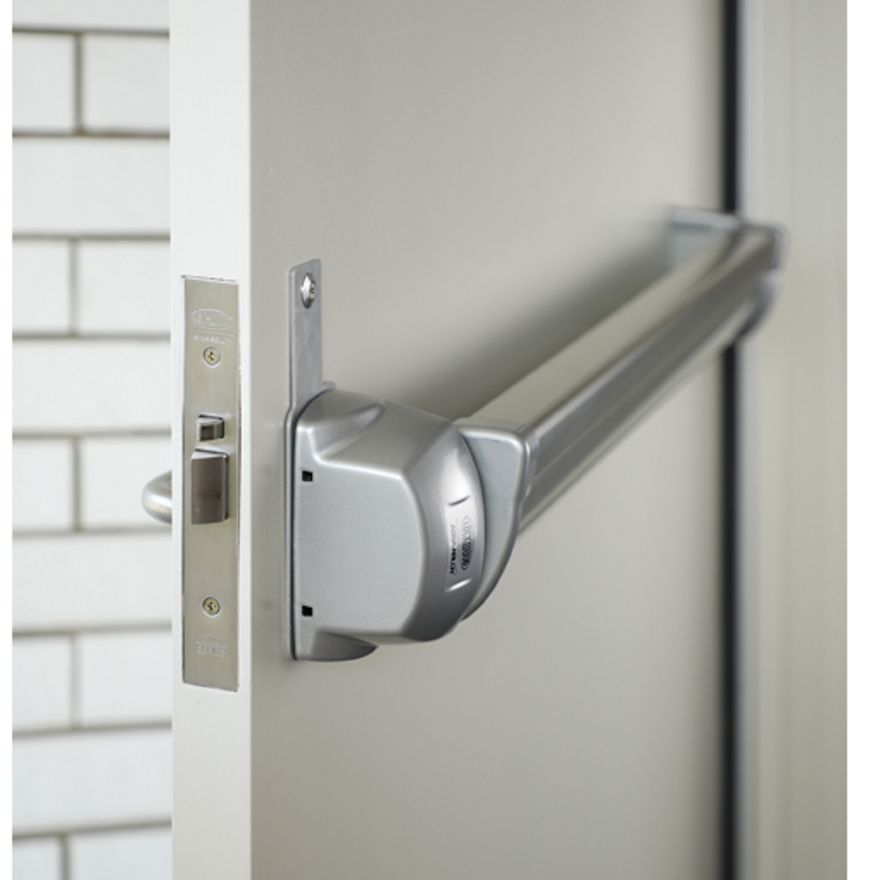

The Lockwood FLUID Exit Mortice Lock series is engineered for the specific use with the Lockwood 3772 Selector MKII High Security Mortice Lock and 1800/2800 Series brass door furniture.

Operation

  • Inside: egress is always achieved by use of the FLUID Exit Panic Bar which will retract the latch bolt of the mortice lock.
  • Outside: entry by operation oflever handle.
  • Locking: Oval Cylinder to lock and unlock by turn of key. (Cylinder not supplied and must be ordered separately).

Standards and Compliance

  • Successfully tested on fire door assemblies in accordance with Australian Standard AS1905.1-2005. Fire Resistant Doorsets.
Find your local Lockwood stockist
7e4d4-fluidserieswithmorticelocks-v37e4d4-fluidserieswithmorticelocks-v3

  • Handing
    Field Reversible

    Backset
    Available in 60mm, 89mm and 127mm backsets

    Door Thickness
    Standard doors between 32mm and 50mm

    Sizes
    900mm and 1200mm options

    Outside Lever Handle
    Lockwood 1800/2800 Plate Furniture Series. Please select lever from lever selection guide. (Sold Separately)

    Cylinder
    Compatible with 570 Cylinder type and the ability to adapt to most master key systems. (Sold Separately)

    Electro Mechanical Locking option
    Compatible for use with Lockwood 3572 ELM locking solutions where Electronic Access Control is nominated.

    Diagram

    The FLUID Exit Mortice Lock series is now supplied with the new and improved 3772 Selector MKII Mortice Lock providing for upgraded durability and security.

  • Catalogue
    Lockwood Panic Exit Devices Catalogue(PDF, 2 MB)
    Installation Instructions
    FLUID Mortice Lock Instructions(PDF, 1 MB)
    FLUID Panic Exit Instructions(PDF, 9 MB)

  • FE  –  1  –  09  /  0  –  H  –  SIL

    FE = FLUID EXIT SERIES

    1 = Single Point
    2 = 2 Point
    3 = 3 Point

    09 = 900mm
    12 = 1200mm

    0 = Standard
    1 = Cyl Dogging

    H = Horizontal Latch
    V = Vertical Latching
    M = Mortice Lock
    ELM = Electric Mortice Lock

    SIL = Silver
    WH = White*
    BLK = Black

    *Not available in Mortice Lock version.

    FLUID Mortice Lock Series

    DescriptionPart Number
    FLUID Exit Mortice Lock Device 900mmFE109/0MSIL
    FLUID Exit Mortice Lock Device 1200mmFE112/0MSIL
    FLUID Exit Electric Mortice Lock Device 900mmFE109/0ELMSIL
    FLUID Exit Electric Mortice Lock Device 1200mmFE112/0ELMSIL
    FLUID Exit 89mm Backset Mortice Lock 900mmFE109/0M/89/SIL
    FLUID Exit 127mm Backset Mortice Lock 900mmFE109/0M/127/SIL

Related products

  • Lockwood FLUID FE200 Series Exit Device Two Point

    The next generation in the Lockwood Panic Exit Device range, the FLUID Series provides for the fundamental means of escape whilst offering a completely unique locking mechanism and design aesthetic. With this type of unique innovation, ASSA ABLOY continues to evolve in standardising the market. The Lockwood FLUID Exit Device range combines ergonomics and performance with a completely new type of axis mechanism and high security bolt system.

    Features

    • Brushed Stainless Steel Bolt
    • High level of resistance. Up to 500kg to each latching point.
    • Tested to 1,000,000 cycles
    • Auxiliary bolt activation from 1mm
    • Effortless opening < 20N required
    • Available in both vertical and horizontal latching positions in 2/3 point configurations
    • Bar can be cut down to 350mm
    • New fixing bracket and template design reduces installation time by up to 50%
    • Protect. Evacuating people safely
    • Secure. High vandal resistance
    • Optimise. A simple and efficient installation process

    Standards and Compliance

    • Successfully tested on fire door assemblies in accordance with Australian Standard AS1905.1-2005. Fire Resistant Doorsets.
    • Conforms to the standards as setout in CE EN1125 -2008.

    ACCESSORIES

    Cylinder Dogging

    The Cylinder Dogging device is a simple mechanism designed to hold the push bar in the open position. Ideal for applications where access to the premises can be selected at any time and providing for a common thorough fare door. The Cylinder Dogging device can be ordered inclusive with the FLUID Exit Device or can be supplied as an optional accessory.

    With the innovative locking mechanism integral to the FLUID Exit range, the latches are always retained behind their strike plate providing a positive latched state to the door as all times. The Cylinder Dogging option will not change the state of latch and for this reason, we are able to provide this option as successfully tested on fire doors for the first time.

    *FLUID Exit Device can be ordered with Cylinder Dogging as standard. See Part Numbering guide.

    Field Reversible
    *Euro Half Cyl sold separately

    Vertical Rod Extension Kit

    For doors exceeding 2300mm in height, the FE0050SIL - Vertical Rod Extension Kit is designed as an addition to the vertical rod exit device and can be used in applications of up to 3000mm. To be ordered separately.

    *when using an extension kit, please note that rod covers are not available for this kit.

    Available in SILVER only. (Black & White finishes available on request)

    External Lever Trim

    The FLUID External Lever Trim provides for access externally as required by use of key to lock and unlock the lever handle.

    Euro Profile Half Cylinder is required (not supplied).

    Available in SILVER only. (Black & White finishes available on request)

  • Lockwood FLUID FE100 Series Exit Device Single Point

    The next generation in the Lockwood Panic Exit Device range, the FLUID Series provides for the fundamental means of escape whilst offering a completely unique locking mechanism and design aesthetic. With this type of unique innovation, ASSA ABLOY continues to evolve in standardising the market. The Lockwood FLUID Exit Device range combines ergonomics and performance with a completely new type of axis mechanism and high security bolt system.

    Features

    • Brushed Stainless Steel Bolt
    • High level of resistance. Up to 500kg to each latching point.
    • Tested to 1,000,000 cycles
    • Auxiliary bolt activation from 1mm
    • Effortless opening < 20N required
    • Available in both vertical and horizontal latching positions in 2/3 point configurations
    • Bar can be cut down to 350mm
    • New fixing bracket and template design reduces installation time by up to 50%
    • Protect. Evacuating people safely
    • Secure. High vandal resistance
    • Optimise. A simple and efficient installation process

    Standards and Compliance

    • Successfully tested on fire door assemblies in accordance with Australian Standard AS1905.1-2005. Fire Resistant Doorsets.
    • Conforms to the standards as setout in CE EN1125 -2008.

    ACCESSORIES

    Cylinder Dogging

    The Cylinder Dogging device is a simple mechanism designed to hold the push bar in the open position. Ideal for applications where access to the premises can be selected at any time and providing for a common thorough fare door. The Cylinder Dogging device can be ordered inclusive with the FLUID Exit Device or can be supplied as an optional accessory.

    With the innovative locking mechanism integral to the FLUID Exit range, the latches are always retained behind their strike plate providing a positive latched state to the door as all times. The Cylinder Dogging option will not change the state of latch and for this reason, we are able to provide this option as successfully tested on fire doors for the first time.

    *FLUID Exit Device can be ordered with Cylinder Dogging as standard. See Part Numbering guide.

    Field Reversible
    *Euro Half Cyl sold separately

    External Lever Trim

    The FLUID External Lever Trim provides for access externally as required by use of key to lock and unlock the lever handle.

    Euro Profile Half Cylinder is required (not supplied).

    Available in SILVER only. (Black & White finishes available on request)

    Nightlatch Assembly Kit

    The FLUID Nightlatch Assembly Kit provides access externally by use of a nightlatch cylinder to latch and unlatch using a key from the outside.

    A 201 Cylinder is required (not supplied).

    Only compatible with Single Door with Horizontal Rim Devices.

    Available in silver. (Black finish kits are also available to match with black FLUID devices. The external cylinder and pull, however, will be in satin chrome for both the silver and black kits.)

  • Lockwood FLUID FE300 Series Exit Device Three Point

    The next generation in the Lockwood Panic Exit Device range, the FLUID Series provides for the fundamental means of escape whilst offering a completely unique locking mechanism and design aesthetic. With this type of unique innovation, ASSA ABLOY continues to evolve in standardising the market. The Lockwood FLUID Exit Device range combines ergonomics and performance with a completely new type of axis mechanism and high security bolt system.

    Features

    • Brushed Stainless Steel Bolt
    • High level of resistance. Up to 500kg to each latching point.
    • Tested to 1,000,000 cycles
    • Auxiliary bolt activation from 1mm
    • Effortless opening < 20N required
    • Available in both vertical and horizontal latching positions in 2/3 point configurations
    • Bar can be cut down to 350mm
    • New fixing bracket and template design reduces installation time by up to 50%
    • Protect. Evacuating people safely
    • Secure. High vandal resistance
    • Optimise. A simple and efficient installation process

    Standards and Compliance

    • Successfully tested on fire door assemblies in accordance with Australian Standard AS1905.1-2005. Fire Resistant Doorsets.
    • Conforms to the standards as setout in CE EN1125 -2008.

    ACCESSORIES

    Cylinder Dogging

    The Cylinder Dogging device is a simple mechanism designed to hold the push bar in the open position. Ideal for applications where access to the premises can be selected at any time and providing for a common thorough fare door. The Cylinder Dogging device can be ordered inclusive with the FLUID Exit Device or can be supplied as an optional accessory.

    With the innovative locking mechanism integral to the FLUID Exit range, the latches are always retained behind their strike plate providing a positive latched state to the door as all times. The Cylinder Dogging option will not change the state of latch and for this reason, we are able to provide this option as successfully tested on fire doors for the first time.

    *FLUID Exit Device can be ordered with Cylinder Dogging as standard. See Part Numbering guide.

    Field Reversible
    *Euro Half Cyl sold separately

    Vertical Rod Extension Kit

    For doors exceeding 2300mm in height, the FE0050SIL - Vertical Rod Extension Kit is designed as an addition to the vertical rod exit device and can be used in applications of up to 3000mm. To be ordered separately.

    *when using an extension kit, please note that rod covers are not available for this kit.

    Available in SILVER only. (Black & White finishes available on request)

    External Lever Trim

    The FLUID External Lever Trim provides for access externally as required by use of key to lock and unlock the lever handle.

    Euro Profile Half Cylinder is required (not supplied).

    Available in SILVER only. (Black & White finishes available on request)
