Lockwood 8653 Sliding Security Screen Door Locks

The Lockwood 8653 Sliding Door Lock has been designed in Australia and manufactured to stringent quality specifications. The range has been tested in accordance with AS4145.2-2008, offering exceptional performance and reliability.

Incorporating Lockwood’s advanced safety and security features, DualSelect® and LockAlert®  the 8653 Sliding Security Door Lock is ideal for use in residential applications.

Features of the 8653 Sliding Security Screen Door Lock

  • 2 stage key locking, offers safety and security for all occupants by giving a choice of selecting privacy lock or deadlock when exiting the home
  • Turning the key to the first selection engages the privacy lock, this offers security from the outside whilst allowing occupants inside to safely exit using the internal lever
  • Turning the key to the second selection engages the deadlock, this provides internal and external security, and requires the key to unlock the door from inside and outside
  • Suits left or right hand closing doors
  • Key locking from both sides
  • Inside snib locking (with key override)
  • Snib only version also available
  • Stainless steel front end plates
  • Self latching with stainless steel parrot beak deadlatch
  • Can only be locked when fully engaged with strike
  • Stainless steel strike available for single point locks
  • Optional 3 point kit available for premium security
  • When 3 point kit is fitted, snib activates/ operates all 3 locking points
  • Available in a range of polyester powdercoat and plated finishes
  • Fits industry standard cut outs/door preparation
  • Retrofits previous Whitco Leichhardt Lock
  • Zinc diecast lock mechanism and furniture
  • Easy installation for both new and retrofit applications
  • Accepts Lockwood Euro profile lazy cam cylinder
  • Suit standard 20mm door thickness
  • Available in display and trade packs
DualSelect
Turn the key for safety mode. Turn the key further to select secure mode.

LockAlert
Indicator shows lock status at a glance.
Find your local Lockwood stockist

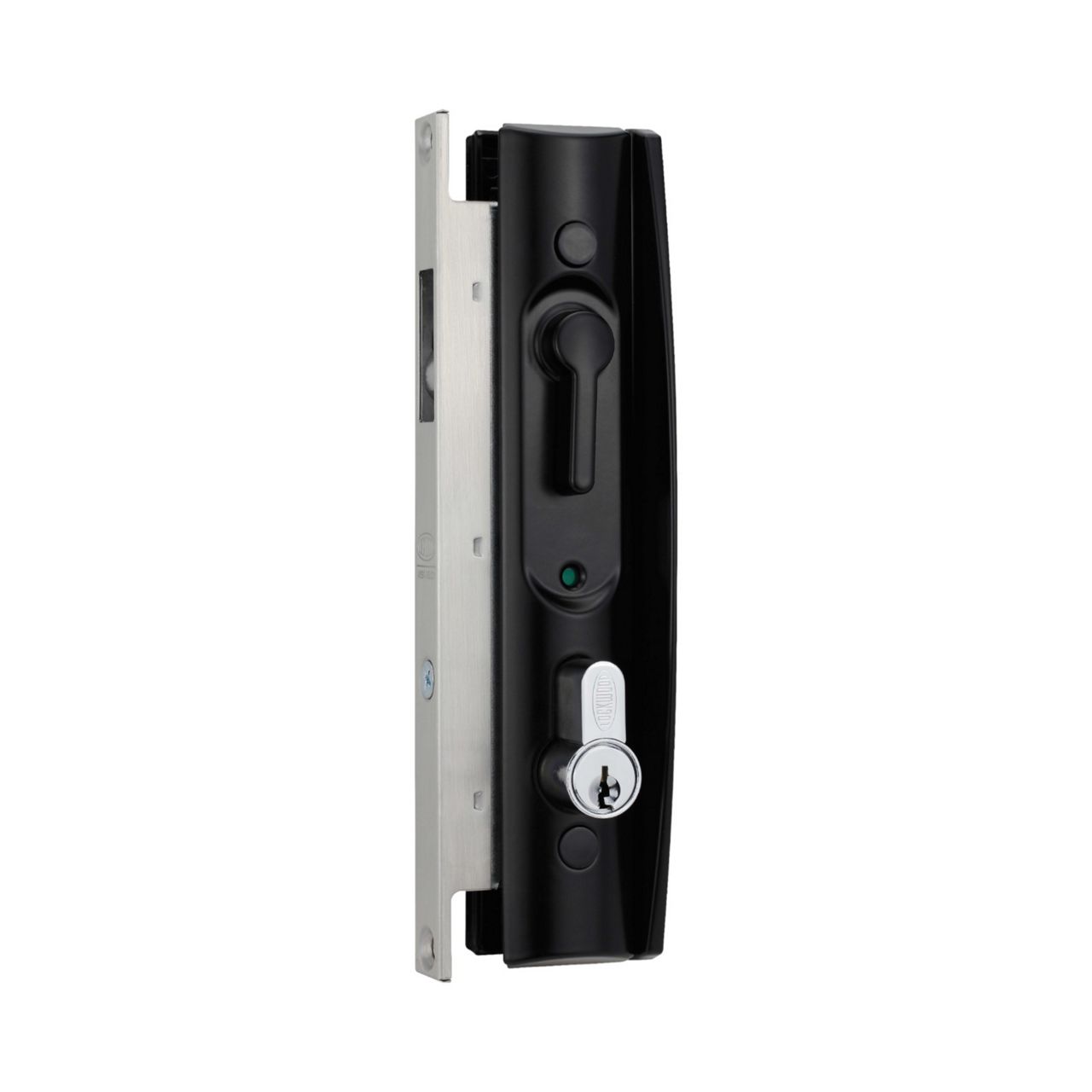

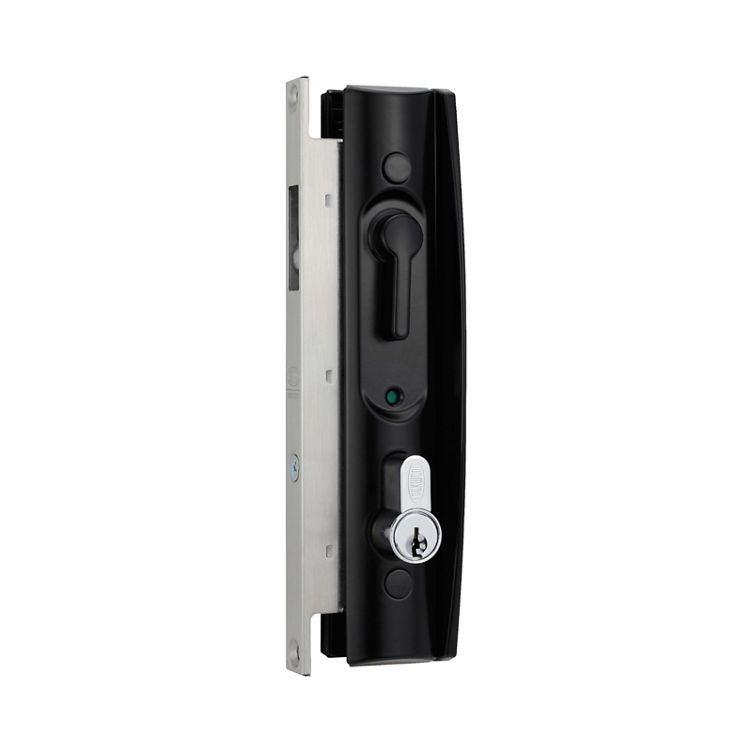

Lockwood 8653 Sliding Door Lock

73a42-c_8653blk_0273a42-c_8653blk_02

  • This high performance lock meets or exceeds the requirements of Australian Standard AS 4145.2 – 2008: Locksets and Hardware for Doors and Windows Part 2: Mechanical Locksets for Doors and Windows in Buildings. To Level S7 and D8.

    Successfully tested on security screen doors in accordance with Australian Standard AS 5039-2008: Security Screen Doors and Security Window Grilles and AS 5041-2003: Methods of Test.

    Application
    Single or multi point mortice sliding security door lock available in High Strength (3 point) and Standard versions. A snib only mortice lockset is also available.

    Keying

    • Use with Lockwood Euro profile lazy cam cylinder
    • 2 x 5 pin cylinder
    • Can be keyed alike to other Lockwood door and window products

    Standard Finishes

    Polyester powdercoat

    • Black
    • Primrose
    • White

      Accessories

      • Standard Multi Point kit
      • High strength strike kit

      Dimensions

    • Lockwood Security Screen Door Hardware Catalogue(PDF, 3 MB)
      Lockwood Home Security Solutions(PDF, 4 MB)
      Installation Instructions
      8653 Sliding 3 Point Door Lock Installation Instructions(PDF, 1 MB)
      8653 Sliding Door Lock Installation Instructions(PDF, 2 MB)
    • DescriptionPart numberBarcode
      TRADE PACK
      Dual Select, Lockbody With Stainless Steel Latch Bolt, Furniture, Standard Strike, Screws, No Cylinder - Black8653BLK93-11847-98010-5
      Dual Select, Lockbody With Stainless Steel Latch Bolt, Furniture, Standard Strike, Screws, No Cylinder - Primrose8653PRM93-11847-98012-9
      Dual Select, Lockbody With Stainless Steel Latch Bolt, Furniture, Standard Strike, Screws, No Cylinder - White8653WH93-11847-98024-2
      Lockbody With Stainless Steel Latch Bolt, Snib Only Mechanism, Furniture, Standard Strike, Screws, No Cylinder - Black8653BLKSO93-11847-98017-4
      3 Point Kit Including Rods, Stainless Steel High Strength Strike Auxiliary Locks, Strikes and Screws - Standard 3 Point Kit8653-3PK93-11847-98019-8
      Stainless Steel High Strength Strike - High Strength StrikeSP8653-5393-11847-98020-4
      Leichhardt Retrofit Connecting Rod Set - Retrofit Connecting Rod SetSP8653-6393-11847-01669-9
      Anti Drill 5 Pin Lazy Cam Cylinder, Chrome Plate - Anti Drill Cylinder8650-2CP93-11847-98935-1
      DISPLAY PACK
      Dual Select, Lockbody With Stainless Steel Latch Bolt, Furniture, Standard Strike, Screws, Cylinder - Black8653BLKDP93-11847-98016-7
