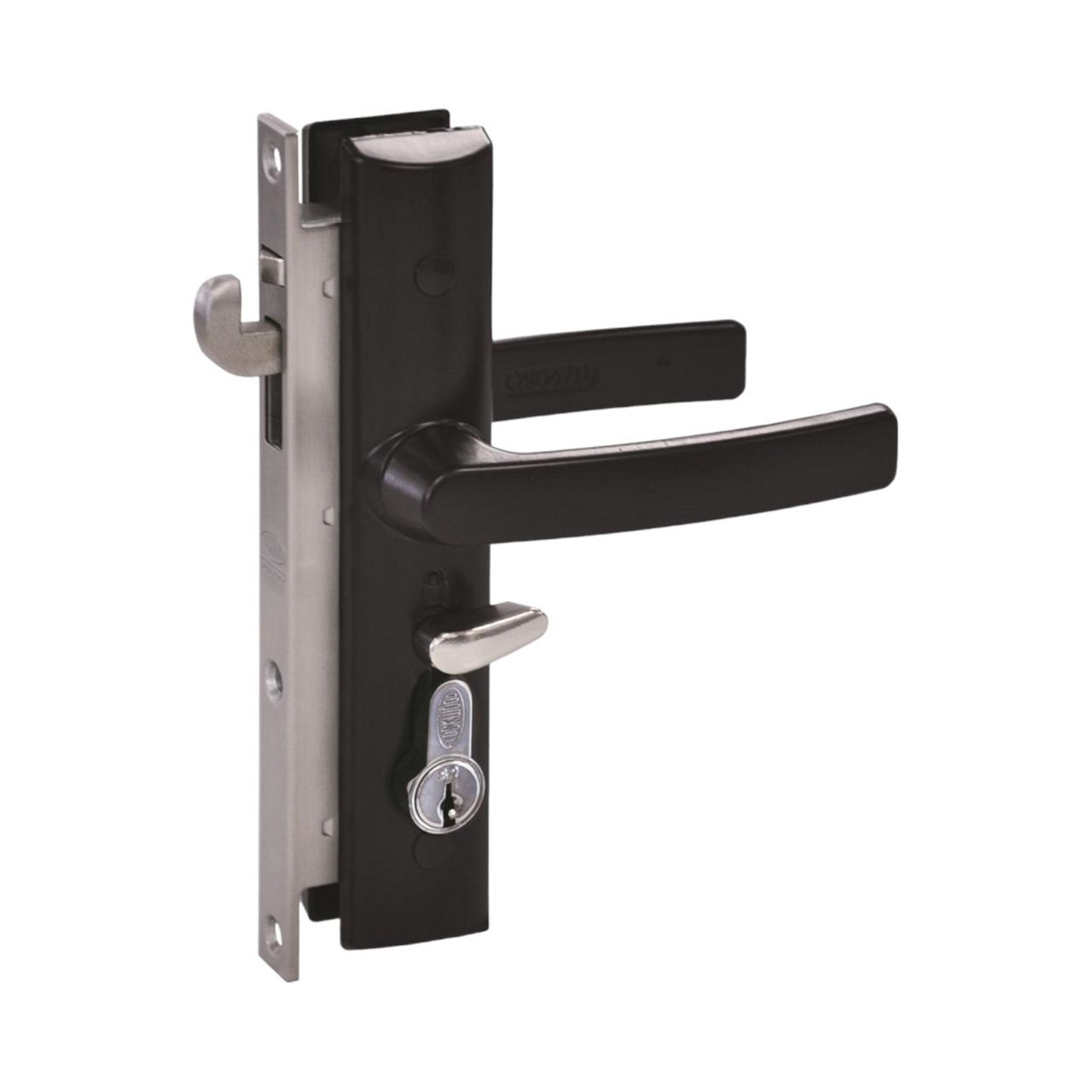

Lockwood 8654 Hinged Security Door Lock
The Lockwood 8654 Hinged Security Door Lock has been designed in Australia and manufactured to stringent quality specifications.
The range has been tested in accordance with AS4145.2-2008, offering exceptional performance and reliability. Incorporating Lockwood's advanced safety and security feature, DualSelect®,the 8654 Hinged Security Door Lock is ideal for use in residential applications.
Features and Specifications of the 8654 Hinged Security Door Lock
- 2 stage key locking, offers safety and security for all occupants by giving a choice of selecting safety mode or secure mode when exiting the home
- Turning the key to the first selection engages the safety lock, this offers security from the outside whilst allowing occupants inside to safely exit using the internal lever and snib
- Turning the key to the second selection engages the secure lock, this provides internal and external security, and requires the key to unlock the door from inside and outside.
- Suits left or right hand opening doors
- Stainless steel hookbolt for increased security
- Key locking from both sides
- Inside snib locking (with key override)
- Large ergonomically improved snib to assist with operation
- Snib only version also available
- No snib version also available
- Stainless steel front end plates
- Self latching with stainless steel hook deadbolt for improved security performance
- Can only be locked when fully engaged with strike
- Optional 3 point kits available for premium security
- When 3 point kit is fitted, snib activates/operates all 3 locking points
- Push on actuating bar suits above or below centreline applications
- Available in a range of polyester powdercoat and plated finishes
- Fits industry standard cut outs/door preparation
- Retrofits Whitco Tasman Mk2 and Mk3 Locks
- Zinc diecast lock mechanism and furniture
- Easy installation for both new and retrofit applications
- Accepts Lockwood Euro profile lazy cam cylinder
- Suit standard 20mm door thickness
- Available in display and trade packs
 | DualSelect Turn the key for safety mode. Turn the key further to select secure mode. |

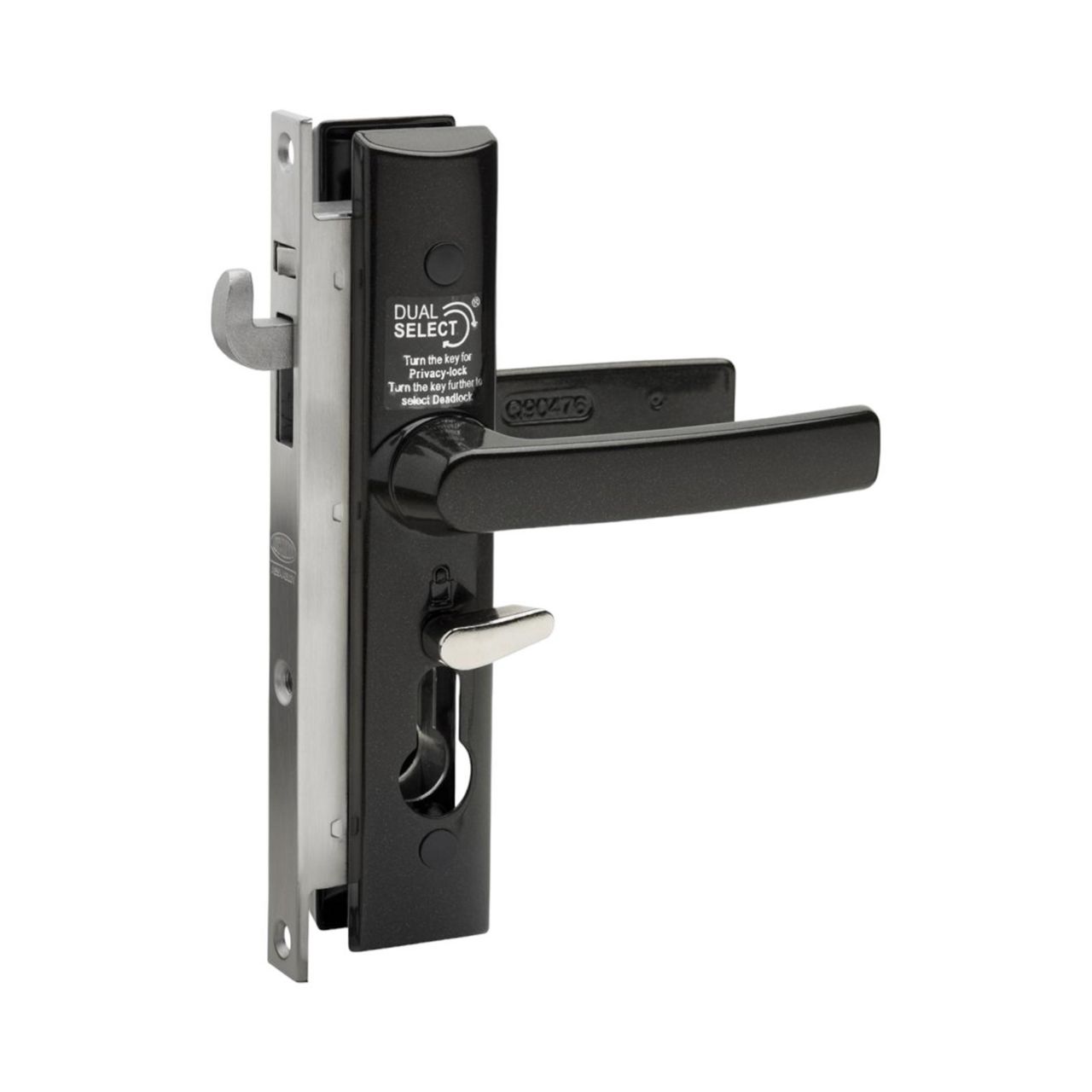

8654 Security Screen Door Lock - Black
8654 Security Screen Door Lock - Black
8654 Security Screen Door Lock - Black

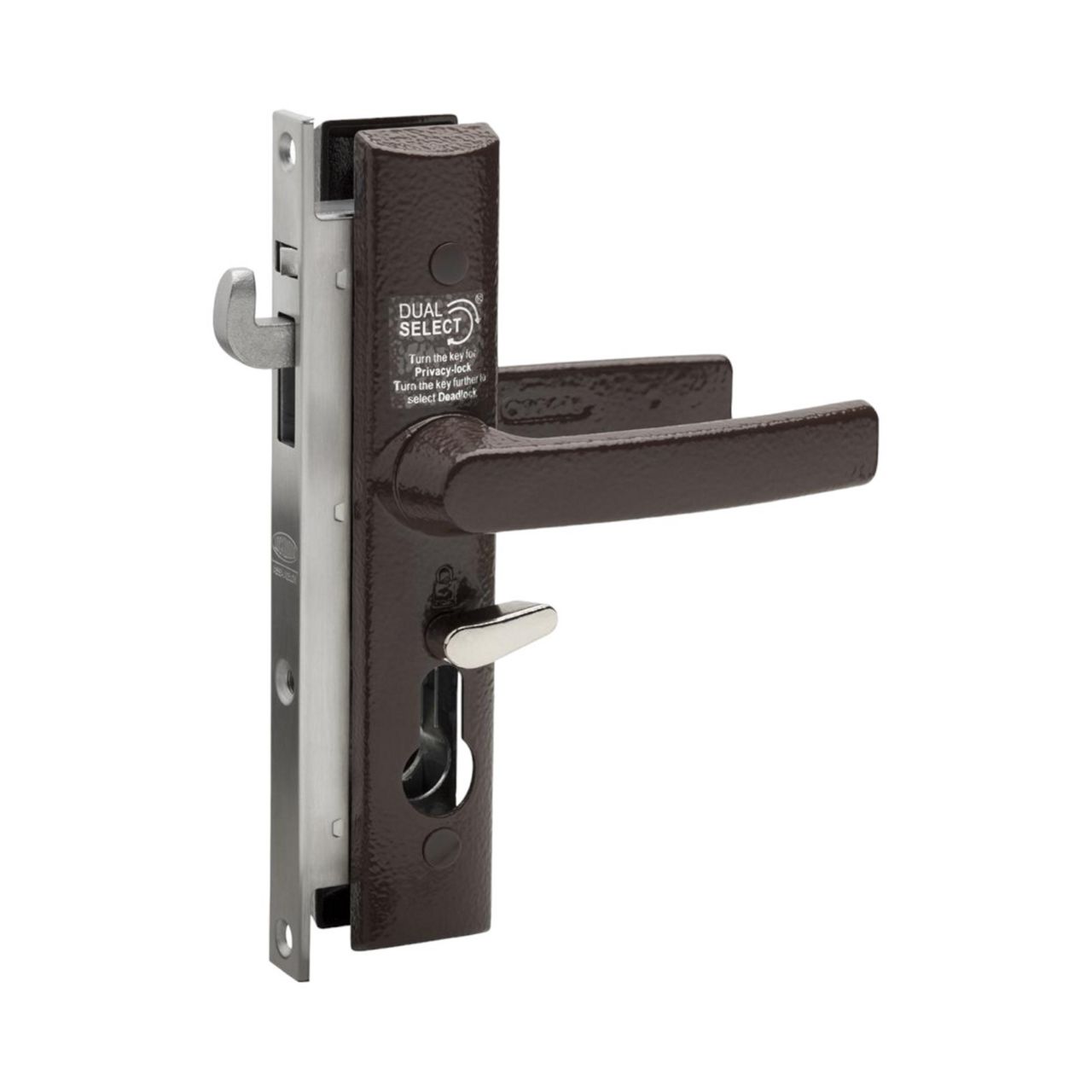

8654 Security Screen Door Lock - Brown
8654 Security Screen Door Lock - Gold Spangle

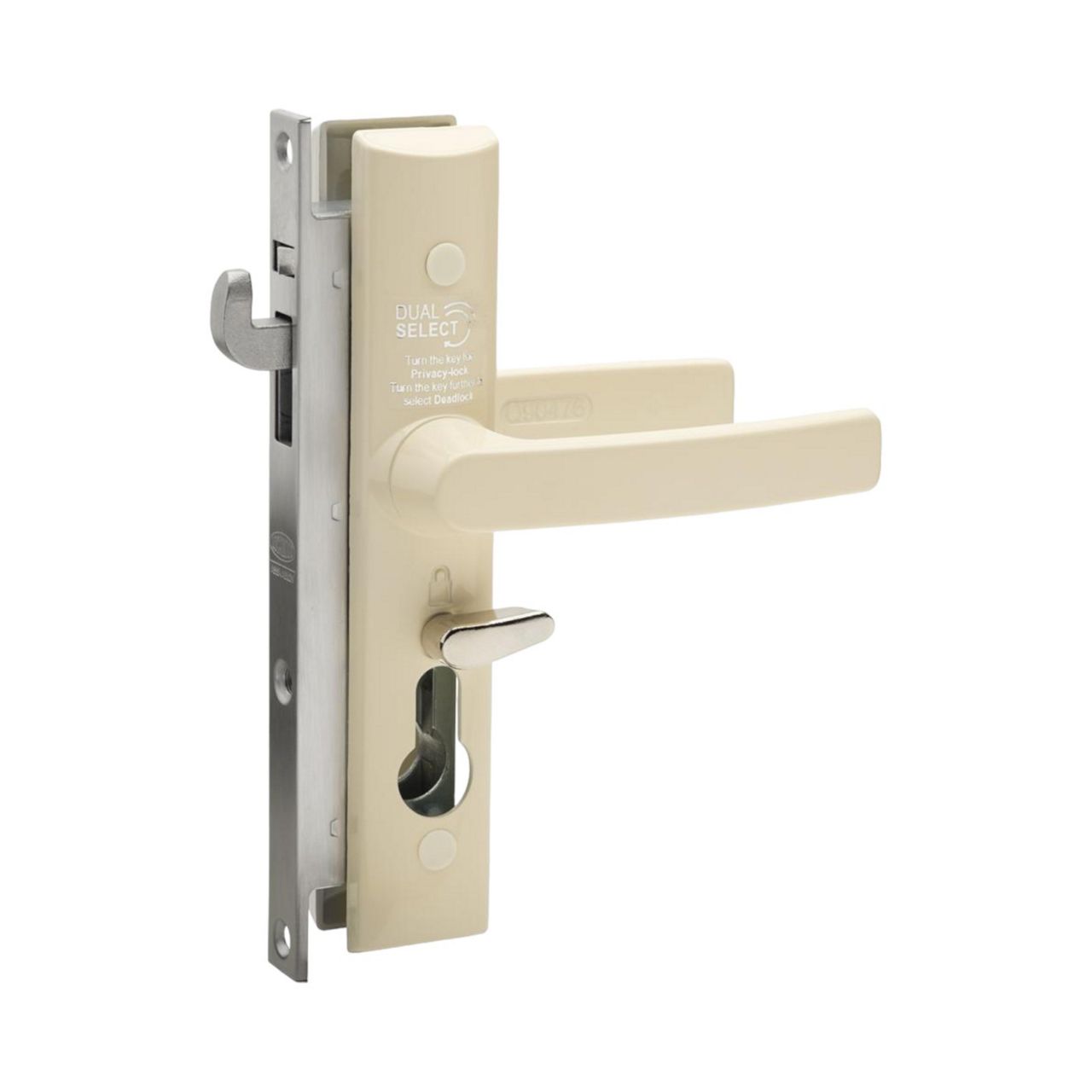

8654 Security Screen Door Lock - Primrose
8654 Security Screen Door Lock - White
Application
Single or multi point mortice hinge security door lock available in high strength (3 point) and standard versions. Snib only and no snib mortice locksets are also available.Keying
- Use with Lockwood Euro profile lazy cam cylinder - with Kinetic Defence™ and Anti-Drill
- 2 x 5 pin cylinder
- Can be keyed alike to other Lockwood C4 door and window products
Standard Finishes
Polyester powdercoat
- Black
- Brown
- Gold Spangle
- Magnolia
- Primrose
- White
- White Birch
Plated
- Chrome Plate
- Satin Chrome Pearl
- Everbrass (Gold Plate)
Accessories
- Standard multi point kit
- High strength multi point kit
Dimensions
Description (Trade Pack) Part number Barcode DualSelect, Lockbody with Furniture, Screws, No Cylinder - Single point lock set no cylinder - Black 8654BLK 9311847110441 DualSelect, Lockbody with Furniture, Screws, No Cylinder - Single point lock set no cylinder - Brown 8654BRN 9311847110458 DualSelect, Lockbody with Furniture, Screws, No Cylinder - Single point lock set no cylinder - Chrome Plate 8654CP 9311847110489 DualSelect, Lockbody with Furniture, Screws, No Cylinder - Single point lock set no cylinder - Everbrass (Gold Plate) 8654EVB 9311847116276 DualSelect, Lockbody with Furniture, Screws, No Cylinder - Single point lock set no cylinder - Gold Spangle 8654GSP 9311847110519 DualSelect, Lockbody with Furniture, Screws, No Cylinder - Single point lock set no cylinder - Magnolia 8654MAG 9311847110526 DualSelect, Lockbody with Furniture, Screws, No Cylinder - Single point lock set no cylinder - Primrose 8654PRM 9311847110465 DualSelect, Lockbody with Furniture, Screws, No Cylinder - Single point lock set no cylinder - Satin Chrome Pearl 8654SP 9311847110496 DualSelect, Lockbody with Furniture, Screws, No Cylinder - Single point lock set no cylinder - Stone Beige 8654STB 9311847110533 DualSelect, Lockbody with Furniture, Screws, No Cylinder - Single point lock set no cylinder - White 8654WH 9311847110472 DualSelect, Lockbody with Furniture, Screws, No Cylinder - Single point lock set no cylinder - White Birch 8654WHB 9311847110540 DualSelect, Lockbody with Furniture, Screws, No Cylinder - Single point lock set snib only - Black 8654SOBLK 9311847116306 DualSelect, Lockbody with Furniture, Screws, No Cylinder - Single point lock set no cylinder, no snib - Black 8654NSBLK 9311847116290 DualSelect, Lockbody with Furniture, Screws, No Cylinder - Single point lock set no cylinder, extra wide strike - Black 8654EWSBLK 9311847116283 DualSelect, Lockbody with Furniture, Screws, No Cylinder - Standard 3 point kit 8654-3PK 9311847110564 DualSelect, Lockbody with Furniture, Screws, No Cylinder - High security 3 point kit 8654 - 3PK/HS 9311847110571
