LOCKWOOD

Lockwood 680 Patio Bolt

The Lockwood 680 Patio Bolt is a strong, heavy duty, surface mounted product designed to improve security in a range of residential sliding and hinge door applications.

It is easy to install and has been designed to suit a wide range of aluminium and timber sliding patio and hinge door applications.

It is offered in gold, chrome plate, satin chrome pearl and a range of powdercoat finishes.

Features of the 680 Patio Bolt

  • Easy to install
  • High purity high pressure zinc alloy case
  • Steel, zinc plated bolt
  • Concealed fixing by conventional cross recess head screws
  • Solid brass 5 pin cylinder
  • Can be keyed alike, master keyed, grand master keyed, maison keyed or construction keyed in Lockwood C4 5 and 6 pin, Generation Six and Twin keying systems
  • Exceeds Australian Standard 4145.2-2008, Mechanical Locksets for Doors and Windows in Buildings, to Level SL6. Exceeds Australian Standard 4145.2-2008, Mechanical Locksets for Doors and Windows in Buildings, with standard length bolt, to Level SL4 – with extended length bolt accessory.
Kinetic Defence
Bump and pick resistant.
2 Keys Included
Can be keyed alike to other Lockwood door locks.
Find your local Lockwood stockist

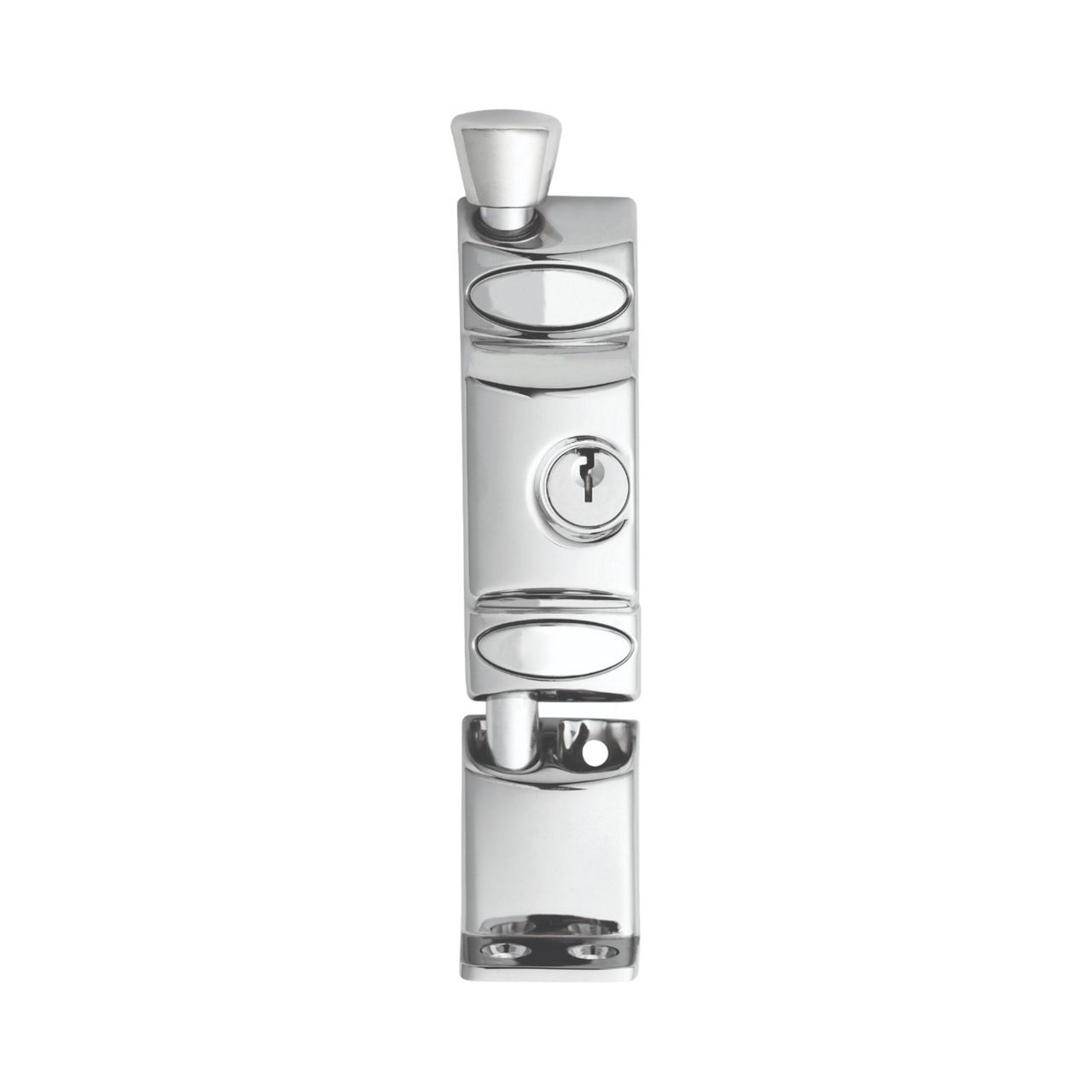

66828-680_patio_bolt_cp0266828-680_patio_bolt_cp02

  • Suitability

    • A range of residential sliding and hinged door applications.

    Fixing Surfaces

    • Timber
    • Metal

    Materials

    Case
    High purity high pressure zinc alloy.

    Bolt
    Steel, zinc plated.

    Bolt Head

    • Powder coat models: Moulded from ABS polymer.
    • Plated models: Bright chrome plated high pressure zinc alloy.

    Cylinder
    Solid brass 5 pin cylinder.

    Fixing

    Concealed fixing by Phillips head screws.

    Keying

    Standard Keying

    • Supplied individually keyed with two keys per lock
    • 78,000 key combinations
    • Key blank KB2015P

    Restricted Special Keying

    Lockwood locks can be keyed to a number of controlled and/or specially keyed systems. These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.

    More information - Lockwood Keying Platforms

    Dimensions

  • Lockwood Bolts Catalogue(PDF, 2 MB)
    Lockwood Home Security Solutions(PDF, 4 MB)
    680 Patio Bolt Installation(PDF, 3 MB)
  • Trade Pack

    With Die Cast Keeper

    DescriptionPart NumberBarcode
    Everbrass® (Lifetime Finish Warranty)680-NEVB93-11847-76109-4
    Chrome Plate680-NCP93-11847-76110-0
    Satin Chrome Pearl680-NSP93-11847-76111-7
    Black680-NBLK93-11847-76112-4
    Brown680-NBRN93-11847-76113-1
    Primrose680-NPRM93-11847-76115-5
    White680-NWH93-11847-76116-2



    Accessories

    DescriptionPart NumberBarcode
    Flat Steel Zinc Plated Keeper680-N45393-11847-76133-9

    (Sold in pack of 20 only/no split packs/price is per each, not pack)



    DescriptionPart NumberBarcode
    Body Packer, Plastic680-N31693-11847-76134-6

    (Sold in pack of 10 only/no split packs/price is per each, not pack)



    DescriptionPart NumberBarcode
    Extended Bolt, 50mm Extension, Black Knob680-N210BLK93-11847-76135-3



    Display Pack

    Single Pack

    DescriptionPart NumberBarcode
    Satin Chrome Pearl680-NSPDP93-11847-76095-0
    Black680-NBLKDP93-11847-76096-7
