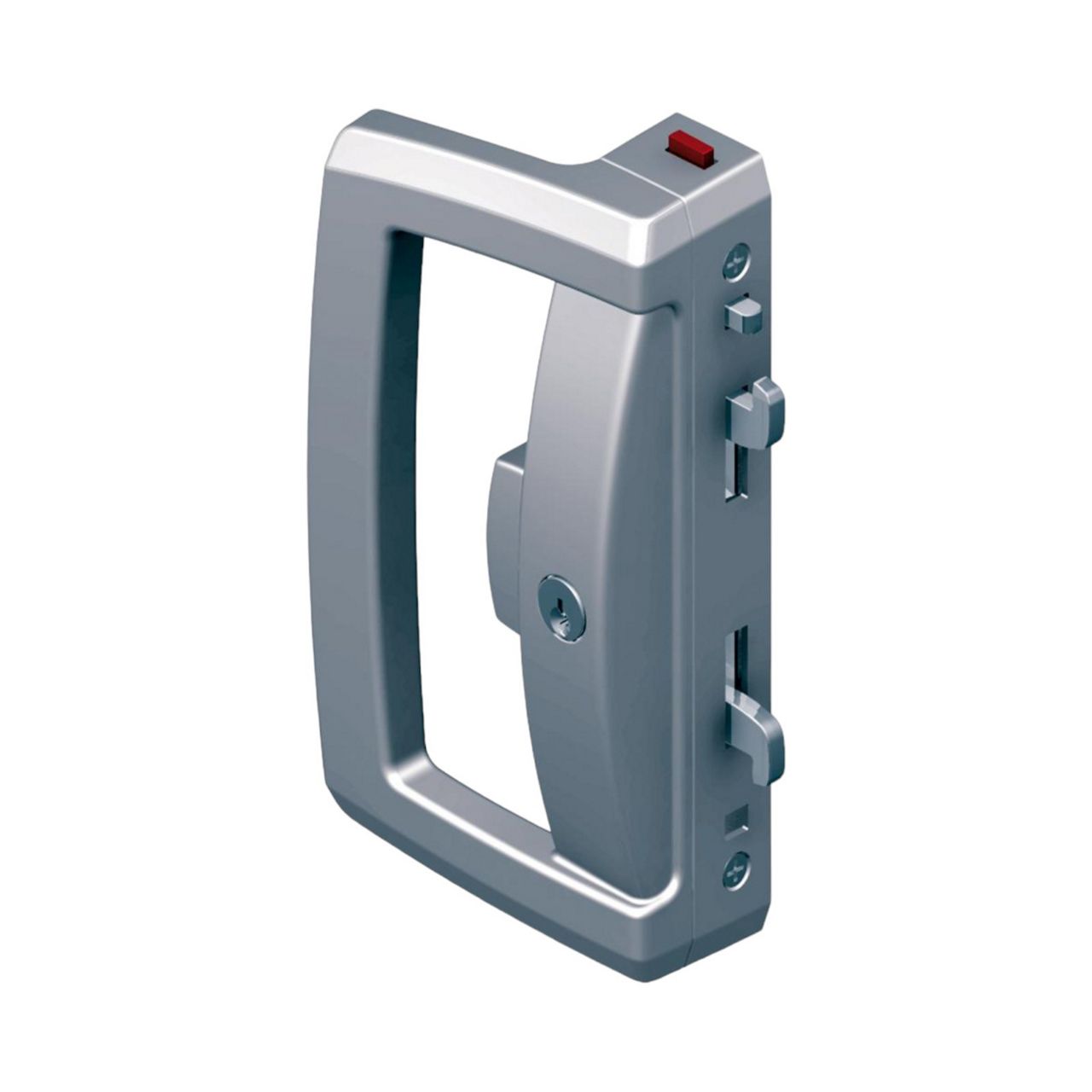

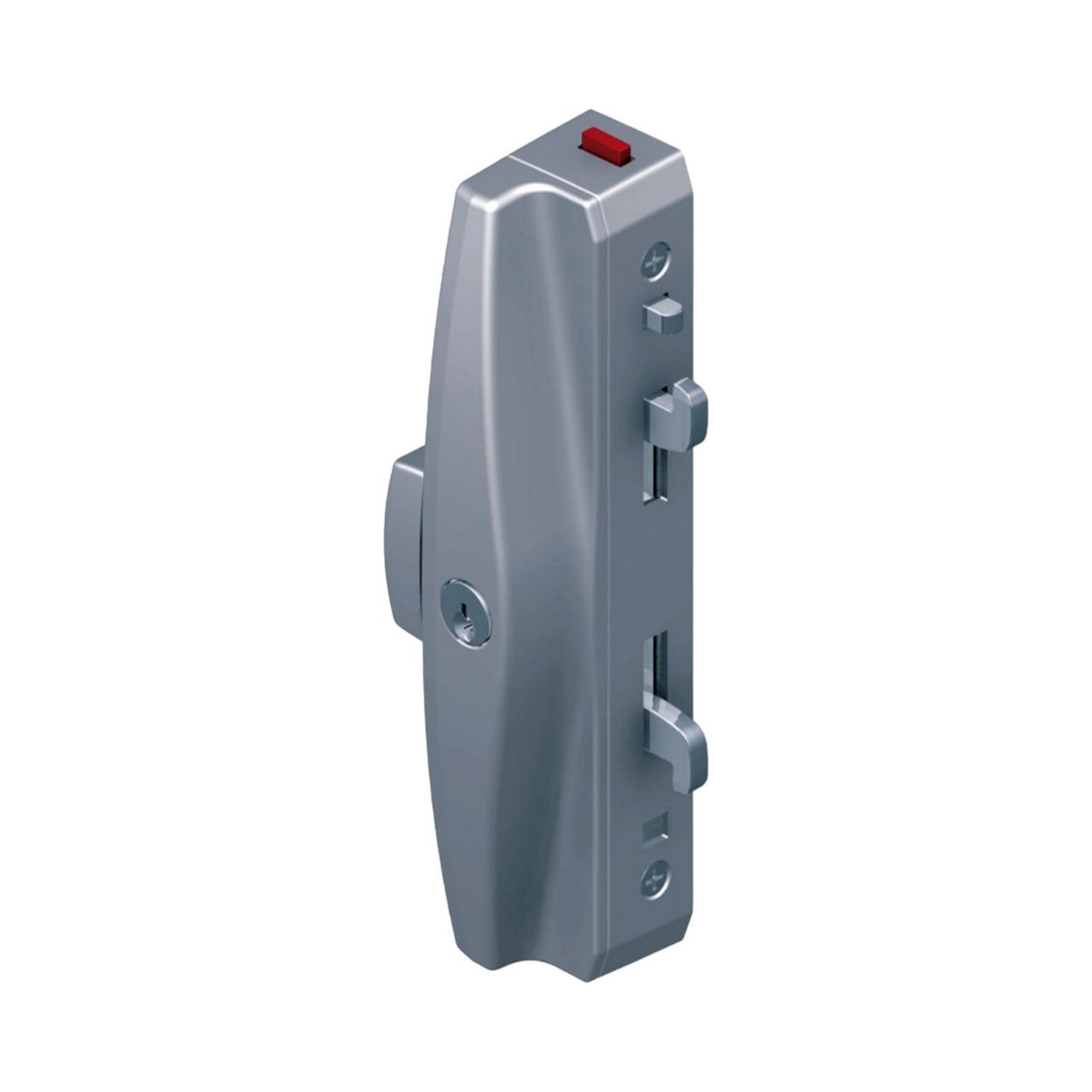

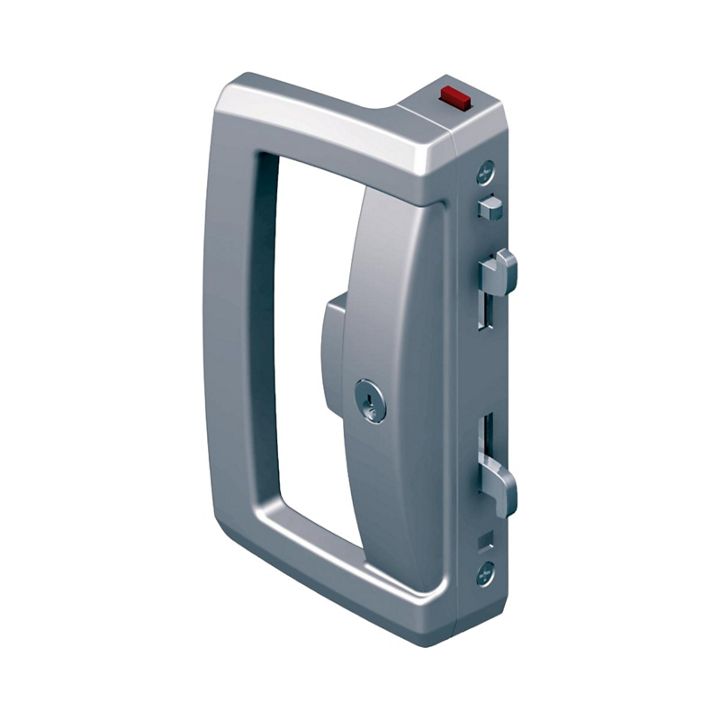

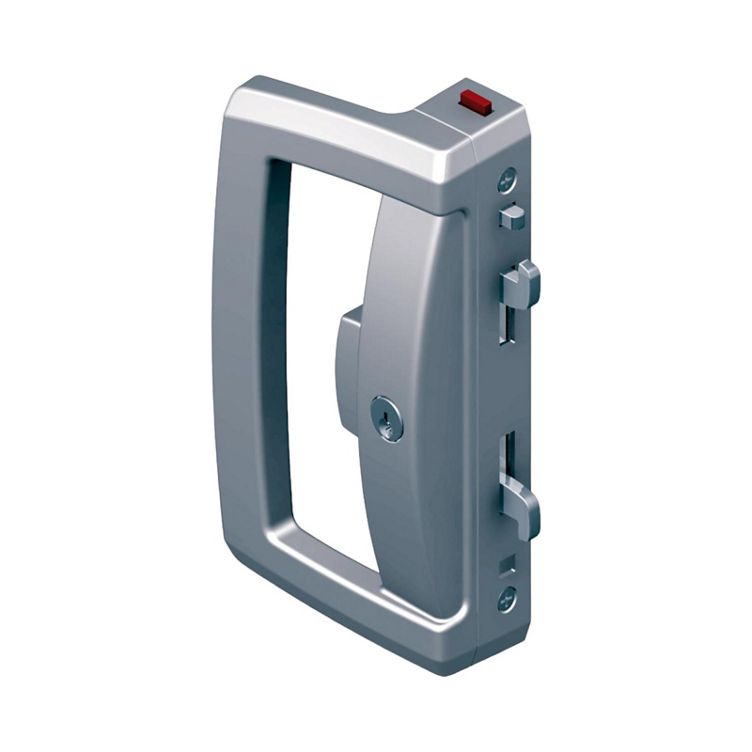

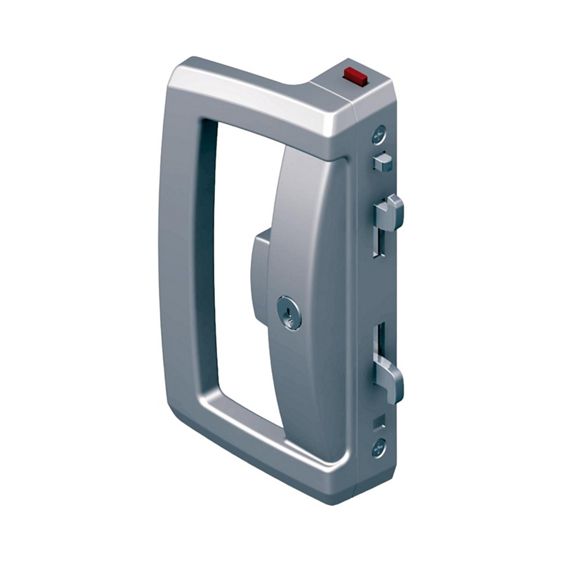

Lockwood Onyx Patio Sliding Door Lock

The Lockwood Onyx range incorporates advanced security and safety features making this product the ideal choice for sliding patio door applications.

Style and Function
This range takes design cues from contemporary architectural styling and complements several of Lockwood’s most popular levers to provide a harmonious look and feel throughout the home. The functionality of the Onyx range has been enhanced by the intuitive operation of the unique sliding snib and the innovative LockAlert feature that indicates the lock status at a glance.

Application
Surface mounted lockset suitable for use with most aluminium and timber sliding doors. The flexible chassis coupled with innovative design features results in a non-handed product that is extremely easy to install and suitable for new and most retrofit applications.

Features of the Onyx Sliding Patio Door Lock

  • Twin locking beaks for added security
  • Door Close Detect button (DCD) anti slam feature protects locking beaks from accidental damage
  • LockAlert® indicator shows lockset status at a glance
  • DualSelect® enables two stage key locking
  • Safety Release™ function minimises the risk of being locked in
  • Ergonomic sliding snib with intuitive downward motion to unlock

Strength and Durability
Made to the highest quality levels, the Onyx range satisfies the Australian Standard requirements for strength and durability.

Product Range
A wide selection of furniture options are available in the Onyx range to suit various sliding door applications. The range includes internal D handles and slim pulls and a variety of external furniture and strike options.

DualSelect
Turn the key for safety mode. Turn the key further to select secure mode.

LockAlert
Indicator shows lock status at a glance.
Kinetic Defence®
Bump & Pick Resistant.
Twin Locking Beaks
For added security.
Door Close Detect (DCD)
Anti slam feature protects from accidental damage and ensures door is closed before being latched or locked.
2 Keys Included
Can be keyed alike to other Lockwood door locks.
Find your local Lockwood stockist

  • Door Thickness
    Door thickness range 19mm to 50mm with the standard screw fixing pack provided.
    Longer screws and tailbars are available upon application.

    Fixing
    Surface mounted lockset with concealed fixing.
    Industry standard 82mm pitching centres.

    Handing
    Field selectable handing enables selection of handing during installation.

    Keying

    Standard Keying

    • Supplied individually keyed with two keys per lock
    • 78,000 key combinations
    • Key blank KB2015P

    Restricted Special Keying

    Lockwood locks can be keyed to a number of controlled and/or specially keyed systems. These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.

    Materials

    • Zinc diecast construction
    • Brass cylinders (Satin Chrome Pearl finish)

    Standards
    Conforms to Australian Standard AS4145.2:2008. Mechanical Locksets for Doors and Windows in Buildings.

    • Physical security – S4
    • Durability – D8

    Standard Finishes

    • Black Powdercoat BLK
    • Silver Powdercoat SIL
    • White Powdercoat WH
    • Satin Chrome Pearl SP

    Other plated and powdercoated finishes available as special order.

  • Lockwood Sliding Door Hardware Catalogue(PDF, 2 MB)
    Lockwood Home Security Solutions(PDF, 4 MB)
    Onyx Sliding Door Lock - Installation Instructions(PDF, 544 KB)

Ordering Info

  • D Inner, Slim Outer Pull, Uni Strike With 5pin Double Cylinder

    DescriptionPart NumberBarcode
    Black9A1A2/5PBLK94-16793-14957-3
    Silver9A1A2/5PSIL94-16793-14959-7
    White9A1A2/5PWH94-16793-14960-3

    D Inner, Slim Outer Pull, Extra Width Strike With 5pin Double Cylinder

    DescriptionPart NumberBarcode
    Black9A1A3/5PBLK94-16793-15106-4

    D Inner, Slim Outer Pull, Uni Strike, 5 Pin Inner Cylinder

    DescriptionPart NumberBarcode
    Black9A1B2/5PBLK94-16793-14961-0
    Silver9A1B2/5PSIL94-16793-14963-4
    White9A1B2/5PWH93-11847-96865-3

    D Inner, Slim Outer Pull, Uni Strike, 5 Pin Outer Cylinder

    DescriptionPart NumberBarcode
    Black9A2A2/5PBLK94-16793-14965-8
    Silver9A2A2/5PSIL93-11847-96866-0
    White9A2A2/5PWH93-11847-96867-7

    D Inner, Slim Outer Pull, Uni Strike, Non Key Locking

    DescriptionPart NumberBarcode
    Black9A2B2/XXBLK94-16793-14969-6
    Silver9A2B2/XXSIL93-11847-96869-1
    White9A2B2/XXWH93-11847-96870-7

    D Inner Handle Non Key Locking, No Outer Pull, No Strike

    DescriptionPart NumberBarcode
    Black9A2X0/XXBLK94-16793-14973-3
    Silver9A2X0/XXSIL93-11847-96884-4
    White9A2X0/XXWH93-11847-96886-8

    Outer pull and strike required to be ordered separately.

    D Inner Handle Key Locking, Slim Outer Pull, No Strike

    DescriptionPart NumberBarcode
    Black9A1A0/5PBLK94-16793-14953-5
    Silver9A1A0/5PSIL93-11847-96890-5
    White9A1A0/5PWH93-11847-96891-2

    Strike required to be ordered separately.

  • Slim Inner, Slim Outer Pull, Uni Strike With 5pin Double Cylinder

    DescriptionPart NumberBarcode
    Black9A3A2/5PBLK94-16793-15166-8
    Silver9A3A2/5PSIL94-16793-15170-5
    White9A3A2/5PWH94-16793-15171-2
    Satin Chrome Pearl9A3A2/5PSP94-16793-15169-9

    Slim Inner, Slim Outer Pull, Extra Width Strike With 5pin Double Cylinder

    DescriptionPart NumberBarcode
    Black9A3A3/5PBLK94-16793-15178-1

    Slim Inner, Slim Outer Pull Non Locking, Uni Strike, 5 Pin Inner Cylinder

    DescriptionPart NumberBarcode
    Black9A3B2/5PBLK93-11847-96922-3
    Silver9A3B2/5PSIL93-11847-96923-0
    White9A3B2/5PWH93-11847-96925-4

    Slim Inner Non Locking, Slim Outer Pull, Uni Strike, 5 Pin Outer Cylinder

    DescriptionPart NumberBarcode
    Black9A4A2/5PBLK93-11847-96948-3
    Silver9A4A2/5PSIL93-11847-96950-6

    Slim Inner Non Key Locking, Slim Outer Pull, Uni Strike Non Key Locking

    DescriptionPart NumberBarcode
    Black9A4B2/XXBLK94-16793-15206-1
    Silver9A4B2/XXSIL93-11847-96956-8

    Slim Inner Non Key Locking, No Outer Pull, No Strike

    DescriptionPart NumberBarcode
    Black9A4X0/XXBLK93-11847-96977-3
    Silver9A4X0/XXSIL93-11847-96978-0
    White9A4X0/XXWH93-11847-96979-7

    Outer pull and strike required to be ordered separately.

    Slim Inner, Slim Outer Pull, No Strike, 5pin Double Cylinder

    DescriptionPart NumberBarcode
    Black9A3A0/5PBLK93-11847-96982-7
    Silver9A3A0/5PSIL93-11847-96983-4
    White9A3A0/5PWH93-11847-96984-1

    Strike required to be ordered separately.

  • D Inner, Slim Outer Pull, Uni Strike, No Cylinder

    DescriptionPart NumberBarcode
    Black9A1A2/NCBLK93-11847-97459-3
    Silver9A1A2/NCSIL93-11847-97461-6
    White9A1A2/NCWH93-11847-97462-3
    Satin Chrome Pearl9A1A2/NCSP93-11847-97460-9

    D Inner, Slim Outer Pull, Extra Width Strike, No Cylinder

    DescriptionPart NumberBarcode
    Black9A1A3/NCBLK93-11847-97458-6

    D Inner, Slim Outer Pull Non Locking, Uni Strike, No Inner Cylinder

    DescriptionPart NumberBarcode
    Black9A1B2/NCBLK93-11847-97434-0
    Silver9A1B2/NCSIL93-11847-97436-4
    White9A1B2/NCWH93-11847-97340-4

    D Inner Non Locking, Slim Outer Pull, Uni Strike, No Outer Cylinder

    DescriptionPart NumberBarcode
    Black9A2A2/NCBLK93-11847-97433-3

    D Inner, No Outer Pull, No Strike, No Cylinder

    DescriptionPart NumberBarcode
    Black9A1X0/NCBLK93-11847-97407-4
    Silver9A1X0/NCSIL93-11847-97409-8
    White9A1X0/NCWH93-11847-97410-4

    Outer pull, strike and cylinder required to be ordered separately.

    D Inner, Slim Outer Pull, No Strike, No Cylinder

    DescriptionPart NumberBarcode
    Black9A1A0/NCBLK93-11847-97437-1
    Silver9A1A0/NCSIL93-11847-97350-3
    White9A1A0/NCWH93-11847-97385-5
    Satin Chrome Pearl9A1A0/NCSP93-11847-97906-2

    Strike and cylinder required to be ordered separately.

  • Slim Inner, Slim Outer Pull, Uni Strike, No Cylinder

    DescriptionPart NumberBarcode
    Black9A3A2/NCBLK93-11847-97454-8
    Silver9A3A2/NCSIL93-11847-97455-5
    White9A3A2/NCWH93-11847-97456-2

    Slim Inner, Slim Outer Pull, Extra Width Strike, No Cylinder

    DescriptionPart NumberBarcode
    Black9A3A3/NCBLK93-11847-97457-9

    Slim Inner, Slim Outer Pull Non Locking, Uni Strike, No Inner Cylinder

    DescriptionPart NumberBarcode
    Black9A3B2/NCBLK93-11847-97352-7
    Silver9A3B2/NCSIL93-11847-97354-1
    White9A3B2/NCWH93-11847-97356-5

    Slim Inner Non Locking, Slim Outer Pull, Uni Strike, No Outer Cylinder

    DescriptionPart NumberBarcode
    Black9A4A2/NCBLK93-11847-97365-7
    Silver9A4A2/NCSIL93-11847-97367-1
    White9A4A2/NCWH93-11847-97368-8

    Slim Inner, No Outer Pull, No Strike

    DescriptionPart NumberBarcode
    Black9A3X0/NCBLK93-11847-97411-1
    Silver9A3X0/NCSIL93-11847-97413-5
    White9A3X0/NCWH93-11847-97414-2

    Outer pull, strike and cylinder required to be ordered separately.

    Slim Inner, Slim Outer Pull, No Strike, No Cylinder

    DescriptionPart NumberBarcode
    Black9A3A0/NCBLK93-11847-97373-2
    Silver9A3A0/NCSIL93-11847-97375-6
    White9A3A0/NCWH93-11847-97376-3
    Satin Chrome Pearl9A3A0/NCSP93-11847-97822-5

    Strike and cylinder required to be ordered separately.

  • D Inner Dummy, No Outer Pull, No Strike

    DescriptionPart NumberBarcode
    Black9A5X0/XXBLK94-16793-14977-1
    Silver9A5X0/XXSIL93-11847-97067-0
    White9A5X0/XXWH93-11847-97068-7
    Satin Chrome Pearl9A5X0/XXSP93-11847-96597-3

    Outer pull and strike required to be ordered separately.

    Slim Inner Dummy, No Outer Pull, No Strike

    DescriptionPart NumberBarcode
    Black9A6X0/XXBLK93-11847-97070-0
    Silver9A6X0/XXSIL93-11847-97071-7
    White9A6X0/XXWH93-11847-97072-4
    Satin Chrome Pearl9A6X0/XXSP93-11847-96598-0

    Outer pull and strike required to be ordered separately.

    D Inner Dummy, Slim Outer Pull, Side Fix Strike Attached

    DescriptionPart NumberBarcode
    Black9A5B4/XXBLK93-11847-97074-8

    Slim Inner Dummy, Slim Outer Pull, Side Fix Strike Attached

    DescriptionPart NumberBarcode
    Black9A6B4/XXBLK93-11847-97084-7

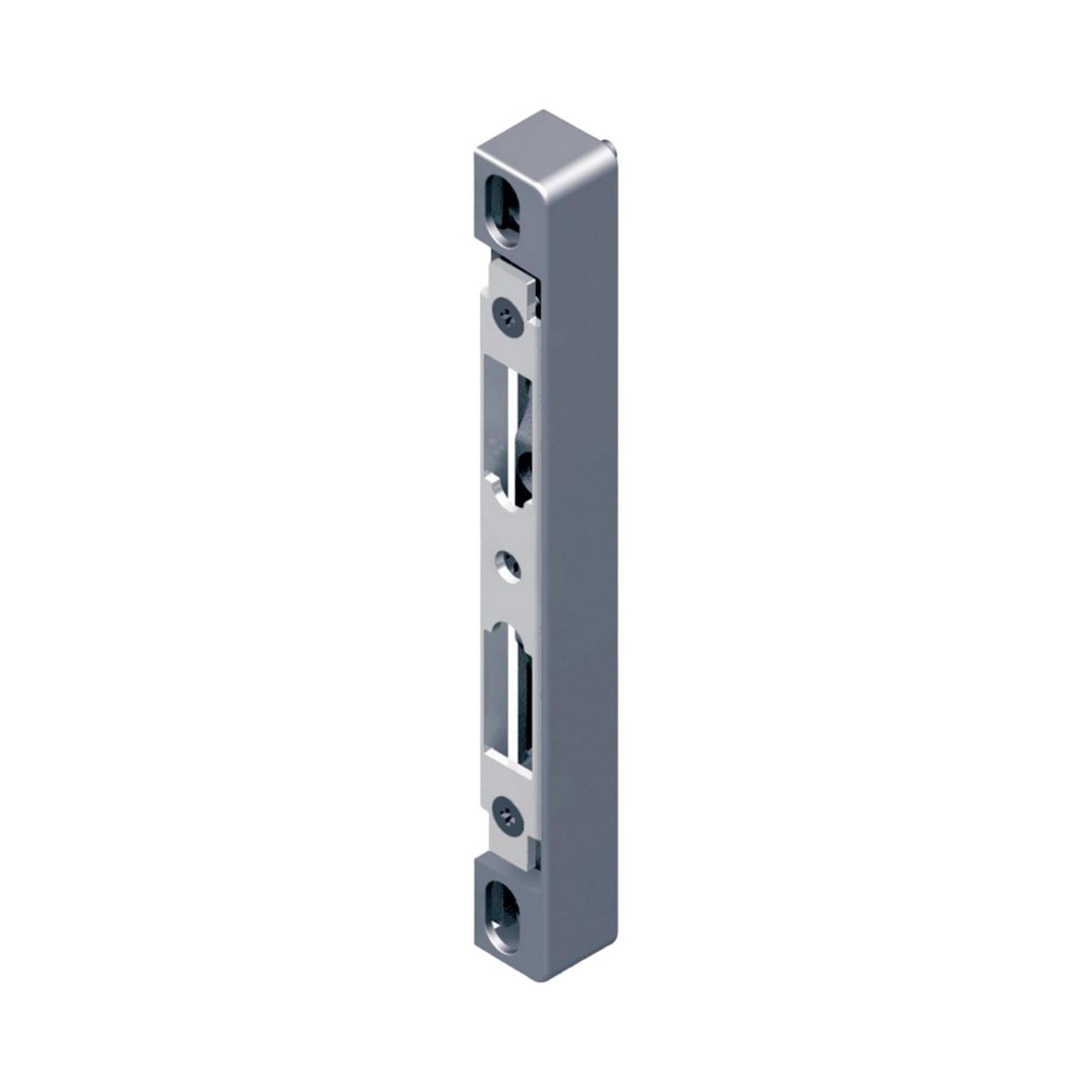

  • Universal Strike

    DescriptionPart NumberBarcode
    Black9A0X2/XXBLK93-11847-96775-5
    Silver9A0X2/XXSIL93-11847-96776-2
    White9A0X2/XXWH93-11847-97098-4
    Satin Chrome Pearl9A0X2/XXSP93-11847-97760-0

    Extra Width Strike

    DescriptionPart NumberBarcode
    Black9A0X3/XXBLK93-11847-96777-9
    Silver9A0X3/XXSIL93-11847-97102-8
    White9A0X3/XXWH93-11847-97158-5
    Satin Chrome Pearl9A0X3/XXSP93-11847-97761-7

    Surface Strike

    DescriptionPart NumberBarcode
    Black9A0X1/XXBLK93-11847-97142-4
    Silver9A0X1/XXSIL93-11847-97143-1
    White9A0X1/XXWH93-11847-97144-8

    Side Fix Strike

    DescriptionPart NumberBarcode
    Black9A0X4/XXBLK93-11847-97150-9
    Silver9A0X4/XXSIL93-11847-97151-6
    White9A0X4/XXWH93-11847-97152-3
    Satin Chrome Pearl9A0X4/XXSP93-11847-97762-4

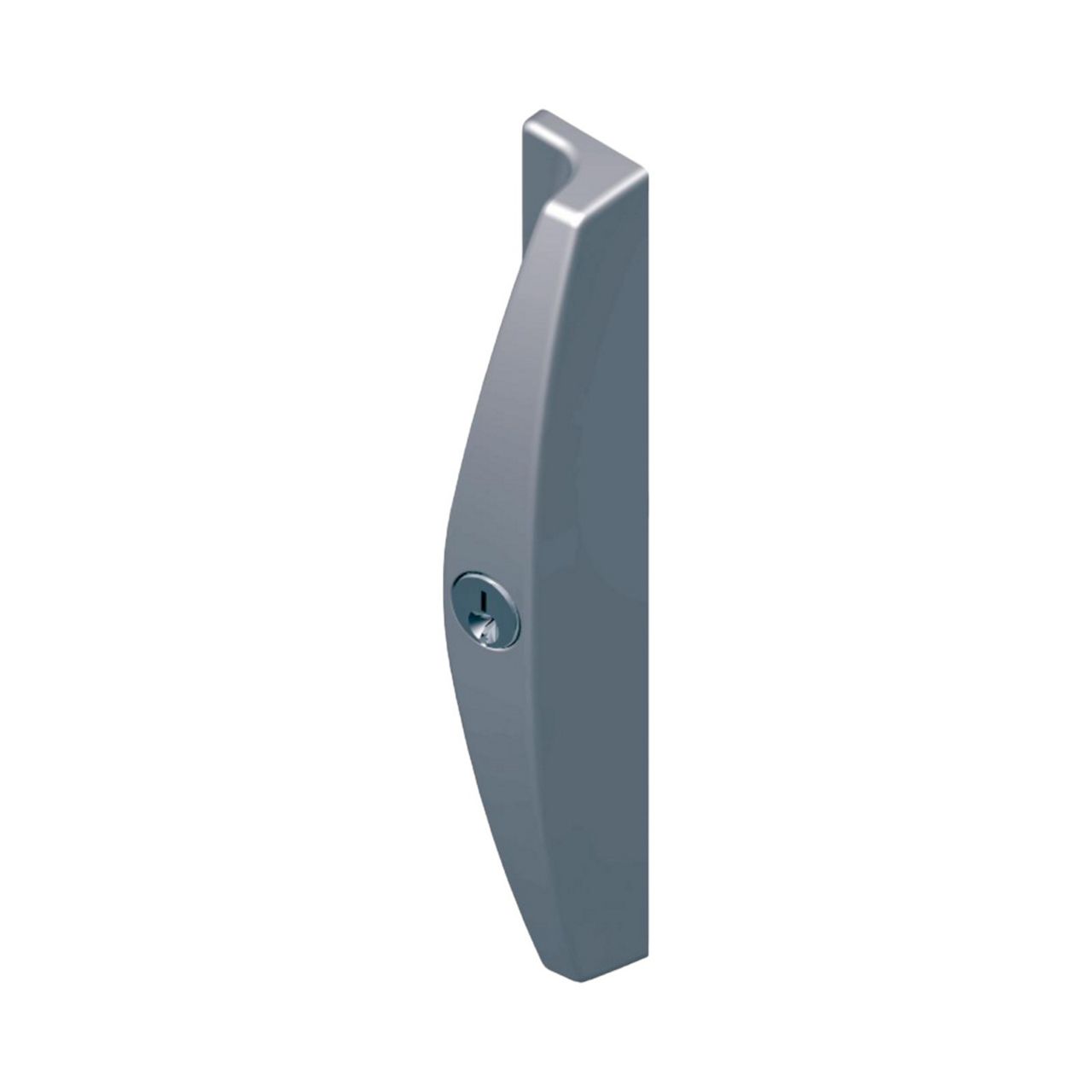

  • Slim Outer Pull - With Cylinder Hole

    DescriptionPart NumberBarcode
    Black9A0A0/XXBLK93-11847-96778-6
    Silver9A0A0/XXSIL93-11847-97170-7
    White9A0A0/XXWH93-11847-97171-4

    Cylinder locator to be ordered separately - 9A-159RED

    Slim Outer Pull - Without Cylinder Hole

    DescriptionPart NumberBarcode
    Black9A0B0/XXBLK93-11847-96779-3
    Silver9A0B0/XXSIL93-11847-97173-8
    White9A0B0/XXWH93-11847-97174-5
    Satin Chrome Pearl9A0B0/XXSP93-11847-97965-9

    Flat Outer Pull - With Cylinder Hole

    DescriptionPart NumberBarcode
    Black9A0C0/XXBLK93-11847-96606-2
    Silver9A0C0/XXSIL93-11847-97125-7
    White9A0C0/XXWH93-11847-97126-4

    Cylinder locator to be ordered separately - 9A-190

    Flat Outer Pull - Without Cylinder Hole

    DescriptionPart NumberBarcode
    Black9A0D0/XXBLK93-11847-97179-0
    Silver9A0D0/XXSIL93-11847-97181-3
    White9A0D0/XXWH93-11847-97182-0

    Cover Plate

    DescriptionPart NumberBarcode
    Black9A0G0/XXBLK93-11847-97040-3
    Silver9A0G0/XXSIL93-11847-97041-0
    White9A0G0/XXWH93-11847-97042-7

  • Handle Packer

    DescriptionPart NumberBarcode
    Black9A-15BLK94-16793-15234-4
    Silver9A-15SIL94-16793-15235-1
    White9A-15WH93-11847-97196-7
    Satin Chrome Pearl9A-15SP93-11847-97844-7

    Strike Packer

    DescriptionPart NumberBarcode
    Uni Strike Packer 5mm9A-141BLK93-11847-96838-7
    Surface Fix Packer 3mm9A-142BLK93-11847-97197-4
    Extra Width Strike Packer 3mm9A-143BLK93-11847-99216-0
    Uni Strike Packer 11mm9A-144BLK93-11847-97198-1



    ONYX SPARE PARTS

    Cylinders

    DescriptionPart NumberBarcode
    5pin Double Cylinder Assembly SC9A-CYL522SP93-11847-97204-9
    5pin Inside Cylinder Assembly SC9A-CYL521SP93-11847-97203-2
    5pin Outside Cylinder Assembly SC9A-CYL520SP93-11847-97202-5

    Outside 5pin Cylinder Retainer For Slim Outer Pull

    DescriptionPart NumberBarcode
    5pin - Red9A-159RED93-11847-97121-9

    Outside 5pin Cylinder Retainer For Flat Or Mortice Outer Pull

    DescriptionPart NumberBarcode
    5Pin9A-19093-11847-97260-5

    6 Pin Cylinders

    DescriptionPart Number
    6pin Double Cylinder Assembly SC9A-CYL622SP6KA
    6pin Inside Cylinder Assembly SC9A-CYL621SP6KA
    6pin Outside Cylinder Assembly SC9A-CYL620SP6KA

    Outside 6pin Cylinder Retainer For Slim Outer Pull

    DescriptionPart NumberBarcode
    6pin - Blue9A-160BLUE93-11847-97859-1

    Outside 6pin Cylinder Retainer For Flat Or Mortice Outer Pull

    DescriptionPart NumberBarcode
    6pin9A-22093-11847-97858-4

  • D Inner, Slim Outer Pull, Uni Strike with 5pin Double Cylinder Assembly

    DescriptionPart NumberBarcode
    Black9A1A2/5PBLKDP94-16793-15094-4
    Silver9A1A2/5PSILDP93-40116-00949-0
    White9A1A2/5PWHDP94-16793-15099-9

Related products

  • Lockwood 680 Patio Bolt

    Surface mounted heavy duty bolt.

  • Lockwood 8653 Sliding Security Screen Door Locks

    LockAlert feature indicates the lock status at a glance.

  • Lockwood Cavity Sliding Door Locks

    Available in Entrance, Privacy, Passage and Passage Latch models.
Experience a safer and more open world
